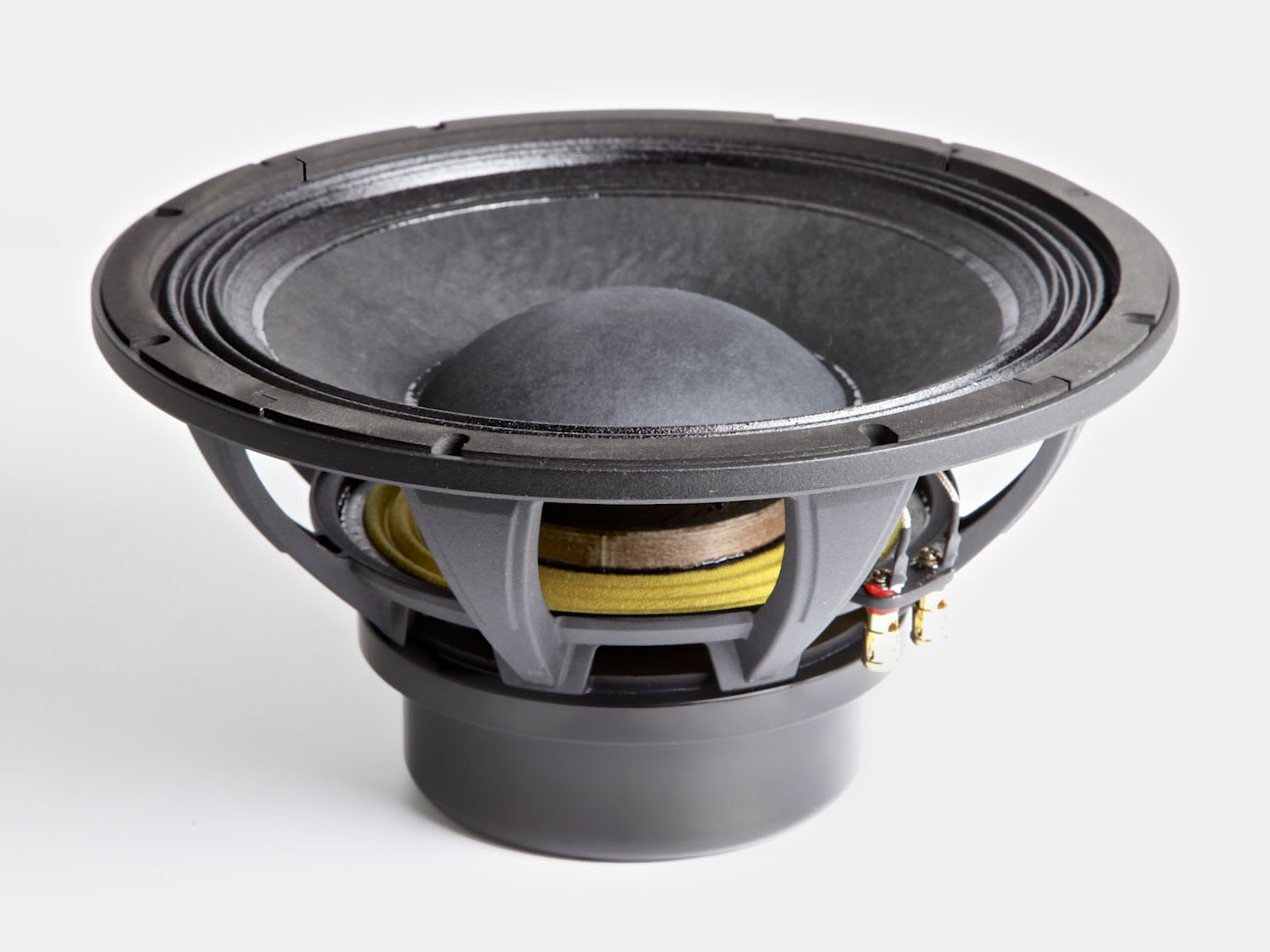

12" | 122NPW
Neodymium Woofer
Neodymium Woofer
Neodymium Woofer Neodymium Woofer
Key features:
  • Carbon fiber filled paper cone
  • Double silicone spider
  • High power handling
Design notes:
The 122NPW is a high efficiency, (97 dB 1watt / 1 meter) 12-inch woofer with incredibly linear frequency response characteristics, extreme high power handling capability while generating low harmonic distortion artifacts. The 122NPW uses a lightweight carbon fiber loaded cone assembly along with a high excursion triple roll constant geometry surround. This combination provides remarkable strength, high efficiency and a peak to peak maximum excursion of 19mm. Woofer features REDCATT double silicone sealed spider. Power HandlingAt the core of the 122NPW is it’s voice coil technology featuring a composite Polyimide former material capable of withstanding peak temperatures in excess of 350degC, well beyond the thermal requirements of modern professional audio systems. The woofer cone is also extensively treated to withstand harsh environments and high humidity. Metal parts in the speaker assembly are coated for extreme weatherization protection.
Specifications:
  • General specs
    Nominal Diameter: 12 in.
    Rated Impedance: 8 Ohm
    Power handling
    AES Power: 800 Watts
    Program Power: 1,600 Watts
    Voice Coil
    Diameter: 4 in.
    Winding wire: Copper
    Former: kapton
    Winding height: 25.5 mm
  • T/S Parameters
    Resonant frequency: 35 Hz
    Re: 5.5 ohm
    Qes: 0.17
    Qms: 6.65
    Qts: 0.17
    Vas: 81.9 liters
    Sd: 551 cm2
    Mms: 81.9 grams
    Bl: 27
    Le: 1.27 mH
    Sensitivity: 96.88 dB
  • Design details
    Surround Material: Fabric
    Cone material: Paper
    Spider: Nomex
    Plate thickness: 14 mm
    Peak to peak linear cone Displacement 19.2 mm
    Overall diameter: 322 mm
    Bolt circle diameter: 302 mm
    Baffle cutout dia.: 287 mm
    Number of mounting holes: 8
    Depth (flange to rear): 154 mm
    Net weight: 7.6 kg
  • Ordering codes:
    8 ohm version: 122NPWX8-102
    Recone kits:
    Download:
    Spec download

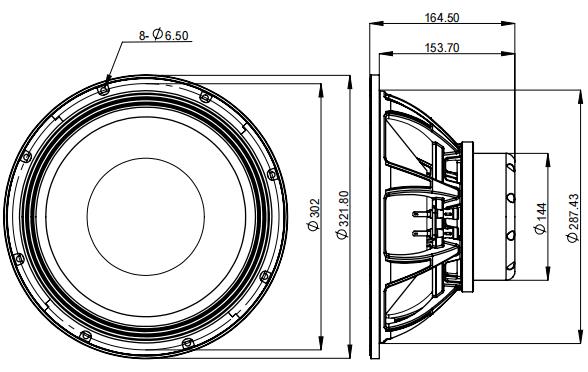

    2D drawing
    3D model
Frequency response & lmpedance
2D drawing
