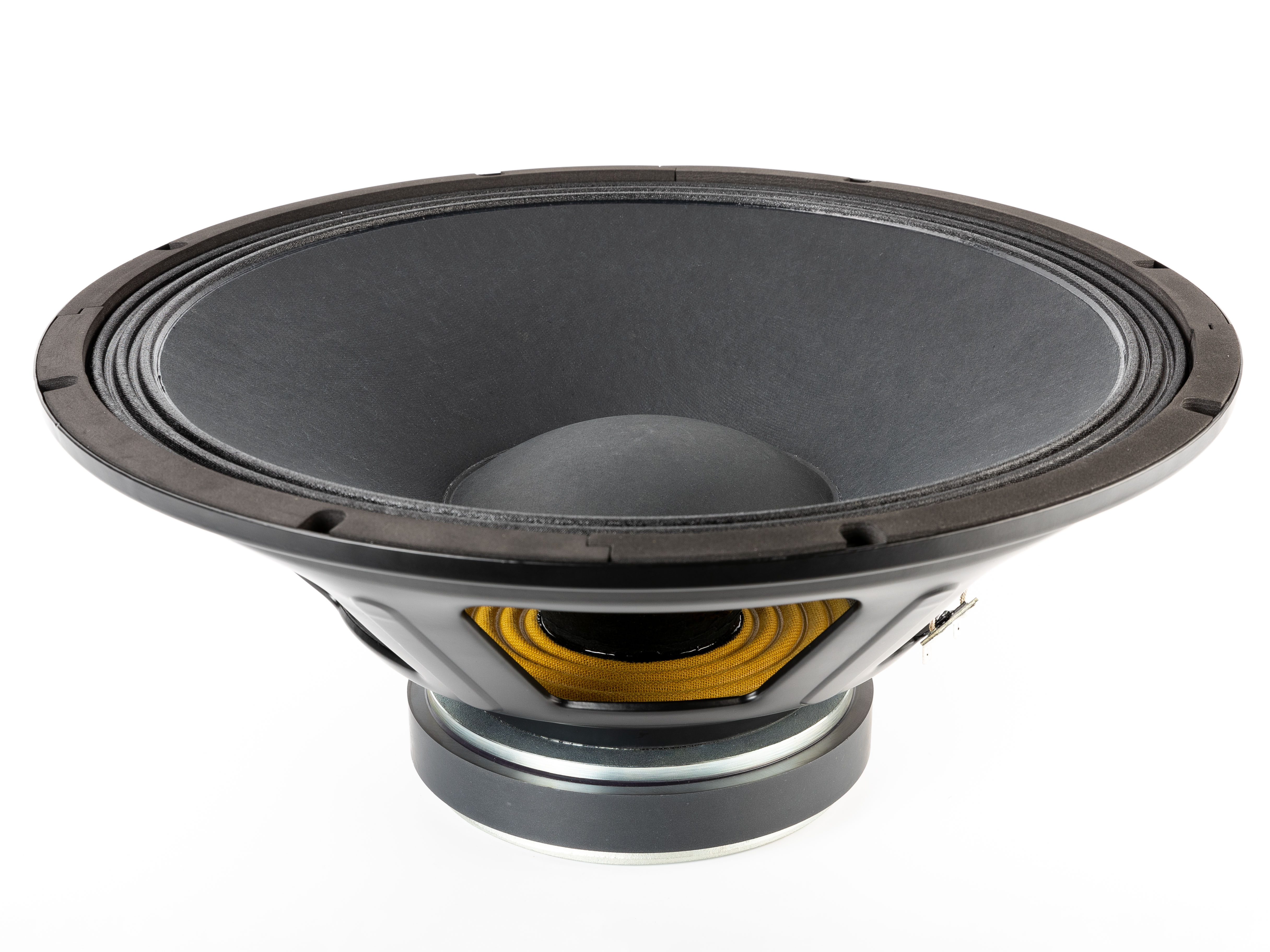

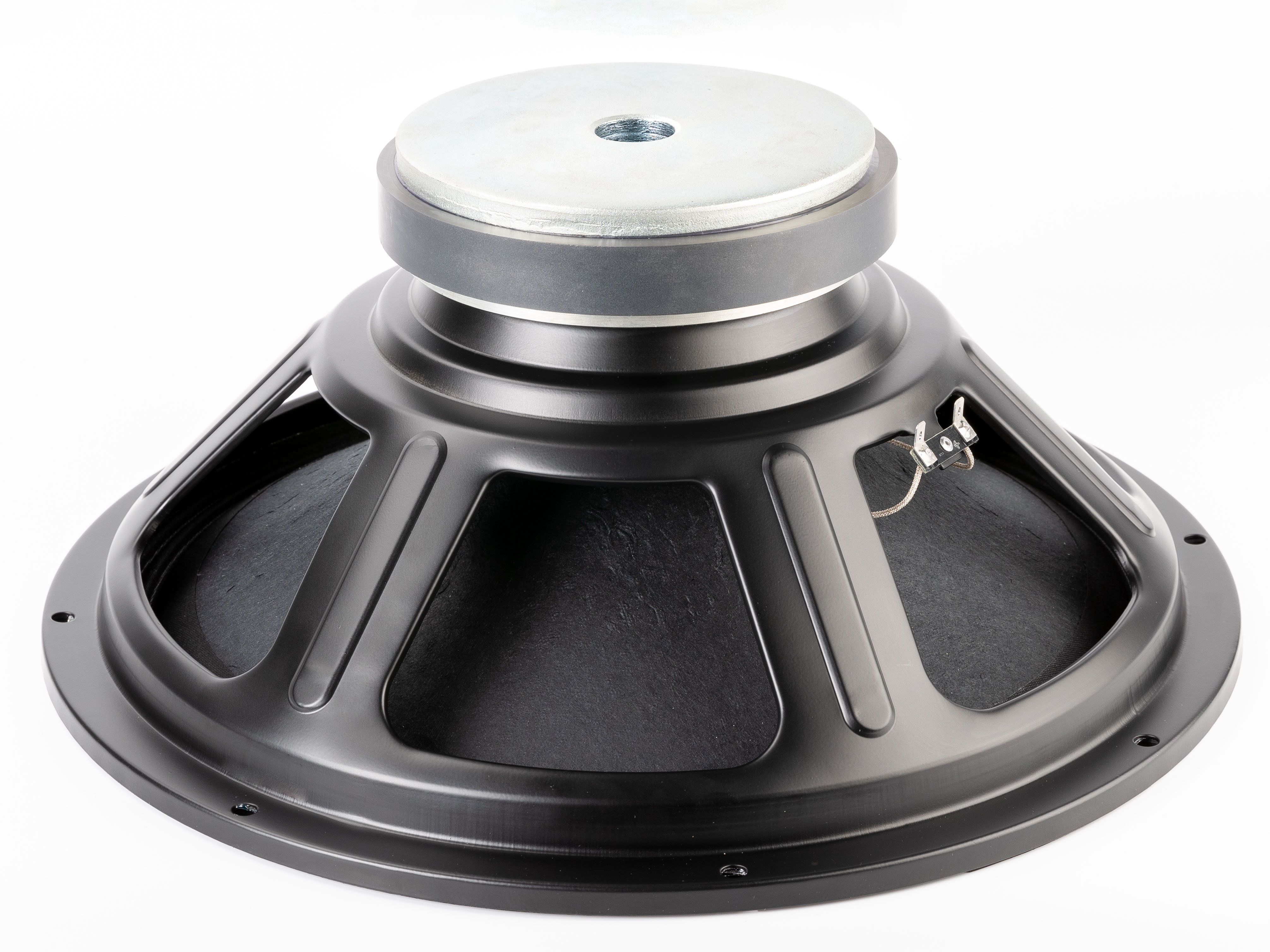

18" | 183FIND
Ferrite woofer
Ferrite woofer
Ferrite woofer Ferrite woofer
Key features:
  • Optimized ferrite magnetic structure
  • Lightweight, yet strong paper cone
  • Hi spl
Design notes:
183FIND is a cost-effective solution for subwoofers. Its lightweight yet strong cone allows the magnetic circuit to be size optimized while delivering a seizable amount of sound pressure. With its high efficiency (97 dB 1watt / 1 meter) and high power handling capabilities, this woofer will excel in all applications with tight budgets. The cone shape and material was developed to provide an optimum low-frequency response, making the woofer good choice for subwoofer systems. Power HandlingAt the core of the 183FIND is its voice coil technology featuring a composite Polyimide former material capable of withstanding peak temperatures above 280°C. The winding with high-temperature specification copper wire ensures the long life of the voice coil, without the costly service cycles. The cone is also extensively treated to withstand harsh environments and high humidity. Metal parts in the speaker assembly are coated for extreme weatherization protection.
Specifications:
  • General specs
    Nominal Diameter: 18 in.
    Rated Impedance: 8 Ohm
    Power handling
    AES Power: 600 Watts
    Program Power: 1,200 Watts
    Voice Coil
    Diameter: 3 in.
    Winding wire: Copper
    Former: kapton
    Winding height: 19.8 mm
  • T/S Parameters
    Resonant frequency: 32 Hz
    Re: 5.9 ohm
    Qes: 0.43
    Qms: 13.2
    Qts: 0.42
    Vas: 329.5 liters
    Sd: 1,225.4 cm2
    Mms: 165 grams
    Bl: 21.14
    Le: 0.73 mH
    Sensitivity: 97.07 dB
  • Design details
    Surround Material: Fabric
    Cone material: Paper
    Spider: ET-0527
    Plate thickness: 8 mm
    Peak to peak linear cone Displacement n/a mm
    Overall diameter: 461 mm
    Bolt circle diameter: 442 mm
    Baffle cutout dia.: 422 mm
    Number of mounting holes: 8
    Depth (flange to rear): 184 mm
    Net weight: 8.8 kg
  • Ordering codes:
    8 ohm version: 183FINDX8-297
    Recone kits:
    Download:
    Spec download

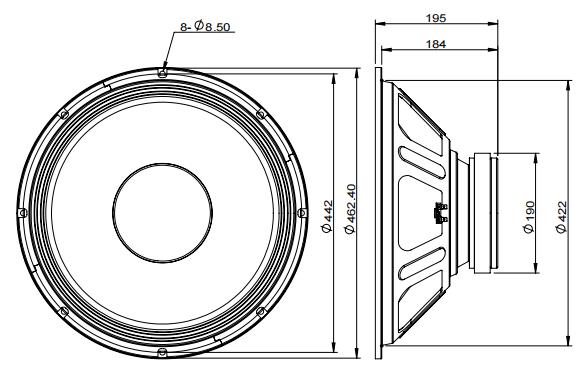

    2D drawing
    3D model

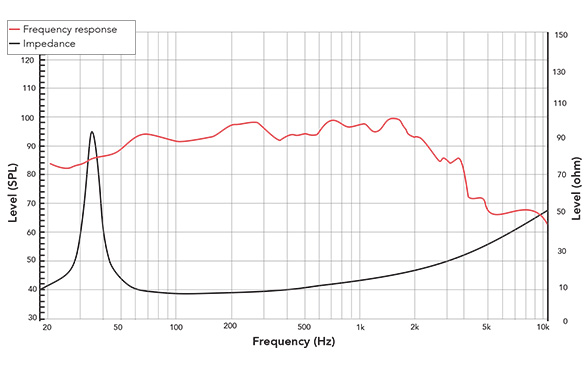

Frequency response & lmpedance
