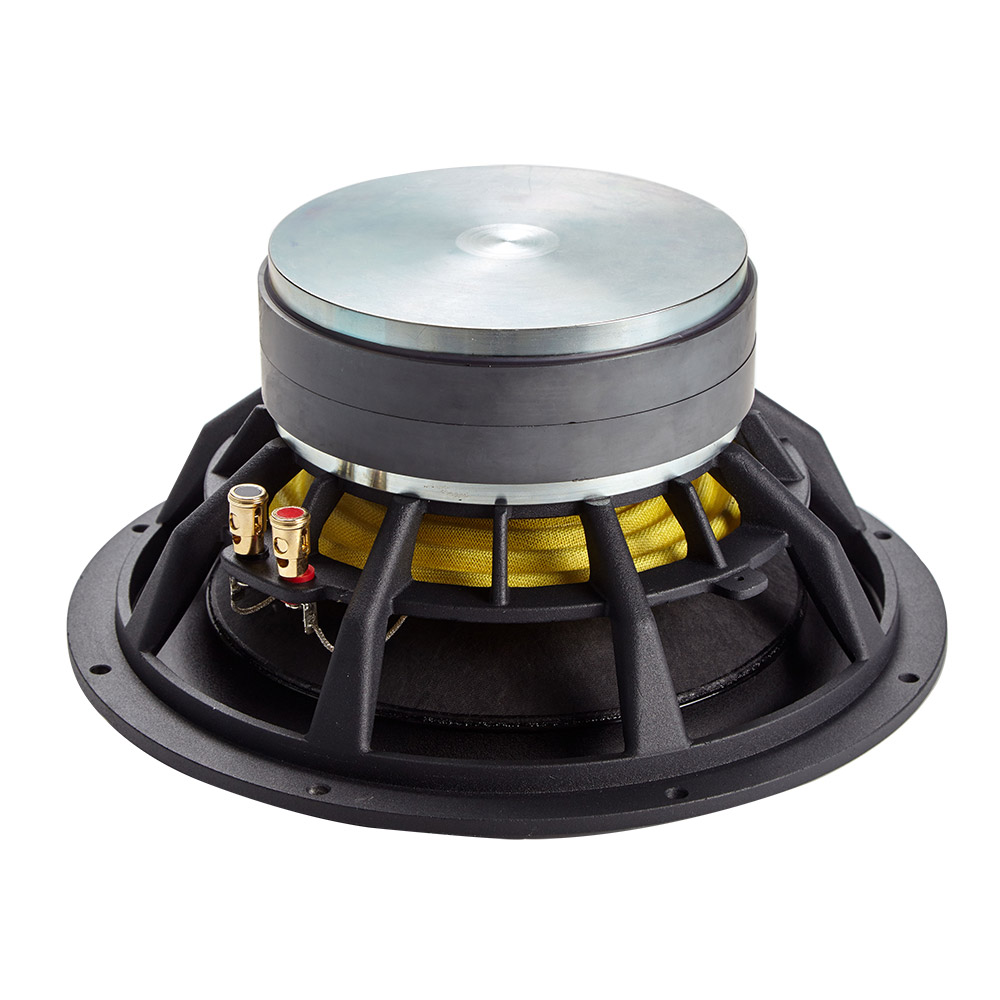

10" | 101FHW
Ferrite Sub-woofer
Key features:
  • Glass fiber loaded paper cone and dustcap

  • Nomex spider with stitched tinsel wires

  • Excellent low frequency response

Design notes:
    • The 101FHW is a high efficiency, (87dB 1watt / 1 meter) 10-inch woofer speaker with extended low frequency response and high power handling capability. The 101FHW uses a strong glass fiber reinforced paper cone assembly along with a single roll rubber surround. Spider is Nomex material with stitched-in tinsel wires.
    • This ensures long lasting performance even in high powered applications. The chosen material combination provides remarkable strength, high efficiency and sustained output under extreme conditions.The 101FHW cone and dust cap are made using glass fiber loaded paper pulp. All “soft” parts are bonded together
    • using state of the art high temperature adhesives. Metal parts in the speaker assembly are coated for extreme weatherization protection. Speaker push terminals are gold plated to ensure the best connection.
Specifications:
    • General specs
      Nominal Diameter:10 in.
      Rated Impedance:4 Ohm
      Power handling
      AES Power:200 Watts
      Program Power:400 Watts
      Voice Coil
      Diameter:2 in.
      Winding wire:Copper
      Former:Aluminum
      Winding height:32.3 mm
    • T/S Parameters
      Resonant frequency:27 Hz
      Re:3.6 ohm
      Qes:0.37
      Qms:1.5
      Qts:0.3
      Vas:54.7 liters
      Sd:330.1 cm2
      Mms:97.8 grams
      Bl:12.7
      Le:0.82 mH
      Sensitivity:87.08 dB
    • Design details
      Surround Material:Rubber
      Cone material:Paper
      Spider:Nomex
      Plate thickness:8 mm
      Peak to peak linear cone Displacement22.6 mm
      Overall diameter:269 mm
      Bolt circle diameter:258 mm
      Baffle cutout dia.:239 mm
      Number of mounting holes:8
      Depth (flange to rear):117 mm
      Net weight:6 kg
    • Ordering codes:
      4 ohm version:101FHWX4-118
      Recone kits:
      Download:
      Spec download

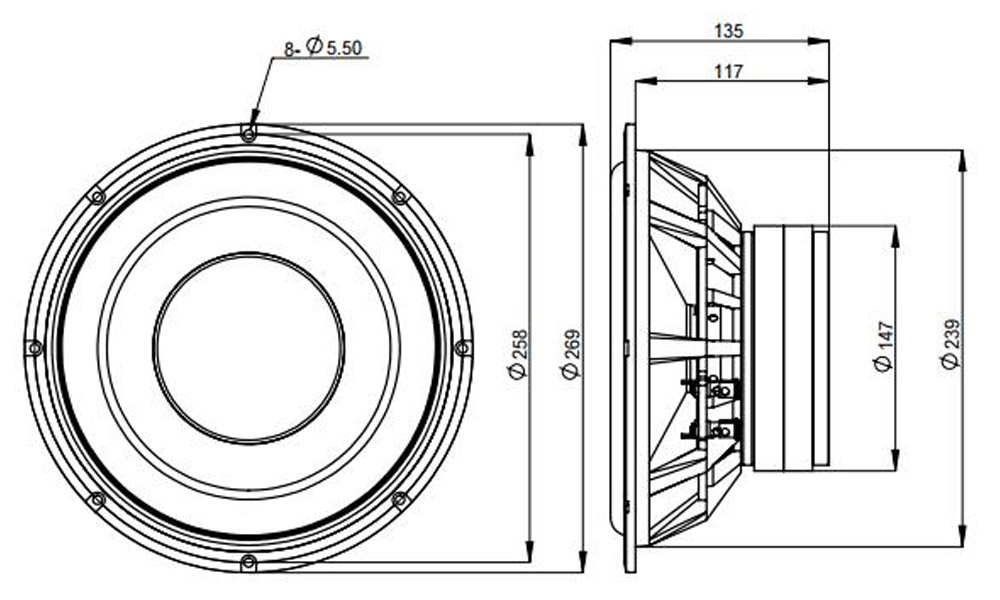

      2D drawing
      3D model

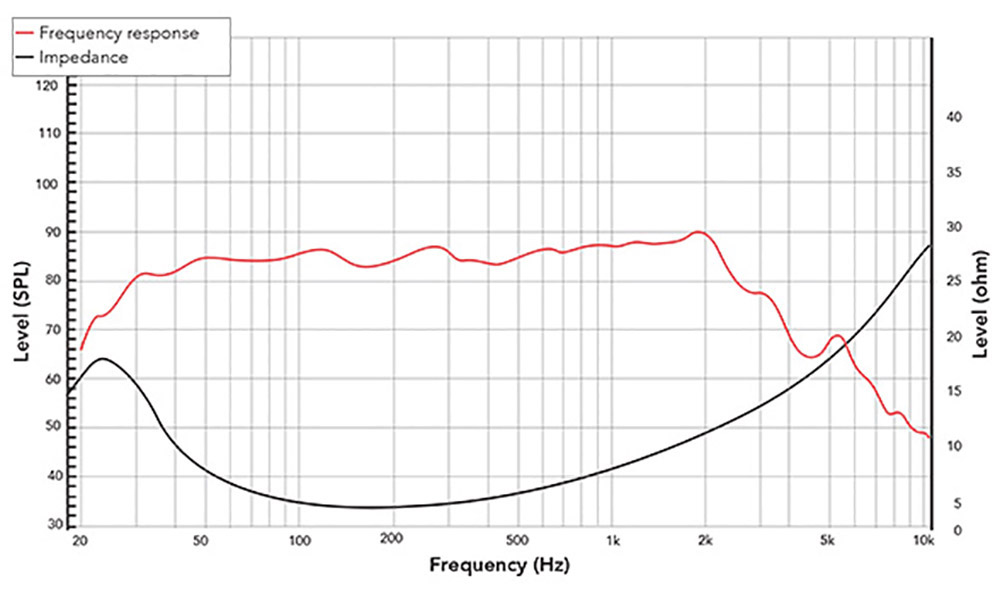

Frequency response & lmpedance
