12" | 121FIND

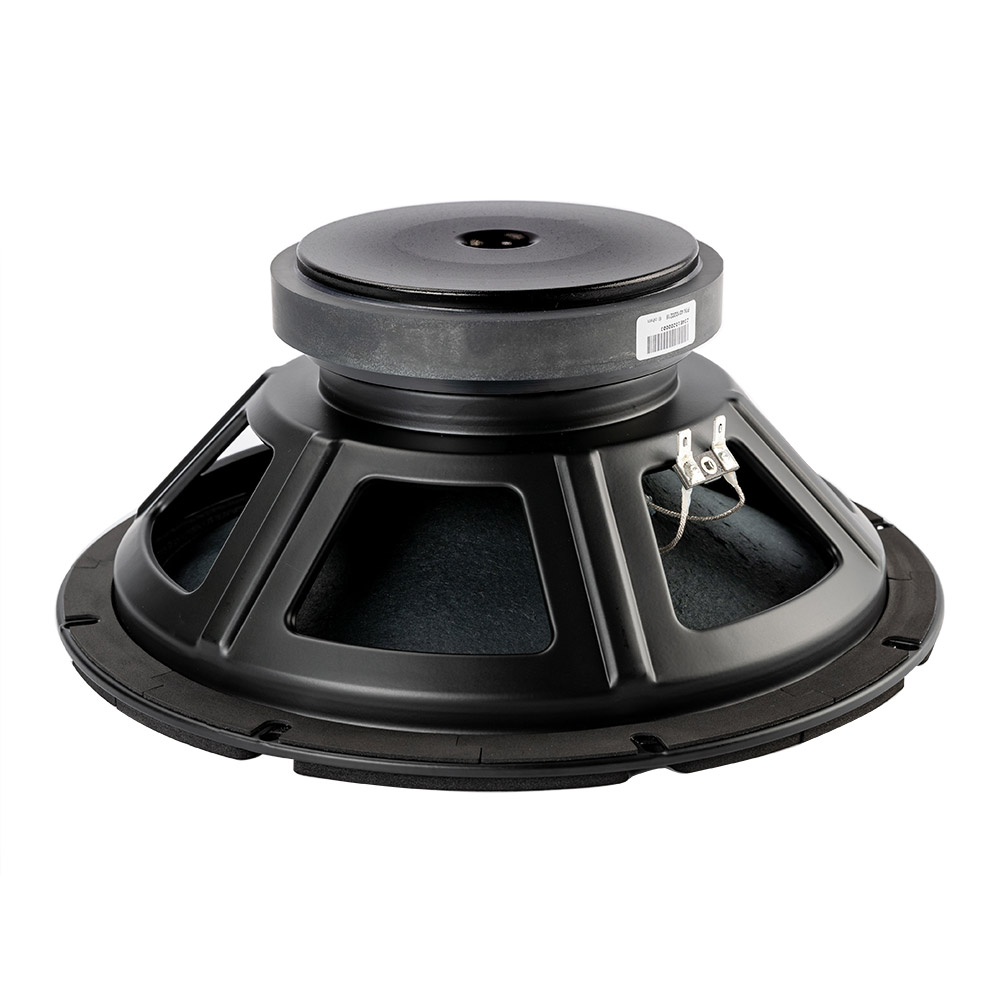

Ferrite mid-woofer
Key features:
  • EXTENDED FREQUENCY RESPONSE

  • Proven cost effective design

  • Nomex spider, water-repellent & non-flammable paper cone

Design notes:
    • The 121FIND is a high efficiency, (96 dB 1watt/ 1 meter) 12inch woofer with incredibly linear frequency response characteristics, high power handling capability while generating low harmonic distortion artifacts. 121FIND uses lightweight cone which movement is controlled by
    • “M” shaped surround. Pistonic behavior and the long term stabilityIs supported by Nomex spider. The woofer cone is treated to withstand harsh environments and high humidity. The 121FIND was design for its best use in the 2-way applications, where excellent midrange response
    • is required. Speaker provides good low frequency extension and delivers seizable amounts of low frequencies.The metal parts in the speaker are coated and tested to ensure extreme weatherization protection.
Specifications:
    • General specs
      Nominal Diameter:12 in.
      Rated Impedance:4 Ohm
      Power handling
      AES Power:300 Watts
      Program Power:600 Watts
      Voice Coil
      Diameter:2.5 in.
      Winding wire:CCAW
      Former:kapton
      Winding height:13.5 mm
    • T/S Parameters
      Resonant frequency:45 Hz
      Re:3.1 ohm
      Qes:0.29
      Qms:4.96
      Qts:0.27
      Vas:98.5 liters
      Sd:531 cm2
      Mms:52.1 grams
      Bl:12.8
      Le:0.42 mH
      Sensitivity:97.75 dB
    • Design details
      Surround Material:Fabric
      Cone material:Paper
      Spider:Nomex
      Plate thickness:8 mm
      Peak to peak linear cone Displacement10.2 mm
      Overall diameter:320 mm
      Bolt circle diameter:302 mm
      Baffle cutout dia.:282 mm
      Number of mounting holes:8
      Depth (flange to rear):127.8 mm
      Net weight:5 kg
    • Ordering codes:
      8 ohm version:123FPMX4-188B
      Recone kits:
      Download:
      Spec download

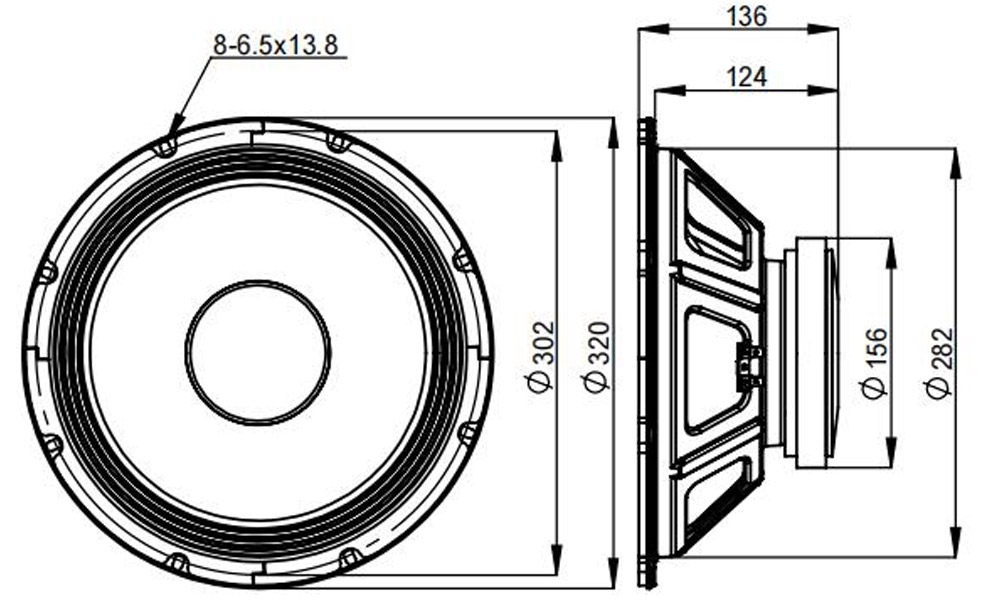

      2D drawing
      3D model

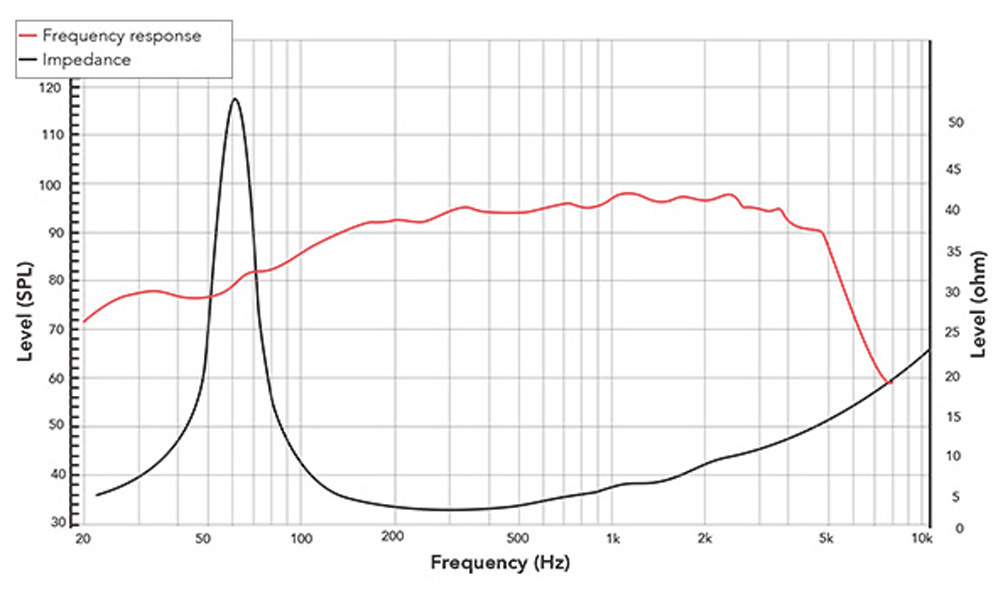

Frequency response & lmpedance
2D drawing
