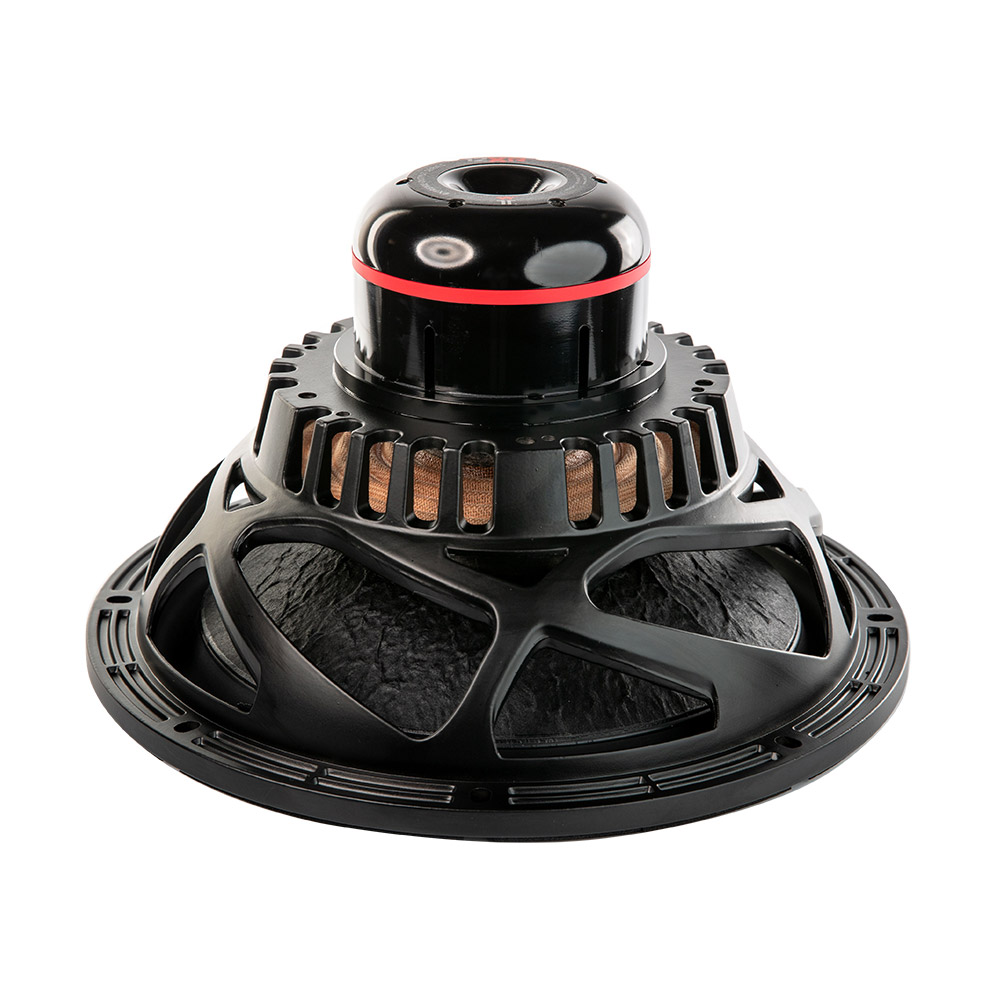

The 12XR was designed around our new approach to the magnetic system. Our XR series speaker motors were designed so the voice coil winding doesn’t leave the gap for most of the cone excursion. The desired cone excursion is carefully evaluated and incorporated into the design. The 12XR allows the designer to design sub-woofers with very large cone excursions, without the otherwise present harmonic distortion due to the voice coil leaving the magnetic gap. If you like the sound of a clean, undistorted bass, then the 12XR is the right transducer for your application. Motor DesignThe magnetic design incorporates large neodymium magnets placed along the voice coil winding. This has allowed us to push the cone excursion to 28mm peak to peak. Unique gap venting ensures good air circulation and greatly improves the reliability of this driver. We have also developed a new technique for manufacturing deep copper caps. The design further sports a large spider on top of which is hot-pressed tinsel wires. Cone is carbon fiber reinforced, with a lightweight foamed rubber surround. The suspension was designed for large excursions.
