HF
Compression Driver
1.4"

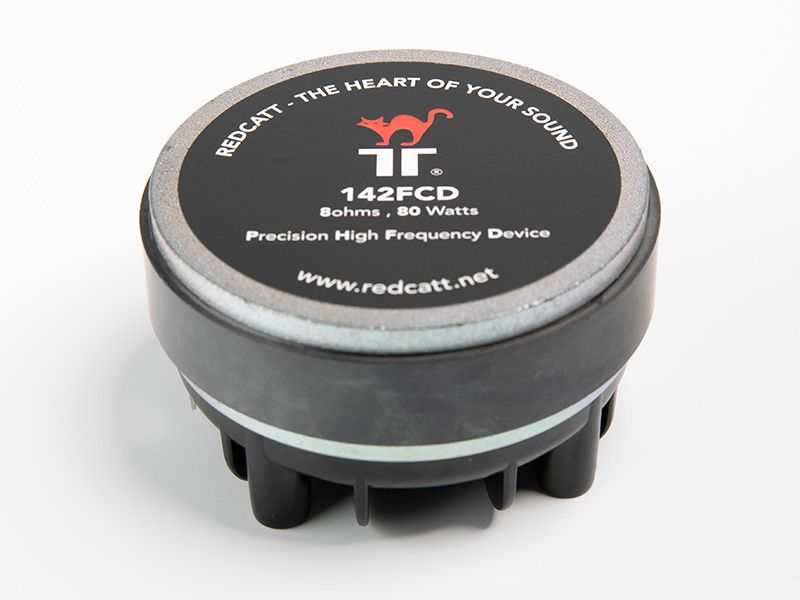

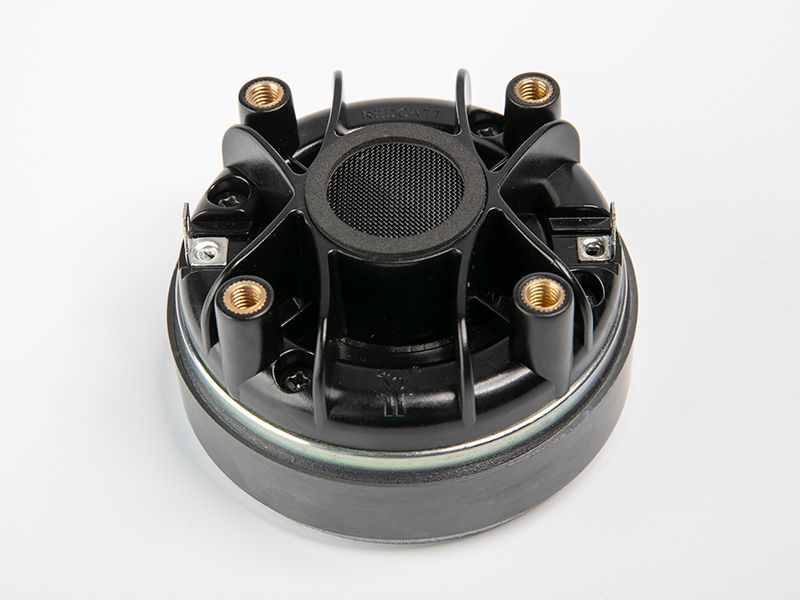

142FCD
Code: 142FCDX8-557A
Compression Driver/1.4inch/Ferrite/Polymer/30W/35mmVC/8ohm
Key Features
- Very high SPL, low Fs
- High power handling
- Smooth frequency response in working range
Quick Specs
Impedance
8 Ω
Program Power
70 W
Sensitivity
105.00 dB
Fs
1000.00 Hz
Magnet
Ferrite
Voice Coil
35.6 mm
Design Notes
Introducing our latest innovation – the 142FCD compression driver! Developed using advanced FEM techniques, this driver outperforms many of our competitor products. With a resonant frequency of 1kHz, it allows for a lower frequency crossover point, while delivering very high SPL and a natural rolloff in high frequencies, making it a breeze to implement in your high-quality sound systems.
But that's not all – our state-of-the-art robotic dome forming is at play here too. The result? Highly precise and consistent polymer domes that further elevate the exceptional performance of this driver.
Moreover, the robust ferrite magnetic circuit delivers a high B field to the edge-wound voice coil, which is carefully attached to the dome by the best available adhesives. This not only ensures precise and consistent performance but also enhances the high power handling capabilities of the 142FCD compression driver. Experience the next level of audio quality with the 142FCD compression driver - where innovation meets superior craftsmanship.
But that's not all – our state-of-the-art robotic dome forming is at play here too. The result? Highly precise and consistent polymer domes that further elevate the exceptional performance of this driver.
Moreover, the robust ferrite magnetic circuit delivers a high B field to the edge-wound voice coil, which is carefully attached to the dome by the best available adhesives. This not only ensures precise and consistent performance but also enhances the high power handling capabilities of the 142FCD compression driver. Experience the next level of audio quality with the 142FCD compression driver - where innovation meets superior craftsmanship.
Specifications
General Specs
Nominal Diameter
1.4"
Rated Impedance
8 Ohm
Magnet
Ferrite
Basket Material
Plastic
Power Handling
AES Power
35 W
Continuous Power
70 W
Peak Power
140 W
Voice Coil
Diameter
35.6 mm
Winding Wire
CCAR
Former
kapton
Winding Height
2.5 mm
T/S Parameters
Resonant Frequency (Fs)
1000.00 Hz
Re
6.00 \u2126
Sensitivity
105.00 dB
Design Details
Surround Material
N/A
Cone/Dome Material
PEN
T-Plate
6 mm
Overall Diameter
95.00 mm
Bolt Circle Diameter
76.00 mm
Mounting Holes
4
Depth (flange to rear)
54.20 mm
Net Weight
1.25 kg
Ordering Codes
Product Code
142FCDX8-557A
Horn Exit
25.4mm
Downloads

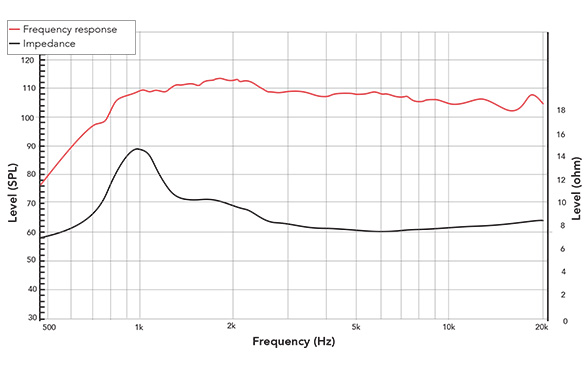

Frequency Response & Impedance

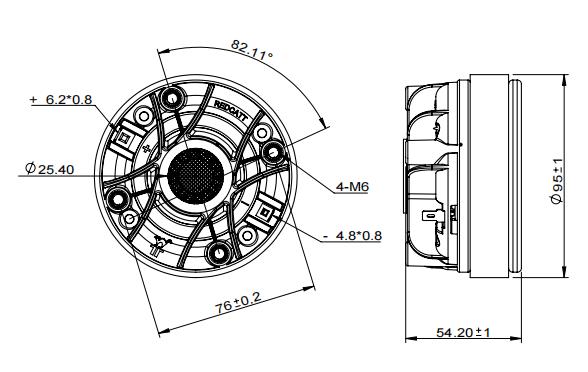

2D Drawing
Frequently Asked Questions
- - Very high SPL, low Fs
- - High power handling
- - Smooth frequency response in working range
AES Power: 35 W,
Continuous: 70 W,
Peak: 140 W.
Sensitivity: 105.00 dB (1W/1m).
