HF
Compression Driver
1.8"

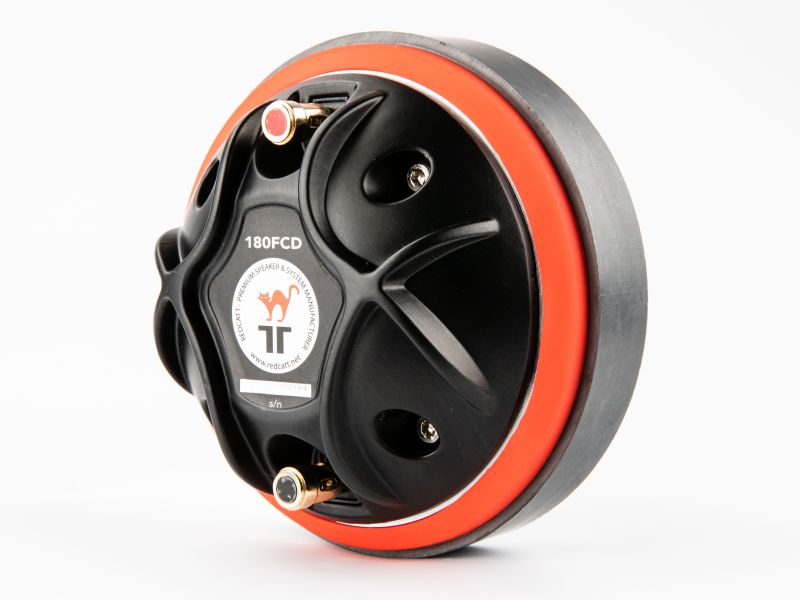

180FCD
Code: 180FCDPX8-330
Compression Driver/1.8inch/Ferrite/Polymer/40W/44mmVC/8ohm
Key Features
- Driver delivering high SPL at affordable cost
- Robust, high BL magnetic circuit
Quick Specs
Impedance
8 Ω
Program Power
110 W
Sensitivity
109.50 dB
Fs
1100.00 Hz
Magnet
Ferrite
Voice Coil
45.7 mm
Design Notes
The 180FCD compression driver is a very high-performance, high-frequency device ideal for professional loudspeaker systems, such as larger 2-way systems.
Diaphragm Assembly
The driver sports a 44mm polyimide diaphragm formed as a single piece with the suspension. The voice coil is attached to the dome with our state of the art adhesives and precise bonding equipment.
The acoustic output exits through a circumferential phase plug and a 1.0-inch throat aperture. Nominal sensitivity is 109.5 dB 1watt / 1 meter.
REDCATT uses state of the art adhesives in all assembly steps. Our voice coil to dome bonding is a unique process, developed to greatly improve the power handling capabilities. REDCATT unique and precise adhesives dispensing, combined with our in-house developed dome treatments are further improving the long term reliability of this product.
Diaphragm Assembly
The driver sports a 44mm polyimide diaphragm formed as a single piece with the suspension. The voice coil is attached to the dome with our state of the art adhesives and precise bonding equipment.
The acoustic output exits through a circumferential phase plug and a 1.0-inch throat aperture. Nominal sensitivity is 109.5 dB 1watt / 1 meter.
REDCATT uses state of the art adhesives in all assembly steps. Our voice coil to dome bonding is a unique process, developed to greatly improve the power handling capabilities. REDCATT unique and precise adhesives dispensing, combined with our in-house developed dome treatments are further improving the long term reliability of this product.
Specifications
General Specs
Nominal Diameter
1.8"
Rated Impedance
8 Ohm
Magnet
Ferrite
Basket Material
Plastic
Power Handling
AES Power
55 W
Continuous Power
110 W
Peak Power
220 W
Voice Coil
Diameter
45.7 mm
Winding Wire
CCAR
Former
kapton
Winding Height
2.5 mm
T/S Parameters
Resonant Frequency (Fs)
1100.00 Hz
Re
5.80 \u2126
Sensitivity
109.50 dB
Design Details
Surround Material
N/A
Cone/Dome Material
PEN
T-Plate
2.5 mm
Overall Diameter
120.00 mm
Depth (flange to rear)
69.00 mm
Net Weight
2.20 kg
Ordering Codes
Product Code
180FCDPX8-330
Horn Exit
28.5mm

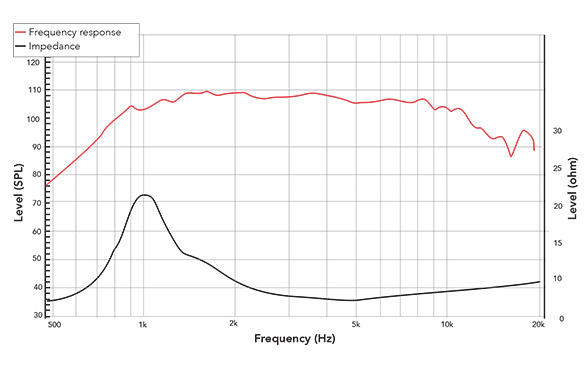

Frequency Response & Impedance

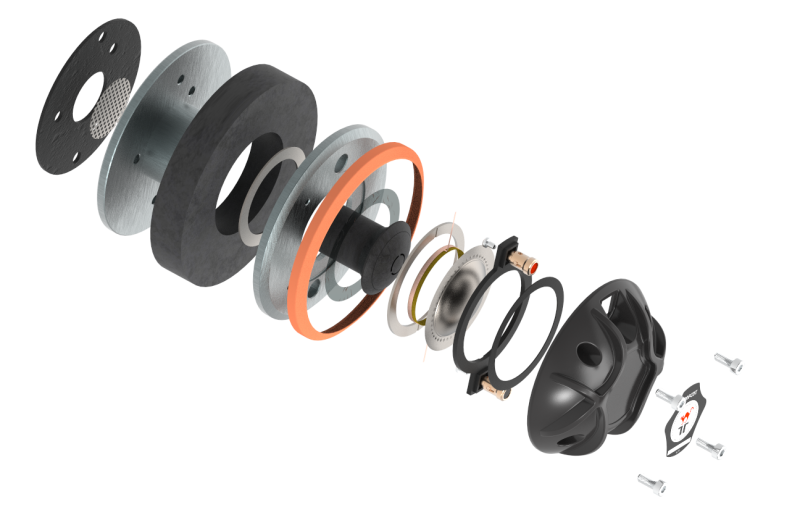

2D Drawing
Frequently Asked Questions
- - Driver delivering high SPL at affordable cost
- - Robust, high BL magnetic circuit
AES Power: 55 W,
Continuous: 110 W,
Peak: 220 W.
Sensitivity: 109.50 dB (1W/1m).
