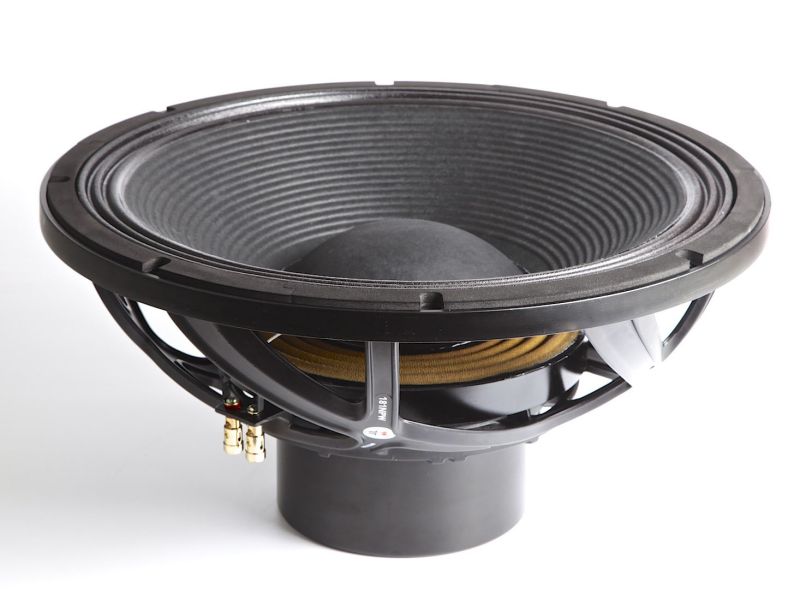

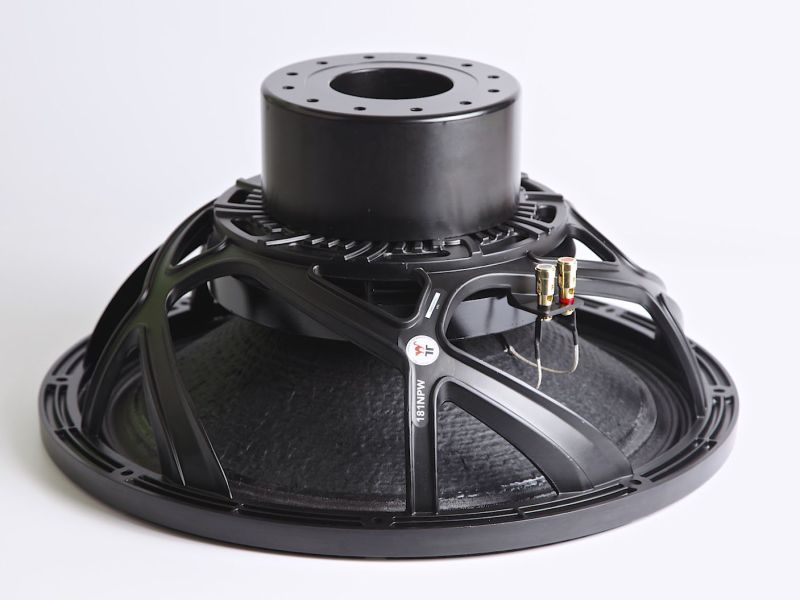

181NPW

Name: 181NPW
Brand: REDCATT
SKU: 181NPWX4-099

Design Notes

The 181NPW is a high efficiency, (95 dB 1watt / 1 meter) 18-inch woofer with incredibly linear frequency response characteristics, extreme high power handling capability while generating low harmonic distortion artifacts. The 181NPW uses a lightweight carbon fiber loaded cone assembly along with a high excursion triple roll constant geometry surround. This combination provides remarkable strength, high efficiency and a peak to peak maximum excursion of 30.5mm.

Power Handling
At the core of the 181NPW is it’s voice coil technology featuring a composite Polyimide former material capable of withstanding peak temperatures in excess of 350C, well beyond the thermal requirements of modern professional audio systems. The 181NPW delivers incredible performance.

REDCATT has implemented a triple layer/silicone spider design to ensure long term shape memory, consistency and diminish anomalies associated with spider deterioration.

Specifications

General Specs

Nominal Diameter 18"

Rated Impedance 4 Ohm

Magnet Neodymium

Basket Material Aluminum

Power Handling

AES Power 1500 W

Continuous Power 3000 W

Peak Power 6000 W

Voice Coil

Diameter 134.6 mm

Winding Wire Copper

Former Glass Fiber

Winding Height 32.8 mm

T/S Parameters

Resonant Frequency (Fs) 28.00 Hz

Re 3.20 \u2126

Qes 0.250

Qms 15.80

Qts 0.250

Vas 167.70 liters

Sd 1225.40 cm\u00B2

Mms 391.20 grams

Rms 4.35

Cms 0.0800

Bl 29.70 T\u00B7m

Le 1.760 mH

Sensitivity 94.80 dB

Design Details

Surround Material fabric

Cone/Dome Material Paper CF

Spider Nomex

T-Plate 15 mm

Xmax (peak) 8.9 mm

Xmech 23.9 mm

Overall Diameter 468.00 mm

Bolt Circle Diameter 442.00 mm

Baffle Cutout Dia. 426.00 mm

Mounting Holes 8

Depth (flange to rear) 210.00 mm

Net Weight 13.90 kg

Ordering Codes

Product Code 181NPWX4-099

Downloads

2D Drawing (PDF) 3D Model (STEP)

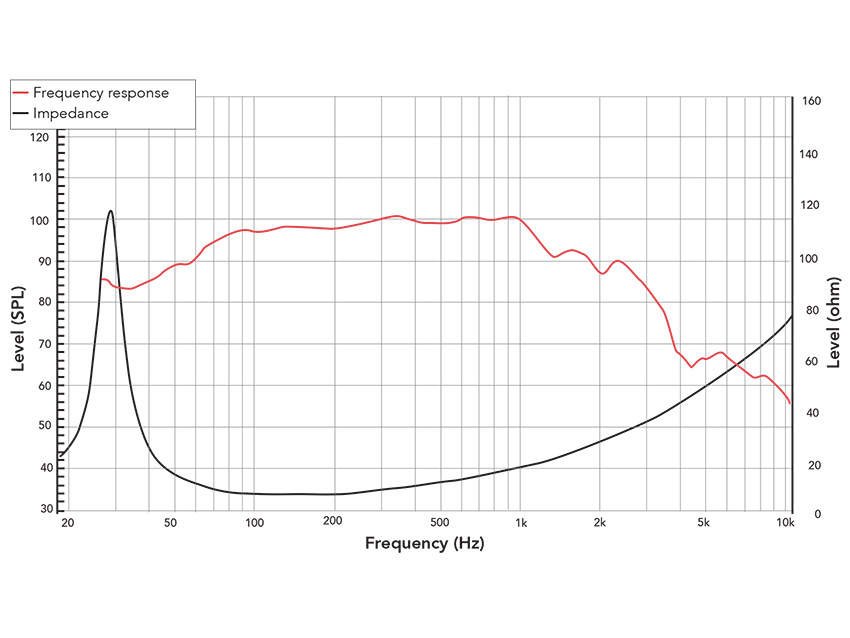

Frequency Response & Impedance

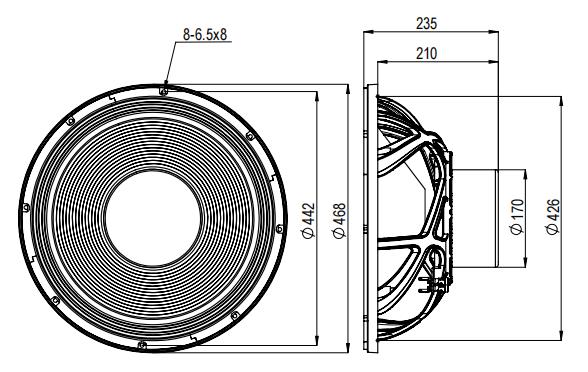

2D Drawing

Technical Summary

The 181NPWX4-099 is an 18-inch professional woofer and sub-woofer driver rated at 1500 W AES (3000 W continuous) into a nominal 4-ohm impedance, designed for touring, large-venue installation, and high-SPL bass reinforcement systems. The driver features a 5.3-inch (134.6 mm) voice coil wound on a Polyimide composite former rated to 350°C, enabling sustained operation at continuous power levels that would thermally compromise standard glass fiber or paper formers. The motor-suspension design is optimized to maintain consistent performance at high drive levels, with controlled excursion and reduced thermal compression during long-term operation.

In bass reflex enclosures, the driver performs best in net internal volumes of 80 to 180 liters, tuned between 30 and 40 Hz, with an estimated -3 dB frequency of approximately 29 to 39 Hz. The low Qts (0.25) and exceptionally high motor force (Bl = 29.7 T·m) make this driver exclusively suited to vented enclosures; sealed alignments require impractically small volumes for an 18-inch frame. Slot ports in the 200 mm × 80 mm format are recommended for larger cabinets, with port velocities between 12.9 and 17.1 m/s — within professional installation standards across all three alignments.

The driver is intended for use with high-power amplification of approx. 1500 W AES (3000 W continuous) into 4 ohms, with a recommended high-pass filter in the 24–35 Hz range depending on alignment. DSP control with excursion limiting and thermal protection is essential at sustained drive levels near the continuous rating. The 4-ohm impedance is suited to high-current solid-state amplification in direct or bridged configurations; parallel wiring of two drivers presents a 2-ohm load for compatible amplifiers.

The 181NPWX4-099 is intended for single and multi-driver bass reflex enclosures in professional touring and fixed installation applications, including concert sub arrays, club and venue subwoofer systems, cinema low-frequency systems, and large-format PA bass sections where the combination of high sensitivity (94.8 dB), extreme power handling, and very low Qts motor control define the performance envelope.

Enclosure Recommendations

ENCLOSURE RECOMMENDATIONS: 181NPWX4-099
Driver: 181NPWX4-099 (181NPW) — 18" pro woofer / sub-woofer, 4 ohm
Key T/S: Fs=28.0Hz, Qts=0.25, Qes=0.25, Qms=15.8, Vas=167.7L, Sens=94.8dB
Power: AES 1500W / Cont 3000W / Peak 6000W
Xmax=8.9mm, Xmech=23.9mm, Sd=1225.4cm², Bl=29.7T·m
Le=1.76mH | Neodymium | 5.3" voice coil | Polyimide former

DESIGN HIGHLIGHTS:
  - 5.3" (134.6mm) voice coil on Polyimide composite former, rated to
    350°C peak temperature — enables the AES 1500W / continuous 3000W
    power handling that defines this driver's pro touring capability
  - Bl=29.7 T·m — one of the highest motor force values in the lineup;
    combined with Qts=0.25, this is a driver with exceptional cone
    control under high-power continuous drive
  - Qms=15.8 — mechanical losses are negligible; essentially 100% of
    system damping is provided by the electrical circuit (Qes=0.25)
  - CF paper cone (carbon fiber reinforced) — high rigidity, low mass
    relative to size, resists cone breakup at large excursion
  - Triple roll constant-geometry fabric surround — maintains consistent
    Cms through the full excursion range; 30.5mm peak-to-peak design
  - Triple layer silicone spider — long-term shape memory, high
    reliability under sustained touring and installation use
  - Improved coil and magnet air-ventilation — active cooling of the
    magnetic gap extends thermal endurance at continuous high power
  - 4-ohm nominal: suits high-current amplifiers and bridged
    configurations; parallel wiring of two drivers = 2 ohm

RECOMMENDED ENCLOSURE TYPE: Bass Reflex (Vented) only
  With Qts=0.25, this driver is firmly in the strongly-vented alignment
  range. Sealed enclosures require impractically small volumes to reach
  Qtc=0.707 (~24L for an 18" driver), producing a system resonance near
  79 Hz — completely inappropriate for subwoofer applications. Vented
  enclosures fully exploit the low Qts: the port resonance provides
  additional cone control near tuning, and the high motor force (Bl=29.7)
  maintains tight, controlled bass output under continuous drive.
VENTED ALIGNMENTS
Vd = 1225.4 cm² × 8.9mm = 1090.6 cm³

Both round port and slot port options are given. Slot ports are
preferred for large enclosures due to reduced turbulence and easier
integration into the cabinet structure.

  a) Compact / Touring
     Net Volume: 80 liters
     Tuning (Fb): 40 Hz
     Est. -3dB: ~39 Hz
     HP Filter: 35 Hz (24dB/oct recommended)
     Round Port: 125mm dia × 286mm long
     Slot Port: 200mm W × 80mm H × 373mm long
     Port Velocity (round): 22.3 m/s ✓ (pro touring acceptable)
     Port Velocity (slot): 17.1 m/s ✓
     Notes: Maximum SPL alignment, smallest cabinet for portable and
            flyware touring systems. Strong mid-bass punch; pair with
            DSP high-pass for cone excursion protection. Slot port
            preferred at this velocity. Well-suited for stage monitor
            sub configurations and compact line-array ground stacks.

  b) Balanced / General Purpose
     Net Volume: 130 liters
     Tuning (Fb): 34 Hz
     Est. -3dB: ~33 Hz
     HP Filter: 28 Hz (24dB/oct recommended)
     Round Port: 125mm dia × 243mm long
     Slot Port: 200mm W × 80mm H × 317mm long
     Port Velocity (round): 19.0 m/s ✓
     Port Velocity (slot): 14.6 m/s ✓
     Notes: Standard professional sub alignment. Good balance between
            output, extension, and cabinet size. Suitable for club
            install, touring subwoofer arrays, and fixed installation
            systems. Slot port operates below 15 m/s — very quiet,
            suitable for installed sound applications.

  c) Extended Low Frequency
     Net Volume: 180 liters
     Tuning (Fb): 30 Hz
     Est. -3dB: ~29 Hz
     HP Filter: 24 Hz (24dB/oct recommended)
     Round Port: 125mm dia × 226mm long
     Slot Port: 200mm W × 80mm H × 294mm long
     Port Velocity (round): 16.8 m/s ✓
     Port Velocity (slot): 12.9 m/s ✓ (excellent)
     Notes: Maximum extension for large fixed installation, cinema,
            and high-end touring sub systems. Deep output approaching
            30 Hz at full power. Slot port at 12.9 m/s is extremely
            quiet — appropriate for concert hall, broadcast, and
            premium nightclub installations where port noise must be
            inaudible. Large cabinet; internal bracing and damping
            critical at this volume.

WOOFER / BASS DRIVER APPLICATION:
The 181NPW is labeled woofer in the product description and is
capable of serving as a high-power bass driver in large-format PA
systems crossed above 100 Hz to a mid driver or compression driver:

  - Crossover range: 100–300 Hz (to mid driver or CD horn)
  - The CF paper cone and strong motor (Bl=29.7) provide clean,
    controlled output well into the upper bass range
  - 94.8 dB sensitivity matches closely with typical large-format
    compression drivers (95–106 dB) — minimal pad required
  - At 1500W AES / 4 ohm, suited for high-power touring amplifiers
    in BTL (bridged) configuration

AMPLIFICATION NOTES:
  - Minimum recommended amplifier power: 1500W AES into 4 ohm
  - Typical operating level: 1500–3000W (AES to continuous rating)
  - Peak headroom: up to 6000W — requires high-current amplifier
  - Paralleled pair: 2 ohm load — verify amplifier 2-ohm stability
  - High-pass filter required (see HP values above per alignment)
  - DSP processing with peak limiting (excursion and thermal) is
    essential at sustained high-power levels
