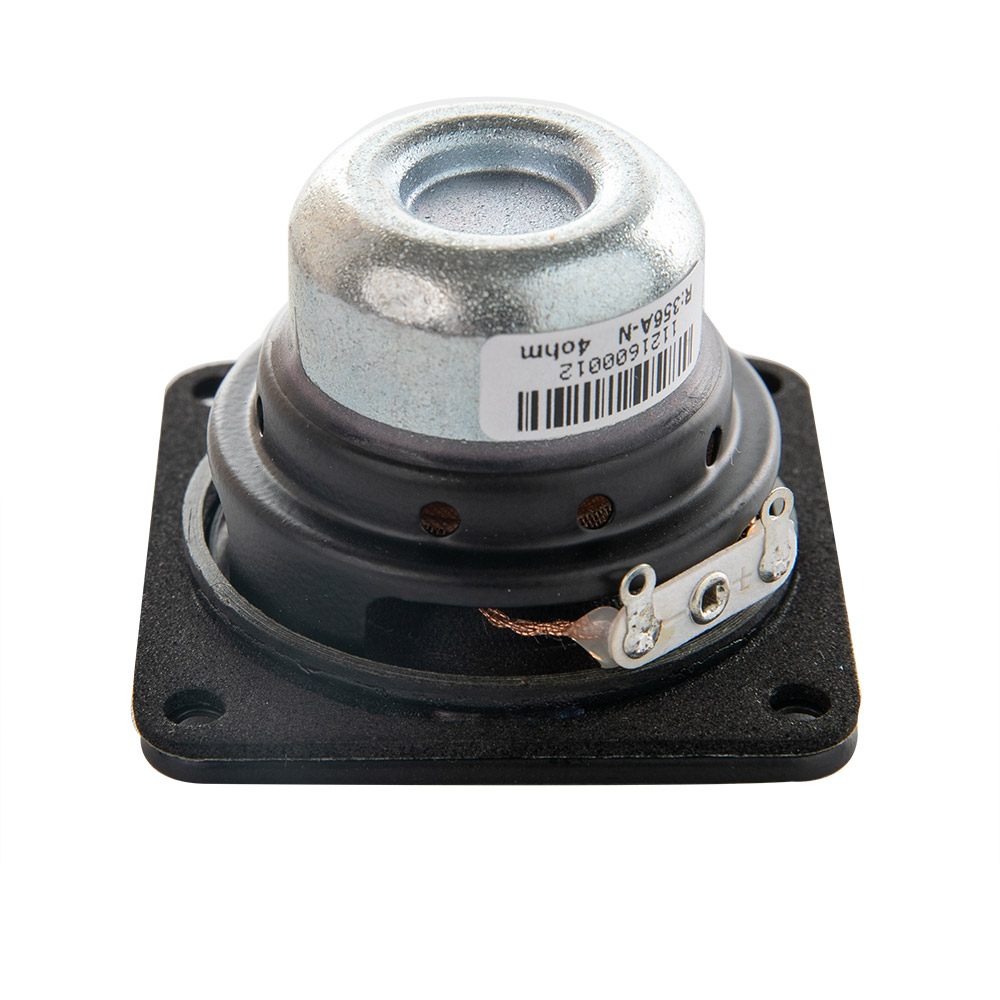

2" | 20NFR
Full-range
Key features:
  • Very compact and affordable design

  • Lightweight cone assembly

Design notes:
    • 20NFR was designed for applications where true full-range frequency response from one driver is required. From low to up to 17kHz, this driver truly delivers that. With additional DSP, the driver can be used from about 60Hz up.
    • We have developed very lightweight foam surround material. This material is our preference anywhere where we are designing larger cone excursions, yet lightweight piston is required. It delivers excellent acoustical properties without the mass
    • penalties. The magnetic circuit was designed around neodymium slug magnets, with u-cup style steel. The circuit delivers very high performance in very small and lightweight form factor.
Specifications:
    • General specs
      Nominal Diameter:2 in.
      Rated Impedance:4 Ohm
      Power handling
      AES Power:10 Watts
      Program Power:20 Watts
      Voice Coil
      Diameter:0.75 in.
      Winding wire:Aluminum
      Former:kapton
      Winding height:8.5 mm
    • T/S Parameters
      Resonant frequency:185 Hz
      Re:3.6 ohm
      Qes:0.54
      Qms:10.3
      Qts:0.52
      Vas:0.09 liters
      Sd:11.34 cm2
      Mms:1.37 grams
      Bl:3.24
      Le:0.08 mH
      Sensitivity:83.03 dB
    • Design details
      Surround Material:Foam
      Cone material:Paper
      Spider:Nomex
      Plate thickness:2.5 mm
      Peak to peak linear cone Displacement6 mm
      Overall diameter:48 mm
      Bolt circle diameter:56 mm
      Baffle cutout dia.:42.9 mm
      Number of mounting holes:4
      Depth (flange to rear):29 mm
      Net weight:0.08 kg
    • Ordering codes:
      4 ohm version:20NFRX4 ohm-345A
      Recone kits:
      Download:
      Spec download

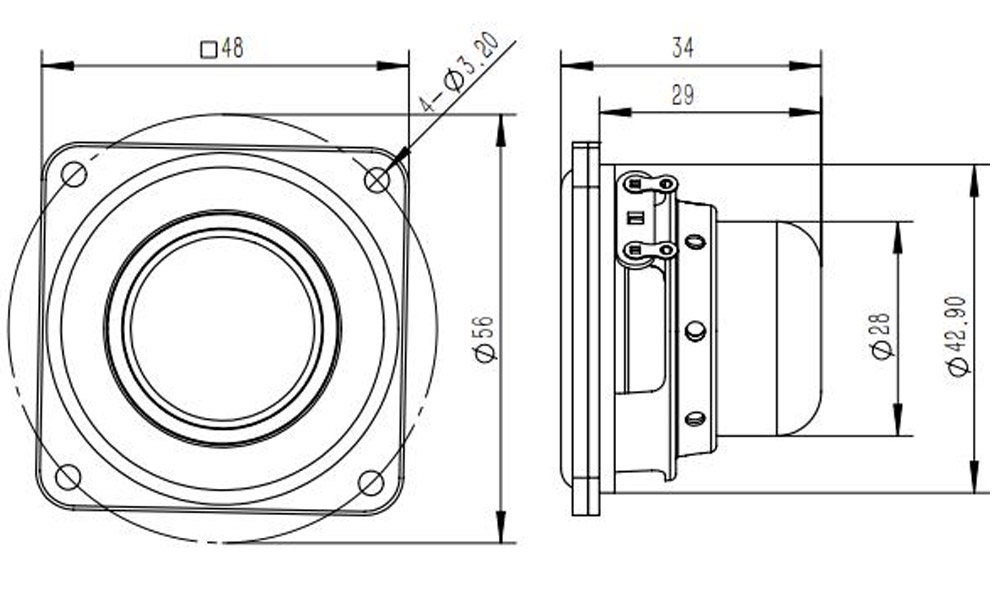

      2D drawing
      3D model

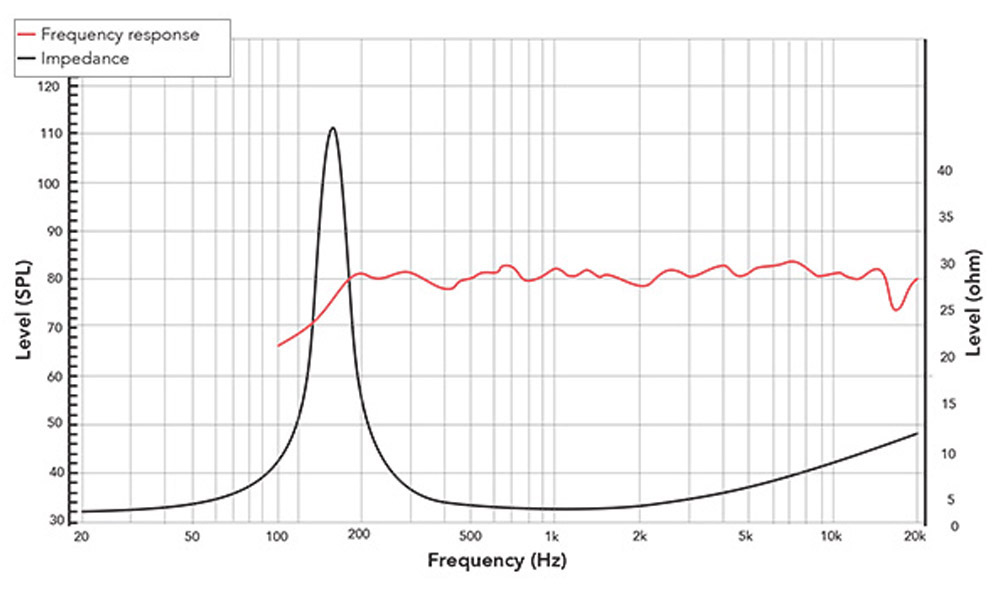

Frequency response & lmpedance
2D drawing
