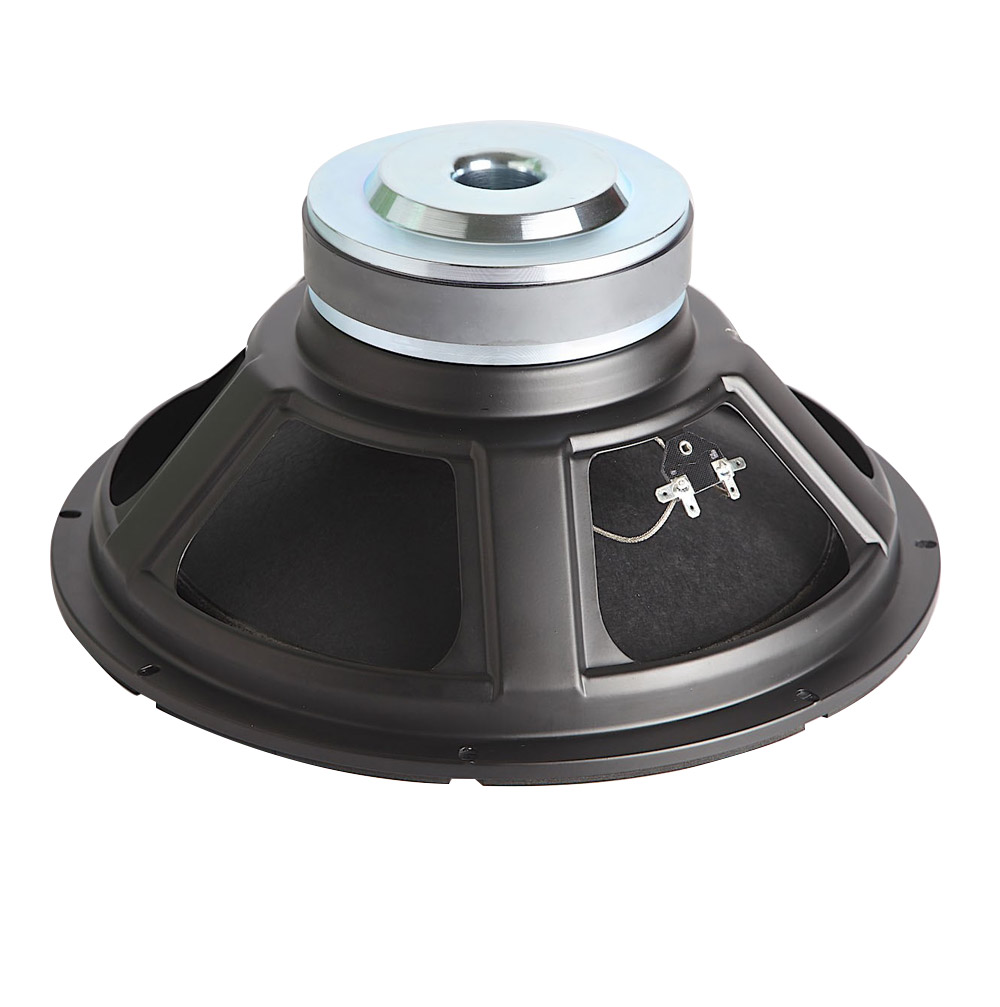

15" | 15FHW
Ferrite Sub-Woofer
Key features:
  • Hi sensitivity, low resonant frequency

  • Nomex spider

  • Strong, yet lightweight cone

Design notes:
    • The 15FHW is an ultra low frequency sub-woofer, designed to deliver large amounts of very low frequencies. With 91 dB 1watt / 1 meter sensitivity, you find this 15-inch sub-woofer with incredibly linear frequency response characteristics ideally assembled in sub-woofers for hi-fi, gaming, studios or cinema. The
    • 15FHW uses a strong paper cone, along with a high excursion single roll rubber surround. Rubber surround material was specifically developed for this application. The shape of the surround roll was FEM optimized to ensure low distortion in whole working range. Power HandlingAt the core of the 15FHW is it’s voice coil
    • technology featuring a composite Polyimide former material capable of withstanding peak temperatures in excess of 200°C, well beyond the thermal requirements of modern professional audio systems. REDCATT has implemented a Nomex(r) spider design to ensure long term Fs memory, consistency and diminish anomalies associated with spider deterioration.
Specifications:
    • General specs
      Nominal Diameter:15 in.
      Rated Impedance:8 Ohm
      Power handling
      AES Power:400 Watts
      Program Power:800 Watts
      Voice Coil
      Diameter:3 in.
      Winding wire:Copper
      Former:kapton
      Winding height:19.7 mm
    • T/S Parameters
      Resonant frequency:24 Hz
      Re:5.8 ohm
      Qes:0.63
      Qms:11.9
      Qts:0.6
      Vas:221.2 liters
      Sd:804 cm2
      Mms:169.6 grams
      Bl:15.8
      Le:0.96 mH
      Sensitivity:90.67 dB
    • Design details
      Surround Material:Rubber
      Cone material:Paper
      Spider:Cotton
      Plate thickness:10 mm
      Peak to peak linear cone Displacement19.6 mm
      Overall diameter:385 mm
      Bolt circle diameter:371 mm
      Baffle cutout dia.:349 mm
      Number of mounting holes:8
      Depth (flange to rear):168.1 mm
      Net weight:6.8 kg
    • Ordering codes:
      8 ohm version:15FHWX8-089
      Recone kits:
      Download:
      Spec download

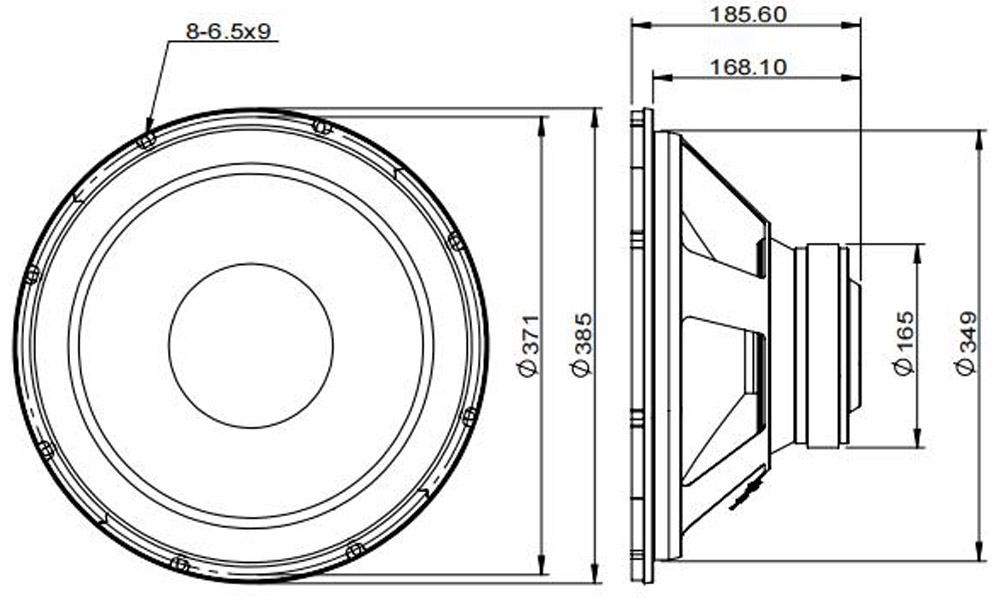

      2D drawing
      3D model

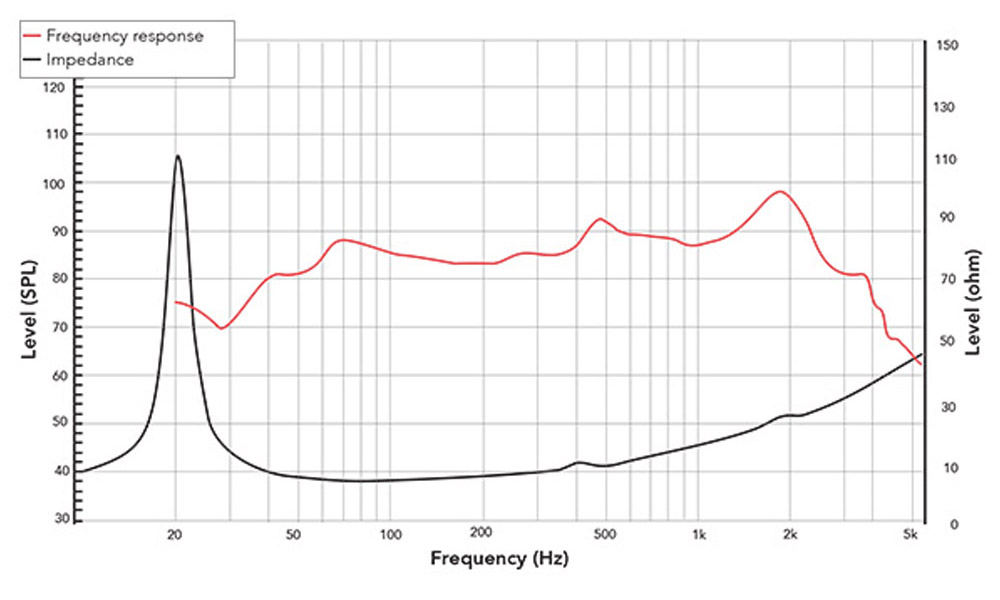

Frequency response & lmpedance
