15" | 154FIND

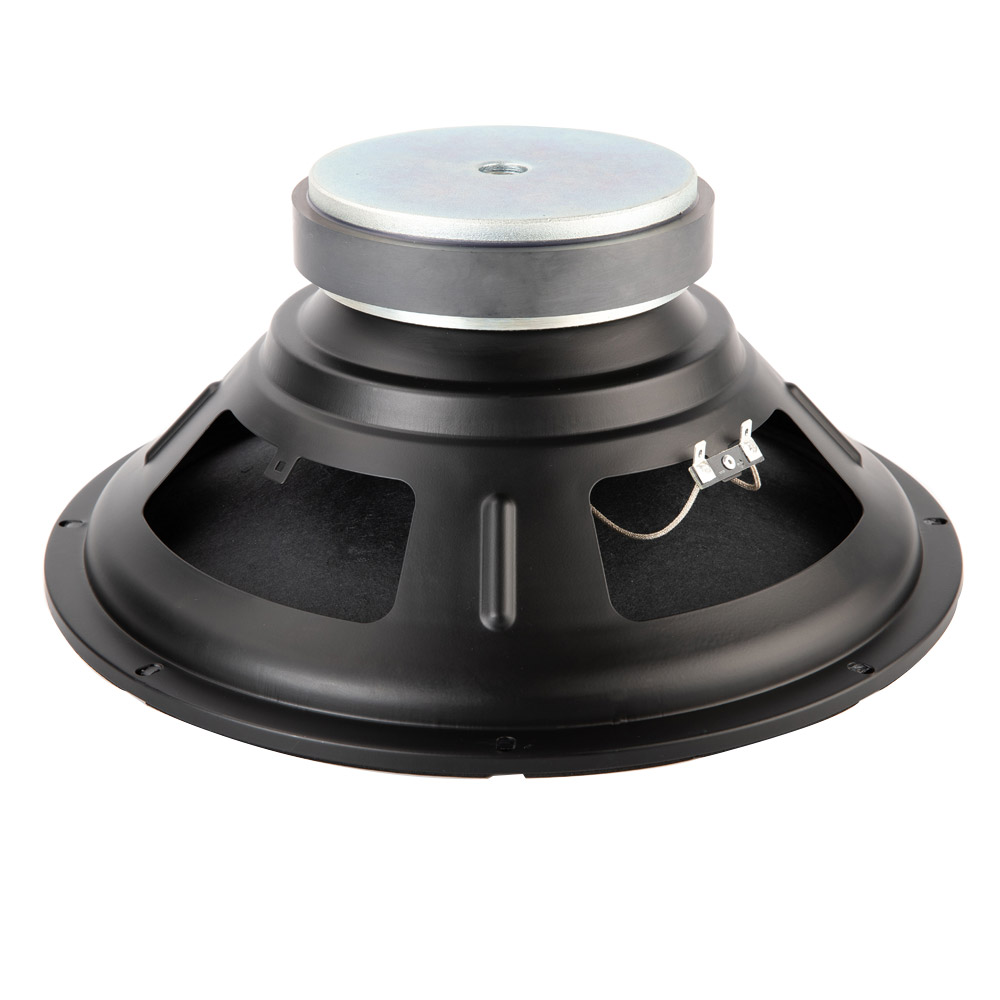

Ferrite Mid-Woofer
Key features:
  • Cost effective design, yet with high spl, extended mid frequency

  • Good power handling

  • Lightweight paper cone, conex spider

Design notes:
    • The 154FIND is a cost-effective solution for two-way and multi-way systems, together with subwoofers. It’s lightweight yet strong cone allows the magnetic circuit to be size optimized while delivering a seizable amount of sound pressure. With its high efficiency (97 dB 1watt / 1 meter) and high power handling capabilities, this woofer
    • will excel in all applications with tight budgets. The cone shape and material was developed to extend mid-frequency response, making the woofer good choice for two-way and multi-way systems. Power HandlingAt the core of the 154FIND is its voice coil technology featuring a composite Polyimide former material capable of
    • withstanding peak temperatures above 280°C. The winding with high temperature handling copper wire ensures the long life of the voice coil, without the costly service cycles. The cone is also extensively treated to withstand harsh environments and high humidity. Metal parts in the speaker assembly are coated for extreme weatherization protection.
Specifications:
    • General specs
      Nominal Diameter:15 in.
      Rated Impedance:8 Ohm
      Power handling
      AES Power:500 Watts
      Program Power:1,000 Watts
      Voice Coil
      Diameter:2.5 in.
      Winding wire:Copper
      Former:kapton
      Winding height:17 mm
    • T/S Parameters
      Resonant frequency:38 Hz
      Re:5.6 ohm
      Qes:0.43
      Qms:8.1
      Qts:0.4
      Vas:187.2 liters
      Sd:881 cm2
      Mms:103 grams
      Bl:18.1
      Le:0.97 mH
      Sensitivity:97.38 dB
    • Design details
      Surround Material:Fabric
      Cone material:Paper
      Spider:Nomex
      Plate thickness:8 mm
      Peak to peak linear cone Displacement17.2 mm
      Overall diameter:387 mm
      Bolt circle diameter:374 mm
      Baffle cutout dia.:355 mm
      Number of mounting holes:8
      Depth (flange to rear):155 mm
      Net weight:6.3 kg
    • Ordering codes:
      8 ohm version:154FINDX8-298
      Recone kits:
      Download:
      Spec download
      2D drawing
      3D model

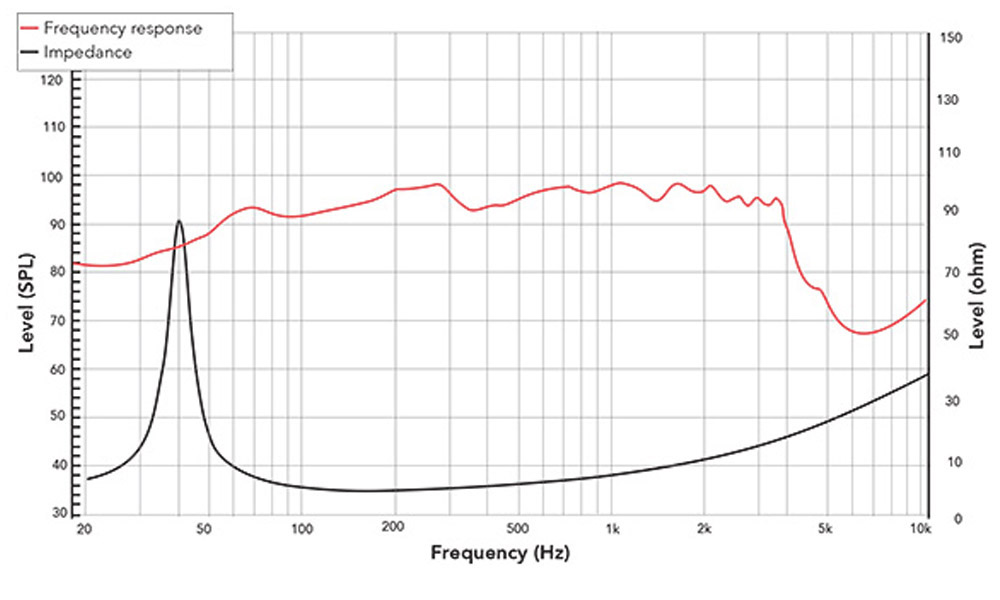

Frequency response & lmpedance
