15" | 152FIND

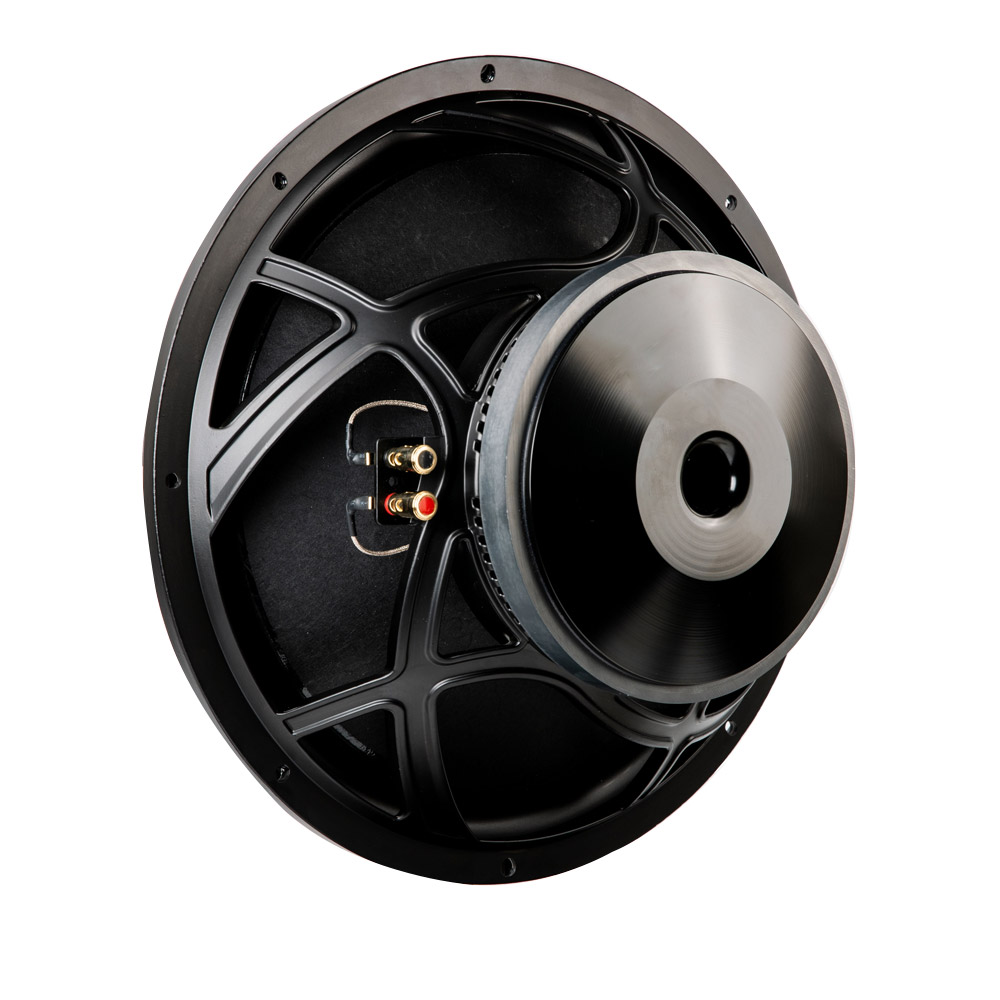

Ferrite Sub-Woofer
Key features:
  • EXTENDED LOW FREQUENCY RESPONSE

  • Carbon fiber reinforced cone

  • High excursion rubber surround

Design notes:
    • The 152FIND-333 is a high efficiency, (96 dB 1watt / 1 meter) 15-inch woofer with linear frequency response characteristics and high power handling capability. The 152FIND-333 uses a lightweight carbon fiber loaded cone assembly along with a high excursion rubber surround. This combination greatly improves low-frequency response and provides great level of control
    • over the moving cone at high excursion levels. We have designed a lightweight surround, using our own rubber compound. As the result, the SPL is not compromised and the woofer can be used in professional audio applications, where high amounts of low frequencies are required.Power HandlingAt the core of the 152FIND-333 is it’s voice coil technology featuring a composite
    • Polyimide former material capable of withstanding peak temperatures in excess of 280C, well beyond the thermal requirements of modern professional audio systems.The 152FIND-333 cone is extensively treated to withstand harsh environments and high humidity. Metal parts in the speaker assembly are coated for extreme weatherization protection.
Specifications:
    • General specs
      Nominal Diameter:15 in.
      Rated Impedance:8 Ohm
      Power handling
      AES Power:800 Watts
      Program Power:1,600 Watts
      Voice Coil
      Diameter:3 in.
      Winding wire:CCAW
      Former:kapton
      Winding height:19 mm
    • T/S Parameters
      Resonant frequency:37 Hz
      Re:4.6 ohm
      Qes:0.46
      Qms:10.2
      Qts:0.44
      Vas:119 liters
      Sd:804 cm2
      Mms:140 grams
      Bl:18.4
      Le:0.55 mH
      Sensitivity:95.62 dB
    • Design details
      Surround Material:Rubber
      Cone material:Paper
      Spider:Nomex
      Plate thickness:10 mm
      Peak to peak linear cone Displacement20 mm
      Overall diameter:392 mm
      Bolt circle diameter:375 mm
      Baffle cutout dia.:360 mm
      Number of mounting holes:8
      Depth (flange to rear):143 mm
      Net weight:9 kg
    • Ordering codes:
      Recone kits:
      Download:
      Spec download

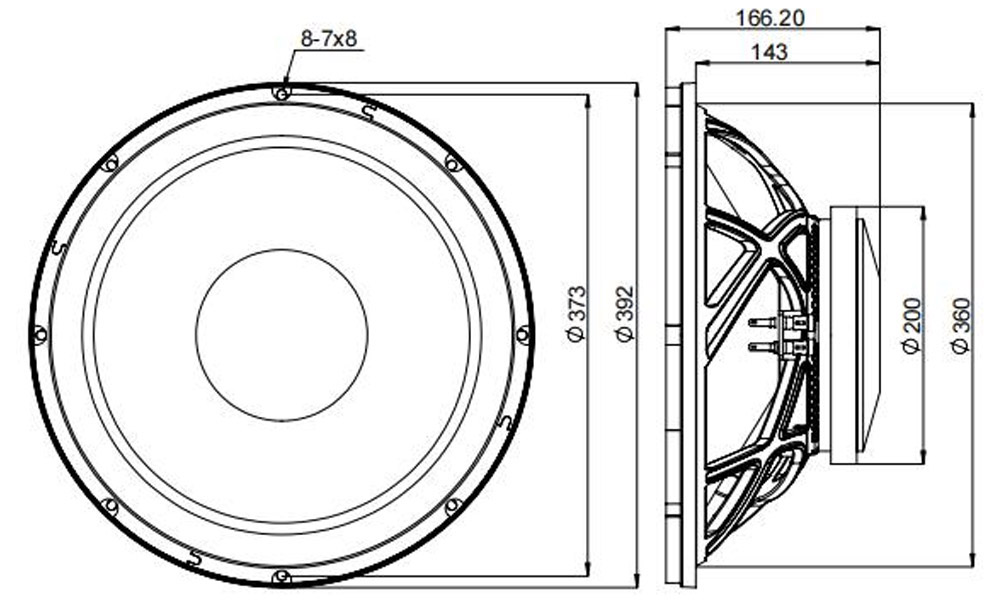

      2D drawing
      3D model

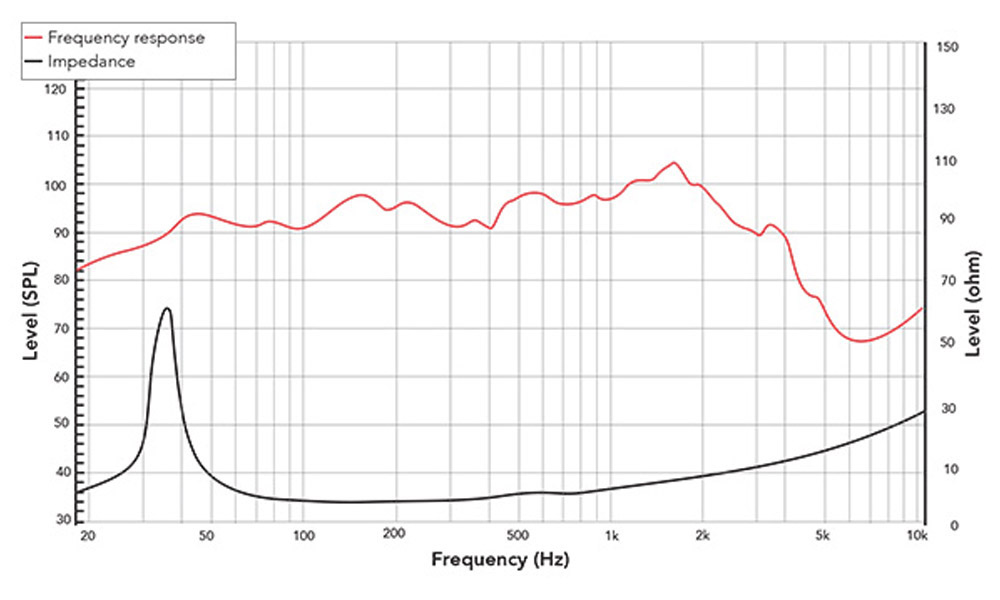

Frequency response & lmpedance
2D drawing
