18" | 182FIND

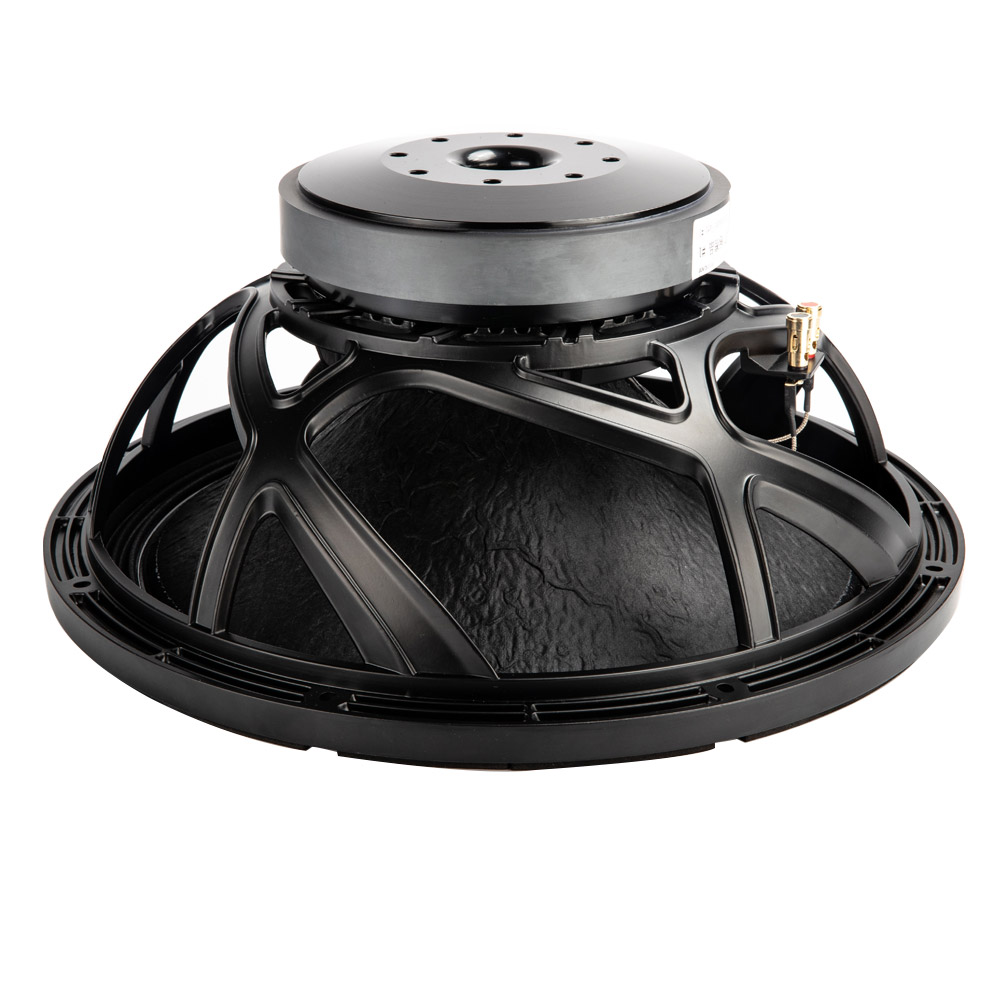

Ferrite Woofer
Key features:
  • Inside / outside wound coil

  • Reinforced half pressed cone

  • Silicone nomex spider

Design notes:
    • The 182FIND is a high efficiency, (98 dB 1watt / 1 meter) 18-inch woofer with extended linear frequency response characteristics. The 182FIND uses durable half-pressed paper cone assembly along with a high excursion triple roll constant geometry surround. This combination provides remarkable strength at any given
    • situation, high efficiency and a peak to peak maximum excursion of 27mm. Power HandlingAt the core of the 182FIND is it’s voice coil technology featuring a composite Polyimide former material capable of withstanding peak temperatures in excess of 250C, well beyond the thermal requirements of modern professional
    • audio systems. Voice coil winding is wound inside and outside of the former in the 1-3 split.REDCATT has implemented a silicone spider design to ensure long term shape memory, consistency and diminish anomalies associated with spider deterioration.
Specifications:
    • General specs
      Nominal Diameter:18 in.
      Rated Impedance:8 Ohm
      Power handling
      AES Power:1,000 Watts
      Program Power:2,000 Watts
      Voice Coil
      Diameter:4 in.
      Winding wire:Copper
      Former:kapton
      Winding height:25.5 mm
    • T/S Parameters
      Resonant frequency:31 Hz
      Re:5.5 ohm
      Qes:0.24
      Qms:8.85
      Qts:0.23
      Vas:208.6 liters
      Sd:1,257 cm2
      Mms:281 grams
      Bl:35.4
      Le:4.92 mH
      Sensitivity:97.78 dB
    • Design details
      Surround Material:Fabric
      Cone material:Paper
      Spider:Nomex
      Plate thickness:14 mm
      Peak to peak linear cone Displacementn/a mm
      Overall diameter:468 mm
      Bolt circle diameter:442 mm
      Baffle cutout dia.:426 mm
      Number of mounting holes:8
      Depth (flange to rear):189 mm
      Net weight:14 kg
    • Ordering codes:
      8 ohm version:182FINDX8-127
      Recone kits:
      Download:
      Spec download
      2D drawing
      3D model

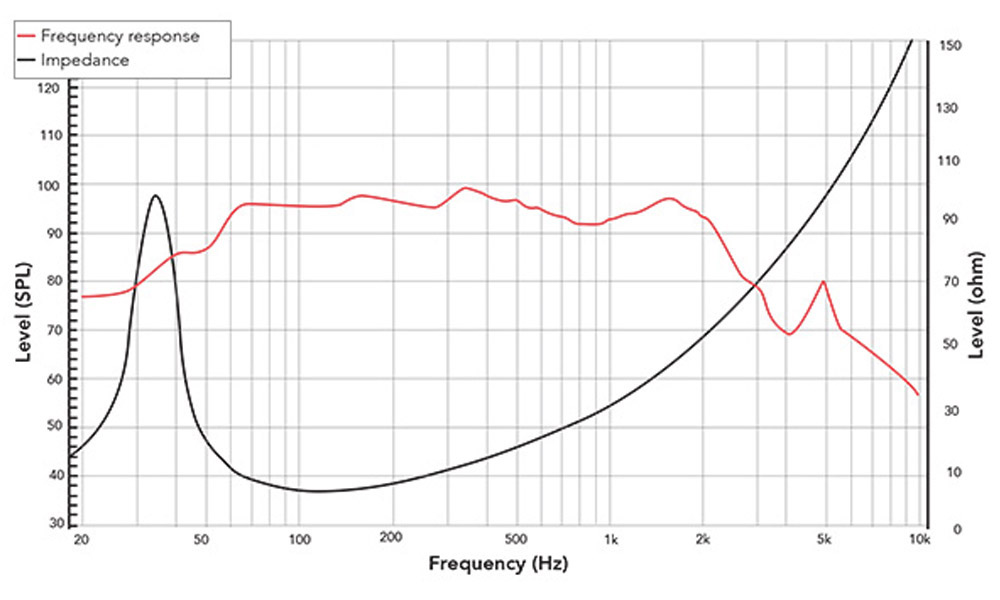

Frequency response & lmpedance

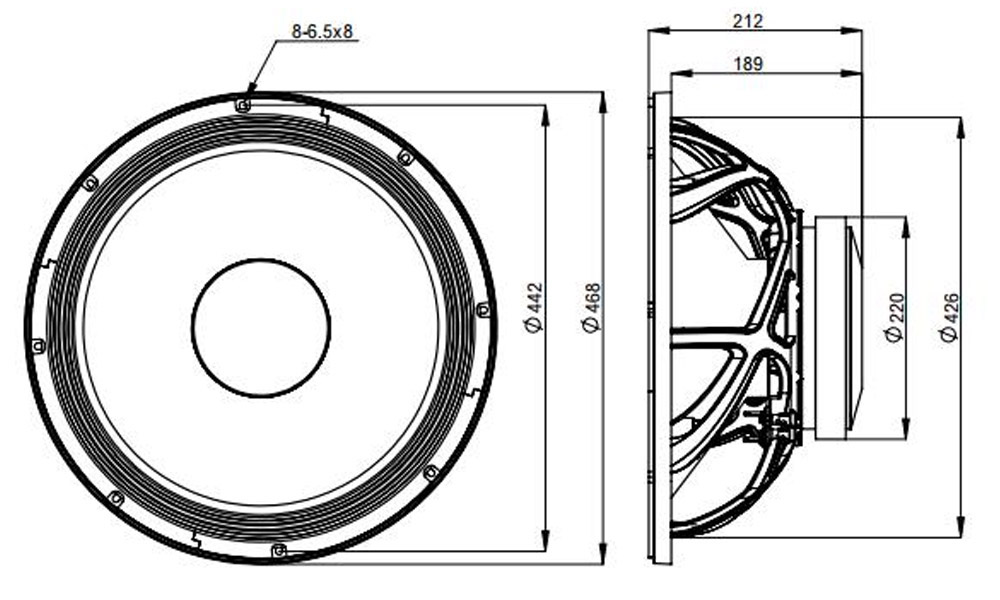

2D drawing
