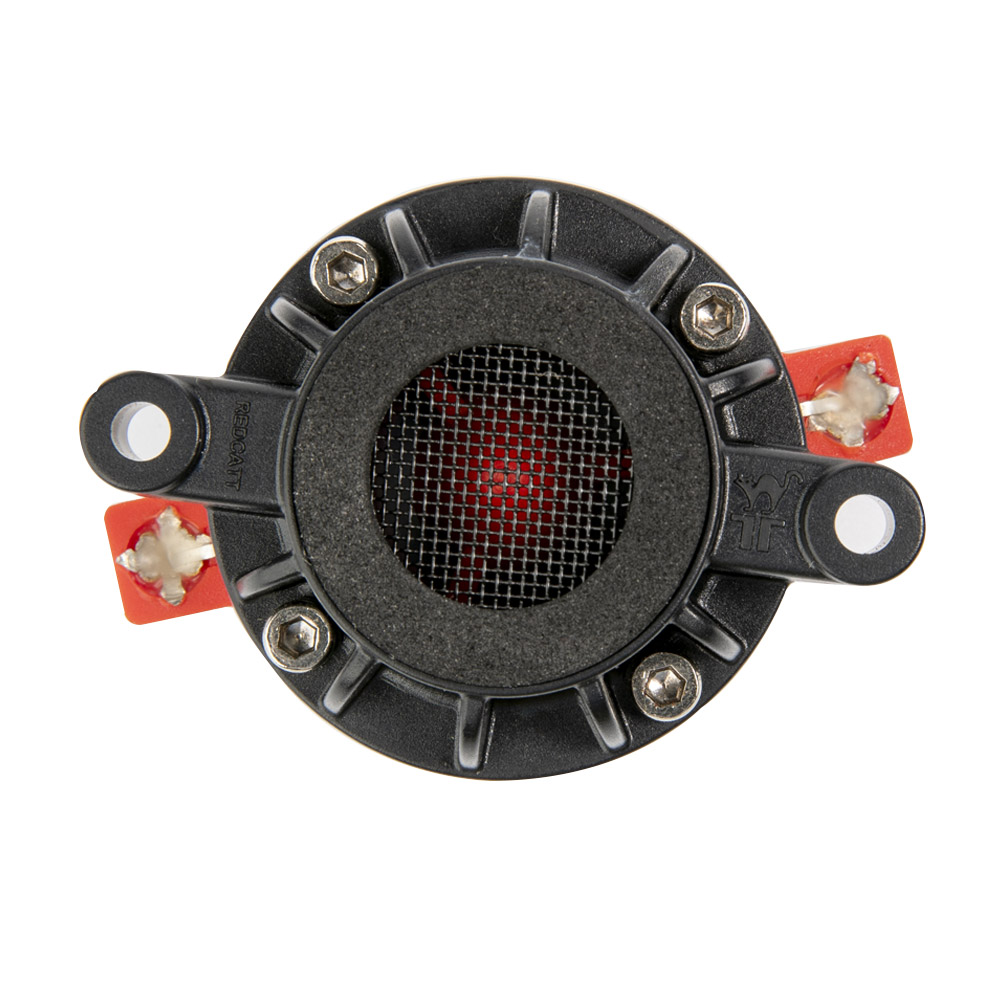

0.75" | 075NCD
Neodymium Compression Driver
Key features:
  • Budget sensitive applications

  • Easy horn mounting

  • 19mm Polyimide diaphragm

Design notes:
    • Introducing the cutting-edge 075NCD compression driver, an exceptional high-performance, high-frequency marvel tailored for professional loudspeaker systems, high-output hi-fi setups, and aftermarket car audio installations. Boasting a neodymium-based magnetic
    • circuit, this driver generates a resilient, high-force BL field, guaranteeing precise control over the Polyimide diaphragm assembly. Delivering unrivaled frequency response and robust power handling capabilities, all through a sleek 0.75-inch exit throat.Diaphragm Design:Featuring a 19mm Polyimide diaphragm
    • meticulously crafted as a single piece, alongside a Polyimide suspension that ensures superior durability. The unparalleled acoustic output is channeled through a bullet phase plug coupled with a 0.75-inch throat aperture.
Specifications:
    • General specs
      Nominal Diameter:0.75 in.
      Rated Impedance:4 Ohm
      Power handling
      AES Power:20 Watts
      Program Power:40 Watts
      Voice Coil
      Diameter:0.75 in.
      Winding wire:CCAW
      Former:kapton
    • T/S Parameters
      Resonant frequency:2,500 Hz
      Nominal sensitivity:100 dB
      Re:4 ohm
    • Design details
      Dome material:Polymer
      Magnet material:Neodymium
      Surround Material:Polymer
      Overall diameter:59.5 mm
      Bolt circle diameter:53 mm
      Throat diameter:19 mm
      Number of mounting holes:2
      Depth (flange to rear):33.38 mm
      Net weight:0.17 kg
    • Ordering codes:
      4 ohm version:075NCDX4-567A
      Recone kits:
      Download:
      Spec download
      2D drawing
      3D model

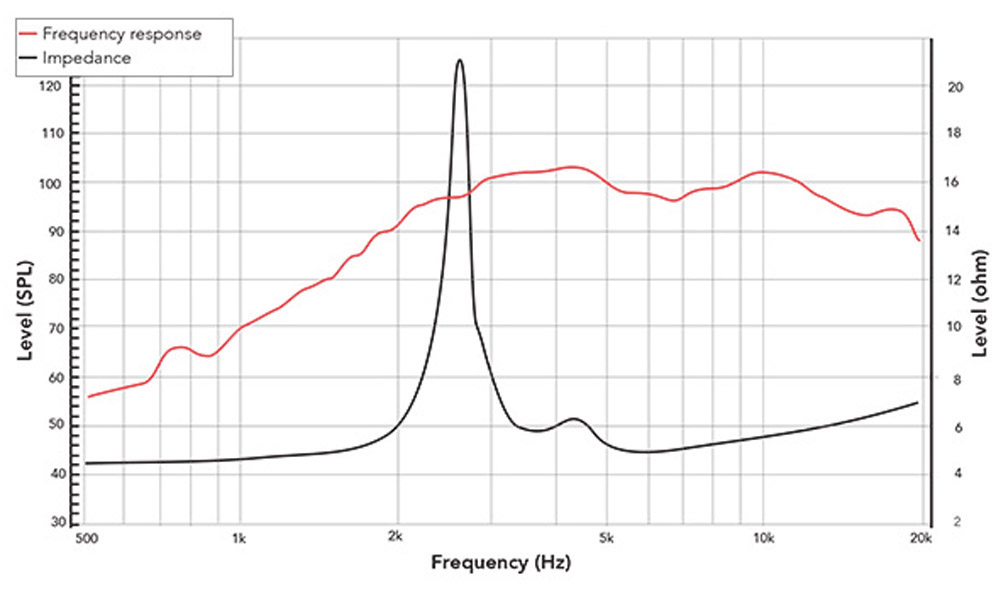

Frequency response & lmpedance

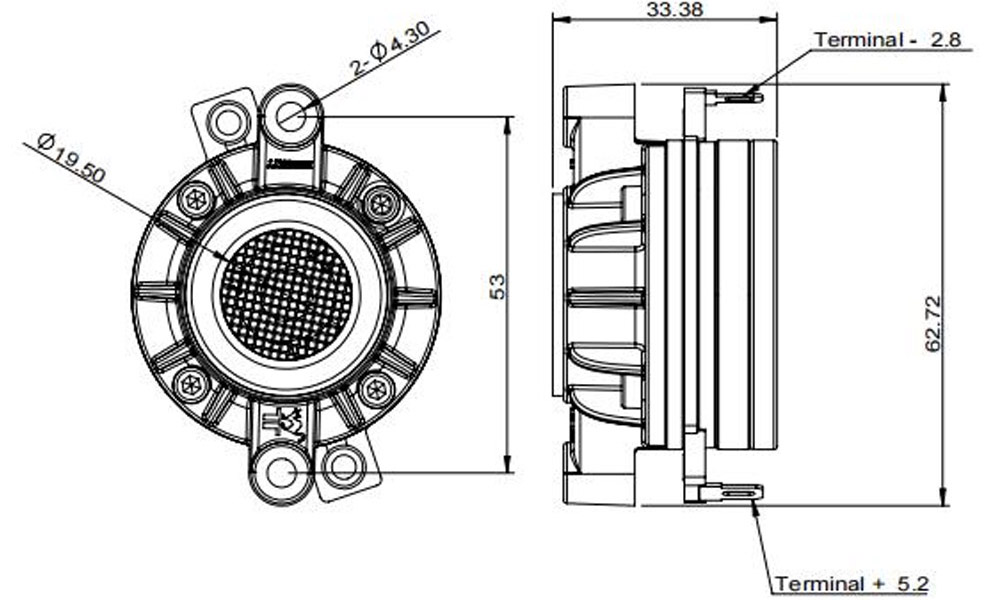

2D drawing
