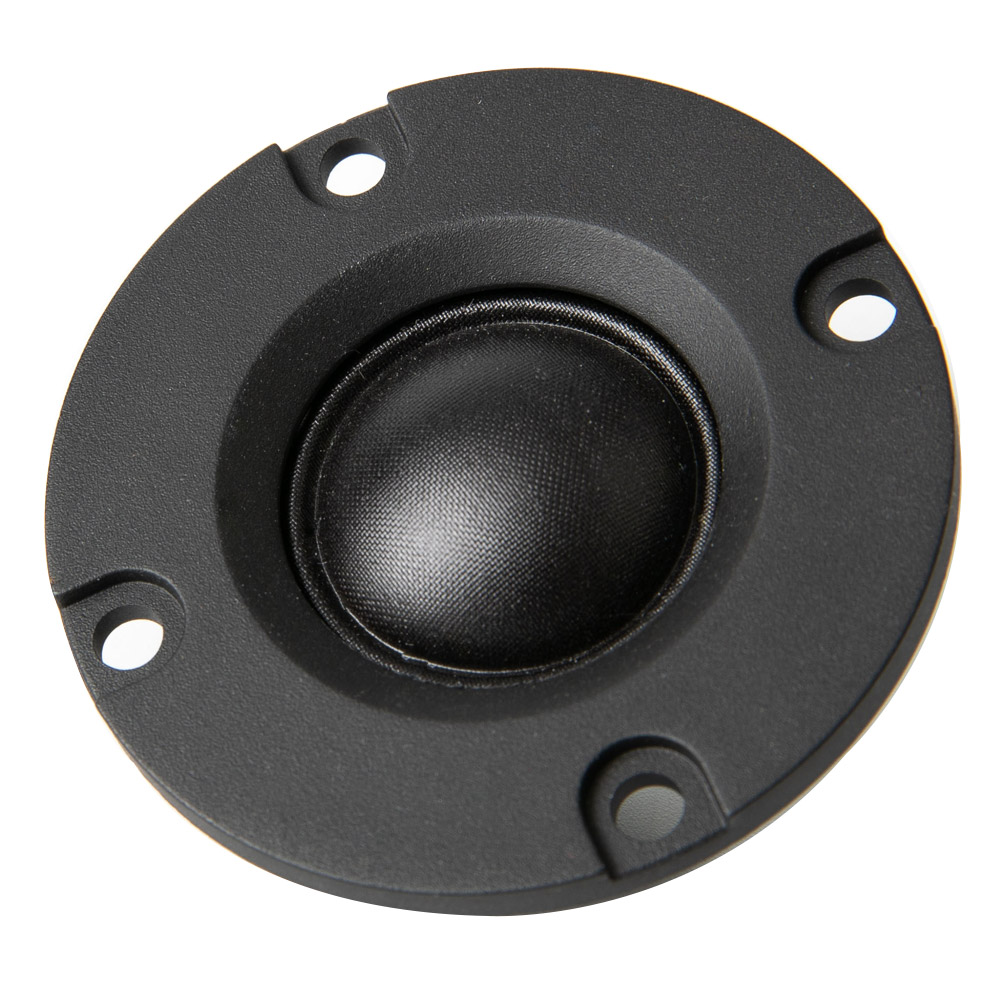

0.8" | 20TN
Neodymium Tweeter
Key features:
- compact size
- Integrated waveguide
- easy crossover design possible
Design notes:
- The 20TN tweeter has a lower resonance frequency, making the crossover design a non-complicated task. The tweeter comes with a small waveguide, but based
- upon request, the tweeter can be also delivered as a “bare” tweeter and assembled with your own waveguide.The best application is in tabletop studio
- monitors, prosumer products, bookshelf speakers, TV bars, micro line-arrays, etc.
Specifications:
General specs Nominal Diameter: 0.8 in. Rated Impedance: 8 Ohm Power handling AES Power: 10 Watts Program Power: 20 Watts Voice Coil Diameter: 0.8 in. Winding wire: CCAW Former: Aluminum T/S Parameters Resonant frequency: 1,700 Hz Nominal sensitivity: 87 dB Re: 7.2 ohm Design details Dome material: Tetoron Magnet material: Neodymium Surround Material: Tetoron Overall diameter: 50.5 mm Bolt circle diameter: 44 mm Throat diameter: n/a mm Number of mounting holes: 4 Depth (flange to rear): 19.65 mm Net weight: 0.03 kg Ordering codes: 8 ohm version: 20TNX8-383 Recone kits: Download: Spec download 2D drawing 3D model

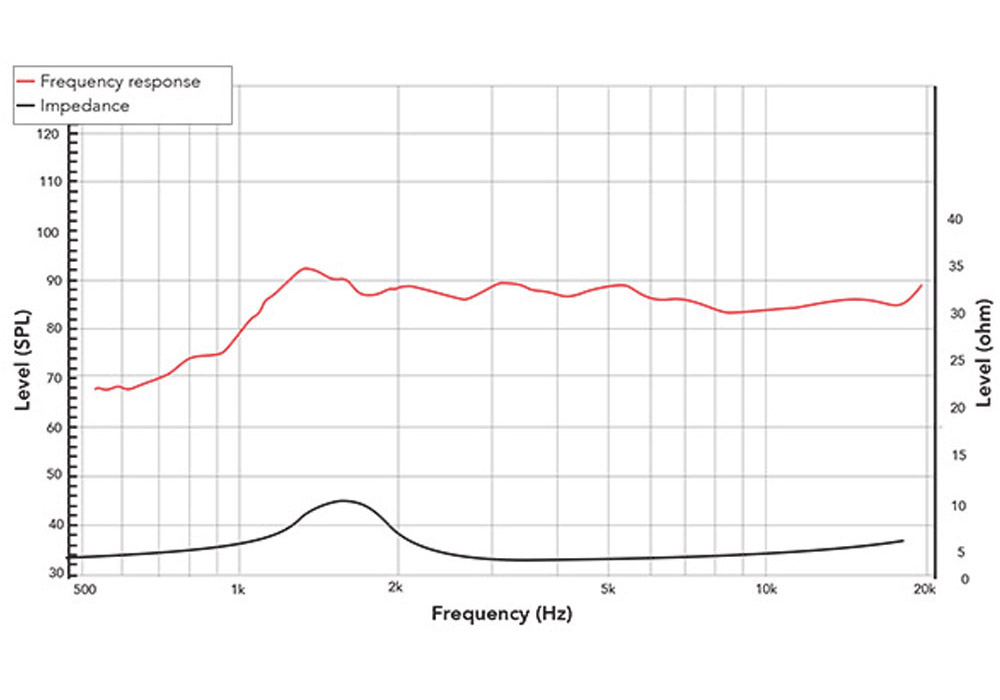

Frequency response & lmpedance

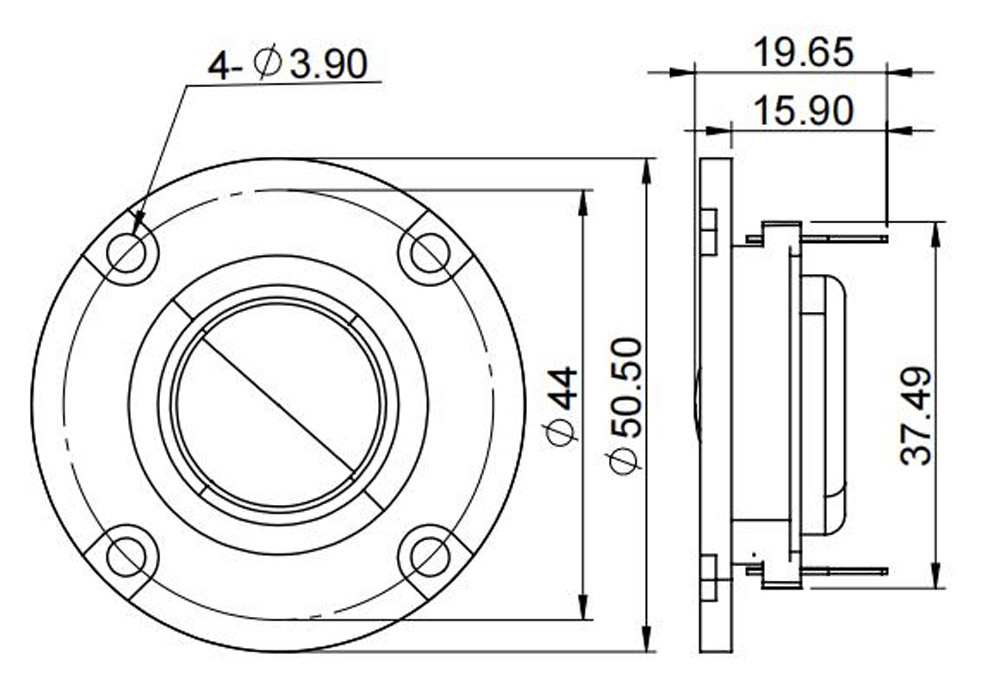

2D drawing
