0.8" | 201TN

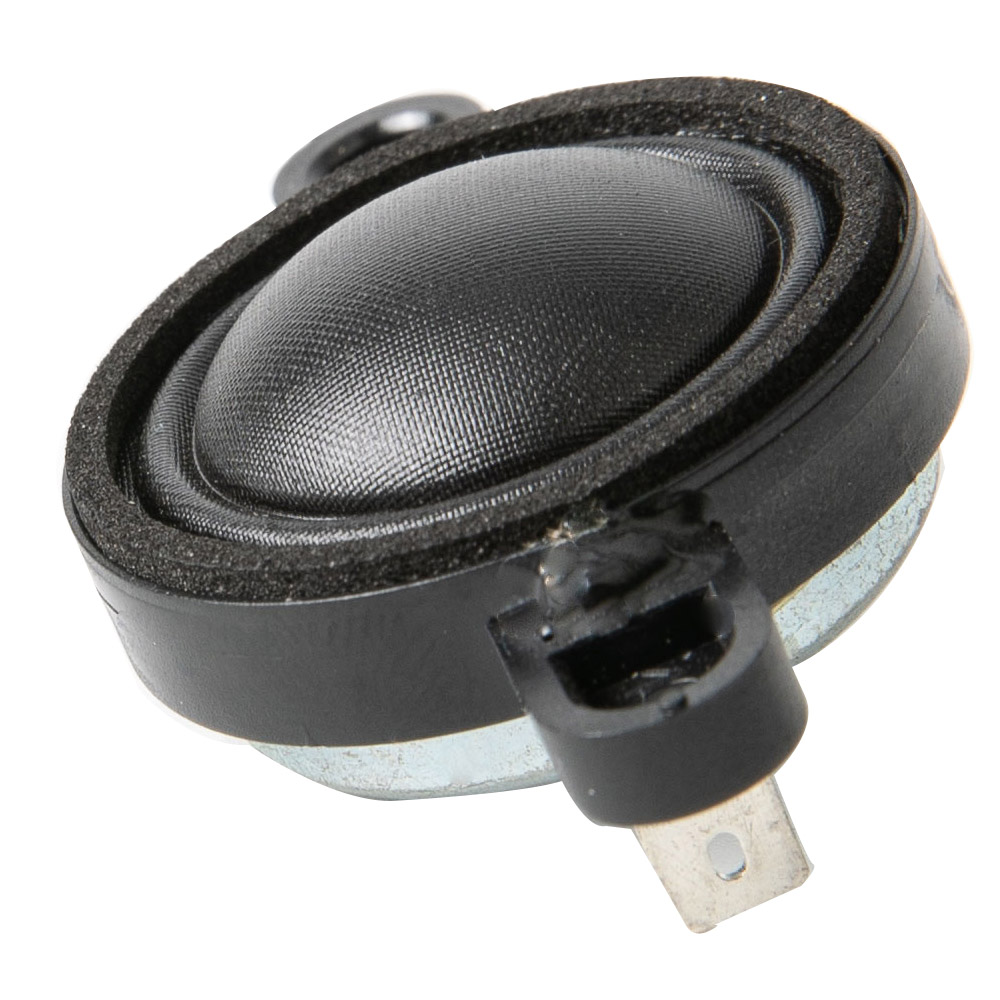

Neodymium Tweeter
Key features:
- design can be easily implemented in your own waveguide
- wide band frequency response
Design notes:
- The 201TN tweeter has a lower resonance frequency, making the crossover design a non-complicated task. The tweeter is delivered as a “bare” tweeter
- and shall assembled with your own waveguide or to a baffle with integrated waveguide.The best application is in tabletop studio monitors,prosumer products,
- bookshelf speakers, TV bars, micro line-arrays, etc.
Specifications:
General specs Nominal Diameter: 0.8 in. Rated Impedance: 8 Ohm Power handling AES Power: 10 Watts Program Power: 20 Watts Voice Coil Diameter: 0.8 in. Winding wire: CCAW Former: Aluminum T/S Parameters Resonant frequency: 1,900 Hz Nominal sensitivity: 86 dB Re: 7.2 ohm Design details Dome material: Tetoron Magnet material: Neodymium Surround Material: Tetoron Overall diameter: 31.5 mm Bolt circle diameter: 43.5 mm Throat diameter: n/a mm Number of mounting holes: 2 Depth (flange to rear): 19.7 mm Net weight: 0.04 kg Ordering codes: 8 ohm version: 201TNX8-399 Recone kits: Download: Spec download 2D drawing 3D model

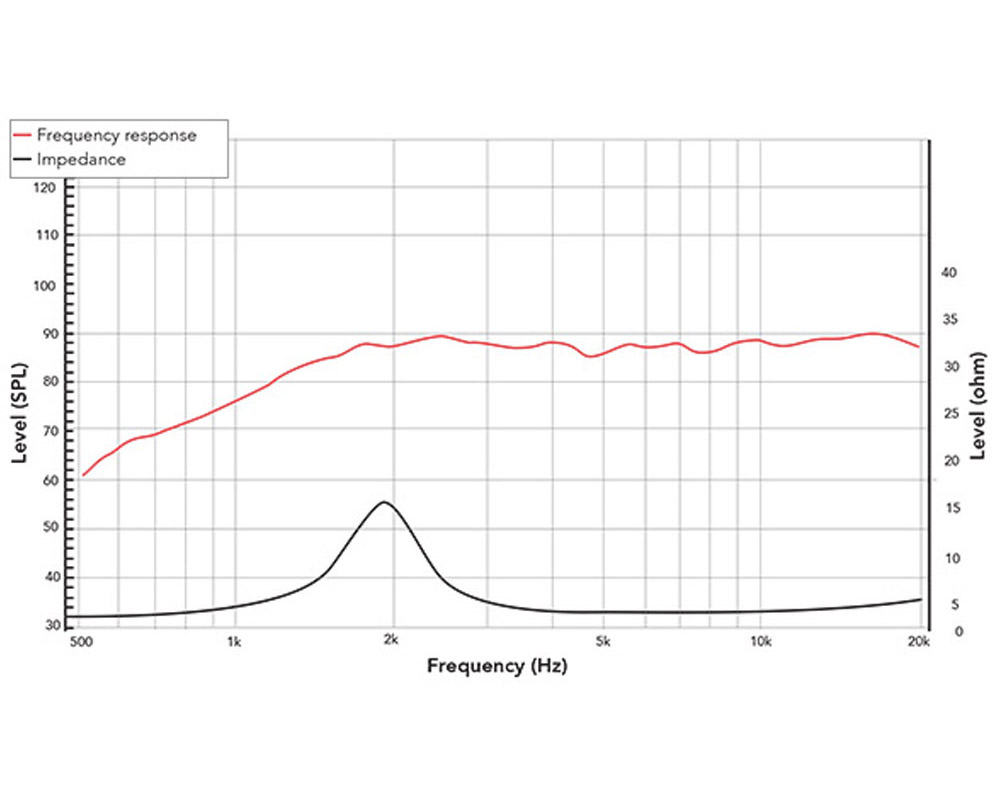

Frequency response & lmpedance

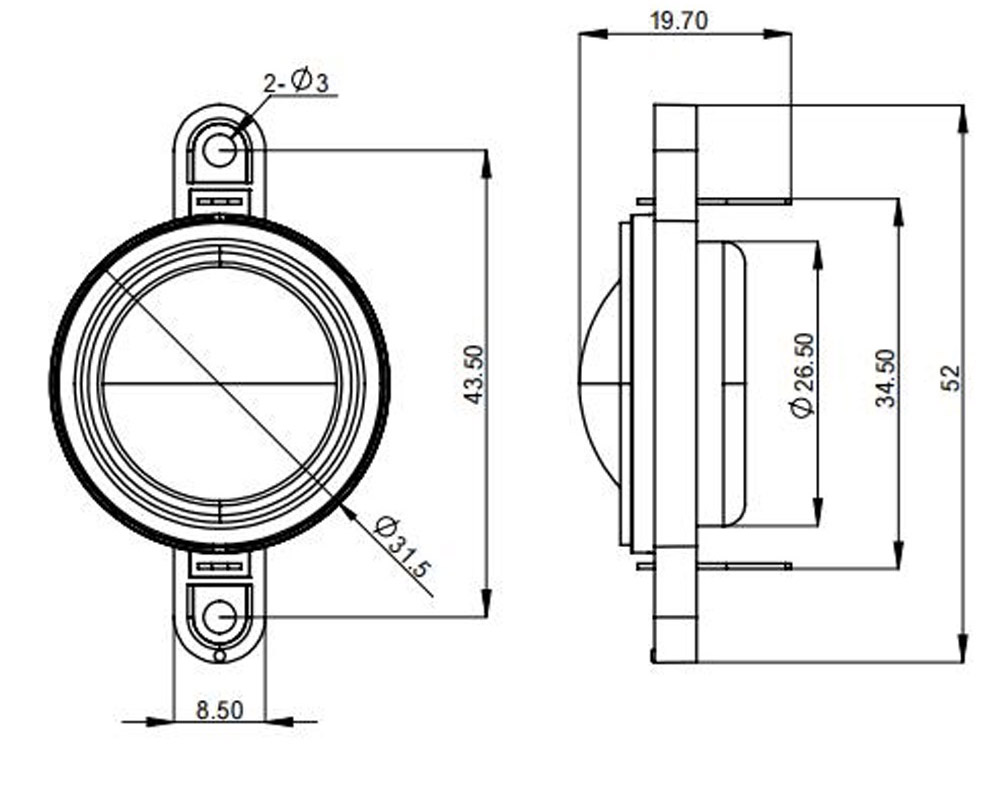

2D drawing
