| General specs | |
| Nominal Diameter: | 1 in. |
| Rated Impedance: | 4 Ohm |
| Power handling | |
| AES Power: | 15 Watts |
| Program Power: | 30 Watts |
| Voice Coil | |
| Diameter: | 1 in. |
| Winding wire: | CCAW |
| Former: | Aluminum |
| T/S Parameters | |

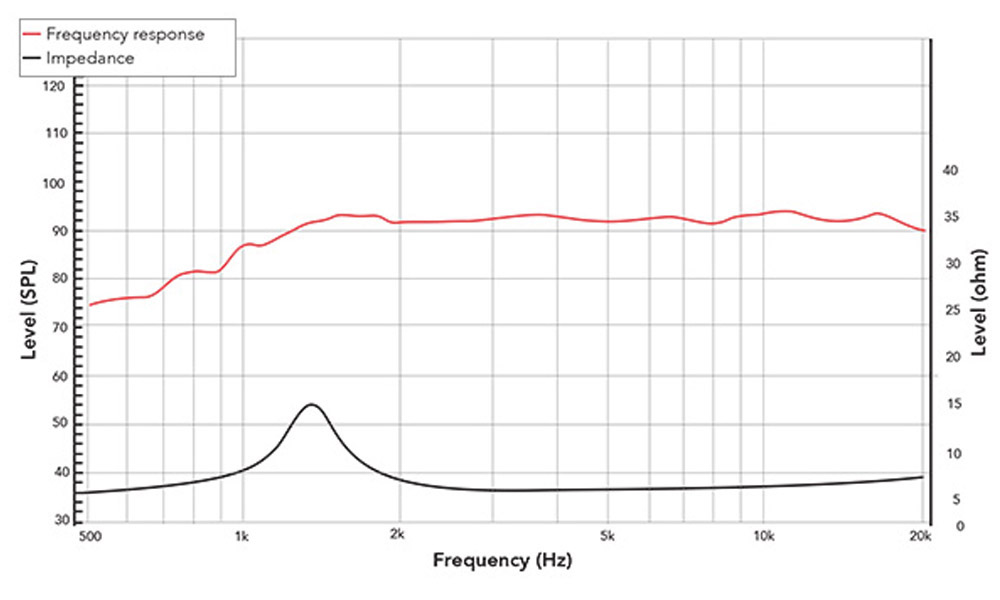

| Resonant frequency: | 1,250 Hz |
| Nominal sensitivity: | 91 dB |
| Re: | 3.4 ohm |
| Design details | |
| Dome material: | Paper |
| Magnet material: | Neodymium |
| Surround Material: | NBR |
| Overall diameter: | 54.5*54.5 mm |
| Bolt circle diameter: | 58 mm |
| Throat diameter: | n/a mm |
| Number of mounting holes: | 4 |
| Depth (flange to rear): | 25.55 mm |
| Net weight: | 0.08 kg |
| Ordering codes: | |
| 4 ohm version: | 25TNX4-386B |
| Recone kits: |
| Download: |
| Spec download |
| 2D drawing |
| 3D model |
Back Top

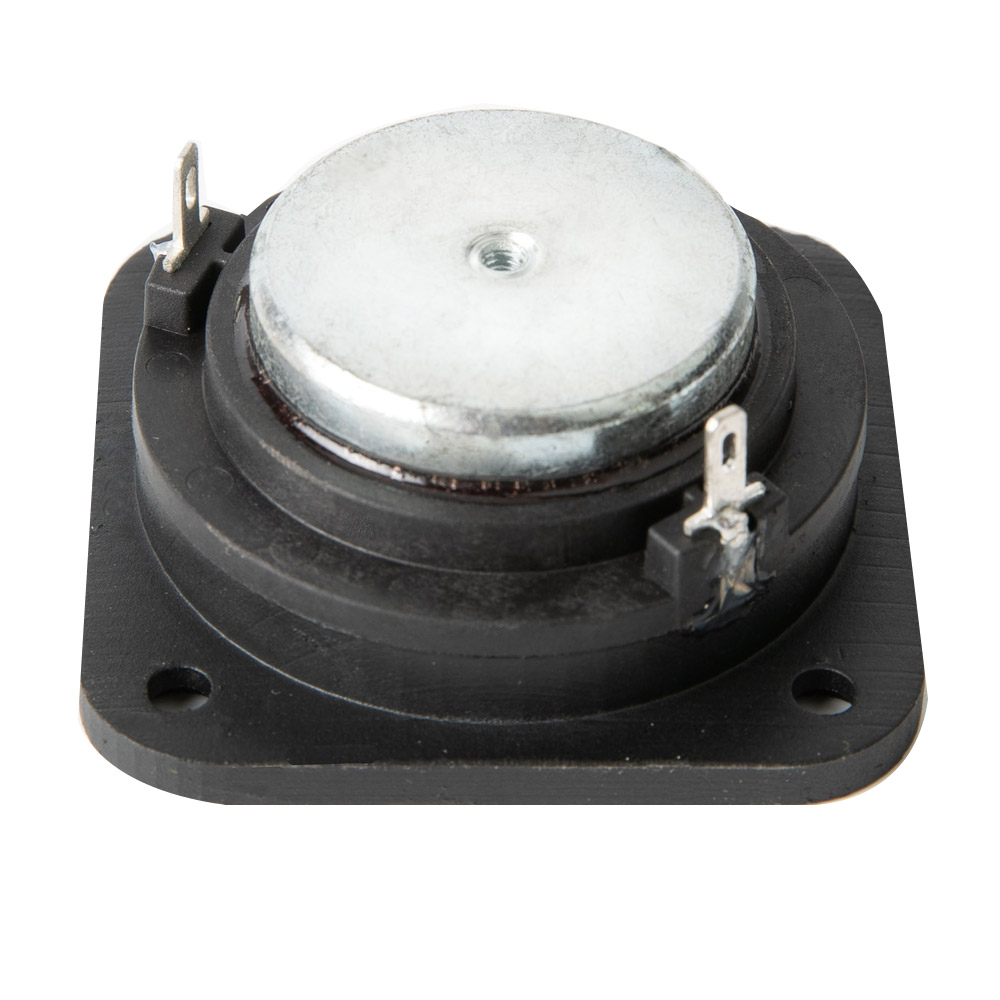

The 25TN tweeter has a very low resonance frequency, making it possible to work with larger sized mid-woofers. The tweeter has a designed-in acoustical phase plug, that ensures the off-axis good response and also increases acoustical pressure. Integrated small waveguide makes the usage of this tweeter very easy.Dual neodymium high-temperature grade neodymium magnets deliver a high-density flux field for the CCAW coil with a minimum amount of flux modulation.The tweeter has well-ballanced performance and very low har- monic distortion even at high powers.This tweeter can be used in all aplication where high SPL and low Fs is required. Line-array systems, Hi-Fi center channels, 2-way and multi-way systems.
| General specs | |
| Nominal Diameter: | 1 in. |
| Rated Impedance: | 4 Ohm |
| Power handling | |
| AES Power: | 15 Watts |
| Program Power: | 30 Watts |
| Voice Coil | |
| Diameter: | 1 in. |
| Winding wire: | CCAW |
| Former: | Aluminum |
| T/S Parameters | |
| Resonant frequency: | 1,250 Hz |
| Nominal sensitivity: | 91 dB |
| Re: | 3.4 ohm |
| Design details | |
| Dome material: | Paper |
| Surround Material: | NBR |
| Overall diameter: | 54.5*54.5 mm |
| Bolt circle diameter: | 58 mm |
| Throat diameter: | n/a mm |
| Number of mounting holes: | 4 |
| Depth (flange to rear): | 25.55 mm |
| Net weight: | 0.08 kg |
| Ordering codes: | |
| 4 ohm version: | 25TNX4-386B |
| Recone kits: |
| Download: |
| Spec download |
| 2D drawing |
| 3D model |
