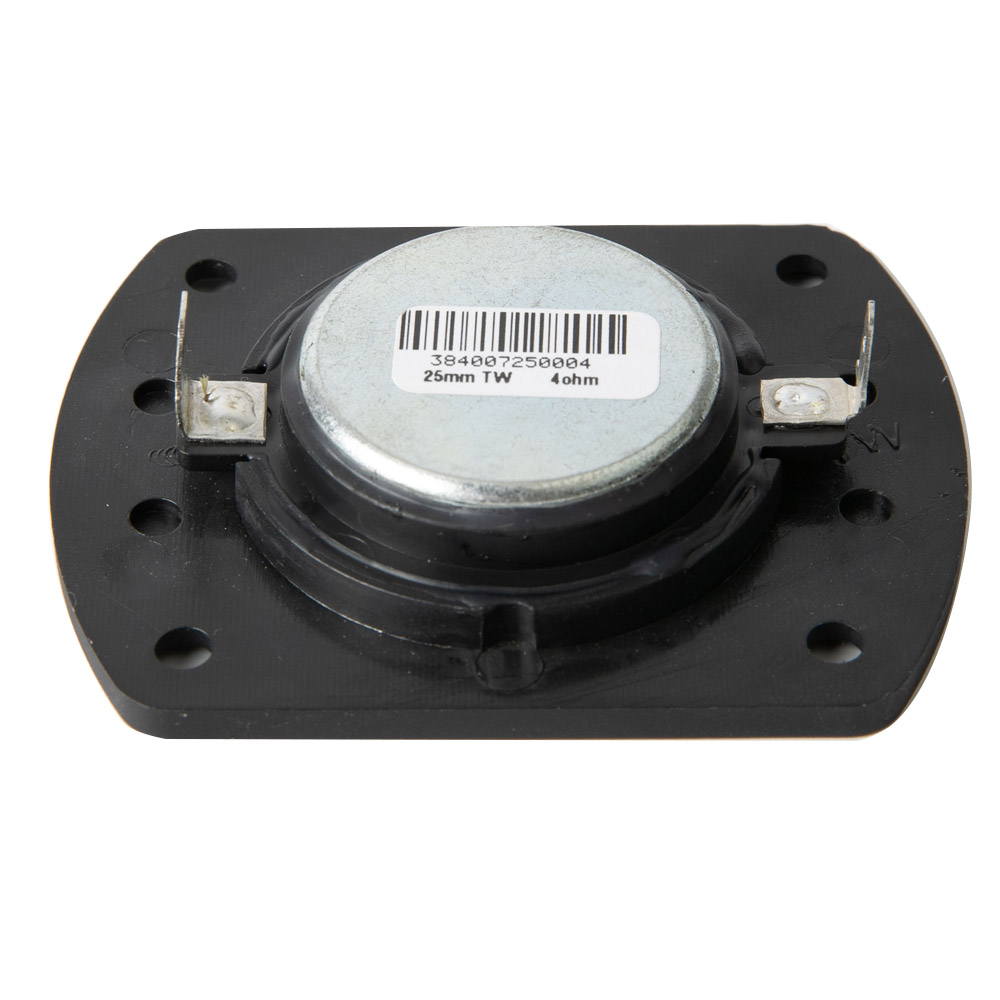

1" | 251TN
Neodymium Tweeter
Key features:
  • wide band frequency range

  • low resonant frequency

  • designed for limited height products, or array applications

Design notes:
    • The 251TN tweeter delivers incredible performance. The aluminum dome excels in higher frequencies with bright, undistorted sound. The dome is carefully attached to a
    • poly-silk composite surround. The tweeter is assembled on a small wave-guide, making a further application a breeze. The shape of the waveguide was carefully
    • considered to fit narrow hight applications, such as TV Bars. The tweeters can be also vertically stacked for array-like columns.
Specifications:
    • General specs
      Nominal Diameter:1 in.
      Rated Impedance:4 Ohm
      Power handling
      AES Power:10 Watts
      Program Power:20 Watts
      Voice Coil
      Diameter:1 in.
      Winding wire:CCAW
      Former:Aluminum
    • T/S Parameters
      Resonant frequency:1,500 Hz
      Nominal sensitivity:90 dB
      Re:3.6 ohm
    • Design details
      Dome material:Aluminum
      Magnet material:Neodymium
      Surround Material:NBR
      Overall diameter:70.5*54.3 mm
      Bolt circle diameter:63.5 mm
      Throat diameter:n/a mm
      Number of mounting holes:4
      Depth (flange to rear):16.41 mm
      Net weight:0.06 kg
    • Ordering codes:
      4 ohm version:251TNX4-384
      Recone kits:
      Download:
      Spec download

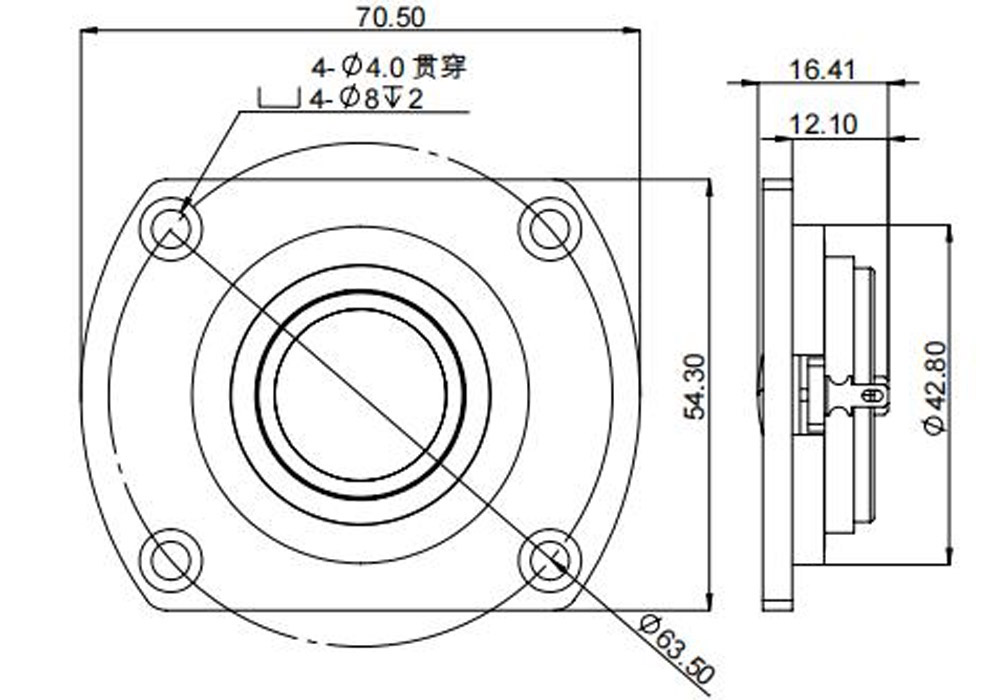

      2D drawing
      3D model

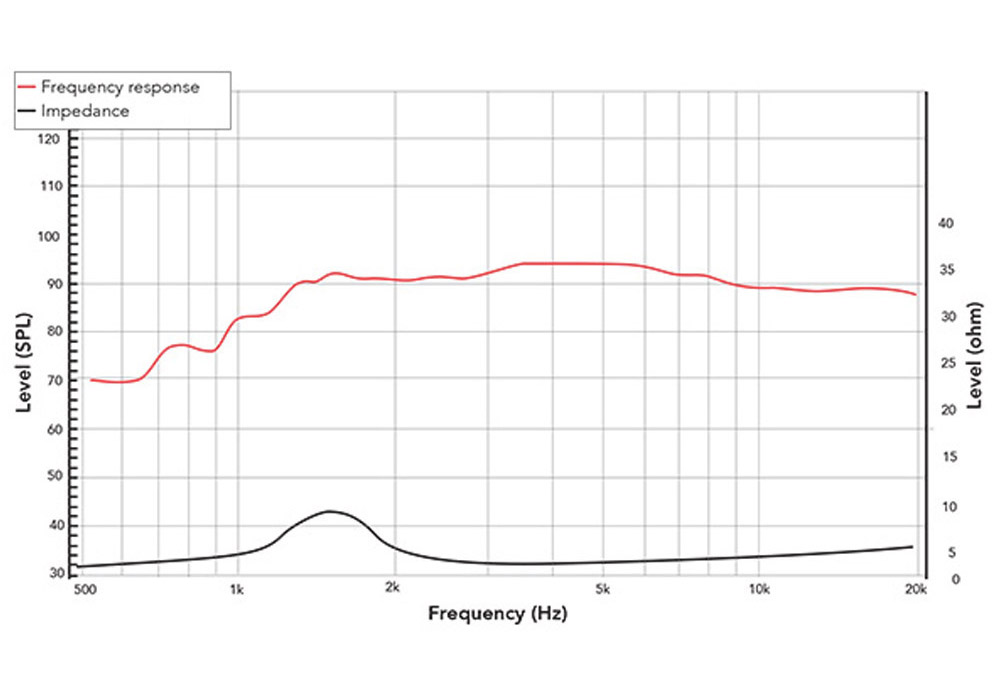

Frequency response & lmpedance
2D drawing
