1" | 252TN

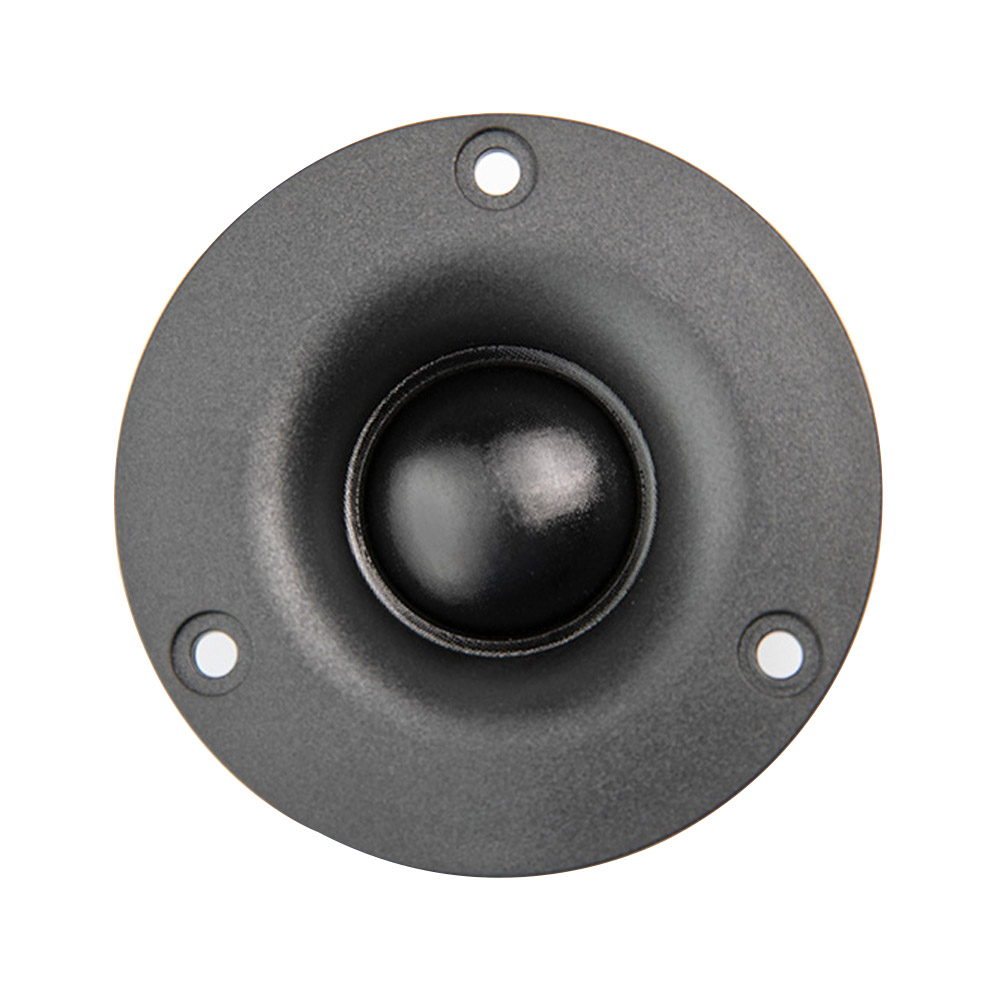

Neodymium Tweeter
Key features:
  • Helmholtz resonant chamber

  • Compact and lightweight

  • Low Fs

Design notes:
    • Introducing the 252TN, the latest innovation in our compact tweeter lineup. Engineered with a natural fiber silk dome, this tweeter is crafted from the ground up using advanced FEM tools, paired with a highly optimized neodymium-based magnetic circuit and a finely tuned
    • Helmholtz resonant chamber.The result? An exceptionally high-performing tweeter that excels in a variety of applications, from smaller bookshelf speakers and portable systems to high-fidelity floor-standing towers and automotive audio. Its low resonant frequency enables a lower crossover point, enhancing overall sound
    • quality.Designed for versatility, the 252TN is fully weather-sealed, making it ideal for even the most demanding environments. Elevate your audio experience with the 252TN—where cutting-edge technology meets outstanding performance.
Specifications:
    • General specs
      Nominal Diameter:1 in.
      Rated Impedance:4 Ohm
      Power handling
      AES Power:10 Watts
      Program Power:20 Watts
      Voice Coil
      Diameter:1 in.
      Winding wire:CCAW
      Former:Aluminum
    • T/S Parameters
      Resonant frequency:850 Hz
      Nominal sensitivity:93 dB
      Re:3.5 ohm
    • Design details
      Dome material:Tetoron
      Magnet material:Neodymium
      Surround Material:Tetoron
      Overall diameter:69.8 mm
      Bolt circle diameter:58.8 mm
      Throat diameter:n/a mm
      Number of mounting holes:3
      Depth (flange to rear):33.3 mm
      Net weight:0.1 kg
    • Ordering codes:
      4 ohm version:252TNX4-563A
      Recone kits:
      Download:
      Spec download

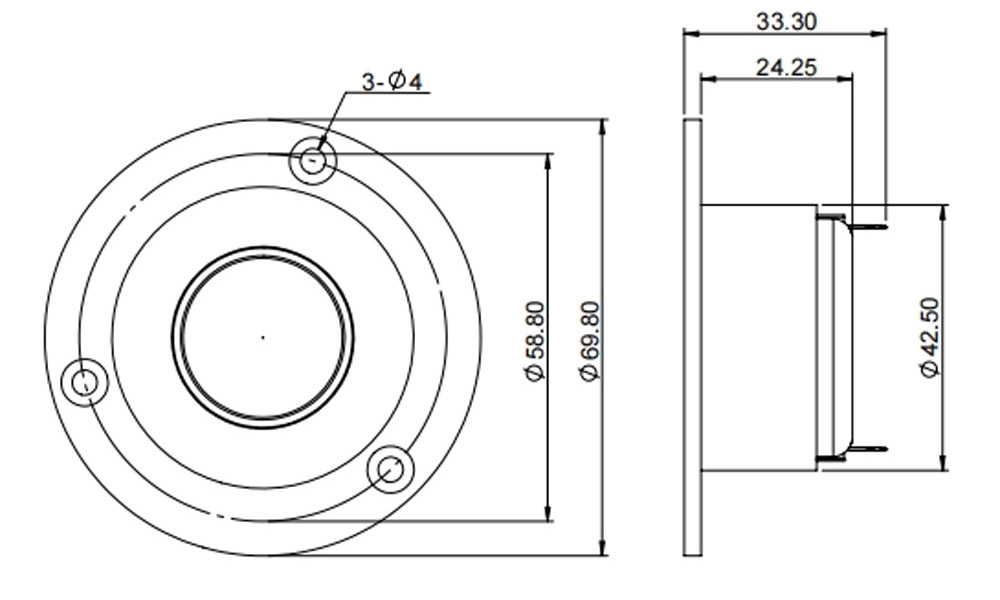

      2D drawing
      3D model

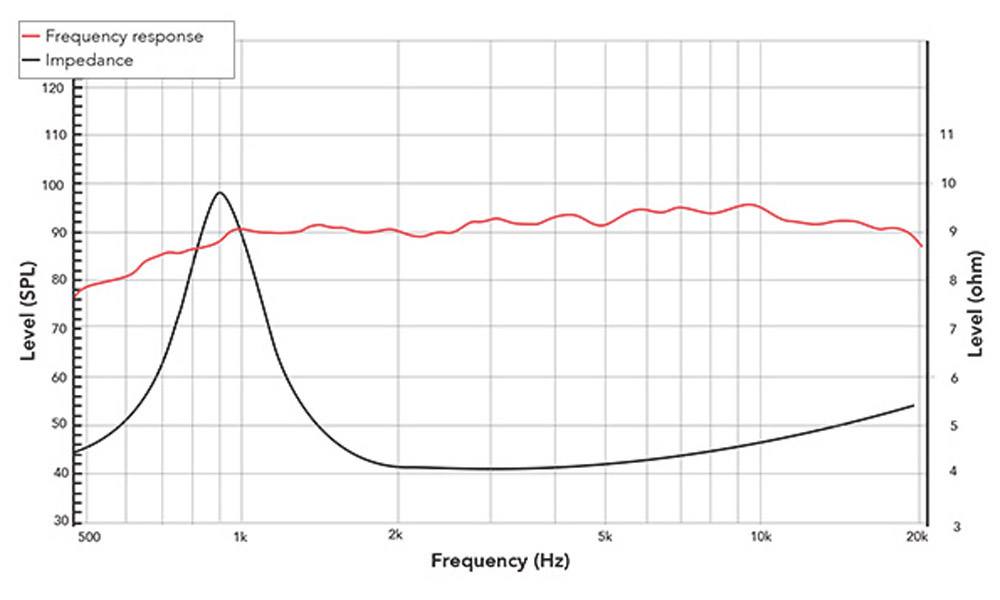

Frequency response & lmpedance
2D drawing
