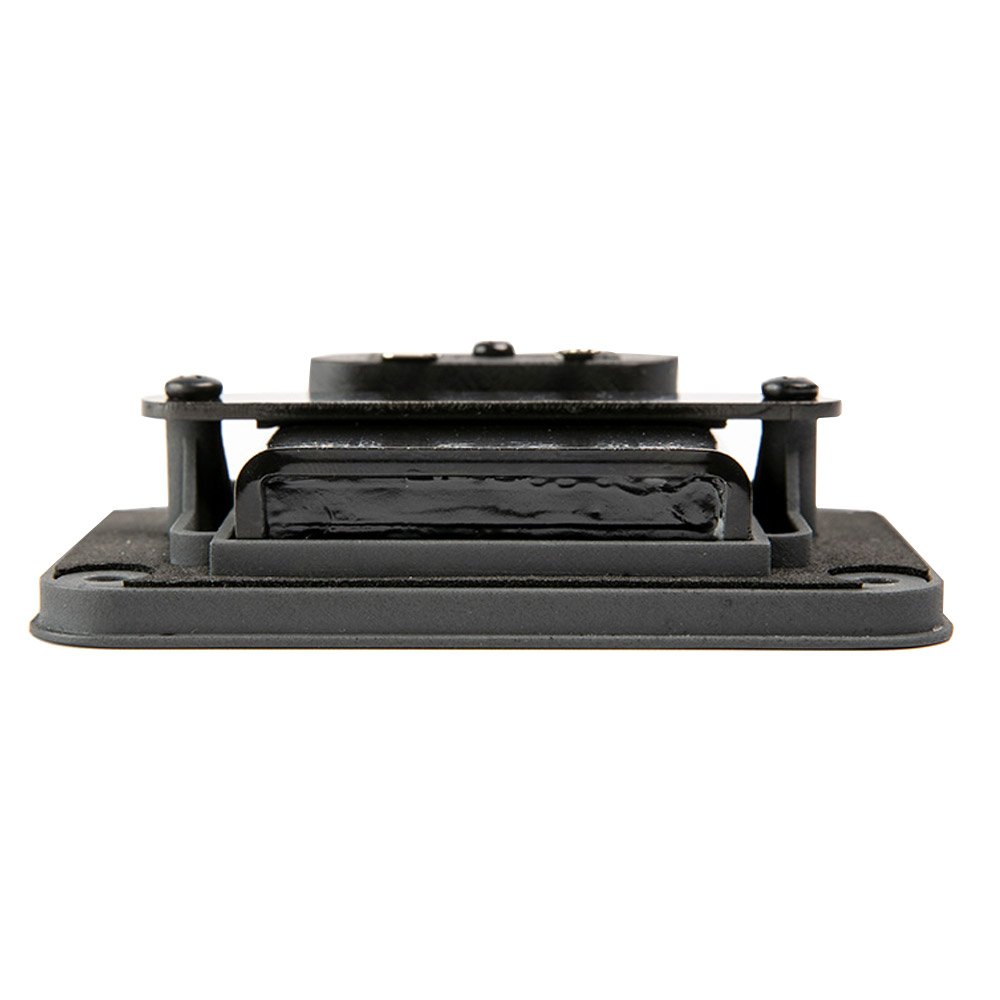

1.4" | AMT2838
Air Motion Transformer
Key features:
  • Smooth frequency response in working rage, very low harmonic distortion

  • compact design with integrated waveguide

  • Best use in high performing hi-fi audio systems

Design notes:
    • Introducing our Air Motion Transformer AMT2838, meticulously engineered to elevate the auditory experience in high-fidelity audio products. Designed to be the pinnacle of sound reproduction, the AMT2838 delivers ultra-clean, detailed, and well-defined mid to high-frequency sound, setting a new standard in audio excellence.Crafted with precision manufacturing,
    • stringent quality control processes,and advanced glue dispensing techniques, our AMT2838 is engineered for long-term durability and unwavering performance, ensuring that the product in your hands is synonymous with reliability and stability.The AMT2838’s magnetic system provides a robust B field to the formed diaphragm, enhancing its overall performance
    • and contributing to its exceptional sound output. The diaphragm assembly is a marvel in engineering, featuring polyimide foils encapsulating aluminum conductive film. Our innovative high-precision forming technique ensures that each diaphragm is crafted with a high degree of repeatability, enhancing unit-to-unit consistency and delivering stability, resulting in unparalleled audio performance.
Specifications:
    • General specs
      Nominal Diameter:1.4 in.
      Rated Impedance:4 Ohm
      Power handling
      AES Power:10 Watts
      Program Power:20 Watts
      Voice Coil
      Diameter:n/a in.
      Winding wire:Aluminum
      Former:kapton
    • T/S Parameters
      Resonant frequency:2,200 Hz
      Nominal sensitivity:96 dB
      Re:4 ohm
    • Design details
      Dome material:Paper
      Magnet material:Neodymium
      Surround Material:NBR
      Overall diameter:93*68 mm
      Bolt circle diameter:77*52 mm
      Throat diameter:n/a mm
      Number of mounting holes:4
      Depth (flange to rear):27.1 mm
      Net weight:0.22 kg
    • Ordering codes:
      4 ohm version:AMT2838X4-541A
      Recone kits:
      Download:
      Spec download

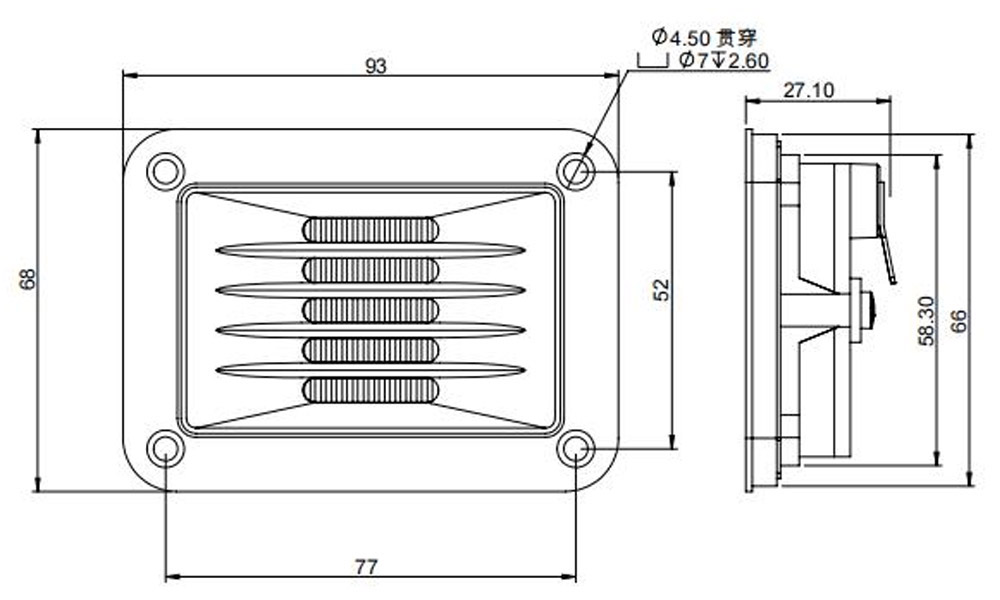

      2D drawing
      3D model

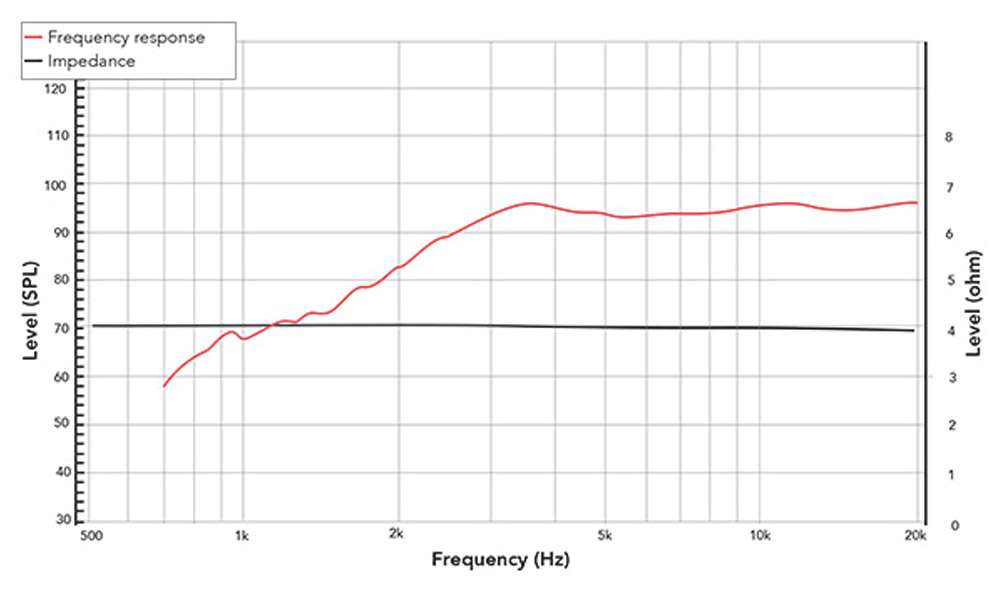

Frequency response & lmpedance
2D drawing
