1.8" | 180FCD
Ferrite Compression Driver
Key features:
- Driver delivering high SPL at affordable cost
- Robust, high BL magnetic circuit
Design notes:
- The 180FCD compression driver is a very high-performance, high-frequency device ideal for professional loudspeaker systems, such as larger 2-way systems. Diaphragm AssemblyThe driver sports a 44mm polyimide diaphragm formed as a single piece with the
- suspension. The voice coil is attached to the dome with our state of the art adhesives and precise bonding equipment.The acoustic output exits through a circumferential phase plug and a 1.0-inch throat aperture. Nominal sensitivity is 109.5 dB 1watt / 1 meter. REDCATT uses state of the art adhesives in all
- assembly steps. Our voice coil to dome bonding is a unique process, developed to greatly improve the power handling capabilities. REDCATT unique and precise adhesives dispensing, combined with our in-house developed dome treatments are further improving the long term reliability of this product.
Specifications:
General specs Nominal Diameter: 1.8 in. Rated Impedance: 8 Ohm Power handling AES Power: 55 Watts Program Power: 110 Watts Voice Coil Diameter: 1.8 in. Winding wire: CCAW Former: kapton T/S Parameters Resonant frequency: 1,100 Hz Nominal sensitivity: 109.5 dB Re: 5.8 ohm Design details Dome material: Polymer Magnet material: Ferrite Surround Material: Polymer Overall diameter: 120 mm Bolt circle diameter: 76&57 mm Throat diameter: 28.5 mm Number of mounting holes: 5 Depth (flange to rear): 69 mm Net weight: 2.2 kg Ordering codes: 8 ohm version: 180FCDX8-330 Recone kits: Download: Spec download 2D drawing 3D model

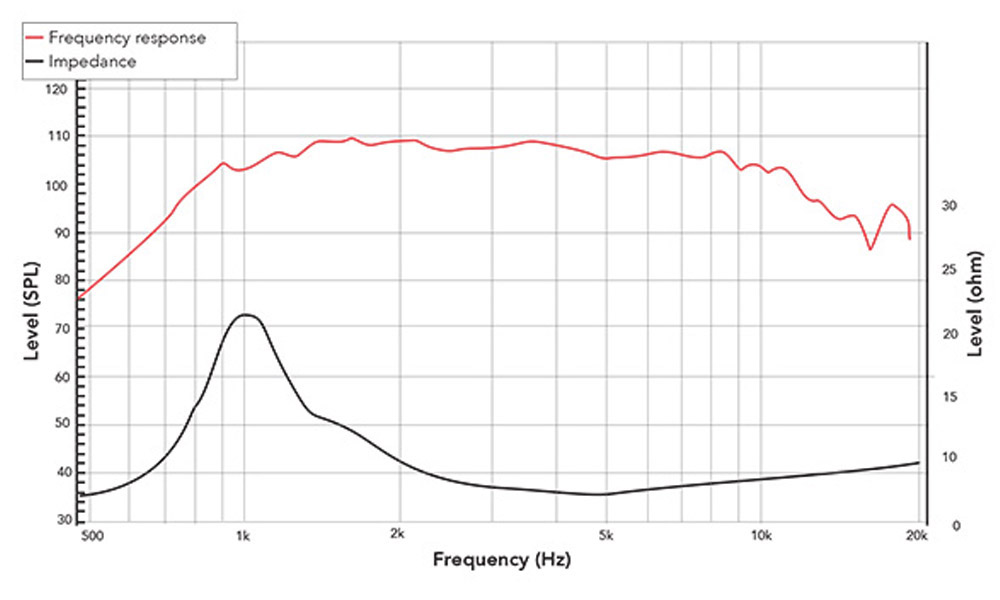

Frequency response & lmpedance

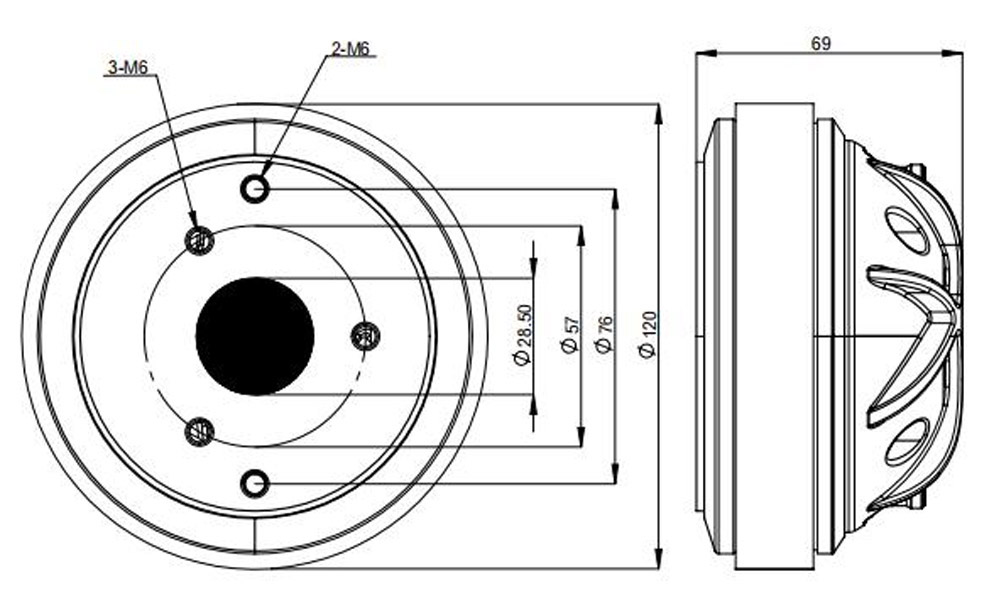

2D drawing
