3" | 202NTi
Neodymium Compression Driver
Key features:
  • Very compact design

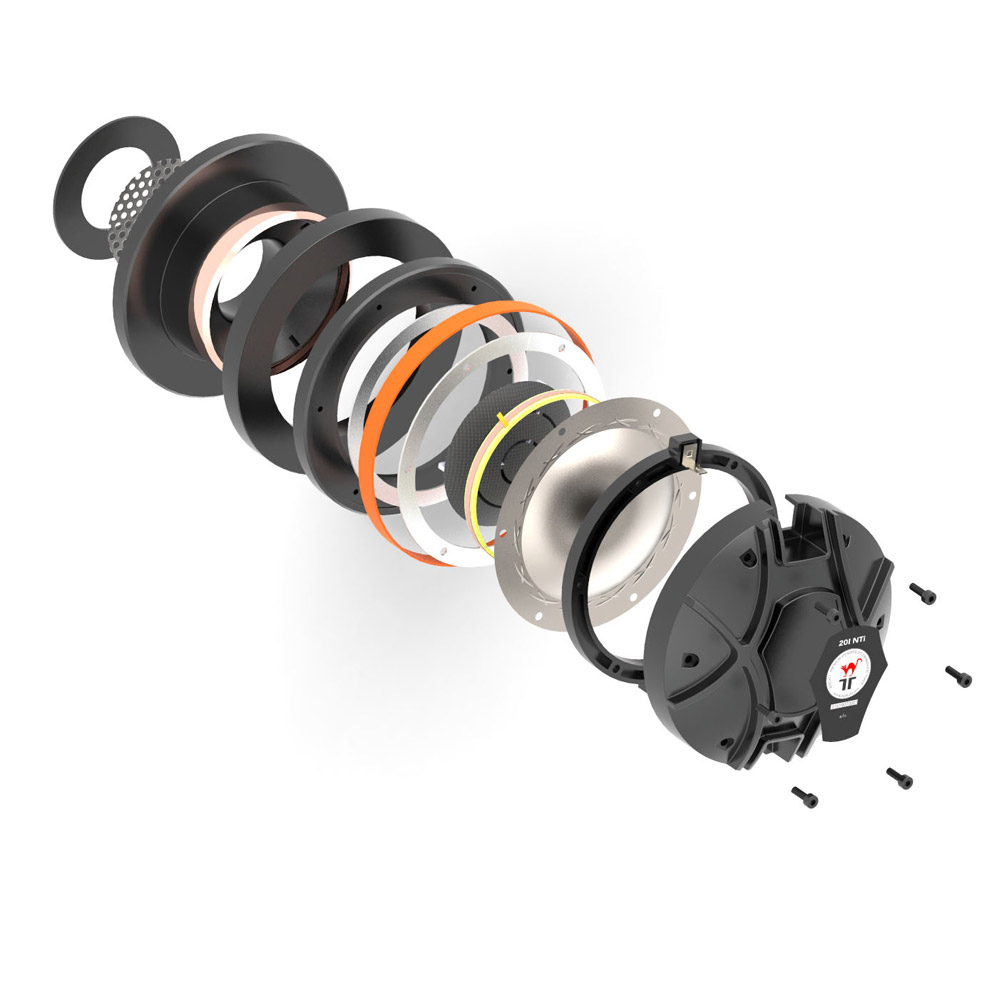

  • Pure titanium dome with surround integrated resonance control features

  • Portable products, 2-way and multi-way systems, line-array applications

Design notes:
    • Introducing the 202NTi: Elevating sound performance to new heights! With cutting-edge technology and precision engineering, this compression driver takes your audio experience to the next level. Designed with a newly updated magnetic circuit, phase plug, voice coil, and dome, it outshines its predecessor, the 201NTi. No
    • compromises on sound quality - only pure, powerful sound in a compact package. The Neodymium magnetic circuit offers unrivaled control, paired with a 1.4-inch exit throat and titanium diaphragm for crystal-clear sound. Featuring a groundbreaking dome assembly design, the 202NTi boasts seamless integration of components
    • for superior frequency response and power handling. Each step of the assembly process is meticulously executed with state-of-the-art adhesives, ensuring unmatched reliability and performance. Redefine your audio experience with the 202NTi - where innovation meets excellence.
Specifications:
    • General specs
      Nominal Diameter:3 in.
      Rated Impedance:8 Ohm
      Power handling
      AES Power:100 Watts
      Program Power:200 Watts
      Voice Coil
      Diameter:3 in.
      Winding wire:CCAW
      Former:kapton
    • T/S Parameters
      Resonant frequency:700 Hz
      Nominal sensitivity:109 dB
      Re:5.9 ohm
    • Design details
      Dome material:Titanium
      Magnet material:Neodymium
      Surround Material:Titanium
      Overall diameter:112 mm
      Bolt circle diameter:102 mm
      Throat diameter:36 mm
      Number of mounting holes:4
      Depth (flange to rear):58 mm
      Net weight:1.9 kg
    • Ordering codes:
      8 ohm version:202NTiX8-555A
      Recone kits:
      Download:
      Spec download

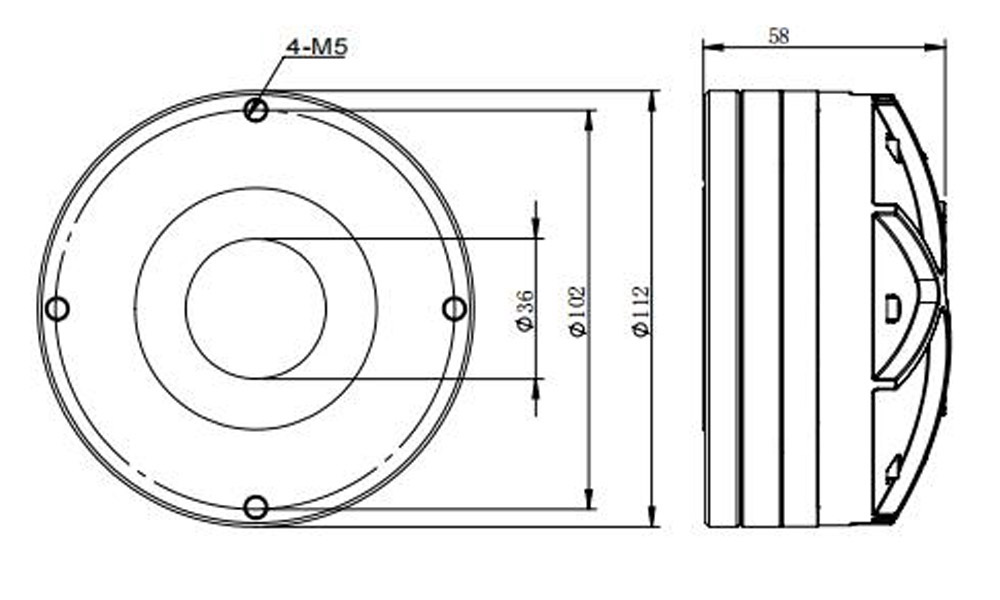

      2D drawing
      3D model

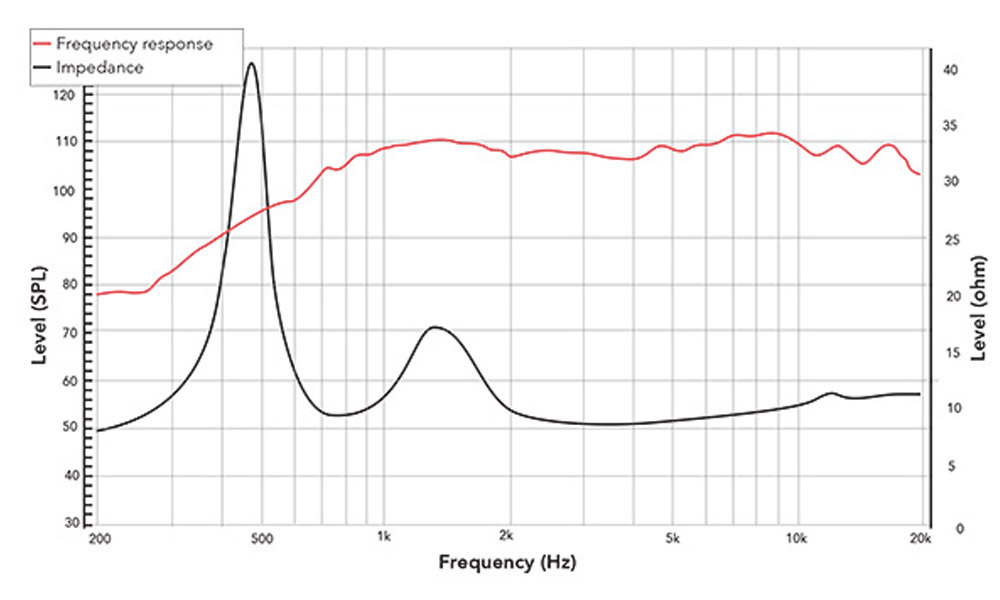

Frequency response & lmpedance
2D drawing
