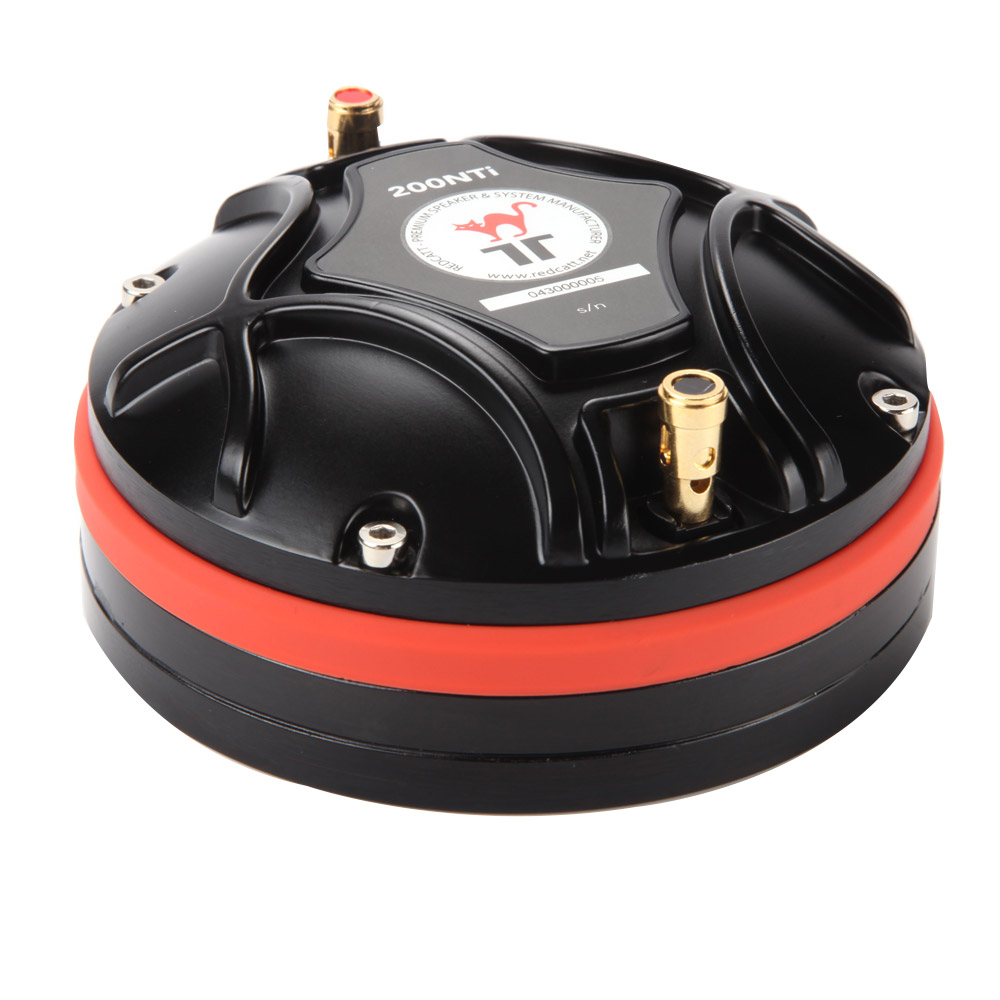

3" | 200NTI
Neodymium Compression Driver
Key features:
  • Ultra high force magnetic system with back pressure regulation features

  • Very high spl

  • CNC machined, precise aluminum phase plug

Design notes:
    • The 200NTi compression driver is a high performance high frequency device ideal for professional loudspeaker systems. The driver’s advanced neodymium based magnetic circuit provides a compact, yet robust, ultra high force BL field with precision control of the pure titanium diaphragm assembly. The unit delivers incredibly linear frequency response and very high power handling
    • through 1.4inch exit throat.The driver features a 75mm pure titanium diaphragm formed as single piece with titanium suspension consisting resonance control features. REDCATT uses advanced manufacturing and quality control techniques, resulting in superb consistency of all our compression drivers. Optimized, lightweight neodymium based magnetic circuit capable of
    • delivering the highest level of performance. Device that offers uncompromising performance featuring high efficiency, exceptional transient response and controlled distortion characteristics. The annular phase plug is CNC machined from a single block of aircraft grade aluminum. Our phase plug is true high-tech masterpiece. The reached shape and aligning tolerances are beyond what have been commercially produced
Specifications:
    • General specs
      Nominal Diameter:3 in.
      Rated Impedance:8 Ohm
      Power handling
      AES Power:100 Watts
      Program Power:200 Watts
      Voice Coil
      Diameter:3 in.
      Winding wire:CCAW
      Former:kapton
    • T/S Parameters
      Resonant frequency:800 Hz
      Nominal sensitivity:111 dB
      Re:5.9 ohm
    • Design details
      Dome material:Titanium
      Magnet material:Neodymium
      Surround Material:Titanium
      Overall diameter:130 mm
      Bolt circle diameter:102 mm
      Throat diameter:36 mm
      Number of mounting holes:4
      Depth (flange to rear):57 mm
      Net weight:2.9 kg
    • Ordering codes:
      8 ohm version:200NTIX8-043
      Recone kits:
      Download:
      Spec download

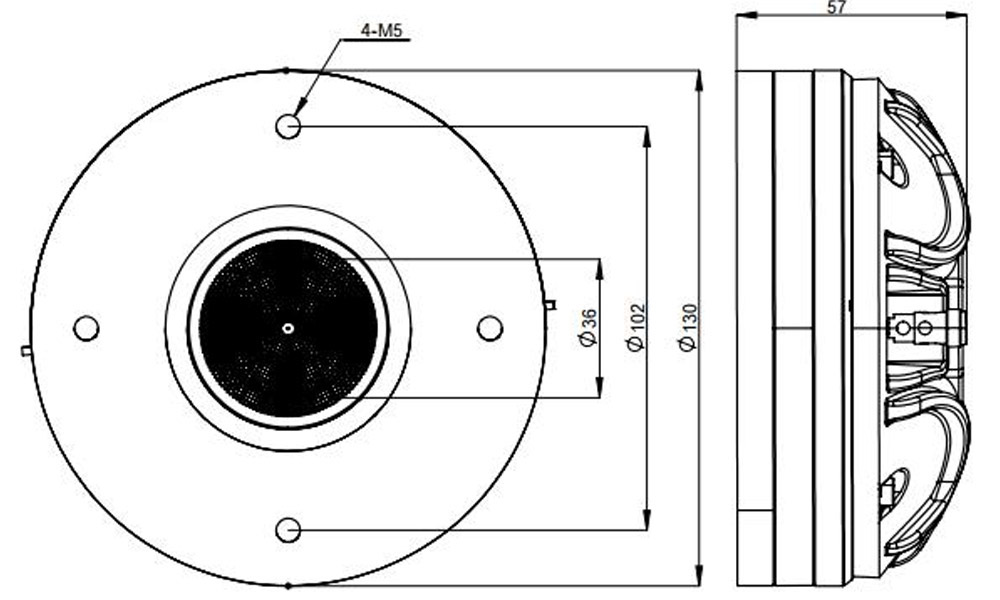

      2D drawing
      3D model

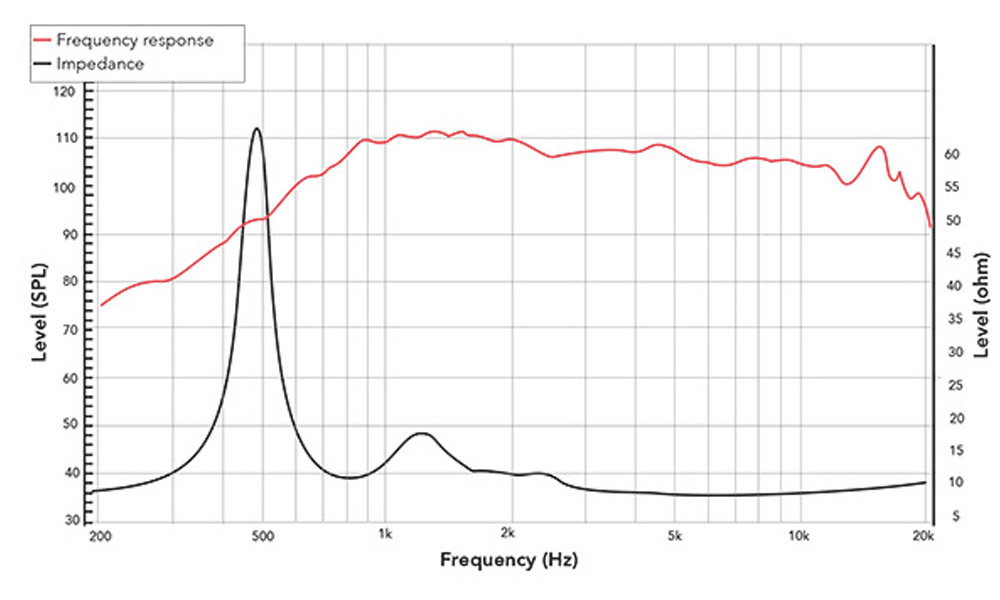

Frequency response & lmpedance
2D drawing
