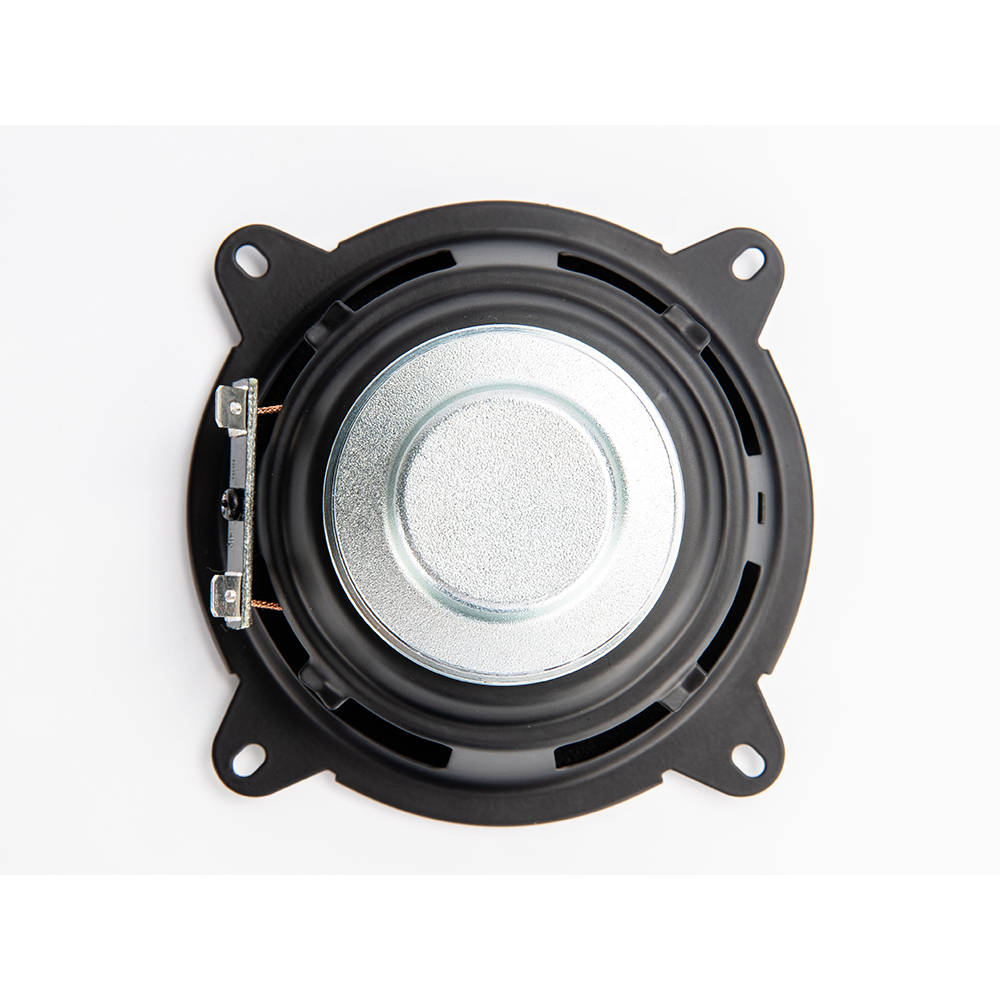

4" | 40NFR
Neodymium Full-range
Key features:
  • Full-range FREQUENCY RESPONSE

  • Unique cone material

  • For column systems, desktop high performance 2 way or one-way speakers, hi-fi applications

Design notes:
    • The 40NFR is a very high efficiency, (86dB 1watt / 1 meter) 4-inch full range speaker with linear frequency response characteristics and high power handling capability while generating low harmonic distortion artifacts. The 40NFR uses a unique exponential cone, made off very lightweight glass-carbon fiber woven fabric,
    • along with a NBR single roll geometry surround. The combination provides remarkable strength, high efficiency and sustained output under extreme conditions. Magnetic circuit designREDCATT engineers have developed neodymium based magnetic circuit, capable of delivering the highest level of performance, providing a consistent,
    • high integrity magnetic flux gap, low distortion characteristic. The magnetic circuit design is optimized to generate the minimum amount of flux modulation, providing exceptional stability. The compact size of the magnetic circuit ensures the speaker can fit in tight space of modern audio product designs.
Specifications:
    • General specs
      Nominal Diameter:4 in.
      Rated Impedance:16 Ohm
      Power handling
      AES Power:25 Watts
      Program Power:50 Watts
      Voice Coil
      Diameter:0.75 in.
      Winding wire:CCAW
      Former:kapton
      Winding height:4.9 mm
    • T/S Parameters
      Resonant frequency:115 Hz
      Re:12.3 ohm
      Qes:1.3
      Qms:6.2
      Qts:1.1
      Vas:1.5 liters
      Sd:50.2 cm2
      Mms:4.4 grams
      Bl:5.3
      Le:0.2 mH
      Sensitivity:85.52 dB
    • Design details
      Surround Material:Rubber
      Cone material:GF Honeycomb
      Spider:Conex
      Plate thickness:4 mm
      Peak to peak linear cone Displacement5.8 mm
      Overall diameter:103.5 mm
      Bolt circle diameter:115 mm
      Baffle cutout dia.:91 mm
      Number of mounting holes:4
      Depth (flange to rear):50.5 mm
      Net weight:0.2 kg
    • Ordering codes:
      16 ohm version:40NFRX16-223
      Recone kits:
      Download:
      Spec download

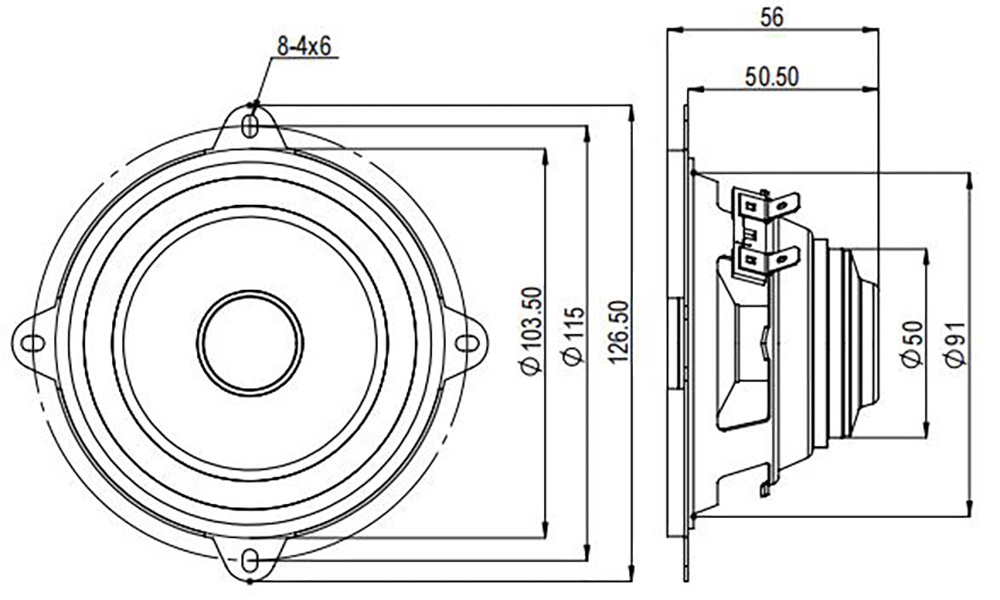

      2D drawing
      3D model

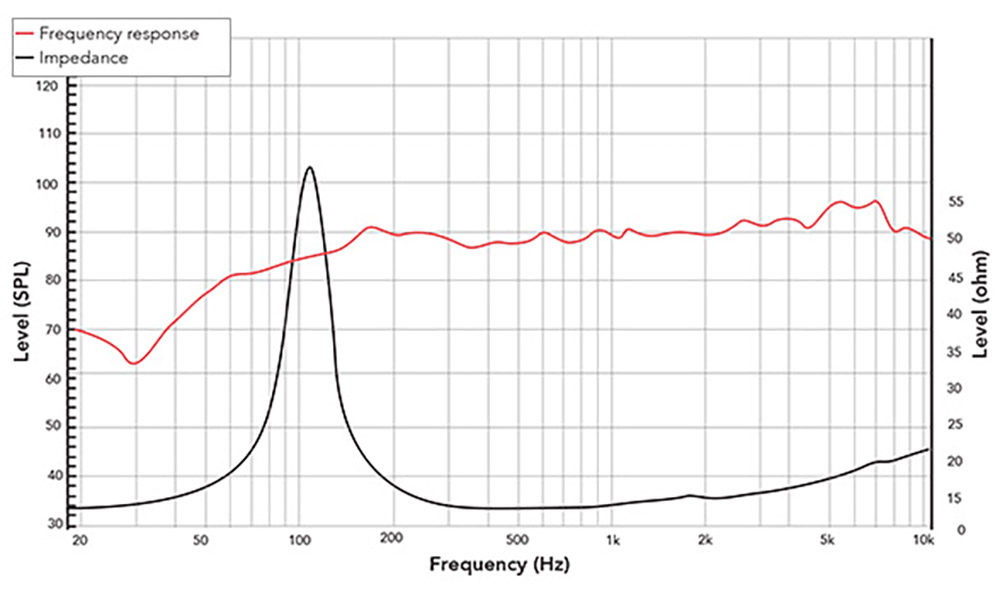

Frequency response & lmpedance
