6.5" | 61FHM
Ferrite Mid-Woofer
Key features:
  • EXTENDED FREQUENCY RESPONSE

Design notes:
    • 61FHM mid-woofer was designed for outdoor applications, yet it will shine in hi-fi home and studio applications as well. Optimized ferrite based magnetic circuit with good air-venting features ensures long lasting performance. Our engineers have chosen polypropylene cone with rubber surround for this model. Both of these
    • components are produced with UV stabilizers. Furthermore, REDCATT state of the art adhesives and dispensing techniques ensures waterproof seals in all weather exposed glue joints. Sealing to the exposure can be guaranteed by EVA gaskets or based upon a request by Form In Place Gaskets. The audio system designers
    • can rest assured we have extensively tested this product with UV exposure, salt exposure and waterproofing. The extended mid-frequency response allows the systems to be used with higher resonance frequency HF units. For the best performance in the audio systems, we recommend usage in vented enclosures.
Specifications:
    • General specs
      Nominal Diameter:6.5 in.
      Rated Impedance:4 Ohm
      Power handling
      AES Power:50 Watts
      Program Power:100 Watts
      Voice Coil
      Diameter:1 in.
      Winding wire:Copper
      Former:Aluminum
      Winding height:12.4 mm
    • T/S Parameters
      Resonant frequency:44 Hz
      Re:3.2 ohm
      Qes:0.58
      Qms:5.27
      Qts:0.52
      Vas:14.4 liters
      Sd:132.7 cm2
      Mms:23.04 grams
      Bl:6.02
      Le:0.74 mH
      Sensitivity:86.03 dB
    • Design details
      Surround Material:Rubber
      Cone material:Polypropylene
      Spider:Conex
      Plate thickness:6 mm
      Peak to peak linear cone Displacement12.2 mm
      Overall diameter:165.5 mm
      Bolt circle diameter:157 mm
      Baffle cutout dia.:143 mm
      Number of mounting holes:4
      Depth (flange to rear):68 mm
      Net weight:1.04 kg
    • Ordering codes:
      4 ohm version:61FHMX4-381
      Recone kits:
      Download:
      Spec download

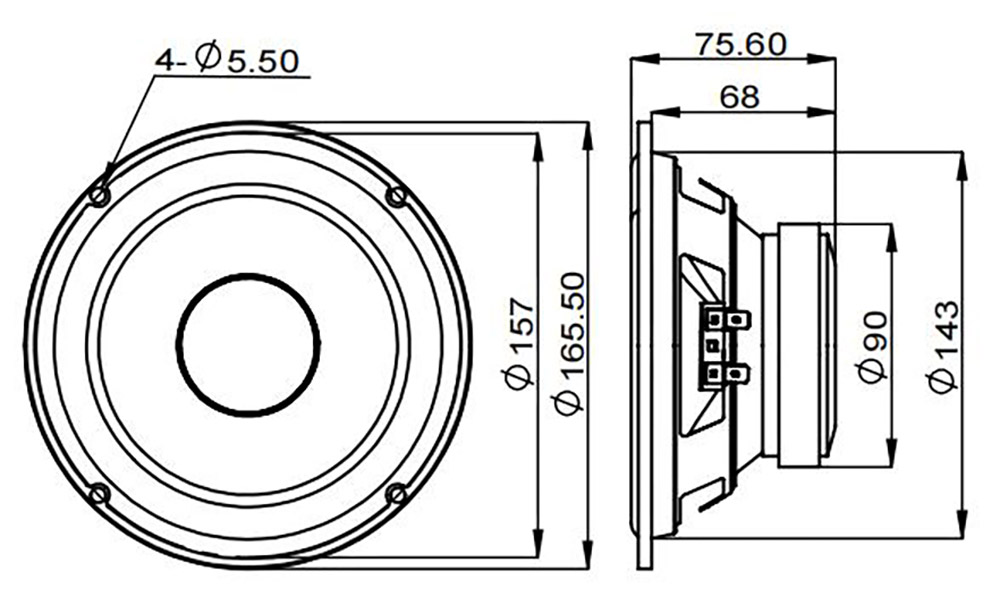

      2D drawing
      3D model

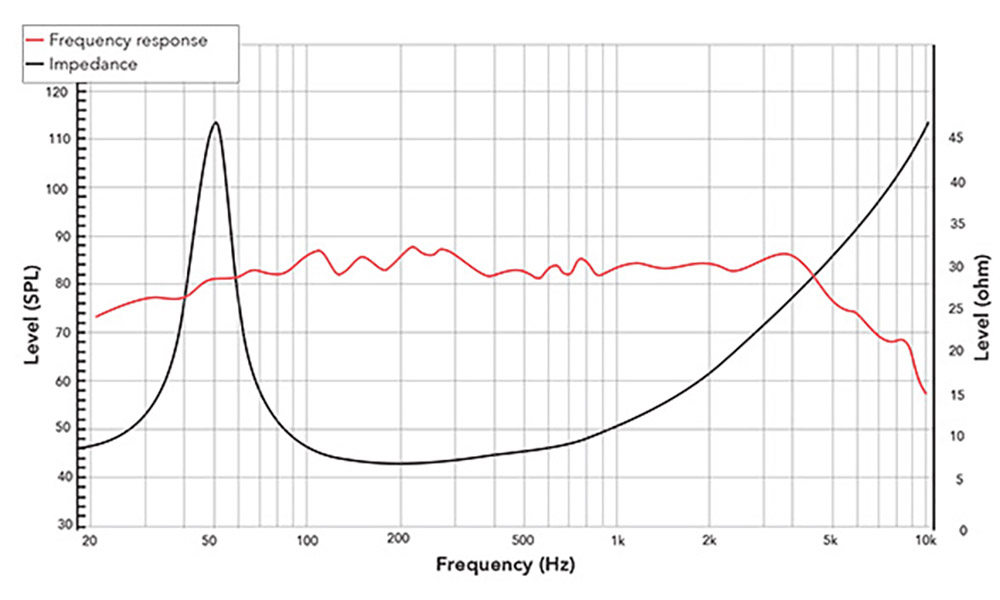

Frequency response & lmpedance
2D drawing
