LF
Mid-Woofer
6.5"
61FHM
Code: 61FHMX4-381
Mid-Woofer/6.5inch/Ferrite/PP/50W/4ohm
Key Features
- EXTENDED FREQUENCY RESPONSE
Quick Specs
Impedance
4 Ω
Program Power
100 W
Sensitivity
86.03 dB
Fs
44.00 Hz
Magnet
Ferrite
Voice Coil
25.4 mm
Design Notes
61FHM mid-woofer was designed for outdoor applications, yet it will shine in hi-fi home and studio applications as well.
Optimized ferrite based magnetic circuit with good air-venting features ensures long lasting performance.
Our engineers have chosen polypropylene cone with rubber surround for this model. Both of these components are produced with UV stabilizers. Furthermore, REDCATT state of the art adhesives and dispensing techniques ensures waterproof seals in all weather exposed glue joints. Sealing to the exposure can be guaranteed by EVA gaskets or based upon a request by Form In Place Gaskets.
The audio system designers can rest assured we have extensively tested this product with UV exposure, salt exposure and waterproofing.
The extended mid-frequency response allows the systems to be used with higher resonance frequency HF units. For the best performance in the audio systems, we recommend usage in vented enclosures.
Optimized ferrite based magnetic circuit with good air-venting features ensures long lasting performance.
Our engineers have chosen polypropylene cone with rubber surround for this model. Both of these components are produced with UV stabilizers. Furthermore, REDCATT state of the art adhesives and dispensing techniques ensures waterproof seals in all weather exposed glue joints. Sealing to the exposure can be guaranteed by EVA gaskets or based upon a request by Form In Place Gaskets.
The audio system designers can rest assured we have extensively tested this product with UV exposure, salt exposure and waterproofing.
The extended mid-frequency response allows the systems to be used with higher resonance frequency HF units. For the best performance in the audio systems, we recommend usage in vented enclosures.
Specifications
General Specs
Nominal Diameter
6.5"
Rated Impedance
4 Ohm
Magnet
Ferrite
Basket Material
Steel
Power Handling
AES Power
50 W
Continuous Power
100 W
Peak Power
200 W
Voice Coil
Diameter
25.4 mm
Winding Wire
Copper
Former
Aluminum
Winding Height
12.4 mm
T/S Parameters
Resonant Frequency (Fs)
44.00 Hz
Re
3.20 \u2126
Qes
0.580
Qms
5.27
Qts
0.520
Vas
14.40 liters
Sd
132.70 cm\u00B2
Mms
23.04 grams
Rms
1.21
Cms
0.5700
Bl
6.02 T\u00B7m
Le
0.740 mH
Sensitivity
86.03 dB
Design Details
Surround Material
NBR
Cone/Dome Material
PP
Spider
Nomex
T-Plate
6 mm
Xmax (peak)
3.2 mm
Xmech
9.2 mm
Overall Diameter
165.50 mm
Bolt Circle Diameter
157.00 mm
Baffle Cutout Dia.
143.00 mm
Mounting Holes
4
Depth (flange to rear)
68.00 mm
Net Weight
1.04 kg
Ordering Codes
Product Code
61FHMX4-381
Downloads

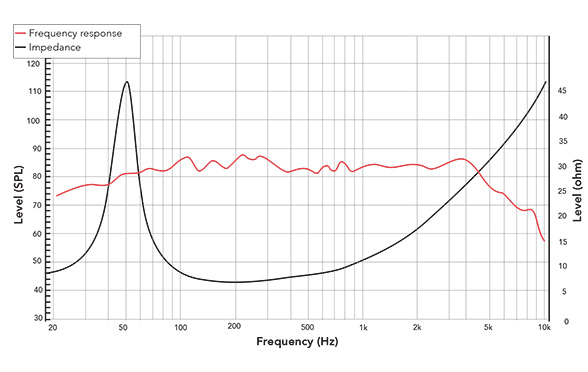

Frequency Response & Impedance

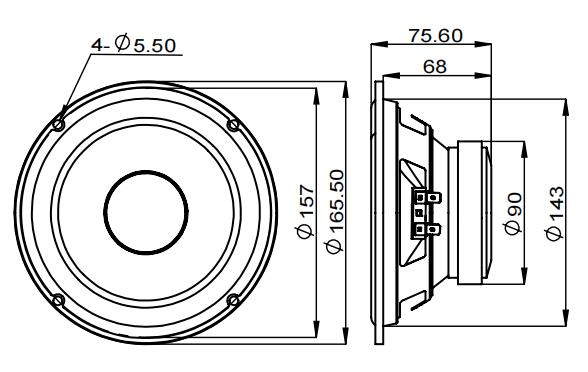

2D Drawing
Frequently Asked Questions
- - EXTENDED FREQUENCY RESPONSE
AES Power: 50 W,
Continuous: 100 W,
Peak: 200 W.
Sensitivity: 86.03 dB (1W/1m).
