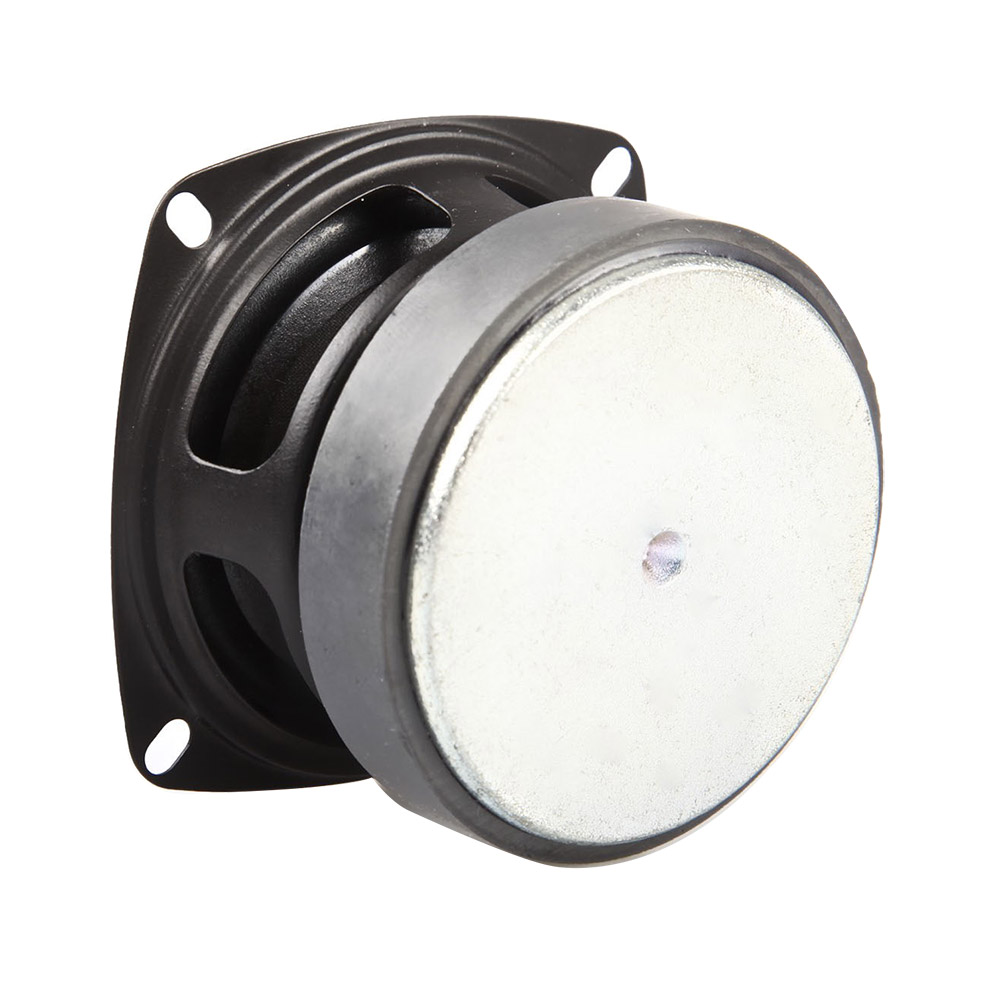

3" | 30FF
Ferrite Full-Range
Key features:
  • Full-range FREQUENCY RESPONSE

  • Affordable small driver that fits all budgets

  • Very popular in array and column applications

Design notes:
    • The 30FF is a high efficiency, (85dB 1watt / 1 meter) 3-inch full range speaker with linear frequency response characteristics and high power handling capability while generating low harmonic distortion artifacts. The 30FF uses a lightweight exponential pressed cone assembly along with a NBR single roll geometry surround. The combination provides remarkable strength, high efficiency and sustained output
    • under extreme conditions. Power HandlingAt the core of the 30FF is it’s voice coil technology featuring a Kapton former material capable of withstanding peak temperatures in excess of 240C, well beyond the thermal requirements of modern professional audio systems and providing optimal structural strength and thermal characteristics. Former strength provides the ideal transfer of power between the voice coil and the
    • cone assembly and assists in reducing distortion artifacts. By combining this material with state of the art adhesives and our winding voice coil technology, the 30FF delivers very high performance. The best application is in column speakers, two-way and multi-way audio systems. Due to its good HF extension, the HF units are not required.
Specifications:
    • General specs
      Nominal Diameter:3 in.
      Rated Impedance:8 Ohm
      Power handling
      AES Power:20 Watts
      Program Power:40 Watts
      Voice Coil
      Diameter:0.75 in.
      Winding wire:CCAW
      Former:kapton
      Winding height:6.5 mm
    • T/S Parameters
      Resonant frequency:119 Hz
      Re:5.6 ohm
      Qes:0.98
      Qms:3.87
      Qts:0.78
      Vas:0.81 liters
      Sd:28.27 cm2
      Mms:2.4 grams
      Bl:3.25
      Le:0.04 mH
      Sensitivity:85.1 dB
    • Design details
      Surround Material:Rubber
      Cone material:Paper
      Spider:Nomex
      Plate thickness:4 mm
      Peak to peak linear cone Displacement7.4 mm
      Overall diameter:79 mm
      Bolt circle diameter:86 mm
      Baffle cutout dia.:77 mm
      Number of mounting holes:4
      Depth (flange to rear):46.9 mm
      Net weight:0.47 kg
    • Ordering codes:
      4 ohm version:30FFX8 ohm-264B
      Recone kits:
      Download:
      Spec download

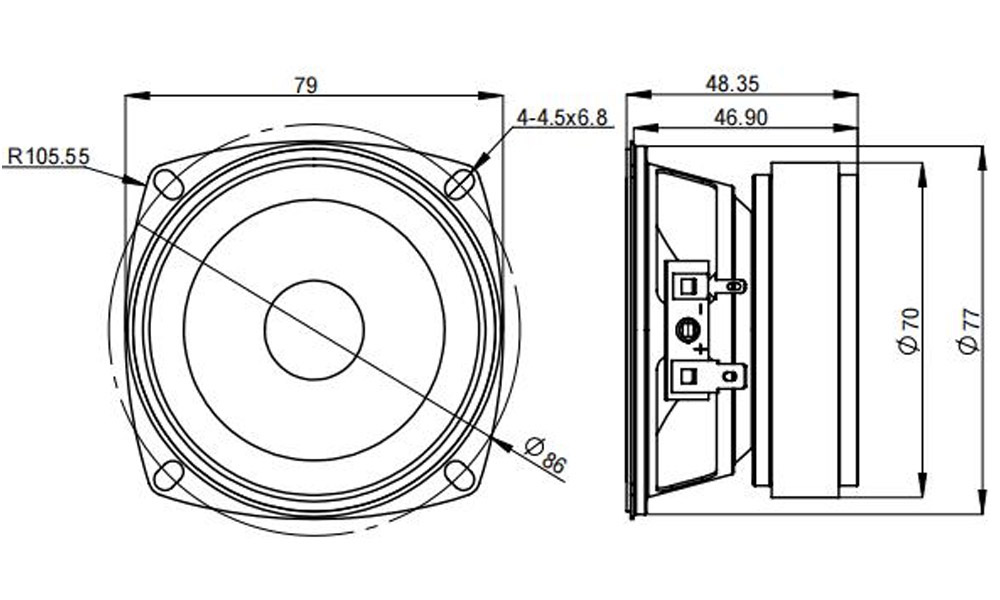

      2D drawing
      3D model

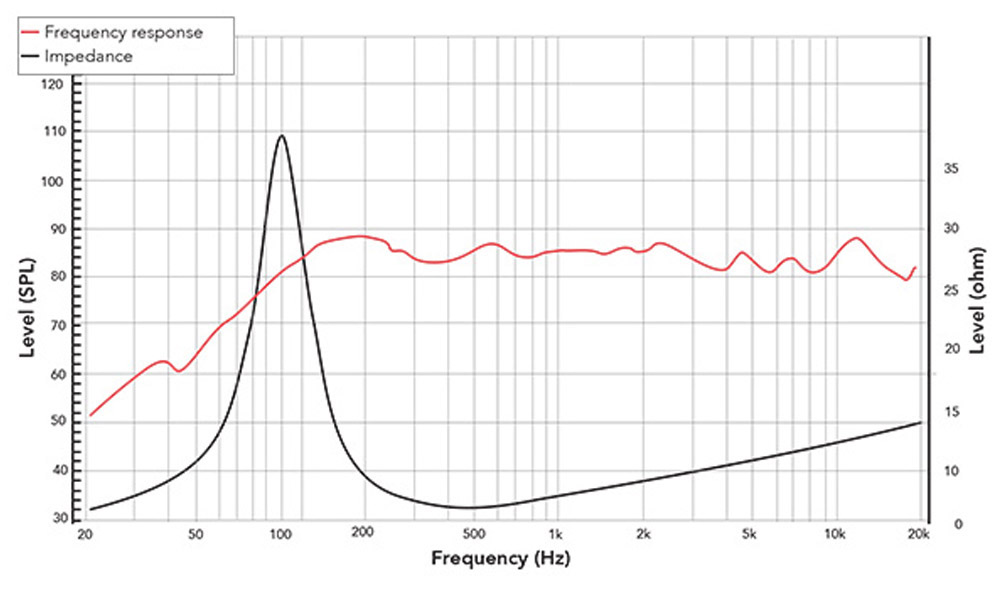

Frequency response & lmpedance
2D drawing
