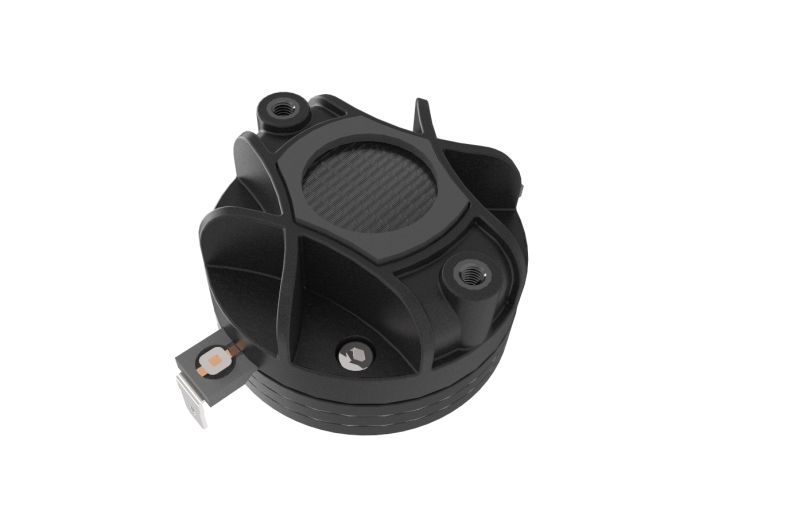

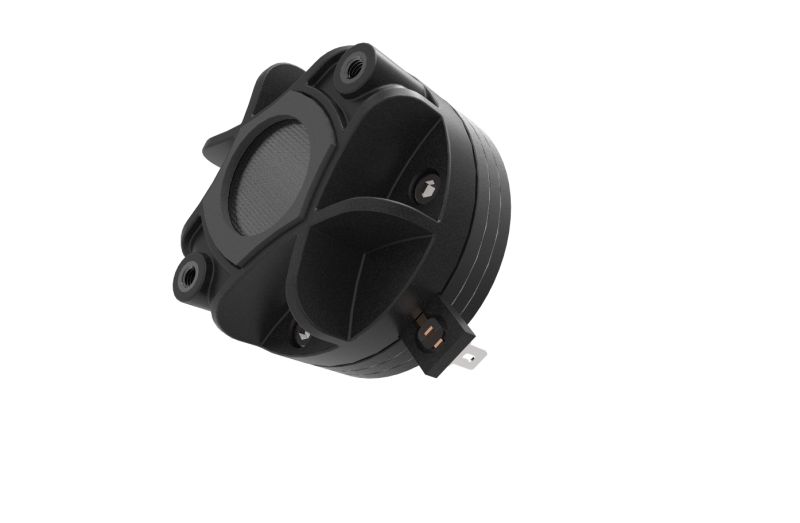

101NCD

The 101NCD compact size compression driver is a very high performance, high frequency device ideal for compact professional loudspeaker systems. The driver neodymium based magnetic circuit provides precision control over Polyamide diaphragm assembly in very compact package. The unit delivers extended frequency response and high power handling throughout 1.0 inch exit throat. The diaphragm is carefully attached to a high temperature Nomex voice coil former that can withstand the long term power handling characteristic typically seen in professional audio applications. REDCATT uses state of the art adhesives in all assembly steps. Our voice coil to dome bonding is unique process, developed to greatly improve the power handling capabilities. REDCATT unique and precise adhesives dispensing, combined with our in-house developed dome treatments are further improving the long term reliability of this product.
