HF
Tweeter
1"
251TN
Code: 251TNX4-384
Tweeter/1.0inch/Neo/Aluminium/10W/4ohm
Key Features
- wide band frequency range
- low resonant frequency
- designed for limited height products, or array applications
Quick Specs
Impedance
4 Ω
Program Power
20 W
Sensitivity
90.00 dB
Fs
1500.00 Hz
Magnet
Neodymium
Voice Coil
25.4 mm
Design Notes
The 251TN tweeter delivers incredible performance. The aluminum dome excels in higher frequencies with bright, undistorted sound. The dome is carefully attached to a poly-silk composite surround.
The tweeter is assembled on a small wave-guide, making a further application a breeze. The shape of the waveguide was carefully considered to fit narrow hight applications, such as TV Bars. The tweeters can be also vertically stacked for array-like columns.
The tweeter is assembled on a small wave-guide, making a further application a breeze. The shape of the waveguide was carefully considered to fit narrow hight applications, such as TV Bars. The tweeters can be also vertically stacked for array-like columns.
Specifications
General Specs
Nominal Diameter
1"
Rated Impedance
4 Ohm
Magnet
Neodymium
Basket Material
Plastic
Power Handling
AES Power
10 W
Continuous Power
20 W
Peak Power
40 W
Voice Coil
Diameter
25.4 mm
Winding Wire
CCAW
Former
Aluminum
Winding Height
1.6 mm
T/S Parameters
Resonant Frequency (Fs)
1500.00 Hz
Re
3.60 \u2126
Sensitivity
90.00 dB
Design Details
Surround Material
Silk
Cone/Dome Material
Aluminum
T-Plate
2.5 mm
Bolt Circle Diameter
63.50 mm
Mounting Holes
4
Depth (flange to rear)
16.41 mm
Net Weight
0.06 kg
Ordering Codes
Product Code
251TNX4-384

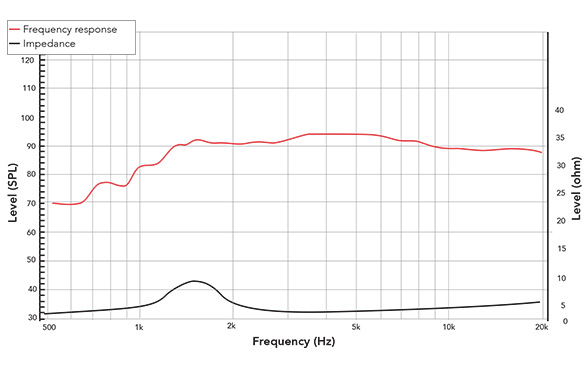

Frequency Response & Impedance

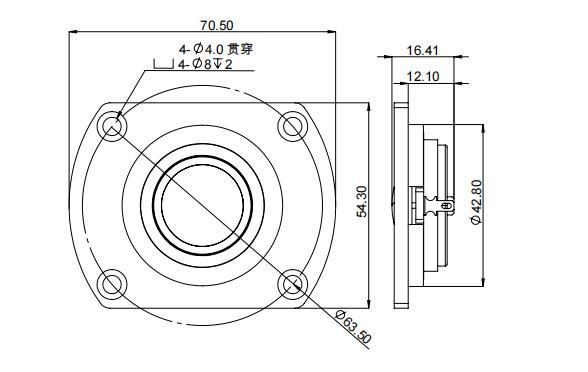

2D Drawing
Frequently Asked Questions
- - wide band frequency range
- - low resonant frequency
- - designed for limited height products, or array applications
AES Power: 10 W,
Continuous: 20 W,
Peak: 40 W.
Sensitivity: 90.00 dB (1W/1m).
