HF
Tweeter
1"
25TF
Code: 25TNX4-386B
Tweeter/1.0inch/Neo/silk/15W/4ohm
Key Features
- very high sensitivity
- low resonance frequency
- high power handling
Quick Specs
Impedance
4 Ω
Program Power
30 W
Sensitivity
91.00 dB
Fs
1250.00 Hz
Magnet
Neodymium
Voice Coil
25.4 mm
Design Notes
The 25TN tweeter has a very low resonance frequency, making it possible to work with larger sized mid-woofers.
The tweeter has a designed-in acoustical phase plug, that ensures the off-axis good response and also increases acoustical pressure. Integrated small waveguide makes the usage of this tweeter very easy.
Dual neodymium high-temperature grade neodymium magnets deliver a high-density flux field for the CCAW coil with a minimum amount of flux modulation.
The tweeter has well-ballanced performance and very low har- monic distortion even at high powers.
This tweeter can be used in all aplication where high SPL and low Fs is required. Line-array systems, Hi-Fi center channels, 2-way and multi-way systems.
The tweeter has a designed-in acoustical phase plug, that ensures the off-axis good response and also increases acoustical pressure. Integrated small waveguide makes the usage of this tweeter very easy.
Dual neodymium high-temperature grade neodymium magnets deliver a high-density flux field for the CCAW coil with a minimum amount of flux modulation.
The tweeter has well-ballanced performance and very low har- monic distortion even at high powers.
This tweeter can be used in all aplication where high SPL and low Fs is required. Line-array systems, Hi-Fi center channels, 2-way and multi-way systems.
Specifications
General Specs
Nominal Diameter
1"
Rated Impedance
4 Ohm
Magnet
Neodymium
Basket Material
Plastic
Power Handling
AES Power
15 W
Continuous Power
30 W
Peak Power
60 W
Voice Coil
Diameter
25.4 mm
Winding Wire
CCAW
Former
Aluminum
Winding Height
2.2 mm
T/S Parameters
Resonant Frequency (Fs)
1250.00 Hz
Re
3.40 \u2126
Sensitivity
91.00 dB
Design Details
Surround Material
Silk
Cone/Dome Material
Silk
T-Plate
2.5 mm
Bolt Circle Diameter
58.00 mm
Mounting Holes
4
Depth (flange to rear)
25.55 mm
Net Weight
0.08 kg
Ordering Codes
Product Code
25TNX4-386B
Downloads

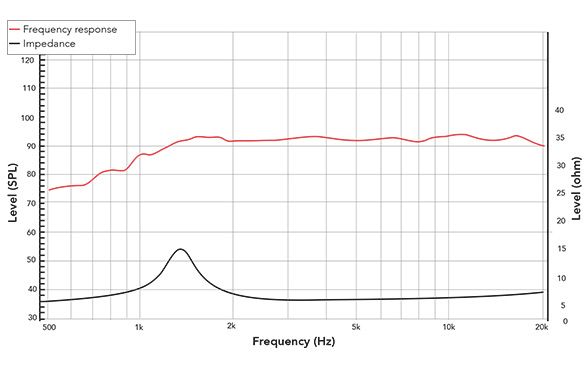

Frequency Response & Impedance

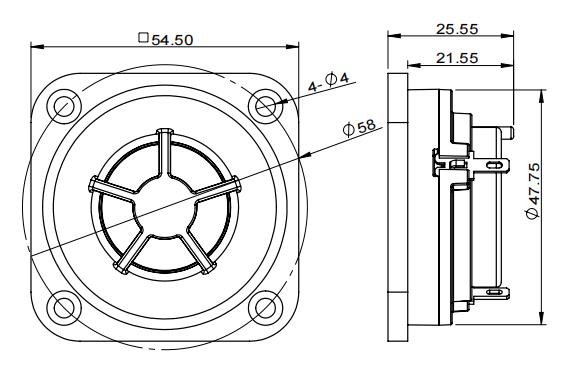

2D Drawing
Frequently Asked Questions
- - very high sensitivity
- - low resonance frequency
- - high power handling
AES Power: 15 W,
Continuous: 30 W,
Peak: 60 W.
Sensitivity: 91.00 dB (1W/1m).
