121FIND

LOUDSPEAKER ENCLOSURE DESIGN REPORT
Driver: 121FINDX4-233
Generated: 2026-04-12
Application: Professional 2-way PA systems, touring and installation
DRIVER SPECIFICATIONS
Code             : 121FINDX4-233

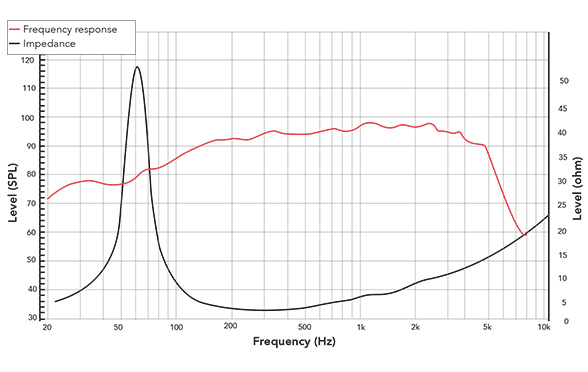

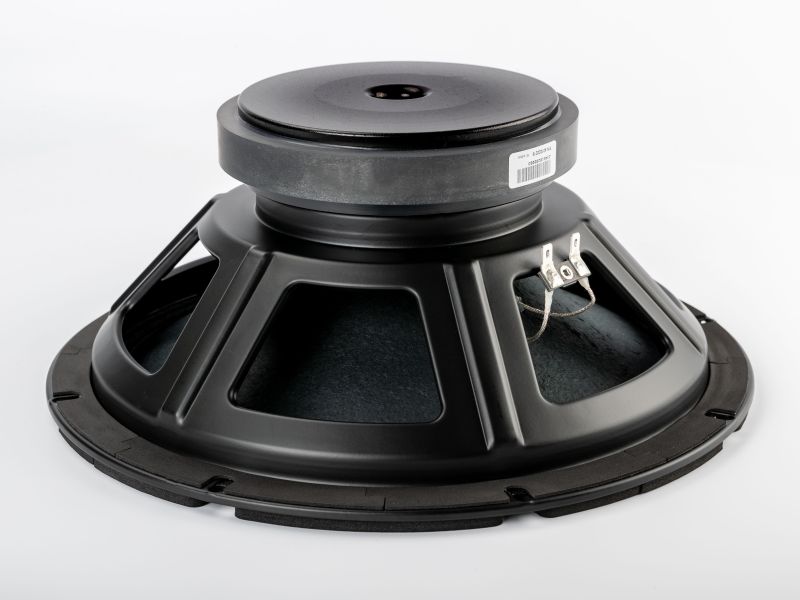

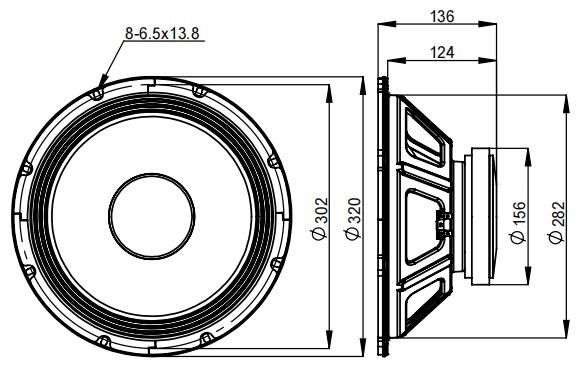

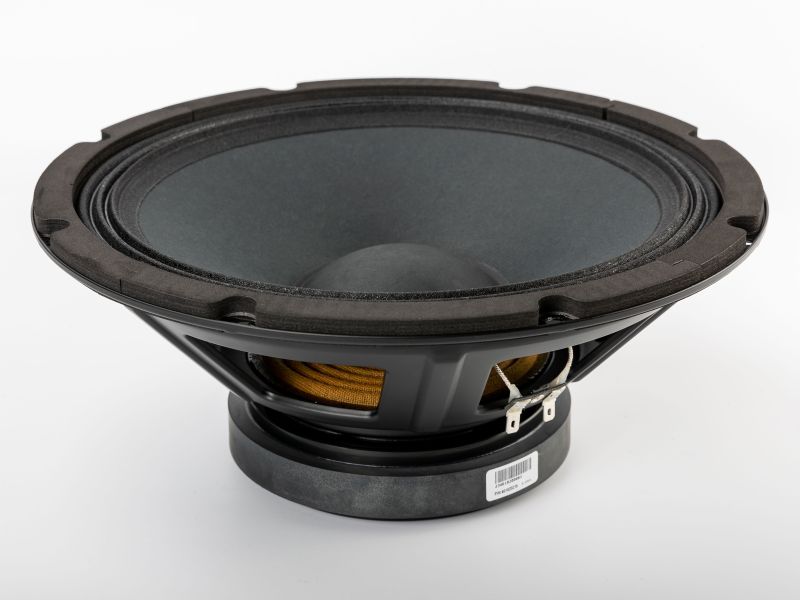

Description      : 12" Ferrite Pro Mid-Woofer — Glass Fiber Treated Paper Cone
Nominal Impedance: 4 Ω
AES Power        : 250 W
Continuous Power : 500 W
Peak Power       : 1,000 W

Fs               : 59 Hz
Re               : 3.1 Ω
Qes              : 0.56
Qms              : 7.34
Qts              : 0.52
Vas              : 59.1 L
Sd               : 531 cm²
Sensitivity      : 96.4 dB (1 W / 1 m)
Mms              : 49.1 g
Rms              : 2.48 kg/s
Cms              : 0.15 mm/N
Bl               : 10.2 T·m
Le               : 0.32 mH
Xmax             : 1.85 mm (one-way, peak)
Xmech            : 9.85 mm

Voice Coil       : 50.8 mm (2"), CCAW, Glass Fiber former
Cone             : Glass fiber treated paper (weatherized, water-repellent)
Surround         : Fabric, M-shaped profile
Spider           : Nomex (non-flammable)
Basket           : Steel (weatherization coated)
Magnet           : Ferrite
DERIVED PARAMETERS
Volume displacement
  Vd = Sd × Xmax = 531 cm² × 0.185 cm = 98.2 cm³

Note on Xmax: Xmax = 1.85 mm is short by pro woofer standards.
  This driver is optimized for midrange efficiency and linearity at
  low excursion, not deep bass extension. Maximum SPL at low frequencies
  is excursion-limited; a high-pass filter or subwoofer crossover is
  mandatory in all 2-way deployments.

Inductance rolloff onset
  f_Le = Re / (2π × Le) = 3.1 / (2π × 0.00032) ≈ 1,542 Hz
  (Low Le = 0.32 mH provides a flat, predictable impedance curve
  through the crossover region — a key advantage for midrange fidelity
  and passive crossover precision.)

Cone beaming onset
  r_cone = √(Sd / π) = √(531 / 3.14159) = 13.00 cm
  f_beam = c / (π × r_cone) = 34,400 / (3.14159 × 13.00) ≈ 843 Hz

Working band        : ~65 Hz – 843 Hz
Crossover to horn   : 800 Hz – 1.2 kHz (f_beam at 843 Hz is the
                      primary upper constraint; Le onset at 1,542 Hz
                      is well above the crossover frequency, ensuring
                      flat impedance through the crossover region)

Maximum SPL (anechoic, 1 m)
  At 250 W AES   : 96.4 + 10·log₁₀(250) = 96.4 + 24.0 = 120.4 dB
  At 500 W cont  : 96.4 + 10·log₁₀(500) = 96.4 + 27.0 = 123.4 dB
ENCLOSURE RECOMMENDATION
Qts = 0.52 → Both sealed (acoustic suspension) and vented (bass
reflex) enclosures are viable. Vented alignments are preferred for
PA touring applications where efficiency and sensitivity are the
priority. Sealed alignments are preferred for installation, monitoring,
and systems requiring tighter transient control.
VENTED ENCLOSURE ALIGNMENTS (PRIMARY — PA / TOURING)
Port: 75 mm round (Ap = 44.18 cm²)
  Port velocity limit: ≤ 17 m/s (hi-fi / install) / ≤ 22 m/s (PA)
  Vd = 98.2 cm³ is modest; port velocities are comfortably low at
  all three alignments.

Leff = (Ap × c²) / (4π² × Fb² × Vb)
  c = 34,400 cm/s ; c² = 1,183,360,000 cm²/s² ; 4π² = 39.478

Port velocity: v_peak = Vd × 2π × Fb / Ap
  Vd = 98.2 cm³ = 9.82 × 10⁻⁵ m³ ; Ap = 4.418 × 10⁻³ m²

┌──────────────────────────────────────────────────────────────────────┐
│ Alignment │ Vb (net) │  Fb   │ 75mm Port Length │ Port Velocity     │
├───────────┼──────────┼───────┼──────────────────┼───────────────────┤
│     A     │   30 L   │ 62 Hz │      115 mm      │   8.7 m/s  ✓     │
│     B     │   45 L   │ 55 Hz │       97 mm      │   7.7 m/s  ✓     │
│     C     │   65 L   │ 48 Hz │       88 mm      │   6.7 m/s  ✓     │
└──────────────────────────────────────────────────────────────────────┘

Port length calculations (75 mm round port):
  Alignment A: Leff = (44.18 × 1,183,360,000) / (39.478 × 3844 × 30,000)
                    = 5.228×10¹⁰ / 4.553×10⁹ = 115 mm
  Alignment B: Leff = (44.18 × 1,183,360,000) / (39.478 × 3025 × 45,000)
                    = 5.228×10¹⁰ / 5.374×10⁹ = 97 mm
  Alignment C: Leff = (44.18 × 1,183,360,000) / (39.478 × 2304 × 65,000)
                    = 5.228×10¹⁰ / 5.912×10⁹ = 88 mm

--- Vented Alignment A — 30 L / Fb = 62 Hz ---
  Compact PA cabinet, tuned near Fs. Tight response with strong
  excursion protection above 62 Hz. Suited to compact touring
  2-way cabinets and stage monitors where enclosure volume must
  be minimized.

--- Vented Alignment B — 45 L / Fb = 55 Hz ---
  Balanced PA cabinet. Good output balance across the operating
  band with moderate bass extension. The recommended general-purpose
  alignment for standalone 2-way PA and installation enclosures.

--- Vented Alignment C — 65 L / Fb = 48 Hz ---
  Extended low-frequency alignment for maximum bass output from this
  driver. Suited to larger installed 2-way enclosures and systems
  used without a dedicated subwoofer.
  Mandatory high-pass filter at 38–42 Hz to protect driver below
  port rolloff frequency.
SEALED ENCLOSURE ALIGNMENTS (INSTALLATION / MONITORING)
Formula: Vb = Vas / ((Qtc / Qts)² − 1)
         fc  = Fs × (Qtc / Qts)
         f-3dB: u = [−(2 − 1/Qtc²) + √((2 − 1/Qtc²)² + 4)] / 2
                Ω = √u ;  f-3dB = Ω × fc

┌────────────────────────────────────────────────────────────────────┐
│ Alignment │ Vb (net) │  Qtc  │   fc     │ f−3dB  │ Character      │
├───────────┼──────────┼───────┼──────────┼────────┼────────────────┤
│     A     │   35 L   │ 0.85  │  96.4 Hz │  83 Hz │ Warm, damped   │
│     B     │   22 L   │ 1.00  │ 113.5 Hz │  89 Hz │ Compact/flat   │
│     C     │   14 L   │ 1.20  │ 136.2 Hz │ 100 Hz │ Compact sat.   │
└────────────────────────────────────────────────────────────────────┘

--- Sealed A — 35 L / Qtc = 0.85 ---
  fc = 59 × (0.85/0.52) = 96.4 Hz ; f-3dB = 0.859 × 96.4 = 83 Hz
  Well-damped sealed alignment. Suited to permanent installation
  2-way speakers and high-fidelity monitoring where transient
  accuracy is prioritized over efficiency.

--- Sealed B — 22 L / Qtc = 1.00 ---
  fc = 59 × (1.00/0.52) = 113.5 Hz ; f-3dB = 0.786 × 113.5 = 89 Hz
  Compact sealed format. A practical balance of box volume and
  controlled low-end for medium-format installed 2-way systems.

--- Sealed C — 14 L / Qtc = 1.20 ---
  fc = 59 × (1.20/0.52) = 136.2 Hz ; f-3dB = 0.736 × 136.2 = 100 Hz
  Minimum practical sealed volume. Suited to compact installations,
  under-stage fill, and systems crossed above 100 Hz to a subwoofer.
  Mandatory high-pass filter at 80–100 Hz; this alignment relies on
  subwoofer support below the crossover.
CROSSOVER AND SYSTEM INTEGRATION
Crossover to compression driver on horn (acoustic): 800 Hz – 1.2 kHz
  f_beam = 843 Hz (primary upper limit — cone directivity
           increases rapidly above this frequency)
  f_Le   = 1,542 Hz (well above crossover; flat impedance curve
           ensures passive crossover network accuracy)

  Recommended crossover: 800 Hz – 1.0 kHz acoustic target.
  Third or fourth-order acoustic slope to control off-axis
  behaviour above 843 Hz. The low Le (0.32 mH) simplifies passive
  crossover design compared to higher-inductance pro drivers.

Zobel network:
  R_z = 3.1 Ω (use 3.3 Ω nearest standard)
  C_z = Le / Re² = 0.32e-3 / 9.61 = 33.3 μF → use 33 μF, 100 V non-polar
IMPEDANCE CONFIGURATIONS
Single (standard) : 4 Ω
Pair in series    : 8 Ω (+3 dB combined sensitivity, standard amp load)
Pair in parallel  : 2 Ω (not recommended; exceeds most amplifier ratings)
