12XR

ENCLOSURE RECOMMENDATIONS: 12XRX8-270

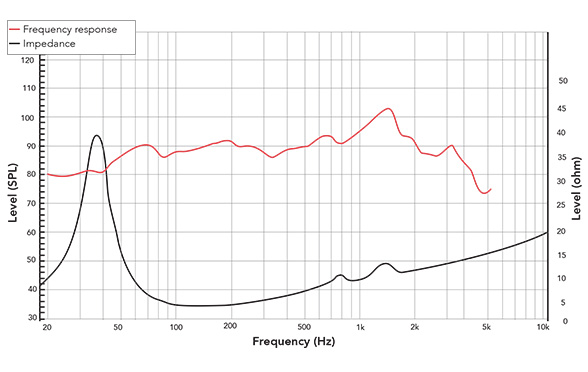

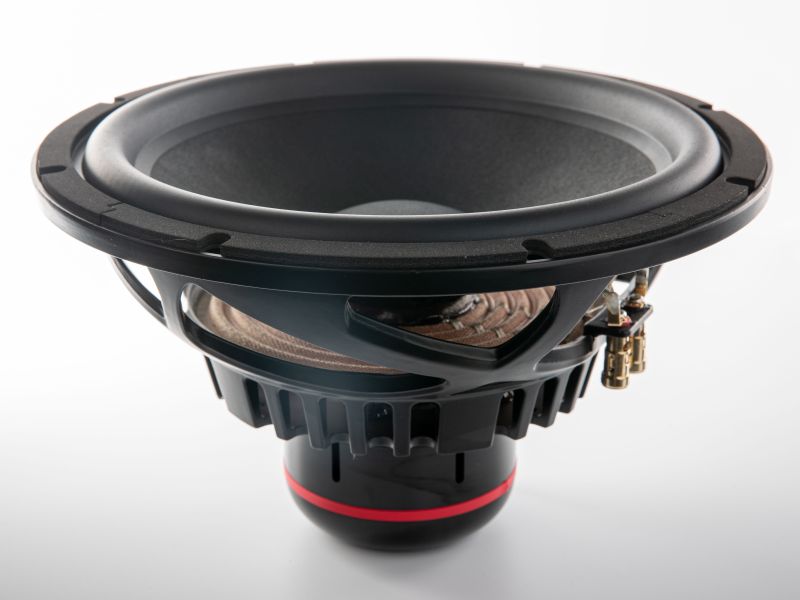

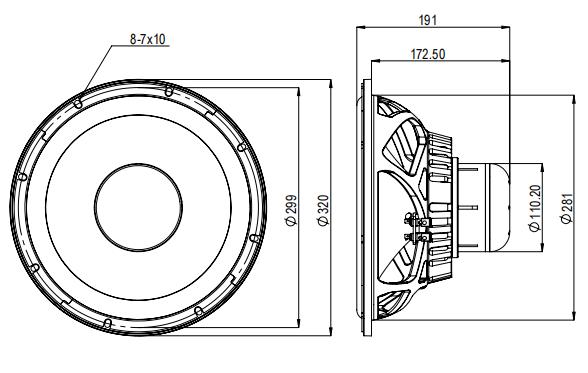

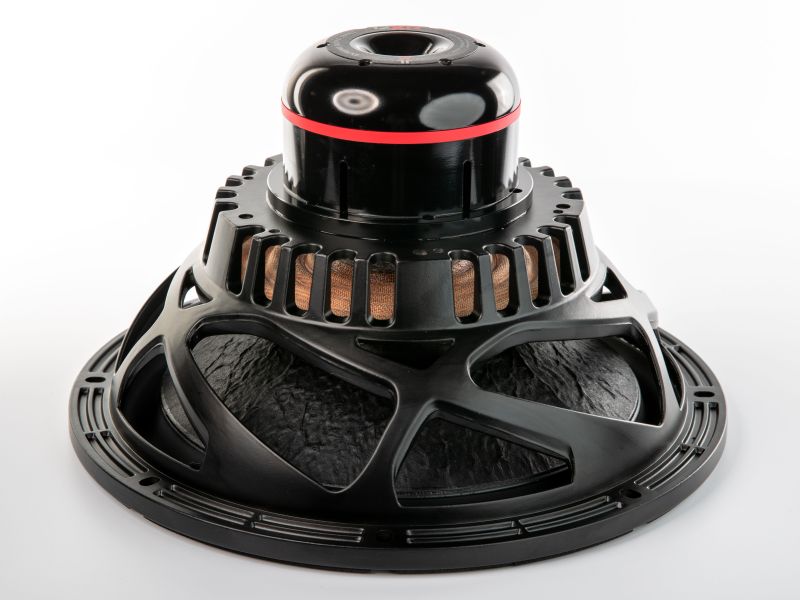

Driver: 12XRX8-270 (12XR) — 12" XR sub-woofer / woofer, 8 ohm
Key T/S: Fs=35.0Hz, Qts=0.68, Qes=0.73, Qms=10.5, Vas=89.7L, Sens=90.95dB
Power: AES 500W / Cont 1000W / Peak 2000W
Xmax=9.2mm, Xmech=32.7mm, Sd=531.0cm², Bl=12.3T·m
Le=0.24mH | Radial neodymium XR motor | Deep copper cap

DESIGN HIGHLIGHTS:
  - XR (eXtended Range) radial neodymium motor: large neodymium magnets
    placed along the voice coil winding, keeping the entire coil in the
    magnetic gap through virtually the full rated excursion. This
    eliminates harmonic distortion caused by the coil exiting the field,
    enabling extremely clean bass at high excursion levels.
  - No shorting coil (unlike 61XR) — inductance reduced by deep copper
    cap: Le=0.24mH, very low for a 12" sub. Extended high-frequency
    response and lower inductance-related distortion.
  - High Qms (10.5) — near-lossless suspension; amplifier and enclosure
    provide essentially all system damping
  - Carbon fiber reinforced paper cone (CF Paper) — high rigidity, low
    mass, superior cone-breakup resistance compared to plain paper
  - 2.5" (63.5mm) voice coil on glass fiber former — thermal headroom
    for sustained 1000W continuous operation
  - Natural rubber (NBR) surround — large excursion capability, long
    durability, controlled cone velocity at limits
  - 8-ohm nominal impedance suits bridged amplifiers and series wiring

RECOMMENDED ENCLOSURE TYPES:
  PRIMARY:   Bass Reflex (Vented) — Qts=0.68 is at the upper boundary
             of vented alignment range; tuning near or above Fs works
             well; DSP EQ is recommended to correct any mid-bass
             emphasis from the high Qts
  SECONDARY: Sealed (Acoustic Suspension) — for DSP/active systems;
             all practical sealed volumes yield Qtc ≥ 1.0 so DSP
             correction is expected in this application

NOTES ON Qts=0.68:
  At 0.68, this driver sits just below the classic sealed-preferred
  threshold. Vented alignments work but will exhibit some mid-bass
  warmth around tuning — easily managed with DSP parametric EQ.
  Sealed enclosures all produce Qtc >1.0 in practical cabinet sizes,
  which is intentional in active designs where the DSP provides
  shelf correction. The XR motor maintains very low THD even at high
  Qts drive levels, making this trade-off acoustically acceptable.
VENTED ALIGNMENTS (Primary)
Port: 100mm diameter round, flared both ends
Vd = 531 cm² × 9.2mm = 488.5 cm³

  a) High SPL / Compact
     Net Volume: 35 liters
     Tuning (Fb): 38 Hz
     Est. -3dB: ~38 Hz
     HP Filter: 33 Hz (24dB/oct recommended)
     Round Port: 100mm dia × 463mm long
     Port Velocity: 14.9 m/s ✓
     Notes: Strong mid-bass output, compact cabinet. High Qts will
            produce a moderate emphasis near Fb — apply a parametric
            cut of 1–2 dB around 40 Hz if needed. Suited for
            integration into larger speaker systems (2.5-way or 3-way)
            where the enclosure is part of the cabinet.

  b) Balanced Response
     Net Volume: 50 liters
     Tuning (Fb): 33 Hz
     Est. -3dB: ~33 Hz
     HP Filter: 28 Hz (24dB/oct recommended)
     Round Port: 100mm dia × 430mm long
     Port Velocity: 12.9 m/s ✓
     Notes: General-purpose hi-fi and home theater subwoofer alignment.
            Good balance between extension and cabinet size. Port
            velocity well within hi-fi limits. Recommended starting
            point for dedicated subwoofer enclosures.

  c) Extended Deep Bass
     Net Volume: 70 liters
     Tuning (Fb): 28 Hz
     Est. -3dB: ~28 Hz
     HP Filter: 22 Hz (24dB/oct recommended)
     Round Port: 100mm dia × 426mm long
     Port Velocity: 10.9 m/s ✓ (very low — ideal for critical listening)
     Notes: Reference-level deep bass extending below 30 Hz. Large
            cabinet suited to floorstanding or dedicated subwoofer
            enclosure. Exceptionally quiet port operation makes this
            the audiophile choice. Well suited for music reproduction
            where sub-bass texture and detail are priorities.
SEALED ALIGNMENTS (Secondary — Active / DSP Systems)
With Qts=0.68, sealed enclosures in practical sizes all yield Qtc
values above 1.0 — a slight under-damped character. In active
systems with DSP management this is easily corrected, and the XR
motor's inherent low distortion ensures the cone response remains
clean despite the higher Qtc. The very low Le (0.24mH) also means
the driver integrates cleanly at crossover frequencies up to 500 Hz,
making sealed + DSP suitable for use as a bass driver in larger
multi-way systems.

  d) Compact Active (35 liters)
     Qtc: 1.28
     fc: 66 Hz
     Est. -3dB (passive): ~48 Hz
     Est. -3dB (with DSP shelf correction): ~30 Hz
     Notes: Smallest practical configuration. Requires DSP. Works well
            as a bass/woofer driver in large 2-way or 3-way speaker
            systems crossed above 200 Hz; the CF paper cone supports
            clean output to 500 Hz.

  e) Balanced Active (50 liters)
     Qtc: 1.14
     fc: 58 Hz
     Est. -3dB (passive): ~44 Hz
     Est. -3dB (with DSP shelf correction): ~28 Hz
     Notes: More relaxed sealed alignment. Moderate DSP correction
            required. Suitable for 2.1 home theater systems with
            active sub management at 80 Hz crossover.

  f) Near-Butterworth Sealed (75 liters)
     Qtc: 1.00
     fc: 52 Hz
     Est. -3dB (passive): ~41 Hz
     Est. -3dB (with DSP shelf correction): ~25 Hz
     Notes: Most linear passive sealed alignment for this driver.
            Still benefits from mild DSP correction (1–2 dB shelf
            below 50 Hz). Room gain (+3–6 dB below 50 Hz domestic)
            effectively provides flat in-room response to ~25 Hz
            without DSP in typical listening environments.
WOOFER APPLICATION NOTE
The 12XR is positioned as sub-woofer / woofer, and the combination
of CF paper cone, very low Le (0.24mH), and XR motor linearity
makes it a capable bass driver in large 2-way or 3-way systems:

  - Typical crossover range: 200–500 Hz to a midrange or compression
    driver
  - At 200–350 Hz: recommend 24dB/oct Linkwitz-Riley (sealed preferred
    to minimize crossover phase complications)
  - The CF paper cone resists breakup in the upper bass range,
    maintaining smooth response through the crossover region
  - At 500W AES and 8 ohm, works well in high-sensitivity horn systems
    or with high-power solid-state amplifiers in large format hi-fi
APPLICATION SUMMARY
  - Hi-fi 2.1 and multi-channel home theater subwoofer (primary)
  - Bass driver in large 2-way or 3-way floorstanding loudspeakers
  - Studio reference monitoring with sub-bass extension
  - Audiophile subwoofer enclosures (vented preferred)
  - Active DSP-managed subwoofer systems (sealed viable)
  - 8-ohm suits bridged amplifiers and high-power solid-state
