121NPM

LOUDSPEAKER ENCLOSURE DESIGN REPORT

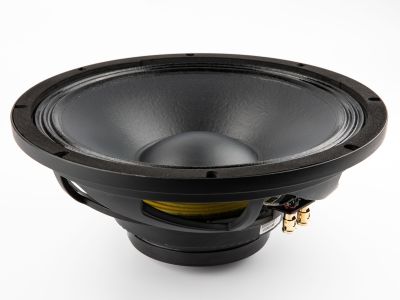

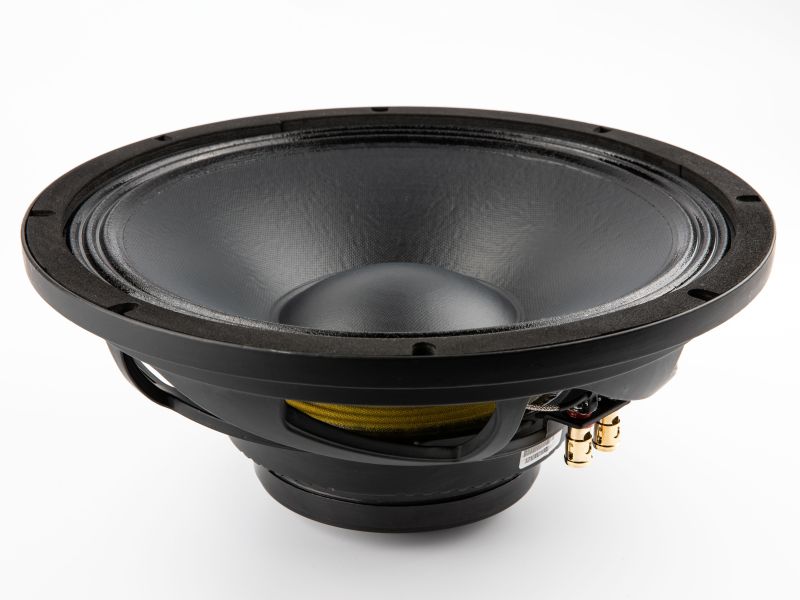

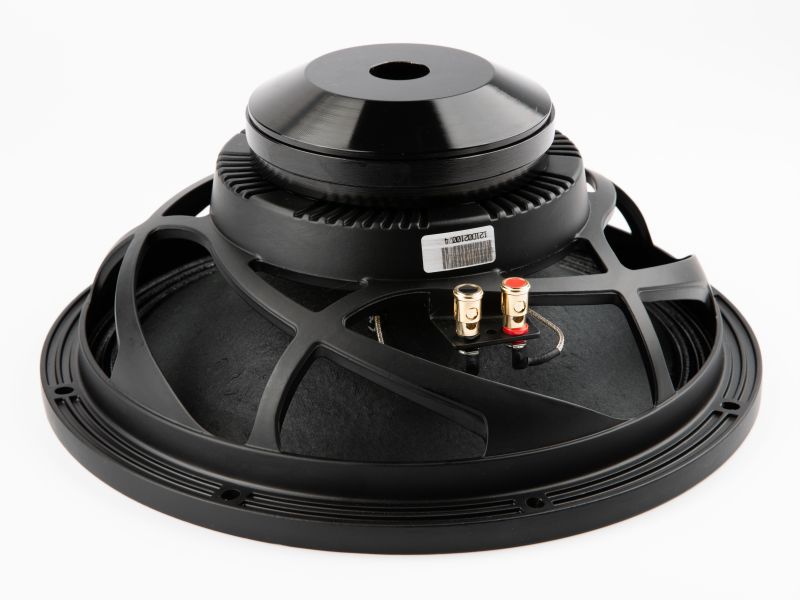

Driver: 121NPMX8-079
Generated: 2026-04-12
Application: Professional 2-way PA systems, high-efficiency touring
DRIVER SPECIFICATIONS
Code             : 121NPMX8-079
Description      : 12" Neodymium Pro Mid-Woofer — Carbon Fiber Paper Cone
Nominal Impedance: 8 Ω
AES Power        : 450 W
Continuous Power : 900 W
Peak Power       : 1,800 W

Fs               : 50 Hz
Re               : 6.0 Ω
Qes              : 0.16
Qms              : 7.51
Qts              : 0.16
Vas              : 59.2 L
Sd               : 531 cm²
Sensitivity      : 99.97 dB (1 W / 1 m)
Mms              : 66.7 g
Rms              : 2.79 kg/s
Cms              : 0.15 mm/N
Bl               : 27.8 T·m
Le               : 0.51 mH
Xmax             : 1.50 mm (one-way, peak)
Xmech            : 11.50 mm

Voice Coil       : 76 mm (3"), CCAW, Glass Fiber former
Cone             : Carbon fiber paper (Paper CF)
Surround         : Fabric, double-roll constant geometry
Spider           : Nomex
Basket           : Aluminum
Magnet           : Neodymium (outside ring design)
DERIVED PARAMETERS
Volume displacement
  Vd = Sd × Xmax = 531 cm² × 0.150 cm = 79.7 cm³

Note on Xmax and motor design: Xmax = 1.50 mm reflects a motor
  optimized for extreme sensitivity and ultra-low distortion at
  minimal excursion, not deep bass. This driver is designed for
  midrange reproduction where motor linearity and efficiency
  are paramount over low-frequency extension. A system-level
  high-pass filter or subwoofer crossover is mandatory.

Inductance rolloff onset
  f_Le = Re / (2π × Le) = 6.0 / (2π × 0.00051) ≈ 1,873 Hz

Cone beaming onset
  r_cone = √(Sd / π) = √(531 / 3.14159) = 13.00 cm
  f_beam = c / (π × r_cone) = 34,400 / (3.14159 × 13.00) ≈ 843 Hz

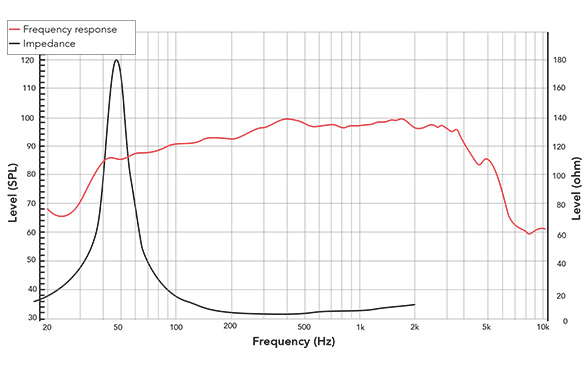

Working band        : ~55 Hz – 843 Hz
Crossover to horn   : 800 Hz – 1.5 kHz (f_beam at 843 Hz is the
                      primary upper constraint; Le onset at 1,873 Hz
                      provides additional rolloff well above crossover)

Maximum SPL (anechoic, 1 m)
  At 450 W AES   : 99.97 + 10·log₁₀(450) = 99.97 + 26.5 = 126.5 dB
  At 900 W cont  : 99.97 + 10·log₁₀(900) = 99.97 + 29.5 = 129.5 dB
12" FAMILY COMPARISON: 121FIND vs 121NPM
All three share the same 531 cm² Sd and similar cabinet footprint

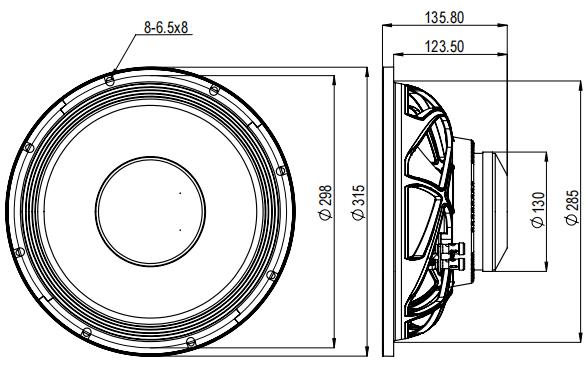

(285–282 mm baffle cutout), enabling direct substitution in a
common 12" PA enclosure design.

┌──────────────────┬───────────────┬───────────────┬───────────────┐
│ Parameter        │ 121FINDX4-233 │ 121FINDX8-234 │ 121NPMX8-079  │
├──────────────────┼───────────────┼───────────────┼───────────────┤
│ Impedance        │ 4 Ω           │ 8 Ω           │ 8 Ω           │
│ AES Power        │ 250 W         │ 250 W         │ 450 W         │
│ Sensitivity      │ 96.4 dB       │ 96.6 dB       │ 100.0 dB      │
│ Fs               │ 59 Hz         │ 63 Hz         │ 50 Hz         │
│ Qts              │ 0.52          │ 0.60          │ 0.16          │
│ Bl               │ 10.2 T·m      │ 12.9 T·m      │ 27.8 T·m      │
│ Le               │ 0.32 mH       │ 0.52 mH       │ 0.51 mH       │
│ Xmax             │ 1.85 mm       │ 3.75 mm       │ 1.50 mm       │
│ Vd               │ 98.2 cm³      │ 199.1 cm³     │ 79.7 cm³      │
│ Magnet           │ Ferrite       │ Ferrite       │ Neodymium     │
│ Peak SPL (AES)   │ 120.4 dB      │ 120.6 dB      │ 126.5 dB      │
│ Enclosure        │ Vented / Seal │ Sealed / Vent │ Vented only   │
└──────────────────┴───────────────┴───────────────┴───────────────┘

The 121NPMX8-079 provides +3.5 dB sensitivity and +6 dB peak SPL
versus the FIND variants, at the cost of reduced Xmax and a strictly
vented-only enclosure requirement. The neodymium outside ring motor
yields the highest Bl (27.8 T·m) of the 12" family.
ENCLOSURE RECOMMENDATION
Qts = 0.16 → Vented (bass reflex) is the only viable alignment.
Sealed enclosures produce a severely overdamped response with
resonance frequency far above the useful audio band and are
not suitable for this driver.
VENTED ENCLOSURE ALIGNMENTS
Port: 75 mm round (Ap = 44.18 cm²)
  Vd = 79.7 cm³ is small; port velocities are very low at all
  alignments, well within both hi-fi and PA limits.

Leff = (Ap × c²) / (4π² × Fb² × Vb)
  c = 34,400 cm/s ; c² = 1,183,360,000 cm²/s² ; 4π² = 39.478

Port velocity: v_peak = Vd × 2π × Fb / Ap
  Vd = 79.7 cm³ = 7.97 × 10⁻⁵ m³ ; Ap = 4.418 × 10⁻³ m²

┌──────────────────────────────────────────────────────────────────────┐
│ Alignment │ Vb (net) │  Fb   │ 75mm Port Length │ Port Velocity     │
├───────────┼──────────┼───────┼──────────────────┼───────────────────┤
│     A     │   15 L   │ 65 Hz │      209 mm      │   7.4 m/s  ✓     │
│     B     │   20 L   │ 58 Hz │      197 mm      │   6.6 m/s  ✓     │
│     C     │   28 L   │ 50 Hz │      189 mm      │   5.7 m/s  ✓     │
└──────────────────────────────────────────────────────────────────────┘

Port length calculations (75 mm round port):
  Alignment A: Leff = (44.18 × 1,183,360,000) / (39.478 × 4225 × 15,000)
                    = 5.228×10¹⁰ / 2.501×10⁹ = 209 mm
  Alignment B: Leff = (44.18 × 1,183,360,000) / (39.478 × 3364 × 20,000)
                    = 5.228×10¹⁰ / 2.655×10⁹ = 197 mm
  Alignment C: Leff = (44.18 × 1,183,360,000) / (39.478 × 2500 × 28,000)
                    = 5.228×10¹⁰ / 2.763×10⁹ = 189 mm

Port engineering note: All three alignments produce near-identical
effective port lengths (189–209 mm). This is the characteristic
near-constant port behaviour of very low Qts drivers — larger Vb
and lower Fb offset each other in the Helmholtz equation. A single
75 mm × ~200 mm port tube serves all three tunings with minor
end-trimming. Physical tube length (Leff minus ~54 mm end corrections)
is approximately 135–155 mm — compact and easily accommodated in
any standard 12" PA cabinet depth.

--- Vented Alignment A — 15 L / Fb = 65 Hz ---
  Compact high-efficiency cabinet, tuned above Fs. Maximum
  mid-bass punch and excursion protection. Recommended for compact
  touring 2-way PA cabinets and stage monitors where cabinet
  volume and weight are critical. Lower rolloff begins sharply
  below 65 Hz (4th-order slope).

--- Vented Alignment B — 20 L / Fb = 58 Hz ---
  Balanced PA cabinet tuned near Fs. Good output balance across
  the mid-bass and low-midrange operating band. The recommended
  general-purpose alignment for standalone 2-way PA and permanent
  installation enclosures.

--- Vented Alignment C — 28 L / Fb = 50 Hz ---
  At-Fs tuning for maximum low-frequency extension from this driver.
  Provides coverage to approximately 47 Hz (4th-order rolloff below
  Fb) — the lowest practical tuning for this motor design.
  Mandatory high-pass filter at 38–42 Hz to protect driver below
  port rolloff. Suited to 2-way enclosures used without a dedicated
  subwoofer in applications requiring modest sub-50 Hz coverage.
CROSSOVER AND SYSTEM INTEGRATION
Crossover to compression driver on horn (acoustic): 800 Hz – 1.5 kHz
  f_beam = 843 Hz (primary upper constraint — same as 121FIND family)
  f_Le   = 1,873 Hz (well above crossover; minimal impedance rise
           at the crossover frequency simplifies network design)

  Recommended crossover: 1.0 – 1.2 kHz; third or fourth-order
  acoustic slope to control off-axis directivity above 843 Hz.
  The high Bl and very low Qts make this driver highly tolerant
  of crossover network impedance variations — motor back-EMF
  damping dominates over passive component tolerance.

Zobel network:
  R_z = 6.0 Ω (use standard 5.6 Ω or 6.2 Ω)
  C_z = Le / Re² = 0.51e-3 / 36.0 = 14.2 μF → use 15 μF, 100 V non-polar
