15FHW

ENCLOSURE RECOMMENDATIONS: 15FHWX8-089

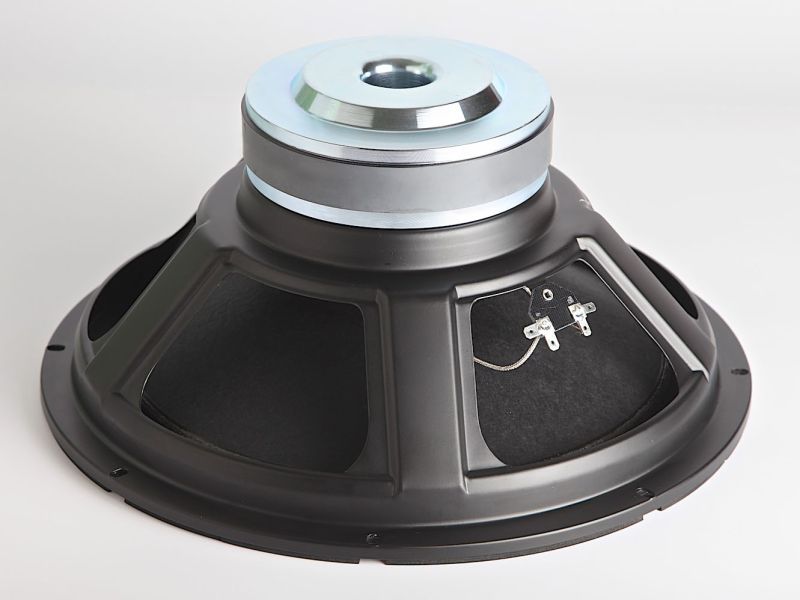

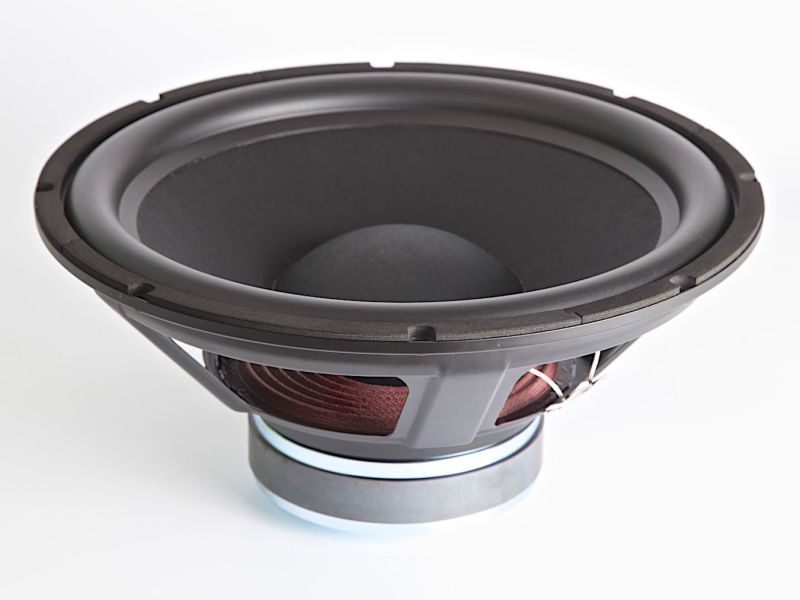

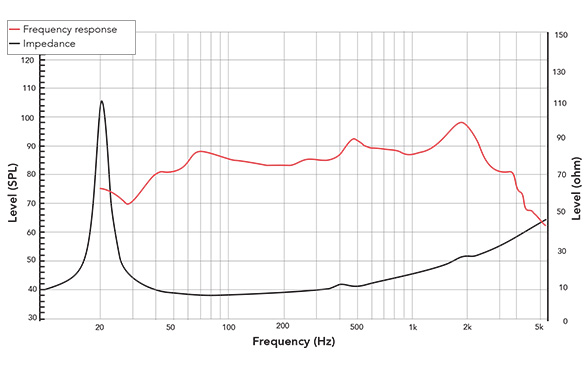

Driver: 15FHWX8-089 (15FHW) — 15" ferrite deep-bass subwoofer, 8 ohm
Key T/S: Fs=24Hz, Qts=0.60, Qes=0.63, Qms=11.9, Vas=221.2L, Sens=90.67dB
Power: AES 400W / Cont 800W / Peak 1600W
Xmax=4.85mm (linear), Xmech=14.85mm, Xprot=19.6mm
Sd=804cm², Bl=15.8T·m, Le=0.96mH, Re=5.8Ω
Voice coil: 76mm (3"), copper winding, Polyimide former (200°C rated)
Cone: glass fiber reinforced paper (Paper GF)
Surround: NBR rubber, single roll, FEM optimized profile
Spider: Nomex (long-term Fs memory design)

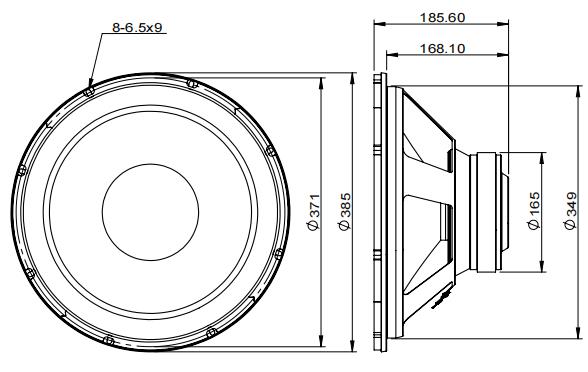

Depth: 168.1mm | Baffle cutout: 349mm | Ferrite motor | Steel basket

DESIGN PHILOSOPHY:
  The 15FHW is a cost-effective deep-bass subwoofer designed for home
  cinema, KTV, studio monitoring, and hi-fi/multimedia systems where very
  low frequency extension is the primary performance requirement. The steel
  basket, ferrite magnet, and copper voice coil represent a deliberate
  cost-reduction approach relative to aluminum-basket/neodymium/CCAW
  professional drivers, without compromising the acoustic core: Fs=24Hz
  is among the lowest resonant frequencies available in a 15-inch format,
  and the FEM-optimized NBR single-roll surround provides controlled
  compliance at large excursion. The Nomex spider is specified to ensure
  long-term Fs consistency, critical for a subwoofer where a drift in
  resonant frequency directly affects perceived bass character.

  Qts=0.60 places the 15FHW between the classical sealed and vented design
  regions. Both enclosure types are viable and each offers distinct system
  design advantages: vented enclosures provide the deepest natural extension
  with no DSP requirement; sealed enclosures yield the smallest practical
  cabinet size and the most versatile platform for DSP-corrected active
  systems using Linkwitz Transform processing.

DISPLACEMENT:
  Vd = Sd × Xmax = 804 cm² × 0.485 cm = 389.9 cm³ (peak, one-way)

ROOM GAIN NOTE:
  In typical domestic listening rooms and KTV/studio environments, room
  gain adds 3–6 dB below 50 Hz relative to anechoic measurements, and up
  to 8 dB in smaller rooms or vehicles. All f-3dB figures below are
  anechoic; in-room bass extension will be perceived as significantly
  deeper, and many installations will achieve useful output to 18–20 Hz
  with the extended alignments.
VENTED (BASS REFLEX) ALIGNMENTS
Port: 100mm diameter round tube (Ap=7.854×10⁻³ m²)
  All port velocities are well within hi-fi limits (≤17 m/s).
  Flared port ends are recommended to minimise turbulence noise at
  low-frequency excursion peaks. HP filter mandatory to protect cone.
ALIGNMENT A — COMPACT VENTED (80 L net internal)
  Box volume:        80 L (net internal)
  Tuning freq (Fb): 32 Hz
  Port:              100mm dia × 286mm long
  Port velocity:     10.0 m/s (peak, at Xmax)
  System f-3dB:      ~30 Hz
  HP filter:         24 Hz, 24 dB/oct (or DSP shelf, mandatory)
  Max SPL (400W, 1m): ~117 dB
  Application:       Home cinema subwoofer, KTV bass cabinet,
                     studio monitoring sub, hi-fi floorstanding subwoofer.
  Notes: The most compact vented alignment. At 30 Hz -3dB, the driver
         covers the sub-bass range critical for home cinema (LFE channel
         .1), KTV bass impact, and music production monitoring below the
         fundamental of standard bass instruments. The 80L cabinet can be
         packaged in a typical home cinema tower or cube format at
         approximately 480×480×400mm external. The 286mm port tube fits
         a rear or side panel. With room gain, perceived extension in a
         domestic room reaches 22–25 Hz in most installations — approaching
         the limits of human hearing and the reproduction range of Dolby
         Atmos and DTS:X object-based audio formats. HP filter at 24 Hz
         prevents over-excursion during subsonic content or DC offsets.
ALIGNMENT B — STANDARD VENTED (100 L net internal)
  Box volume:        100 L (net internal)
  Tuning freq (Fb): 28 Hz
  Port:              100mm dia × 298mm long
  Port velocity:      8.7 m/s (peak, at Xmax)
  System f-3dB:      ~26 Hz
  HP filter:         20 Hz, 24 dB/oct (mandatory)
  Max SPL (400W, 1m): ~117 dB
  Application:       Reference home cinema subwoofer, professional
                     studio monitoring system, high-end KTV room,
                     hi-fi music reproduction down to 25 Hz.
  Notes: The recommended balanced alignment. At 26 Hz -3dB the system
         produces full acoustic output across the entire audible bass
         spectrum and into the tactile infrasonic range. The 100L
         cabinet at approximately 520×520×430mm external is within
         the size range of domestic subwoofer designs in the audiophile
         and semi-professional market. Port velocity of 8.7 m/s is very
         low — turbulence noise at the port is negligible even at full
         power, appropriate for critical listening environments. The 20 Hz
         HP filter is essential: at and below port tuning, the cone
         excursion is unrestrained, and signals below 20 Hz (subsonic
         rumble, DC content, record warp artifacts) would drive Xmech
         rapidly at full amplifier power.
ALIGNMENT C — EXTENDED VENTED (120 L net internal)
  Box volume:        120 L (net internal)
  Tuning freq (Fb): 25 Hz
  Port:              100mm dia × 312mm long
  Port velocity:      7.8 m/s (peak, at Xmax)
  System f-3dB:      ~23 Hz
  HP filter:         18 Hz, 24 dB/oct (mandatory)
  Max SPL (400W, 1m): ~117 dB
  Application:       Dedicated home cinema LFE subwoofer, large-room
                     hi-fi subwoofer, studio main monitoring extension,
                     infrasonic reproduction for effects and music.
  Notes: The deepest practical vented alignment. At 23 Hz -3dB, the
         system operates below the conventional audiometric threshold
         of hearing (20 Hz), reaching the organ pedal range (16–32 Hz),
         cinema LFE impact content, and subsonic music production material.
         The 120L enclosure at approximately 570×540×450mm external is
         the upper practical size for a domestic installation; construction
         should include internal cross-bracing and damping treatment to
         control panel resonances at these cabinet volumes. Port velocity
         of 7.8 m/s is effectively silent — appropriate for library-quiet
         studio reference environments. Combined with room gain of 5–8 dB
         below 30 Hz in a typical domestic room, effective perceived output
         extends to 18–20 Hz or below, covering the full range of any
         commercially released programme material.
SEALED (ACOUSTIC SUSPENSION) ALIGNMENTS
  With Qts=0.60, sealed enclosures produce Qtc > 1.0 for all practical
  cabinet volumes — the box is always smaller than the Butterworth optimum
  (which would require approximately 570 L). This results in a rising
  bass response (shelved up near fc) that must be corrected with a
  Linkwitz Transform (LT) in a DSP-active system. The LT equalises the
  sealed response to a new target alignment (typically Q=0.577, any Fc),
  effectively extending the bass response to well below the driver's
  natural Fs. This approach is widely used in audiophile active sealed
  subwoofers; the power requirement increases below the natural fc as the
  amplifier must compensate for the roll-off, so amplifier headroom must
  be calculated accordingly. All sealed alignments below specify natural
  f-3dB; with LT correction, extension to 16–20 Hz is achievable from
  40–80 L enclosures.
SEALED A — COMPACT SEALED (40 L)
  Box volume:        40 L
  Qtc:               1.53
  System fc:         61 Hz
  Natural f-3dB:     ~43 Hz
  With LT (target f-3dB=20Hz): achievable — requires amplifier headroom
    of approx. +14 dB at 20 Hz relative to the unequalized response;
    recommend 400W+ amp with LT-capable DSP.
  Application:       Compact active subwoofer for desktop studio, small
                     home cinema room, in-wall installation, KTV corner sub.
  Notes: The smallest sealed alignment. The strong bass presence lift near
         61 Hz (+6 dB above flat) is prominent without LT correction; it
         works as a non-corrected home cinema sub only in small rooms where
         the peak aligns with room modes below 80 Hz. With LT equalization
         targeting 20 Hz, the 40L sealed box becomes a compact yet deep-
         reaching sub capable of extending to infrasonic frequencies from
         a cabinet of approximately 380×380×320mm external.
SEALED B — STANDARD SEALED (60 L)
  Box volume:        60 L
  Qtc:               1.30
  System fc:         52 Hz
  Natural f-3dB:     ~37 Hz
  With LT (target f-3dB=18Hz): achievable — requires approx. +12 dB
    amplifier headroom at 18 Hz; recommend 400W+ amp.
  Application:       Active DSP subwoofer for home cinema, studio
                     monitoring extension, bookshelf hi-fi subwoofer.
  Notes: A useful balance between cabinet size and natural bass extension.
         The 60L enclosure produces -3dB at 37 Hz unequalized — usable for
         KTV and home cinema without DSP correction in smaller rooms.
         With Linkwitz Transform, bass extension to ~18 Hz is achievable
         at reduced but still audible SPL from a 60L cabinet of
         approximately 420×420×380mm external. The +4.5 dB shelved peak
         near fc is moderate and manageable with LT equalization.
SEALED C — LARGE SEALED (80 L)
  Box volume:        80 L
  Qtc:               1.16
  System fc:         47 Hz
  Natural f-3dB:     ~35 Hz
  With LT (target f-3dB=16Hz): achievable — requires approx. +11 dB
    amplifier headroom at 16 Hz; recommend 400W+ amp.
  Application:       Reference active subwoofer, studio main monitoring
                     sub, dedicated hi-fi/home cinema LFE cabinet.
  Notes: The most extended sealed alignment. At 35 Hz natural -3dB —
         already reaching the bass guitar open E (41Hz) and approaching
         the low D (37Hz) without DSP — this sealed alignment provides
         a very useful deep bass capability from an 80L enclosure.
         With LT targeting 16 Hz, the system covers the full audible and
         tactile bass range from a cabinet equivalent in size to vented
         Alignment A. The Qtc=1.16 peak of +2.5 dB near 47 Hz is mild
         relative to the smaller sealed variants and requires moderate
         LT correction.
SYSTEM SUMMARY TABLE
  VENTED ALIGNMENTS:
  | Alignment     | Volume  | Fb    | f-3dB  | Port              | v       | HP     |
  |---------------|---------|-------|--------|-------------------|---------|--------|
  | A Compact     | 80 L    | 32 Hz | ~30 Hz | 100mm × 286mm     | 10.0m/s | 24 Hz  |
  | B Standard    | 100 L   | 28 Hz | ~26 Hz | 100mm × 298mm     |  8.7m/s | 20 Hz  |
  | C Extended    | 120 L   | 25 Hz | ~23 Hz | 100mm × 312mm     |  7.8m/s | 18 Hz  |

  SEALED ALIGNMENTS (DSP/Linkwitz Transform recommended):
  | Alignment     | Volume  | Qtc   | fc     | Natural f-3dB | LT target |
  |---------------|---------|-------|--------|---------------|-----------|
  | D Compact     | 40 L    | 1.53  | 61 Hz  | ~43 Hz        | ~20 Hz    |
  | E Standard    | 60 L    | 1.30  | 52 Hz  | ~37 Hz        | ~18 Hz    |
  | F Large       | 80 L    | 1.16  | 47 Hz  | ~35 Hz        | ~16 Hz    |

  Sensitivity:    90.67 dB (1W/1m)
  Max SPL (400W): ~117 dB at 1m
  Impedance:      8 ohm nominal (Re=5.8Ω)
  Voice coil:     76mm (3"), copper, Polyimide former (200°C rated)
  Surround:       NBR rubber, single roll, FEM-optimized profile
  Spider:         Nomex — long-term Fs consistency design
