LF
Woofer
15"
15FIND
Code: 15FINDX8-035
Woofer/15inch/Ferrite/Paper/1000W/8ohm
Key Features
- Glass fiber and rib reinforced paper cone
- fem optimized air circulation
- Silicone sealed surround
Quick Specs
Impedance
8 Ω
Program Power
2000 W
Sensitivity
96.65 dB
Fs
42.00 Hz
Magnet
Ferrite
Voice Coil
101.6 mm
Design Notes
The 15FIND is a high efficiency, (97 dB 1watt / 1 meter) 15-inch woofer with incredibly linear frequency response characteristics, extreme high power handling capability while generating low harmonic distortion artifacts. The 15FIND uses a lightweight, but strong, glass fiber loaded cone assembly along with a high excursion triple roll constant geometry surround. This combination provides remarkable strength, high efficiency and a peak to peak maximum excursion of 21mm.
Power Handling
At the core of the 15FIND is it’s voice coil technology featuring a composite Polyimide former material capable of withstanding peak temperatures in excess of 250°C, well beyond the thermal requirements of modern professional audio systems. Winding if winded on the outside and inside of the former.
REDCATT has implemented a silicone spider design to ensure long term Fs memory, consistency and diminish anomalies associated with spider deterioration. The sealed spider works as a air pump and pushes the air trough out motor to
Power Handling
At the core of the 15FIND is it’s voice coil technology featuring a composite Polyimide former material capable of withstanding peak temperatures in excess of 250°C, well beyond the thermal requirements of modern professional audio systems. Winding if winded on the outside and inside of the former.
REDCATT has implemented a silicone spider design to ensure long term Fs memory, consistency and diminish anomalies associated with spider deterioration. The sealed spider works as a air pump and pushes the air trough out motor to
Specifications
General Specs
Nominal Diameter
15"
Rated Impedance
8 Ohm
Magnet
Ferrite
Basket Material
Aluminum
Power Handling
AES Power
1000 W
Continuous Power
2000 W
Peak Power
4000 W
Voice Coil
Diameter
101.6 mm
Winding Wire
Copper
Former
Glass Fiber
Winding Height
25.5 mm
T/S Parameters
Resonant Frequency (Fs)
42.00 Hz
Re
5.40 \u2126
Qes
0.370
Qms
8.31
Qts
0.360
Vas
96.40 liters
Sd
881.00 cm\u00B2
Mms
159.60 grams
Rms
5.10
Cms
0.0900
Bl
24.60 T\u00B7m
Le
1.180 mH
Sensitivity
96.65 dB
Design Details
Surround Material
fabric
Cone/Dome Material
Paper GF
Spider
Nomex
T-Plate
12 mm
Xmax (peak)
6.75 mm
Xmech
18.75 mm
Overall Diameter
392.00 mm
Bolt Circle Diameter
373.00 mm
Baffle Cutout Dia.
360.00 mm
Mounting Holes
8
Depth (flange to rear)
150.00 mm
Net Weight
12.00 kg
Ordering Codes
Product Code
15FINDX8-035
Downloads

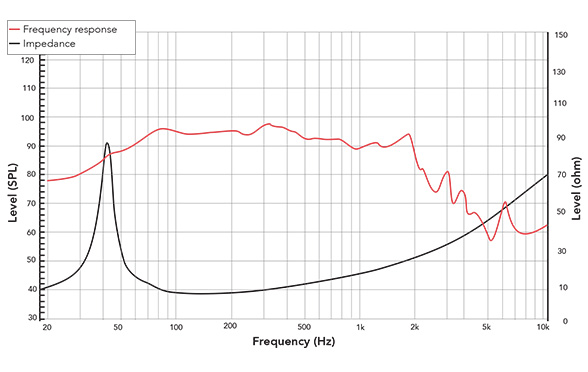

Frequency Response & Impedance

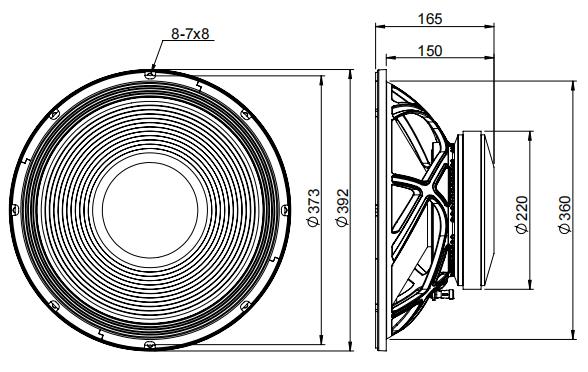

2D Drawing
Enclosure Recommendations
ENCLOSURE RECOMMENDATIONS: 15FINDX8-035
Driver: 15FINDX8-035 (15FIND) — 15" Sub-woofer
Key T/S: Fs=42.0Hz, Qts=0.36, Vas=96.4L, Sens=96.65dB
Power: AES 1000W / Cont 2000W / Peak 4000W
Xmax=6.75mm, Sd=881.0cm², Bl=24.6T·m
RECOMMENDED ENCLOSURE TYPE: Bass Reflex (Vented)
PORT RECOMMENDATION: Round port (100mm diameter) — compact cabinet may benefit from precision-tuned cylindrical port
a) High SPL
Net Volume: 75 liters
Tuning (Fb): 48 Hz
Est. -3dB: 44 Hz
HP Filter: 40 Hz (24dB/oct recommended)
Round Port: 100mm dia × 63mm long
Slot Port: 288mm W × 60mm H × 192mm L
Port Velocity: 22.9 m/s
Notes: Strong mid-bass impact, reduc
Frequently Asked Questions
- - Glass fiber and rib reinforced paper cone
- - fem optimized air circulation
- - Silicone sealed surround
ENCLOSURE RECOMMENDATIONS: 15FINDX8-035
Driver: 15FINDX8-035 (15FIND) — 15" Sub-woofer
Key T/S: Fs=42.0Hz, Qts=0.36, Vas=96.4L, Sens=96.65dB
Power: AES 1000W / Cont 2000W / Peak 4000W
Xmax=6.75mm, Sd=881.0cm², Bl=24.6T·m
RECOMMENDED ENCLOSURE TYPE: Bass Reflex (Vented)
PORT RECOMMENDATION: Round port (100mm diameter) — compact cabinet may benefit from precision-tuned cylindrical port
a) High SPL
Net Volume: 75 liters
Tuning (Fb): 48 Hz
Est. -3dB: 44 Hz
HP Filter: 40 Hz (24dB/oct recommended)
Round Port: 100mm dia × 63mm long
Slot Port: 288mm W × 60mm H × 192mm L
Port Velocity: 22.9 m/s
Notes: Strong mid-bass impact, reduc
AES Power: 1000 W,
Continuous: 2000 W,
Peak: 4000 W.
Sensitivity: 96.65 dB (1W/1m).
