LF
Mid-Woofer
15"

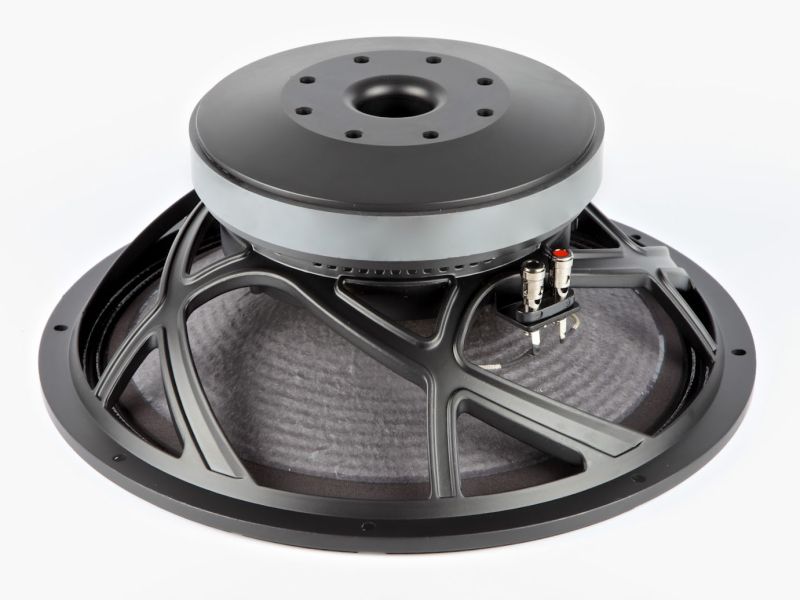

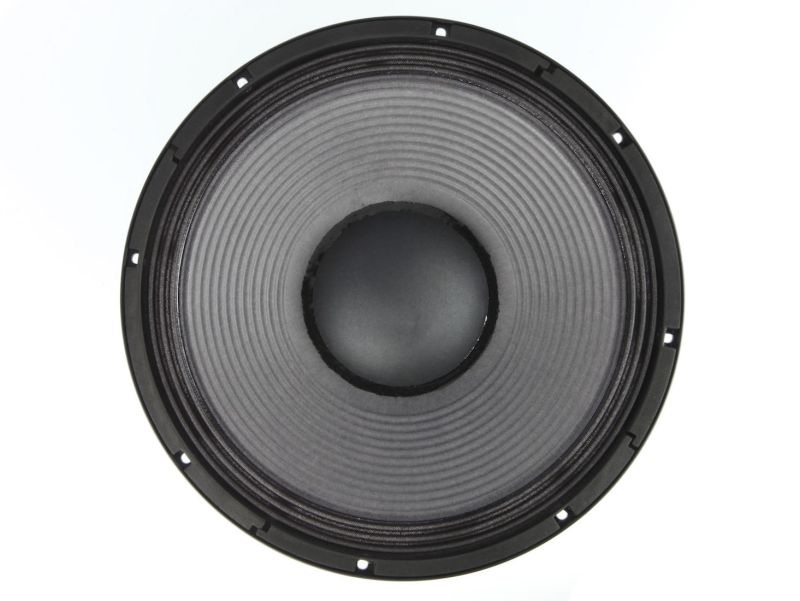

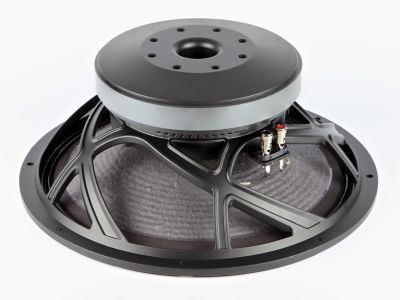

15FPM
Code: 15FPMX8-063
Mid-Woofer/15inch/Ferrite/Paper/1000W/8ohm
Key Features
- Carbon fiber reinforced paper cone
- Square Aluminum winding wire (ALR)
- Great option for powerful 2-way systems
Quick Specs
Impedance
8 Ω
Program Power
2000 W
Sensitivity
97.87 dB
Fs
41.00 Hz
Magnet
Ferrite
Voice Coil
101.6 mm
Design Notes

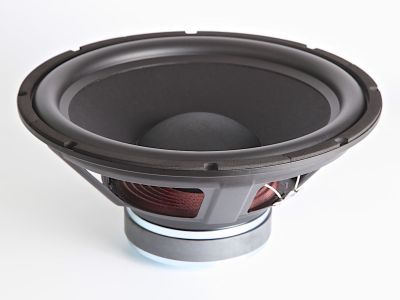

The 15FPM is a high efficiency, (98 dB 1watt / 1 meter) 15-inch woofer with incredibly linear frequency response characteristics. The 15FPM uses a lightweight, but strong, carbon fiber loaded cone assembly along with a high excursion triple roll constant geometry surround. Cone material was specifically developed with 2-way or multi-way application in mind. The 15FPM has extended mid frequency range, providing possibility for cross overs at higher frequencies.
Power Handling
At the core of the 15FPM is it’s voice coil technology featuring a composite Polyimide former material capable of withstanding peak temperatures in excess of 250°C, well beyond the thermal requirements of modern professional audio systems. The coil is wound on the outside of the former. Winding material is aluminum ribbon, material that provides ideal transient response.
REDCATT has implemented a silicone spider design to ensure long term Fs memory, consistency and diminish anomalies associated with spider deterioration. The sealed spi
Power Handling
At the core of the 15FPM is it’s voice coil technology featuring a composite Polyimide former material capable of withstanding peak temperatures in excess of 250°C, well beyond the thermal requirements of modern professional audio systems. The coil is wound on the outside of the former. Winding material is aluminum ribbon, material that provides ideal transient response.
REDCATT has implemented a silicone spider design to ensure long term Fs memory, consistency and diminish anomalies associated with spider deterioration. The sealed spi
Specifications
General Specs
Nominal Diameter
15"
Rated Impedance
8 Ohm
Magnet
Ferrite
Basket Material
Aluminum
Power Handling
AES Power
1000 W
Continuous Power
2000 W
Peak Power
4000 W
Voice Coil
Diameter
101.6 mm
Former
Glass Fiber
Winding Height
21 mm
T/S Parameters
Resonant Frequency (Fs)
41.00 Hz
Re
5.20 \u2126
Qes
0.380
Qms
8.07
Qts
0.360
Vas
134.90 liters
Sd
908.00 cm\u00B2
Mms
126.60 grams
Rms
4.04
Cms
0.1200
Bl
21.30 T\u00B7m
Le
1.170 mH
Sensitivity
97.87 dB
Design Details
Surround Material
fabric
Cone/Dome Material
Paper CF
Spider
Nomex
T-Plate
12 mm
Xmax (peak)
4.5 mm
Xmech
16.5 mm
Overall Diameter
392.00 mm
Bolt Circle Diameter
373.00 mm
Baffle Cutout Dia.
360.00 mm
Mounting Holes
8
Depth (flange to rear)
150.00 mm
Net Weight
12.00 kg
Ordering Codes
Product Code
15FPMX8-063
Downloads

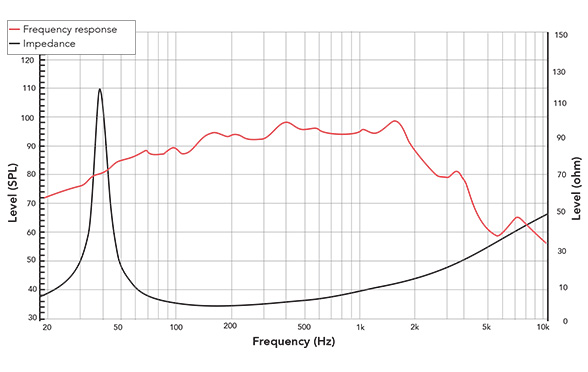

Frequency Response & Impedance

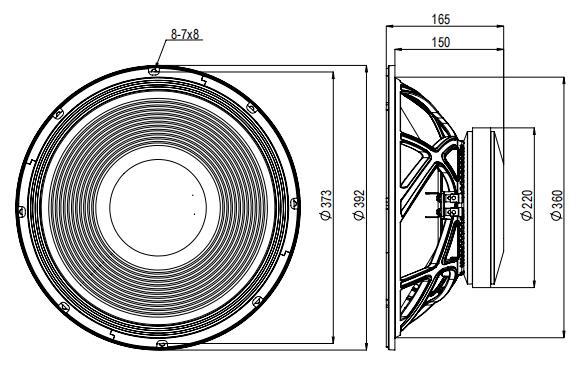

2D Drawing
Enclosure Recommendations
ENCLOSURE RECOMMENDATIONS: 15FPMX8-063
Driver: 15FPMX8-063 (15FPM) — 15" Mid-Woofer
Key T/S: Fs=41.0Hz, Qts=0.36, Vas=134.9L, Sens=97.87dB
Power: AES 1000W / Cont 2000W / Peak 4000W
Xmax=4.50mm, Sd=908.0cm², Bl=21.3T·m
RECOMMENDED ENCLOSURE TYPE: Bass Reflex (Vented)
PORT RECOMMENDATION: Slot port (full-width or L-shaped internal duct) — provides large cross-sectional area needed for high air displacement; reduces port noise at high SPL
a) High SPL
Net Volume: 105 liters
Tuning (Fb): 47 Hz
Est. -3dB: 43 Hz
HP Filter: 39 Hz (24dB/oct recommended)
Round Port: 100mm dia × 29mm long
Slot Port: 288mm W × 60mm H × 117mm L
Port Veloci
Frequently Asked Questions
- - Carbon fiber reinforced paper cone
- - Square Aluminum winding wire (ALR)
- - Great option for powerful 2-way systems
ENCLOSURE RECOMMENDATIONS: 15FPMX8-063
Driver: 15FPMX8-063 (15FPM) — 15" Mid-Woofer
Key T/S: Fs=41.0Hz, Qts=0.36, Vas=134.9L, Sens=97.87dB
Power: AES 1000W / Cont 2000W / Peak 4000W
Xmax=4.50mm, Sd=908.0cm², Bl=21.3T·m
RECOMMENDED ENCLOSURE TYPE: Bass Reflex (Vented)
PORT RECOMMENDATION: Slot port (full-width or L-shaped internal duct) — provides large cross-sectional area needed for high air displacement; reduces port noise at high SPL
a) High SPL
Net Volume: 105 liters
Tuning (Fb): 47 Hz
Est. -3dB: 43 Hz
HP Filter: 39 Hz (24dB/oct recommended)
Round Port: 100mm dia × 29mm long
Slot Port: 288mm W × 60mm H × 117mm L
Port Veloci
AES Power: 1000 W,
Continuous: 2000 W,
Peak: 4000 W.
Sensitivity: 97.87 dB (1W/1m).
