21NPW

ENCLOSURE RECOMMENDATIONS: 21NPWX4-018

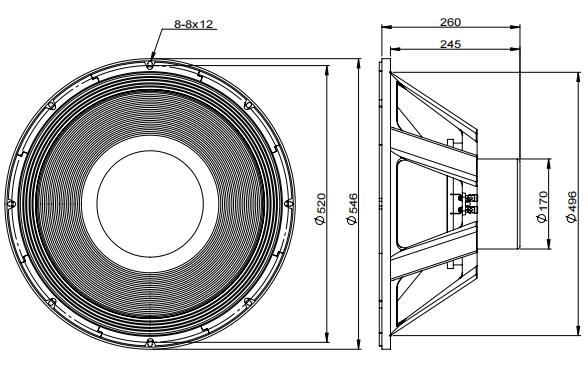

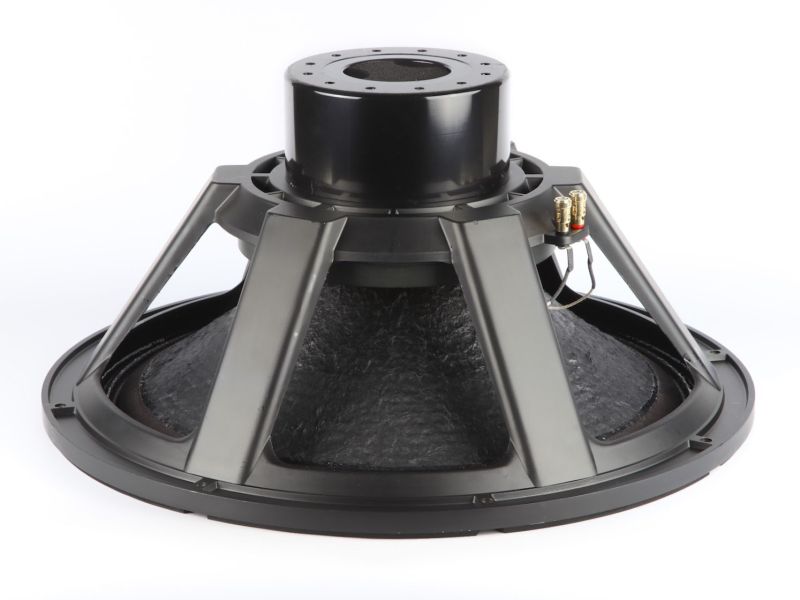

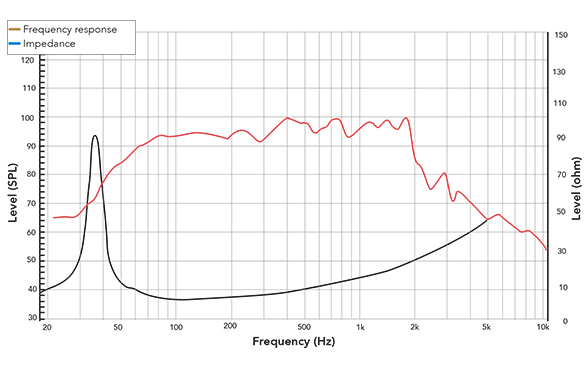

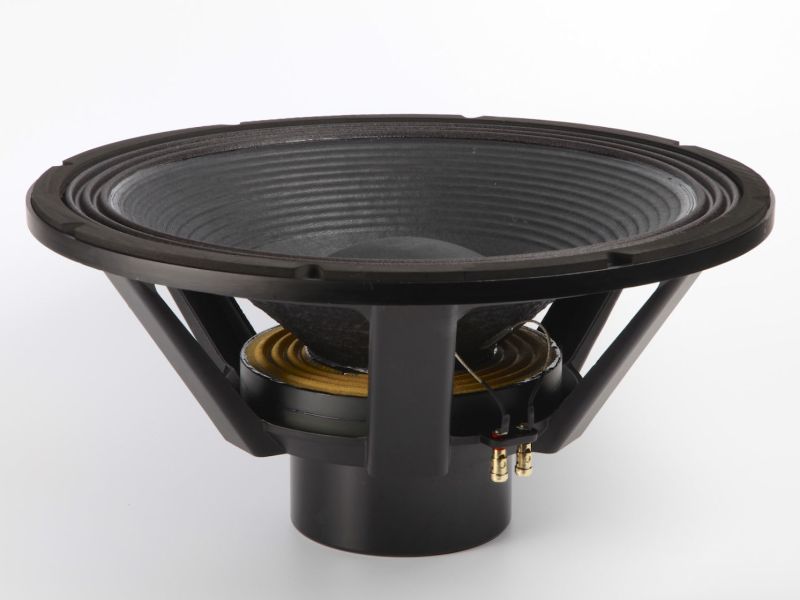

Driver: 21NPWX4-018 (21NPW) — 21" pro sub-woofer, 4 ohm
Key T/S: Fs=35.0Hz, Qts=0.32, Qes=0.33, Qms=11.12, Vas=149L, Sens=96.32dB
Power: AES 1800W / Cont 3600W / Peak 7200W
Xmax=9.0mm, Xmech=24.0mm, Sd=1662.0cm², Bl=32.9T·m
Le=1.14mH | Neodymium | 5.3" Polyimide former | Triple silicone spider

DESIGN HIGHLIGHTS:
  - Bl=32.9 T·m — the highest motor force index in the REDCATT pro
    lineup; exceptionally tight cone control, low Qts, and high
    sensitivity at maximum drive levels
  - 96.32 dB sensitivity (1W/1m) — excellent for a 21" sub, allows
    less amplifier power for a given SPL vs lower-sensitivity designs
  - 5.3" (134.6mm) voice coil on Polyimide composite former, rated to
    peak temperatures in excess of 350°C — the primary enabler of
    sustained 3600W continuous operation
  - Triple layer/silicone spider — engineered for long-term Fs memory
    and consistent mechanical behavior under touring conditions; resists
    creep and spider fatigue during high-power sustained operation
  - Triple roll constant-geometry fabric surround — maintains controlled
    cone motion throughout the 9mm Xmax linear range; 31mm P-P design
    excursion travel
  - CF paper cone — carbon fiber reinforced for rigidity and controlled
    modal behavior in the upper bass range
  - Qms=11.12 — low mechanical losses; motor and amplifier provide the
    dominant system damping (Qes=0.33 governs behavior)
  - Neodymium motor — compact and lightweight for a 21" sub at 14.85 kg
    total, reducing enclosure and rigging weight in touring applications

RECOMMENDED ENCLOSURE TYPE: Bass Reflex (Vented) only
  Qts=0.32 places this driver firmly in the classic pro vented range.
  Sealed enclosures are not recommended: achieving Butterworth (Qtc=0.707)
  would require ~38L — impractically small for a 21" baffle, and would
  shift the system resonance to ~77 Hz, far outside useful subwoofer
  operating range. All three alignments below maximize the driver's
  output, extension, and efficiency in vented loading.
VENTED ALIGNMENTS
Vd = 1662 cm² × 9.0mm = 1495.8 cm³

Both slot and dual round port options given per alignment.
Slot ports are recommended for fixed installation; dual round ports
for touring cabinets where slot construction adds weight.

  a) High SPL / Touring Compact
     Net Volume: 100 liters
     Tuning (Fb): 40 Hz
     Est. -3dB: ~40 Hz
     HP Filter: 35 Hz (24dB/oct — essential; excursion rises steeply
                below tuning with Xmax=9mm)
     Slot Port: 250mm W × 80mm H × 373mm long
     Dual Round Ports: 125mm dia × 457mm each
     Port Velocity (slot): 18.8 m/s ✓
     Port Velocity (dual round): 15.3 m/s ✓
     Notes: Maximum output per unit volume. Compact footprint ideal for
            flyware and ground-stacked touring subwoofer arrays. Strong
            mid-bass punch in the 40–80 Hz region, well-matched to kick
            drum and bass guitar fundamental output. High-pass protection
            is critical at full power — at or near Xmax, excursion below
            Fb is mechanical-limit constrained, not thermally.

  b) Balanced / General Purpose
     Net Volume: 160 liters
     Tuning (Fb): 35 Hz
     Est. -3dB: ~35 Hz
     HP Filter: 28 Hz (24dB/oct recommended)
     Slot Port: 250mm W × 80mm H × 304mm long
     Dual Round Ports: 125mm dia × 373mm each
     Port Velocity (slot): 16.5 m/s ✓
     Port Velocity (dual round): 13.4 m/s ✓
     Notes: Standard professional sub alignment tuned near Fs. Excellent
            balance between low-frequency extension, SPL output, and
            practical cabinet size. Suitable for concert touring, club
            installation, and outdoor events. Dual round ports at
            13.4 m/s are comfortably below audible turbulence threshold.

  c) Extended Low Frequency
     Net Volume: 220 liters
     Tuning (Fb): 30 Hz
     Est. -3dB: ~30 Hz
     HP Filter: 24 Hz (24dB/oct recommended)
     Slot Port: 250mm W × 80mm H × 301mm long
     Dual Round Ports: 125mm dia × 369mm each
     Port Velocity (slot): 14.1 m/s ✓
     Port Velocity (dual round): 11.5 m/s ✓ (very low)
     Notes: Maximum deep bass extension for large venue, stadium, and
            fixed installation subwoofer systems. At 30 Hz tuning with
            a 21" driver at 1800W AES, acoustic output in the sub-30Hz
            band is exceptional. Dual round ports at 11.5 m/s produce
            effectively inaudible port noise. Suitable for cinema, live
            event infrastructure, and permanent installation systems.

AMPLIFICATION NOTES:
  - Minimum recommended amplifier power: 1800W AES into 4 ohm
  - Typical operating range: 1800–3600W (AES to continuous rating)
  - Peak headroom: up to 7200W — requires very high-current amplifier
  - Two drivers in parallel: 2 ohm load — verify amplifier stability
  - Two drivers in series: 8 ohm load — suitable for 8-ohm amplifiers
  - HP filter required per alignment above; DSP-based limiting
    (excursion and thermal) is essential at sustained high-power levels
  - The 96.32 dB sensitivity allows 3dB SPL gain over a 93dB driver
    at identical amplifier power — useful for system gain structure

COMPARISON — 21NPW vs 181NPW (18"):
  Parameter       21NPWX4-018    181NPWX4-099
  Size            21"            18"
  Sensitivity     96.3 dB        94.8 dB        +1.5dB
  AES Power       1800W          1500W          +300W
  Bl              32.9 T·m       29.7 T·m       stronger motor
  Fs              35 Hz          28 Hz           higher
  Qts             0.32           0.25            slightly higher
  Sd              1662 cm²       1225 cm²        +35% radiating area
  Vd (at Xmax)    1496 cm³       1091 cm³        +37% displacement

  The 21NPW provides higher sensitivity and greater cone displacement
  (Vd) than the 181NPW, at higher Fs and slightly higher Qts.
  For maximum SPL in the 35–80 Hz range: 21NPW.
  For deepest extension below 30 Hz (lower Fs=28Hz): 181NPW.
