22NFRX8-462A — Enclosure Design Reference & AI Summary
Generated by REDCATT Speaker Enclosure Tool
=== DRIVER IDENTITY ===
Code:         22NFRX8-462A
Platform:     22NFR
Description:  2-inch Full-Range | Neodymium | Glass Fiber Paper | 20W AES / 8Ω
Intended Use: Column speaker arrays, multi-way systems, portable products, TV bars,
              near-field consumer and commercial audio — 8Ω standard impedance
Notes:        Front flange basket design; can be front- or back-mounted onto baffle

=== THIELE-SMALL PARAMETERS ===
Fs:          255 Hz
Re:          5.6 Ω
Qes:         0.98
Qms:         6.46
Qts:         0.85
Vas:         0.08 L  (80 mL)
Sd:          15.9 cm²
Sensitivity: 85.04 dB (2.83V/1m) / 83.49 dB (1W/1m)
Mms:         1.67 g
Rms:         0.41 N·s/m
Cms:         0.23 mm/N
Bl:          3.91 T·m
Le:          0.06 mH
Xmax:        0.75 mm (one-way, peak)
Xmech:       4.75 mm
Xprot:       3.6 mm
Power:       20W AES / 40W continuous / 80W peak / 8Ω nominal
Voice Coil:  25.4mm (1") CCAW on Kapton former

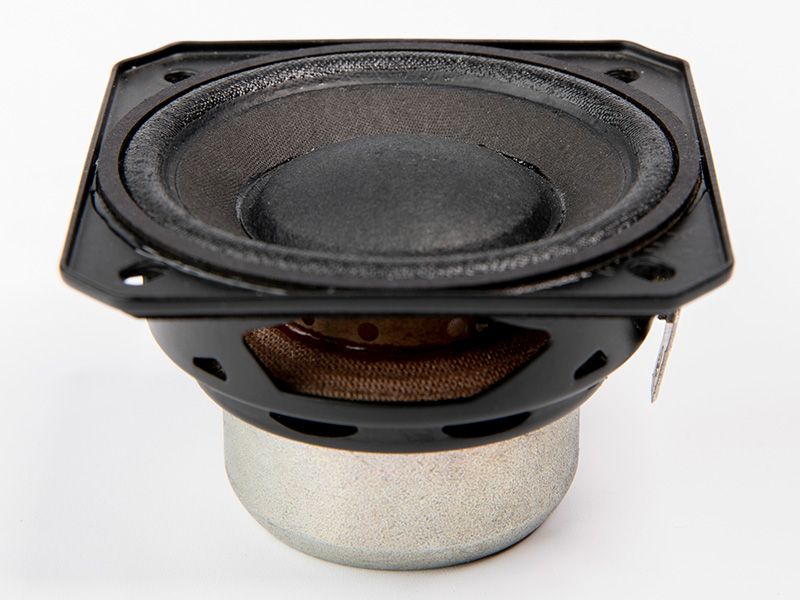

Cone:        Glass fiber reinforced paper
Surround:    Fabric
Spider:      Conex

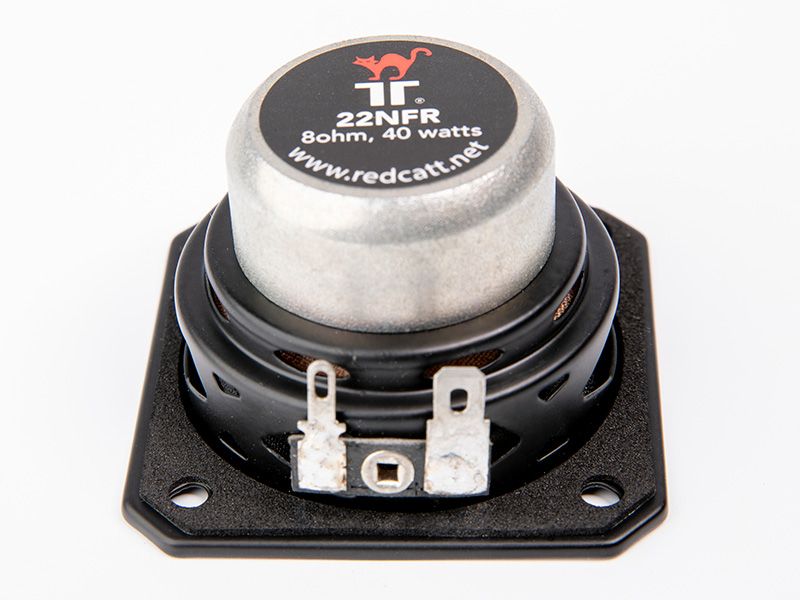

Basket:      Steel, front flange all-around (front or back mountable)
Magnet:      Neodymium slug, U-cup steel circuit

=== DERIVED PARAMETERS ===
Volume displacement (Vd):         Sd × Xmax = 15.9 × 0.075 cm = 1.19 cm³
Inductance rolloff onset (f_Le):  Re / (2π × Le) = 5.6 / (2π × 0.00006) ≈ 14,854 Hz
Cone radius (r_cone):             √(Sd/π) = √(15.9/π) = 2.25 cm
Cone beaming onset (f_beam):      c / (π × r_cone) = 34,400 / (π × 2.25) ≈ 4,867 Hz
Max SPL @ 20W AES:                83.49 + 10·log₁₀(20) = 96.5 dB (1m)
Max SPL @ 40W continuous:         83.49 + 10·log₁₀(40) = 99.5 dB (1m)
Zobel network:                    R_z = 5.6 Ω (series), C_z = Le/Re² = 1.9 μF (series)

NOTE ON Xmax AND POWER RATING:
The 20W AES thermal rating is the governing limit at mid and high frequencies where
excursion is small. At bass frequencies, mechanical over-excursion occurs well before
the thermal limit is reached — Xmax = 0.75mm allows only 1.19 cm³ volume displacement.
At Fs = 255 Hz, significant acoustic output at bass frequencies requires DSP-controlled
excursion limiting. The rated SPL (96.5 dB at 1m) applies to the driver's usable
operating band above Fs, not to bass-boosted operation near or below resonance.

NOTE ON f_Le:
At 14,854 Hz, the voice coil inductance has no meaningful effect on response across
the entire audio band. The driver presents a substantially resistive load from 20 Hz
to 14 kHz — beneficial for full-range operation and passive network design.

=== ENCLOSURE RECOMMENDATION ===
Qts = 0.85 → Free-air / open-back strongly preferred; sealed micro-enclosures as
secondary option only for structural reasons, always with DSP correction.

IMPORTANT — SEALED BOXES CANNOT IMPROVE BASS FOR THIS DRIVER:
Qts = 0.85 exceeds the Butterworth value of 0.707, which means a Butterworth (flat,
maximally extended) sealed alignment is physically impossible — it would require an
infinitely large enclosure. Any sealed rear cavity raises Qtc above 0.85, shifting
the system resonance upward and increasing f-3dB above the free-air value:

  Free air (Qtc = 0.85):    f-3dB ≈ 219 Hz  ← best bass extension available
  Qtc = 1.00 (208 mL box):  f-3dB ≈ 236 Hz  (17 Hz higher — worse)
  Qtc = 1.20 (81 mL box):   f-3dB ≈ 265 Hz  (46 Hz higher — worse)
  Qtc = 1.50 (38 mL box):   f-3dB ≈ 315 Hz  (96 Hz higher — worse)

For any installation where bass response matters, use free-air or open-back mounting.
This is the only way to achieve the minimum f-3dB of approximately 219 Hz. Even in
free air, Fs = 255 Hz means the driver's useful bass range begins well above 200 Hz.
With DSP boost applied below Fs, modest low-frequency extension is possible within
the 0.75mm Xmax limit — but conservatively, not aggressively.

--- FREE-AIR / OPEN-BACK (strongly preferred) ---
In free air, the driver operates at its natural Qts = 0.85, with:
  System resonance: Fs = 255 Hz
  System f-3dB:     ≈ 219 Hz

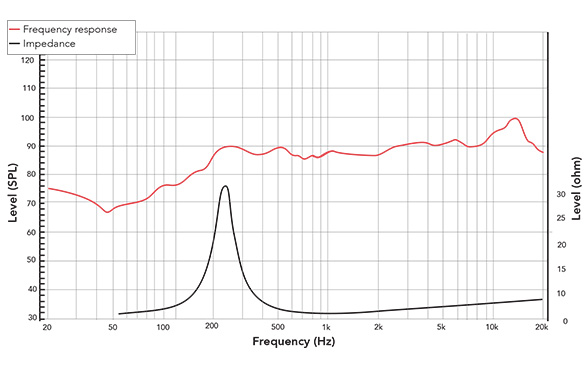

  Natural response: relatively flat from ~280 Hz upward; mild peak approaching Fs;
                    the gentle response rise below Fs can provide subjective bass presence
                    in near-field listening environments

For column speaker arrays, open-back or maximum available rear cavity is recommended.
With DSP correction, usable bass response can be extended below 219 Hz within Xmax limits.

--- SEALED MICRO-ENCLOSURES (secondary — structural requirement only) ---
These alignments are provided only where a sealed rear cavity is required for structural
or acoustic isolation reasons. DSP correction is mandatory in all cases.
All volumes are in millilitres (mL).

Alignment 1 — Largest practical sealed cavity (portable speaker)
  Cabinet volume (Vb):    208 mL
  System Qtc:             1.00
  System fc:              300 Hz
  System f-3dB:           236 Hz
  Notes: The only sealed alignment that provides a relatively controlled response peak;
         a lightly peaked, rising response below 300 Hz; DSP correction recommended;
         suited to portable products where a fully sealed enclosure is necessary

Alignment 2 — Compact sealed (soundbar / column rear cavity)
  Cabinet volume (Vb):    81 mL
  System Qtc:             1.20
  System fc:              360 Hz
  System f-3dB:           265 Hz
  Notes: Compact rear cavity; noticeably peaked response around 360 Hz; mandatory
         DSP correction for flat playback; typical for soundbar rear chambers

Alignment 3 — Minimal sealed (TV / ultra-slim product)
  Cabinet volume (Vb):    38 mL
  System Qtc:             1.50
  System fc:              450 Hz
  System f-3dB:           315 Hz
  Notes: Very small chassis cavity; strongly peaked, coloured response; full DSP
         management essential; maximise available chassis cavity depth to remain
         closer to Alignment 1 or 2 wherever possible

=== COLUMN SPEAKER / ARRAY GUIDANCE ===
The 8Ω standard impedance suits direct connection to consumer and installed-sound
amplifiers, and allows simple parallel wiring:
  2× 8Ω in parallel = 4Ω
  4× 8Ω in parallel = 2Ω (requires amplifier rated for 2Ω loads)

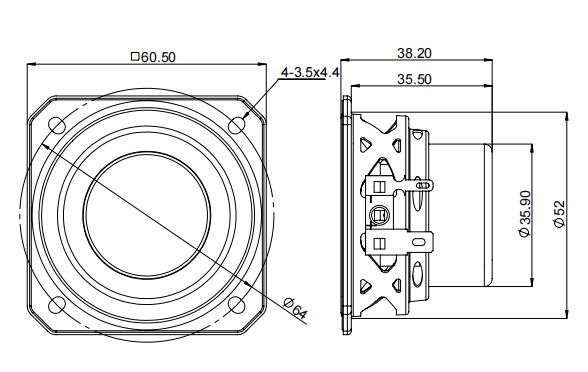

Array directivity — the 60.5mm overall driver diameter determines minimum pitch in
a vertical column:
  Maximum coherent array frequency: c / (2 × driver pitch)
                                    = 34,400 cm/s / (2 × 6.05 cm) ≈ 2,843 Hz ≈ 2.8 kHz

Above approximately 2.8 kHz, grating lobes will appear in the vertical radiation
pattern. The 4,867 Hz cone beaming onset provides complementary high-frequency
directivity control above the grating lobe threshold.

The front flange design allows both front- and back-mounting, offering installation
flexibility in column enclosure designs where access to the front baffle may be limited
or where a flush-mounted rear-entry configuration is preferred.

=== CROSSOVER / DSP GUIDANCE ===
Full-range operation:  ~250 Hz – 16 kHz (natural; response rising gently below Fs)
Practical flat band:   ~280 Hz upward without DSP correction
With DSP / host EQ:    Bass extension toward 150 Hz possible within Xmax = 0.75mm limit;
                       apply conservatively — SPL below 255 Hz is mechanically limited
High-pass filter:      Mandatory; recommended at 150–200 Hz minimum; Xmax = 0.75mm
                       gives only 1.19 cm³ Vd — even modest bass boost at low power
                       can produce over-excursion
Cone beaming:          Onset at ~4,867 Hz; dispersion narrows above this point;
                       acceptable for near-field and column array applications
Inductance rolloff:    Onset at ~14,854 Hz — negligible effect on response or impedance
                       across the entire audio band
Passive crossover:     Zobel network (5.6Ω + 1.9 μF in series across driver terminals)
                       compensates voice coil inductance for passive network designs

In multi-way systems, the 22NFR is well matched as a midrange or upper-band driver
crossed above ~300 Hz to a subwoofer or woofer covering the bass band, where its
high power handling (20W AES) and high SPL capability (96.5 dB) are primary assets.

=== 20NFR / 21NFR / 22NFR PLATFORM COMPARISON ===
All three are 2-inch full-range neodymium drivers sharing common application scenarios.

Parameter               20NFRX4-345A    21NFRX16-393D   22NFRX8-462A
Impedance               4Ω              16Ω             8Ω
AES Power               10W             10W             20W
Fs                      185 Hz          157 Hz          255 Hz
Qts                     0.52            0.68            0.85
Vas                     90 mL           250 mL          80 mL
Sd                      11.34 cm²       16.62 cm²       15.9 cm²
Xmax                    3.0 mm          1.2 mm          0.75 mm
Vd                      3.40 cm³        2.0 cm³         1.19 cm³
Sensitivity (1W/1m)     79.56 dB        85.76 dB        83.49 dB
Max SPL (AES)           89.6 dB         95.8 dB         96.5 dB
f-3dB free air          272 Hz          164 Hz          219 Hz
f_beam                  5,764 Hz        4,761 Hz        4,867 Hz
Surround                Foam            NBR rubber      Fabric
Cone                    Paper GF        Paper CF        Paper GF
Spider                  Nomex           Nomex           Conex
Best enclosure          Small sealed    Free-air        Free-air
Bass extension          Best            Mid             Least

SELECTION GUIDANCE:
Choose 20NFRX4-345A where: sealed rear cavity genuinely improves bass (Qts=0.52);
  maximum Xmax (3.0mm) is needed for bass boost or DSP extension; 4Ω matches standard
  consumer amplifier outputs directly.
Choose 21NFRX16-393D where: open-back column array installation; 16Ω enables flexible
  parallel wiring for column array loads; NBR surround for outdoor durability; lowest
  free-air f-3dB (164 Hz) gives best natural bass extension of the three.
Choose 22NFRX8-462A where: highest rated power (20W AES) and SPL (96.5 dB) are
  the primary requirement; 8Ω standard impedance simplifies system integration; multi-way
  system use as an upper-band or midrange element crossed above 300 Hz; front/back
  mounting flexibility is needed; bass extension is not a primary design objective.

=== SUMMARY ===

The 22NFRX8-462A is a 2-inch full-range driver designed for column speaker arrays, multi-way systems, portable products, and TV bar applications requiring high power handling from a compact 8Ω driver. It features a glass fiber reinforced paper cone, fabric surround, 25.4mm CCAW voice coil on a Kapton former, and a neodymium U-cup magnetic circuit in a steel basket with an all-around front flange that supports both front- and back-mounting. Sensitivity is 83.49 dB (1W/1m) / 85.04 dB (2.83V/1m) with a Bl of 3.91 T·m, supporting 20W AES / 40W continuous power handling — the highest rated power of the 20NFR/21NFR/22NFR driver family. Qts = 0.85 reflects a compliant suspension design suited to free-air and open-back installations; at Qts above 0.707, Butterworth sealed alignment is physically unachievable and any sealed enclosure reduces rather than extends low-frequency response.

Free-air or open-back installation is strongly preferred, delivering the best achievable system f-3dB of approximately 219 Hz with a natural Qts = 0.85. Any sealed rear cavity raises Qtc above 0.85 and shifts f-3dB upward — a 208 mL box increases f-3dB to 236 Hz, and an 81 mL box to 265 Hz. Where a sealed rear cavity is required for structural reasons, three reference alignments are provided:

  • 208 mL / Qtc=1.00 / f-3dB 236 Hz — largest practical sealed cavity for portable use
  • 81 mL / Qtc=1.20 / f-3dB 265 Hz — compact rear chamber for soundbar or column enclosures
  • 38 mL / Qtc=1.50 / f-3dB 315 Hz — minimal TV or ultra-slim chassis cavity; full DSP correction required

Amplification of 20–40W from an 8Ω amplifier output is appropriate, delivering a peak SPL of 96.5 dB at 1 metre (20W AES). The 0.75mm Xmax is the critical mechanical constraint: only 1.19 cm³ of volume displacement is available, and bass boost below 255 Hz must be applied conservatively with excursion limiting regardless of available power. A mandatory high-pass filter at 150–200 Hz is recommended in all installations. The inductance rolloff onset at 14,854 Hz is well beyond the audio band, and cone beaming onset at 4,867 Hz defines the upper limit of wide-dispersion coverage. In column array applications, the 60.5mm driver OD limits coherent vertical directivity to approximately 2.8 kHz. The 22NFRX8-462A is suited for column speaker arrays requiring standard 8Ω impedance and the highest SPL capability of the 2-inch NFR family; multi-way systems as an upper-band element crossed above 300 Hz to a dedicated woofer or subwoofer; compact portable products where thermal power handling takes priority over bass extension; and TV bar or soundbar designs where the front/back mounting flexibility and high power density are primary selection criteria.
