31NFRX8-229 — Enclosure Design Reference & AI Summary
Generated by REDCATT Speaker Enclosure Tool

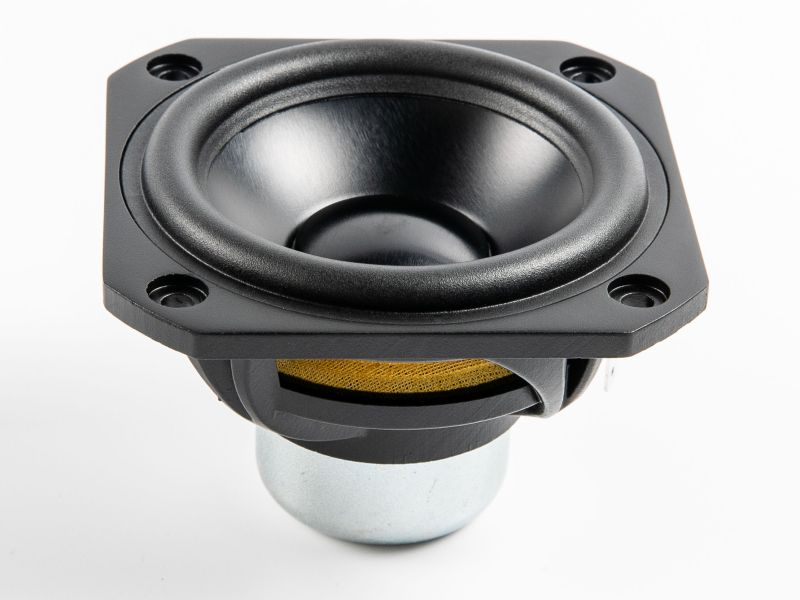

=== DRIVER IDENTITY ===
Code:         31NFRX8-229
Platform:     31NFR
Description:  3-inch Full-Range | Neodymium | Hard Anodized Aluminum | 30W AES / 8Ω
Intended Use: Hi-Fi column speakers, outdoor and portable products, multi-way systems;
              highest power and SPL of the full-range driver family

=== THIELE-SMALL PARAMETERS ===
Fs:          115 Hz
Re:          6.3 Ω
Qes:         0.94
Qms:         15.1
Qts:         0.88
Vas:         0.85 L  (850 mL)
Sd:          28.3 cm²
Sensitivity: 84.49 dB (2.83V/1m) / 83.49 dB (1W/1m)
Mms:         2.5 g
Rms:         0.12 N·s/m
Cms:         0.77 mm/N
Bl:          3.5 T·m
Le:          0.09 mH
Xmax:        1.7 mm (one-way, peak)
Xmech:       5.7 mm
Xprot:       5.8 mm
Power:       30W AES / 60W continuous / 120W peak / 8Ω nominal

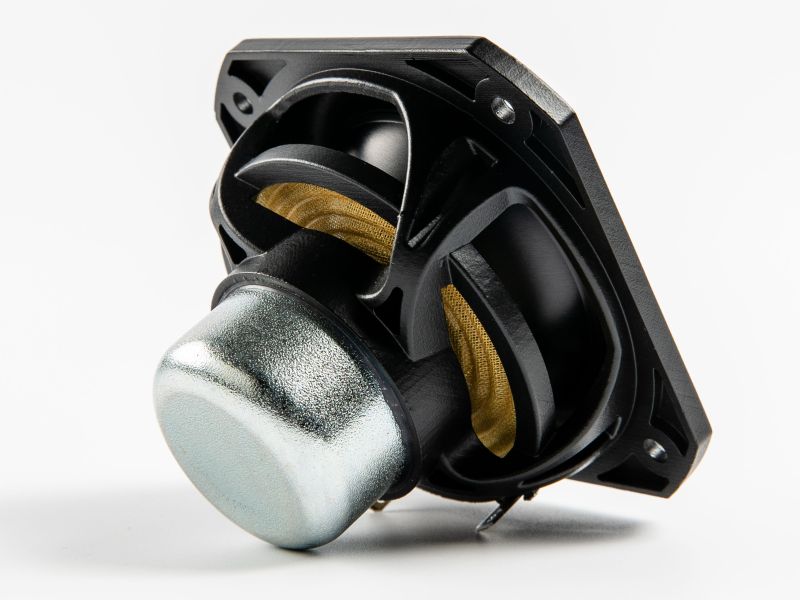

Voice Coil:  25.4mm (1") on Kapton former
Cone:        Hard anodized aluminum (rigid, low-mass, extended HF response)
Surround:    NBR rubber, single-roll
Spider:      Nomex
Basket:      Plastic (lightweight; front flange design)
Magnet:      Neodymium with copper demodulation cup over T-pole

=== DERIVED PARAMETERS ===
Volume displacement (Vd):         Sd × Xmax = 28.3 × 0.17 cm = 4.81 cm³
Inductance rolloff onset (f_Le):  Re / (2π × Le) = 6.3 / (2π × 0.00009) ≈ 11,150 Hz
Cone radius (r_cone):             √(Sd/π) = √(28.3/π) = 3.00 cm
Cone beaming onset (f_beam):      c / (π × r_cone) = 34,400 / (π × 3.00) ≈ 3,650 Hz
Max SPL @ 30W AES:                83.49 + 10·log₁₀(30) = 98.3 dB (1m)
Max SPL @ 60W continuous:         83.49 + 10·log₁₀(60) = 101.3 dB (1m)
Zobel network:                    R_z = 6.3 Ω (series), C_z = Le/Re² = 2.3 μF (series)

NOTE ON Qms = 15.1:
Qms = 15.1 indicates near-zero mechanical damping — one of the highest values in the
REDCATT driver range. Rms = 0.12 N·s/m confirms the suspension contributes virtually
no energy loss. System damping is dominated entirely by electrical back-EMF through
the motor (Qes = 0.94). This produces exceptionally clean transient response: the cone
decays purely through motor braking, with no suspension hysteresis or coloration. This
is a deliberate design characteristic of the 31NFR, consistent with its aluminum cone
and high-fidelity positioning.

NOTE ON COPPER DEMODULATION CUP:
A copper demodulation cup (Faraday ring) is assembled over the T-pole, inductively
short-circuiting position-dependent flux modulation in the magnetic gap. This reduces
voice coil inductance variation with excursion (a primary source of second-harmonic
distortion in dynamic loudspeakers) and stabilises Le = 0.09 mH across the Xmax stroke.
The result is lower distortion at moderate and high drive levels, particularly in the
bass and midrange bands where voice coil position modulation is most significant.

NOTE ON ALUMINUM CONE:
The hard anodized aluminum cone provides a rigid, low-mass piston across the frequency
range up to approximately 3,650 Hz (f_beam). Above this frequency, cone beaming narrows
directivity. Above the pistonic operating range, aluminum cones exhibit sharp breakup
resonances at frequencies determined by cone geometry — typically 5–9 kHz for a 3-inch
aluminum cone. Hard anodizing provides surface hardness and damping that attenuates
these resonances. For multi-way crossover designs, crossing below the beaming onset
(3,650 Hz) eliminates exposure to breakup modes and ensures smooth power response.

=== ENCLOSURE RECOMMENDATION ===
Qts = 0.88 → Free-air / open-back strongly preferred; sealed enclosures only where
structurally required, always with DSP correction.

IMPORTANT — SEALED BOXES DO NOT IMPROVE BASS FOR THIS DRIVER:
Qts = 0.88 significantly exceeds the Butterworth value (0.707) — the gap is the
largest in the full-range family. Any sealed rear cavity raises Qtc above 0.88 and
increases f-3dB above the already-impressive free-air value of 97 Hz:

  Free air (Qtc = 0.88):    f-3dB ≈ 97 Hz   ← best; below 100 Hz from a 3" driver
  Qtc = 1.00 (2,920 mL):    f-3dB ≈ 103 Hz  (6 Hz higher — but 2.92 L box required)
  Qtc = 1.20 (988 mL):      f-3dB ≈ 116 Hz  (19 Hz higher — worse)
  Qtc = 1.50 (446 mL):      f-3dB ≈ 137 Hz  (40 Hz higher — worse)

The 97 Hz free-air f-3dB is the lowest in the full-range driver family and approaches
the performance of a small dedicated woofer. For column speaker and Hi-Fi applications,
open-back or maximum rear cavity depth per driver is strongly recommended. With DSP
equalization, bass extension to 70–80 Hz is achievable within the 1.7mm Xmax at
moderate drive levels.

--- FREE-AIR / OPEN-BACK (strongly preferred) ---
In free air, the driver operates at its natural Qts = 0.88, with:
  System resonance: Fs = 115 Hz
  System f-3dB:     ≈ 97 Hz

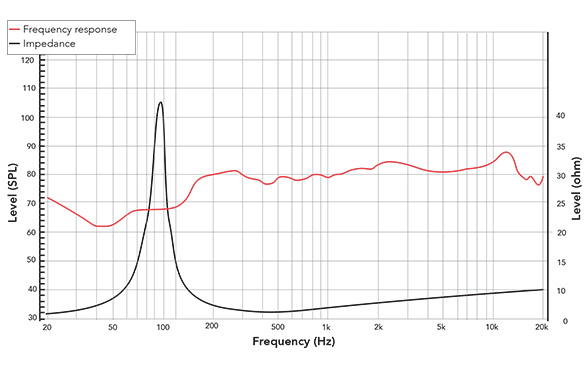

  Natural response: flat from ~120 Hz upward; mild peak approaching Fs due to Qts=0.88;
                    extended HF coverage to 10+ kHz due to aluminum cone rigidity

--- SEALED ENCLOSURES (secondary — structural requirement only) ---
Where a sealed cavity is required. DSP correction mandatory in all cases.
Subtract driver chassis displacement (~30 mL estimated) from gross volume for net airspace.

Alignment 1 — Largest sealed cavity
  Cabinet volume (Vb):    2,920 mL  (2.92 L)
  System Qtc:             1.00
  System fc:              131 Hz
  System f-3dB:           103 Hz
  Notes: Very large for a 3" driver; only 6 Hz worse than free-air; suited to compact
         bookshelf or desktop monitors where a truly sealed enclosure is needed

Alignment 2 — Practical sealed (column rear chamber / portable)
  Cabinet volume (Vb):    988 mL  (~1 L)
  System Qtc:             1.20
  System fc:              157 Hz
  System f-3dB:           116 Hz
  Notes: More practical cavity size; noticeably peaked response; DSP correction needed

Alignment 3 — Compact sealed
  Cabinet volume (Vb):    446 mL
  System Qtc:             1.50
  System fc:              196 Hz
  System f-3dB:           137 Hz
  Notes: Strongly peaked; full DSP management required; achievable in portable products

=== COLUMN SPEAKER / ARRAY GUIDANCE ===
The 8Ω nominal impedance allows standard amplifier connection and parallel wiring:
  2× 8Ω in parallel = 4Ω
  4× 8Ω in parallel = 2Ω

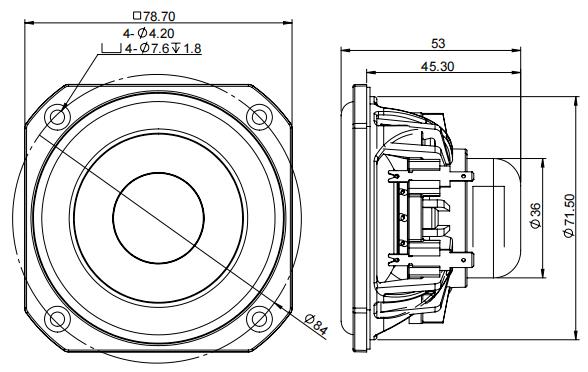

Array directivity — the 78.7mm overall driver diameter sets minimum pitch in a column:
  Maximum coherent array frequency: c / (2 × driver pitch)
                                    = 34,400 cm/s / (2 × 7.87 cm) ≈ 2,184 Hz ≈ 2.2 kHz

Above approximately 2.2 kHz, grating lobes appear — effectively the same as the 30FF,
given the near-identical cone diameter. The 3,650 Hz cone beaming onset provides
complementary high-frequency directivity above the grating lobe threshold.

The 31NFR's combination of lowest Fs (115 Hz), highest power (30W AES), and highest
max SPL (98.3 dB) in the full-range family makes it the strongest candidate for column
systems where maximum output with genuine bass coverage is the design objective. The
aluminum cone's rigidity also contributes to higher directivity control above 3.5 kHz
compared to paper cones, which can exhibit acoustic short-circuiting as cone segments
become acoustically independent.

=== CROSSOVER / DSP GUIDANCE ===
Full-range operation:  ~100 Hz – 15+ kHz (natural; extended HF due to aluminum cone)
With DSP / host EQ:    Bass extension to ~70–80 Hz feasible within Xmax = 1.7mm
High-pass filter:      Mandatory; recommended at 70–90 Hz minimum
Cone beaming:          Onset at ~3,650 Hz; critical for column array directivity design;
                       aluminum cone breakup resonances may appear above 5–7 kHz
                       (exact frequency depends on cone geometry and hard-anodizing)
Inductance rolloff:    Onset at ~11,150 Hz — negligible in the audio band
Aluminum cone note:    In multi-way crossover designs, crossing below 3,500 Hz avoids
                       both directivity narrowing and potential upper breakup modes;
                       for full-range (no tweeter) use, response above 5 kHz should be
                       evaluated on measured frequency response curve
Passive crossover:     Zobel network (6.3Ω + 2.3 μF in series across driver terminals)
                       compensates voice coil inductance; the copper demodulation cup
                       already reduces inductance variation with excursion, so the Zobel
                       primarily addresses the residual fixed inductance component

=== FULL-RANGE FAMILY COMPARISON (Six Variants) ===

Parameter           20NFRX4  21NFRX16  22NFRX8  25NFRX8  30FFX8   31NFRX8
Size                2"       2"        2"       2.5"     3"       3"
Magnet              Neo slug Neo slug  Neo slug Neo ring Ferrite  Neo+Cu
Basket              Steel    Steel     Steel    Steel    Steel    Plastic
Impedance           4Ω       16Ω       8Ω       8Ω       8Ω       8Ω
AES Power           10W      10W       20W      20W      20W      30W
Fs                  185 Hz   157 Hz    255 Hz   123 Hz   119 Hz   115 Hz
Qts                 0.52     0.68      0.85     0.71     0.78     0.88
Qms                 10.3     3.8       6.46     5.97     3.87     15.1
Vas                 90 mL    250 mL    80 mL    460 mL   810 mL   850 mL
Sd                  11.34    16.62     15.9     21.2     28.27    28.3  cm²
Xmax                3.0 mm   1.2 mm    0.75 mm  2.65 mm  1.25 mm  1.7 mm
Vd                  3.40     2.0       1.19     5.62     3.53     4.81  cm³
Sens (1W/1m)        79.56    85.76     83.49    82.34    83.55    83.49 dB
Max SPL (AES)       89.6     95.8      96.5     95.4     96.6     98.3  dB
f-3dB free air      272 Hz   164 Hz    219 Hz   123 Hz   109 Hz   97 Hz
f_Le                7,162    16,242    14,854   12,920   22,282   11,150 Hz
f_beam              5,764    4,761     4,867    4,215    3,650    3,650 Hz
Array limit (pitch) 3,583    3,002     2,843    2,646    2,177    2,184 Hz
Surround            Foam     NBR       Fabric   NBR      NBR      NBR
Cone                Paper GF Paper CF  Paper GF Paper GF Paper CF Aluminum
Spider              Nomex    Nomex     Conex    Nomex    Nomex    Nomex
Best enclosure      Sealed   Free-air  Free-air Free-air Free-air Free-air

SELECTION GUIDANCE:
20NFRX4-345A: Sealed enclosure actively helps (Qts=0.52); largest Xmax (3.0mm) for
  DSP bass boost; smallest / most affordable; 4Ω consumer connection.
21NFRX16-393D: 16Ω for column array parallel wiring; outdoor NBR durability; lowest
  Fs among 2" variants; highest per-watt efficiency (85.76 dB/W).
22NFRX8-462A: Highest power/SPL among 2" drivers; 8Ω; front/back mounting; suited
  as upper-band element in multi-way designs; not a bass driver.
25NFRX8-279: Best all-round 2.5" full-range; lowest Fs + largest Vd of neodymium
  variants; near-Butterworth in free air (f-3dB 123 Hz); good bass headroom.
30FFX8-264B: Ferrite motor; lowest f_Le (22 kHz) for flattest impedance; highest
  2.83V sensitivity (85.1 dB); preferred when cost-efficiency and SPL are priorities.
31NFRX8-229: Lowest f-3dB free air (97 Hz) and highest max SPL (98.3 dB/30W) in
  the family; aluminum cone for extended HF and rigid pistonic behavior; Qms=15.1
  for zero-loss suspension; copper demodulation cup for lowest distortion motor;
  preferred for Hi-Fi column and outdoor systems requiring maximum performance.

=== SUMMARY ===

The 31NFRX8-229 is a 3-inch full-range driver featuring a hard anodized aluminum cone, neodymium magnetic circuit with a copper demodulation cup, and exceptionally low mechanical damping (Qms = 15.1, Rms = 0.12 N·s/m), designed for Hi-Fi column speakers, outdoor products, and multi-way systems requiring the highest power handling and lowest bass extension in the full-range driver family. The aluminum cone is driven by a 25.4mm voice coil on a Kapton former, with an NBR single-roll surround and Nomex spider in a lightweight plastic basket. Sensitivity is 83.49 dB (1W/1m) / 84.49 dB (2.83V/1m) with a Bl of 3.5 T·m, supporting 30W AES / 60W continuous — the highest rated power and maximum SPL (98.3 dB at 1 metre) of the six-variant full-range family. The copper demodulation cup over the T-pole reduces position-dependent flux modulation, lowering second-harmonic distortion at drive levels throughout the Xmax stroke. Qts = 0.88 combined with the lowest Fs in the family (115 Hz) produces a free-air f-3dB of approximately 97 Hz — the only driver in the full-range family to break below 100 Hz in open-back installation without DSP correction.

Free-air or open-back installation is strongly preferred, delivering the family's best natural bass extension. Any sealed cavity raises Qtc above 0.88 and increases f-3dB above 97 Hz. Where a sealed cavity is required for structural reasons, three reference alignments are provided:

  • 2,920 mL / Qtc=1.00 / f-3dB 103 Hz — largest practical sealed; only 6 Hz worse than free-air
  • 988 mL / Qtc=1.20 / f-3dB 116 Hz — practical column rear chamber; DSP correction needed
  • 446 mL / Qtc=1.50 / f-3dB 137 Hz — compact sealed for portable products; full DSP required

Amplification of 30–60W from an 8Ω amplifier output is appropriate, with a mandatory high-pass filter at 70–90 Hz. The aluminum cone provides rigid pistonic behavior and extended high-frequency response up to the 3,650 Hz cone beaming onset; hard anodizing attenuates breakup resonances above this point. In multi-way crossover designs, crossing below 3,500 Hz eliminates both directivity narrowing and exposure to potential upper breakup modes. In column array applications, the 78.7mm driver OD limits coherent vertical directivity to approximately 2.2 kHz. The inductance rolloff onset at 11,150 Hz is beyond the audio band. A Zobel network (6.3Ω + 2.3 μF in series across driver terminals) is recommended for passive network designs. The 31NFRX8-229 is suited for Hi-Fi column speaker systems requiring sub-100 Hz natural bass extension and maximum SPL from a full-range 3-inch driver; outdoor and semi-outdoor installations where NBR surround durability and neodymium motor stability are required; multi-way systems as the primary full-range element with a subwoofer crossed above 80 Hz; and portable and professional audio products where the highest power-to-size ratio in the full-range family is the principal design criterion.
