41NFR

SPEAKER ENCLOSURE CALCULATION — 41NFRX16-464A
DRIVER IDENTIFICATION
  Code:              41NFRX16-464A
  Name:              41NFR
  Category:          Full-Range
  Size:              4 inch
  Brand:             REDCATT

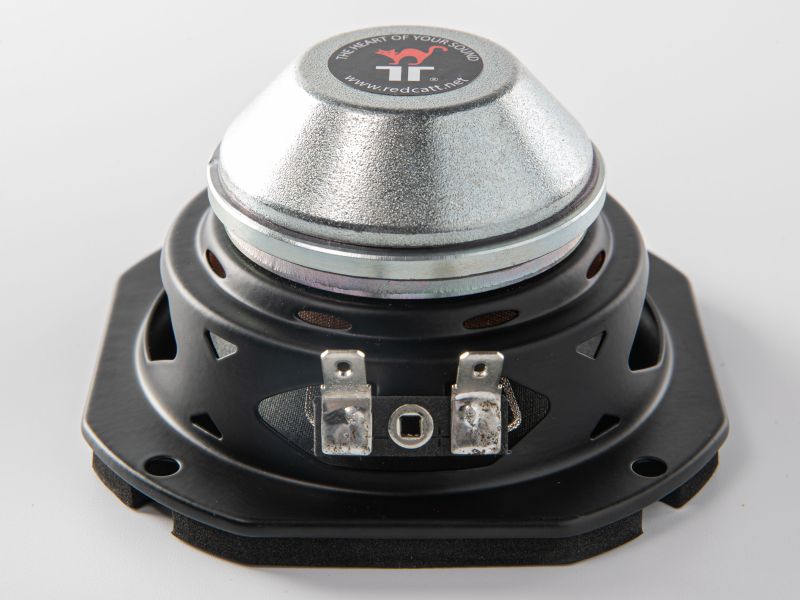

CONSTRUCTION
  Nominal Impedance: 16 Ω (Re = 12.2 Ω DC)
  AES Power:         40 W  (highest in full-range family)
  Continuous Power:  80 W
  Peak Power:        160 W
  Voice Coil:        25.4 mm diameter, copper wire, Kapton former
  Magnet:            Neodymium ring (FEM-optimized; flux modulation minimized)
  Basket:            Steel, dual-gasket design (tall front EVA + 1 mm rear)
  Cone:              Carbon fiber reinforced paper (Paper CF), FEM-optimized profile
  Surround:          NBR rubber
  Spider:            Nomex
  Mounting:          Front or rear (baffle thickness accommodated by dual-gasket system)

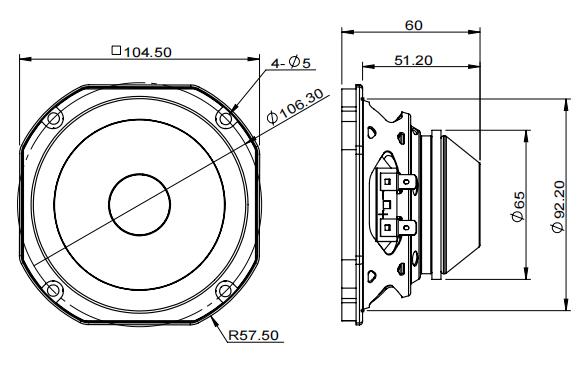

  Overall Dia.:      104.5 mm
  Depth:             51.2 mm
  Net Weight:        0.54 kg

NOTE ON NEODYMIUM RING MOTOR AND Bl = 10 T·m:
  The neodymium ring topology concentrates radial flux in the voice coil gap more
  uniformly than an axial slug, reducing gap flux asymmetry and the resulting
  even-order harmonic distortion at excursion. The measured Bl = 10 T·m is the
  highest force factor in the full-range family — more than twice the ferrite
  drivers (Bl ≈ 4.8–5.5 T·m) and nearly double the other neodymium variants
  (Bl = 4.4–5.46 T·m). This high motor force is the primary driver of the low
  Qts = 0.37 and the high AES power rating; the copper voice coil winding (not
  CCAW) provides higher conductivity and improved thermal handling, supporting
  the 40W AES rating.

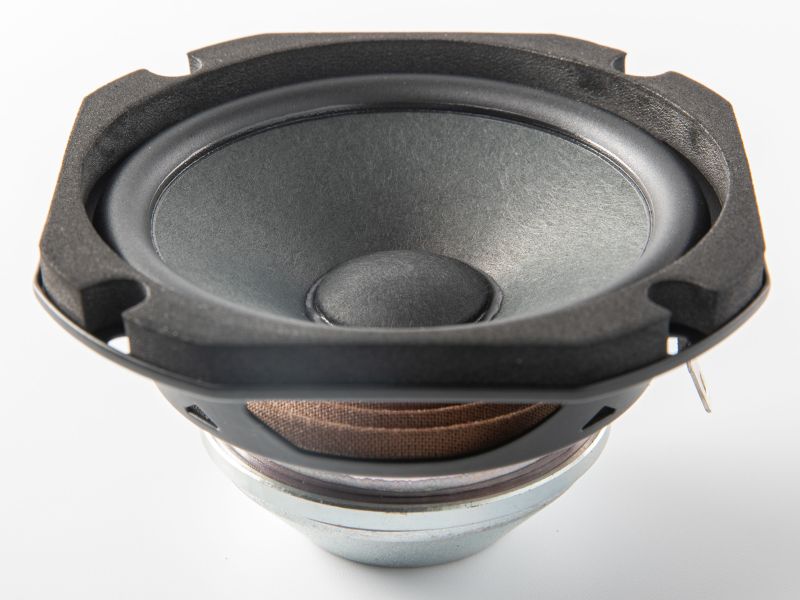

NOTE ON DUAL-GASKET MOUNTING:
  The tall front EVA gasket and 1 mm rear gasket allow the driver to be mounted
  flush from either side of a standard baffle panel without adapter rings. This
  is a practical advantage in column and micro line-array cabinets where baffle
  access may be limited and front-loading vs. rear-loading configurations differ
  by product variant.

THIELE-SMALL PARAMETERS (measured, broken-in)
  Fs   =  98.0 Hz          (free-air resonant frequency)
  Re   =  12.2 Ω           (DC voice coil resistance)
  Qes  =   0.40            (electrical Q)
  Qms  =   5.05            (mechanical Q)
  Qts  =   0.37            (total Q — vented enclosure primary; see below)
  Vas  =   2.10 L          (equivalent air volume)
  Sd   =  56.75 cm²        (effective cone area)
  Mms  =   5.4 g           (moving mass)
  Rms  =   0.66 kg/s       (mechanical resistance)
  Cms  =   0.49 mm/N       (compliance)
  Bl   =  10.0 T·m         (force factor — highest in full-range family)
  Le   =   0.58 mH         (voice coil inductance)
  Xmax =   3.15 mm         (one-way linear excursion — highest in full-range family)
  Xmech=   8.15 mm         (one-way mechanical limit)
  Xprot=  10.2 mm          (one-way protection limit)

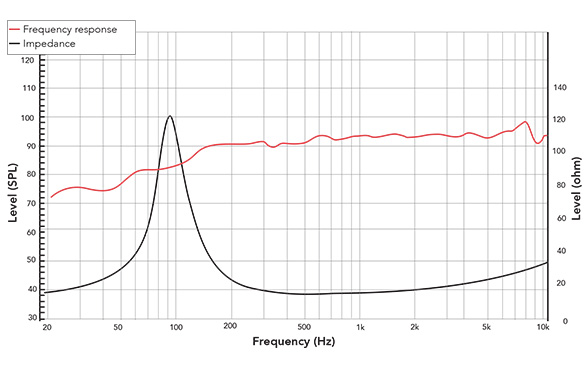

SENSITIVITY
  Datasheet Sensitivity:  90.3 dB  (2.83V/1m, per CSV Sensitivity field)
  1W/1m reference (Lm):  89.12 dB  (per CSV Lm field — used for Max SPL calculations)
  NOTE: For a 16 Ω driver, the expected relationship is Lm (1W/1m) > Sensitivity
        (2.83V/1m) by ~3.0 dB (2.83V delivers ~0.5W into 16 Ω). The CSV shows the
        reverse (Sensitivity > Lm), consistent with the inconsistency noted on the
        40NFRX16-223 and 35FRX4-155. Lm = 89.12 dB is used as the 1W/1m reference
        for all calculations.

DERIVED PARAMETERS
  Volume displacement:    Vd = Sd × Xmax = 56.75 cm² × 0.315 cm = 17.88 cm³
  Inductance rolloff:     f_Le = Re / (2π × Le) = 12.2 / (2π × 0.00058) = 3,348 Hz
  Cone radius:            r_cone = √(Sd/π) = 4.25 cm
  Cone beaming onset:     f_beam = c / (π × r_cone) = 34400 / (π × 4.25) = 2,577 Hz
  Max SPL (AES, 40W):     1W/1m + 10×log10(40) = 89.12 + 16.0 = 105.1 dB at 1 m
  Zobel network:          Rz = 12.2 Ω; Cz = Le / Re² = 3.9 μF (series, across driver)
  Column array limit:     f_array = c / (2 × OD) = 34400 / (2 × 10.45) = 1,645 Hz ≈ 1.65 kHz

FREE-AIR ANALYSIS (Qts = 0.37 — NOT viable as primary installation)
  With Qts = 0.37, the free-air response rolls off steeply above Fs. The calculated
  free-air f-3dB demonstrates why venting is required:
    1/Qts² = 7.305; 2 − 7.305 = −5.305
    u = (5.305 + √(5.305² + 4)) / 2 = (5.305 + 5.669) / 2 = 5.487
    Ω = √5.487 = 2.343
    Free-air f-3dB ≈ 2.343 × 98 = 230 Hz
  A free-air f-3dB of 230 Hz is unusable for music reproduction as a full-range
  or bass driver. A vented enclosure is mandatory for all applications.
ENCLOSURE RECOMMENDATIONS
PRIMARY: VENTED (PORTED)
  Qts = 0.37 is in the vented-preferred range and benefits strongly from a reflex
  alignment. Port: 40 mm diameter (Ap = 12.57 cm²).
  End corrections: flanged end 17.0 mm + unflanged end 12.2 mm = 29.2 mm total.

  --- VENTED ALIGNMENTS (40 mm port) ---

  Alignment V1: Vb = 4 L  |  Fb = 80 Hz
    Effective port length:  147 mm  →  Physical port length: ~118 mm
    Port air velocity:      7.15 m/s peak  (well below 17 m/s hi-fi limit)

  Alignment V2: Vb = 5 L  |  Fb = 75 Hz
    Effective port length:  134 mm  →  Physical port length: ~105 mm
    Port air velocity:      6.70 m/s peak

  Alignment V3: Vb = 7 L  |  Fb = 65 Hz
    Effective port length:  127 mm  →  Physical port length: ~98 mm
    Port air velocity:      5.81 m/s peak

  Note: Port physical lengths span 98–118 mm across all three tunings (20 mm range)
  — a near-constant port length pattern arising from the Helmholtz relationship
  between increasing Vb and decreasing Fb. The large Xmax (3.15 mm) and Vd
  (17.88 cm³) provide significant bass headroom in the vented enclosure.

SECONDARY: SEALED (sub-assisted or 2-way, crossover above fc)
  When used in a column system with a subwoofer handling content below ~200 Hz,
  sealed enclosures with compact volumes are practical.

  --- SEALED ALIGNMENTS ---

  Qtc = 0.707 (Butterworth):  Vb = 0.79 L  |  fc = 187 Hz  |  f-3dB = 187 Hz
  Qtc = 1.00  (compact):      Vb = 0.33 L  |  fc = 265 Hz  |  f-3dB = 208 Hz
  Qtc = 1.20  (very compact): Vb = 0.22 L  |  fc = 318 Hz  |  f-3dB = 234 Hz
CROSSOVER AND SYSTEM DESIGN NOTES
  INDUCTANCE ROLLOFF (f_Le = 3,348 Hz — within audio band):
    Le = 0.58 mH is the highest inductance value in the full-range family. Combined
    with Re = 12.2 Ω, the rolloff onset at 3,348 Hz falls within the upper audio
    band, causing progressive HF output reduction above this point. Despite the
    manufacturer's note that the driver "can be used without HF unit," DSP treble
    correction above 3 kHz is strongly recommended for flat on-axis response in
    standalone full-range use. In 2-way designs, crossing to a tweeter below
    2,500–3,000 Hz avoids the Le rolloff region entirely and is the preferred
    approach. The neodymium ring motor's FEM optimization reduces flux modulation
    and Le-related distortion but does not eliminate the amplitude rolloff.

  CONE BEAMING (f_beam = 2,577 Hz):
    The 4-inch cone with Sd = 56.75 cm² begins transitioning to directional beaming
    above 2,577 Hz — the earliest beaming onset of the three 4-inch drivers in the
    family. This coincides closely with the f_Le rolloff onset (3,348 Hz), meaning
    both directivity narrowing and HF amplitude reduction occur in the same frequency
    region. For wide-dispersion applications, crossover to a tweeter at 2,000–2,500 Hz
    is recommended.

  COLUMN ARRAY DIRECTIVITY (f_array = 1.65 kHz for 104.5 mm OD):
    Coherent vertical array directivity is maintained to approximately 1.65 kHz —
    similar to the other 4-inch drivers (40NFRX16: 1.66 kHz; 41FRX8: 1.63 kHz).
    A co-located tweeter with crossover at 1.5–2.0 kHz is mandatory for full-range
    column array coverage. The high Vd (17.88 cm³) makes this driver well-suited
    for column systems that generate substantial low-frequency output from each driver
    bay in a multi-driver array.

  16Ω IMPEDANCE AND COLUMN ARRAY WIRING:
    Four 41NFRX16-464A drivers in parallel = 4 Ω (standard column array load).
    Two drivers in parallel = 8 Ω. Available in 4, 8, and 16 Ω versions per
    application. The high Re = 12.2 Ω reduces current draw in long wiring runs.

  EXCURSION AND POWER HANDLING:
    Xmax = 3.15 mm and Vd = 17.88 cm³ are the highest values in the full-range
    family. At maximum AES power (40W), the driver can sustain high SPL output
    in the vented passband without mechanical over-excursion. Below Fb in a vented
    enclosure, cone excursion rises rapidly — a subsonic high-pass filter at
    Fb − 10 Hz (55–70 Hz, depending on alignment) is mandatory to prevent
    mechanical over-excursion on low-frequency transients.

  ZOBEL NETWORK:
    A Zobel network (12.2 Ω + 3.9 μF in series, placed across driver terminals) is
    recommended for passive crossover designs to counteract the Le-related impedance
    rise. Given the high Le (0.58 mH), the Zobel is particularly important here —
    the impedance rise from Le is steeper than other family members, and passive
    crossover networks will be affected without compensation.
4-INCH DRIVER COMPARISON (3 variants)
  Parameter              40NFRX16-223       41FRX8-360B        41NFRX16-464A
                         (Neo, 16Ω)         (Ferrite, 8Ω)      (Neo ring, 16Ω)
  Re                     12.3 Ω             5.6 Ω              12.2 Ω
  AES Power              25 W               20 W               40 W
  Voice Coil Wire        CCAW               CCAW               Copper
  Fs                     115 Hz             134 Hz             98 Hz
  Qts                    1.10               0.75               0.37
  Vas                    1.50 L             1.30 L             2.10 L
  Sd                     50.2 cm²           50.3 cm²           56.75 cm²
  Bl                     5.3 T·m            4.78 T·m           10.0 T·m
  Le                     0.20 mH            0.09 mH            0.58 mH
  Xmax                   0.45 mm            1.1 mm             3.15 mm
  Vd                     2.26 cm³           5.53 cm³           17.88 cm³
  1W/1m (Lm)             84.39 dB           87.98 dB           89.12 dB
  Max SPL (AES)          98.4 dB            101.0 dB           105.1 dB
  Enclosure              Free-air only      Free-air (primary) Vented (required)
  Bass −3dB              87 Hz (free-air)   127 Hz (free-air)  65–80 Hz (vented Fb)
  f_Le                   9,785 Hz           9,911 Hz           3,348 Hz
  f_beam                 2,738 Hz           2,737 Hz           2,577 Hz
  f_array (OD)           1.66 kHz (104 mm)  1.63 kHz (106 mm)  1.65 kHz (105 mm)
  Mounting               Standard           Standard           Front or rear
  SELECTION NOTES:
  • 41NFRX16-464A delivers the highest max SPL (105.1 dB), largest Xmax, highest
    Vd, and highest power rating in the 4-inch class — and in the full-range family.
  • Its low Qts (0.37) mandates a vented enclosure; it is not suitable for free-air
    or open-back installations.
  • The high Le (0.58 mH, f_Le = 3,348 Hz) requires DSP HF correction or a tweeter
    crossover below 3 kHz; the other two 4-inch drivers have f_Le > 9 kHz (no issue).
  • Choose 41NFRX16-464A where: maximum SPL, excursion, and power handling in a
    vented column system are the design priorities; 16Ω wiring; front/rear mounting.
  • Choose 41FRX8-360B where: flat free-air bass (127 Hz, no DSP required), higher
    sensitivity per watt for a ferrite cost-effective, 8Ω solution.
  • Choose 40NFRX16-223 where: deepest free-air bass extension (87 Hz) with DSP
    correction; ultra-lightweight neodymium at 0.20 kg; 16Ω parallel array wiring.
FULL-RANGE FAMILY COMPARISON (12 drivers)
  Code              Size  Ω   W AES  Qts   Motor       Fs    Enclosure              −3dB    1W/1m  MaxSPL  OD     f_array
  20NFRX4-345A      2"    4   10     0.52  Neo         185   Free-air / open-back   272 Hz  79.6   89.6    48 mm   3.58 kHz
  21NFRX16-393D     2"    16  10     0.68  Neo         157   Free-air / open-back   164 Hz  85.8   95.8    57 mm   3.00 kHz
  22NFRX8-462A      2"    8   20     0.85  Neo         255   Free-air / open-back   219 Hz  83.5   96.5    61 mm   2.84 kHz
  25NFRX8-279       2.5"  8   20     0.71  Neo ring    123   Free-air / open-back   123 Hz  82.3   95.4    65 mm   2.65 kHz
  30FFX8-264B       3"    8   20     0.78  Ferrite     119   Free-air / open-back   109 Hz  83.6   96.6    79 mm   2.18 kHz
  31NFRX8-229       3"    8   30     0.88  Neo         115   Free-air / open-back    97 Hz  83.5   98.3    79 mm   2.18 kHz
  32NFRX8-463A      3"    4†  30     0.32  Neo ring    118   Vented (75–115 Hz)      75 Hz  89.4  104.1    83 mm   2.07 kHz
  35FRX4-155        3.5"  4   25     0.34  Ferrite      67   Vented (70–80 Hz)       70 Hz  83.1   97.1    93 mm   1.85 kHz
  35FRX8-406B       3.5"  8   20     0.63  Ferrite     128   Sealed / open-back     148 Hz  87.6  100.6    93 mm   1.85 kHz
  40NFRX16-223      4"    16  25     1.10  Neo         115   Free-air / open-back    87 Hz  84.4   98.4   104 mm   1.66 kHz
  41FRX8-360B       4"    8   20     0.75  Ferrite     134   Free-air / open-back   127 Hz  88.0  101.0   106 mm   1.63 kHz
  41NFRX16-464A     4"    16  40     0.37  Neo ring     98   Vented (65–80 Hz)       65 Hz  89.1  105.1   105 mm   1.65 kHz
  † Re = 5.5 Ω
  −3dB: free-air for open-back drivers; Fb range for vented; Qtc=0.85 for 35FRX8-406B.

  FAMILY NOTES:
  • 41NFRX16-464A achieves 105.1 dB max SPL — the highest in the entire full-range
    family, 1 dB above the 32NFRX8-463A (104.1 dB), and enabled by the 40W AES
    power rating and the highest sensitivity (89.12 dB, 1W/1m) in any non-pro driver.
  • Bl = 10 T·m is the highest in the family by a factor of ~2 over most drivers.
  • Xmax = 3.15 mm and Vd = 17.88 cm³ are the highest in the family, enabling
    genuine low-frequency output at high SPL from a 4-inch driver.
  • The family now contains three vented-required drivers (32NFR, 35FRX4, 41NFRX16),
    three 16Ω drivers (21NFR, 40NFR, 41NFRX16), and covers Qts range 0.32–1.10.
  • The two highest SPL drivers in the family (32NFRX8-463A, 41NFRX16-464A) are both
    vented, neodymium ring motor designs with Qts ≤ 0.37 — confirming that maximum
    acoustic output from a compact full-range driver requires a strong motor, low Qts,
    and a reflex enclosure.
SUMMARY
The 41NFRX16-464A is a 4-inch full-range driver featuring a neodymium ring magnetic
circuit optimized for minimum flux modulation, a steel basket with dual-gasket mounting
system (tall front EVA gasket and 1 mm rear gasket enabling front or rear baffle
installation), FEM-optimized carbon fiber reinforced paper cone, NBR rubber surround,
Nomex spider, and a 25.4mm copper voice coil wound on a Kapton former. The copper
winding provides higher conductivity and improved thermal handling relative to CCAW,
supporting the 40W AES / 80W continuous power rating — the highest in the full-range
family. The neodymium ring motor develops Bl = 10 T·m, more than twice the force factor
of the ferrite drivers in the lineup and nearly double the other neodymium variants;
this is the primary contributor to Qts = 0.37, Xmax = 3.15 mm (one-way), and the 17.88 cm³
volume displacement — all peak values in the family. The driver is designed for column
speakers, micro line-array systems, and 2-way audio systems, with front/rear mounting
flexibility suited to varied column cabinet geometries.

Fs = 98 Hz, Qes = 0.40, Qms = 5.05, Qts = 0.37 — a balanced motor-suspension design
that provides good cone control while maintaining usable output across its operating
bandwidth. Vas = 2.10 L, Sd = 56.75 cm², Xmax = 3.15 mm (one-way), Vd = 17.88 cm³.
The free-air f-3dB of approximately 230 Hz is unusable for music reproduction; a vented
enclosure is required in all applications. Sensitivity is 89.12 dB at 1W/1m (Lm), with
a maximum SPL of 105.1 dB at 1 metre (40W AES) — the highest of any driver in the
full-range family. The voice coil inductance Le = 0.58 mH places the inductance rolloff
onset at approximately 3,348 Hz — the highest Le and lowest f_Le in the full-range
family; DSP treble correction above 3 kHz or a 2-way crossover to a tweeter below
2,500 Hz is required for extended HF coverage. Cone beaming onset at 2,577 Hz defines
the upper dispersion limit. Zobel network: 12.2 Ω + 3.9 μF in series across driver
terminals.

  Enclosure alignments:
  • Vented (primary) — 40 mm port:
      4 L / Fb = 80 Hz / ~118 mm physical port / 7.15 m/s peak port velocity
      5 L / Fb = 75 Hz / ~105 mm physical port / 6.70 m/s peak port velocity
      7 L / Fb = 65 Hz / ~98 mm physical port  / 5.81 m/s peak port velocity
    (Port physical lengths span 98–118 mm across all three tunings — near-constant
     20 mm range; all velocities well below 17 m/s hi-fi limit)
  • Sealed (secondary — sub-assisted or 2-way):
      0.79 L / Qtc = 0.707 / fc = 187 Hz / f-3dB = 187 Hz
      0.33 L / Qtc = 1.00  / fc = 265 Hz / f-3dB = 208 Hz
      0.22 L / Qtc = 1.20  / fc = 318 Hz / f-3dB = 234 Hz

In column array applications, the 104.5 mm OD limits coherent vertical directivity to
approximately 1.65 kHz; a co-located tweeter is mandatory. Four drivers in parallel
produce a 4 Ω load on a standard amplifier channel. A subsonic high-pass filter at
Fb − 10 Hz (55–70 Hz, depending on alignment) is mandatory to prevent mechanical
over-excursion below the vented port tuning frequency, where cone displacement rises
rapidly and Xmax = 3.15 mm can be approached under sustained low-frequency drive.

The 41NFRX16-464A is suited for high-output column speaker and micro line-array systems
requiring maximum SPL (105 dB) and genuine bass extension (65–80 Hz Fb) from a 4-inch
vented enclosure with 16 Ω parallel array wiring; 2-way active or passive loudspeaker
designs where the neodymium ring motor, high Xmax, and 40W AES power handling are the
primary selection criteria; front-loading and rear-loading column cabinet configurations
where the dual-gasket mounting system simplifies assembly; and professional installed
sound applications where the highest output-per-driver in the 4-inch full-range class
is the principal design objective.
