81NPM

ENCLOSURE RECOMMENDATIONS: 81NPMX8-263

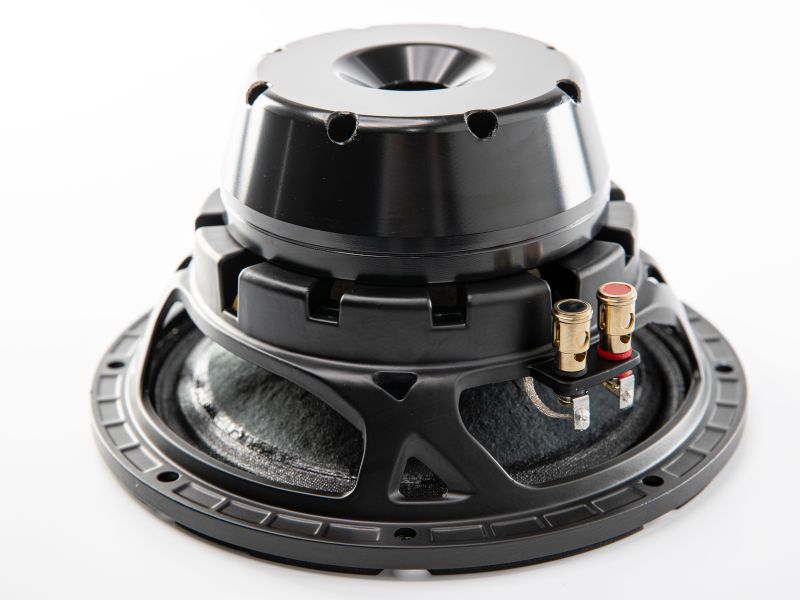

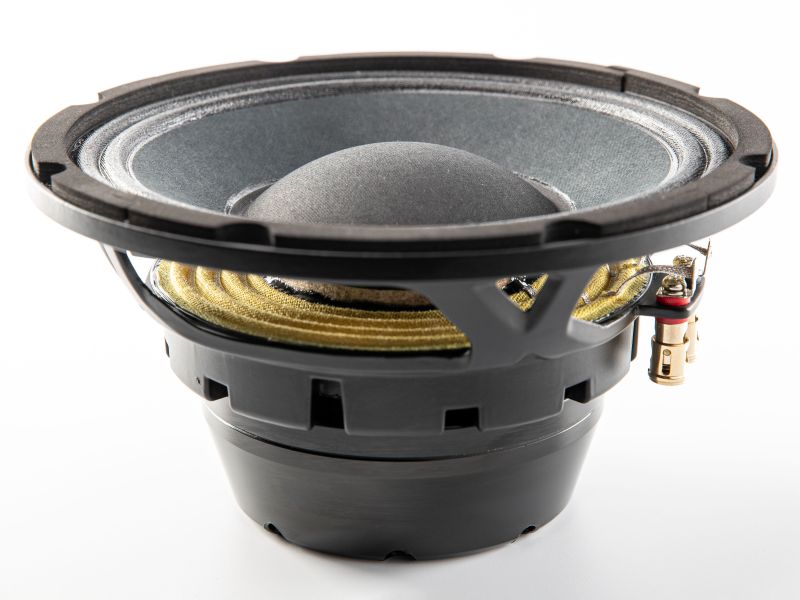

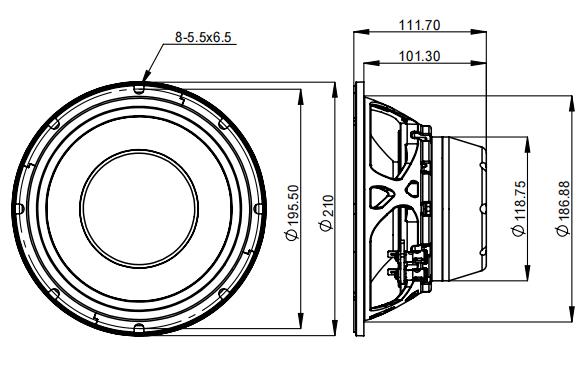

Driver: 81NPMX8-263 (81NPM) — 8" Mid-Woofer / Midrange

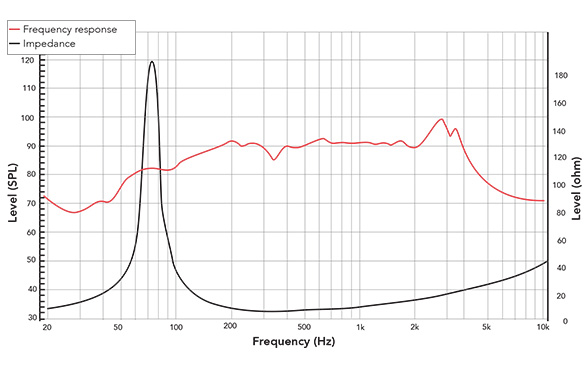

Key T/S: Fs=72Hz, Qts=0.33, Vas=10.3L, Sens=93dB 1W/1m
Power: AES 200W / Cont 400W / Peak 800W
Xmax=6mm, Sd=219cm², Bl=16.7T·m, Re=5.2Ω, Mms=40.5g
Voice Coil: 3" CCAW on glass fiber former (22.5mm winding height)
Magnet: Neodymium | Cone: Half-pressed paper (treated/weatherized)
Surround: Fabric | Spider: Nomex | Basket: Aluminum
Motor: 2 demodulation rings, neodymium
NOTE: This driver's low Qts (0.33) and strong neodymium motor with
demodulation rings make it suitable for BOTH vented mid-woofer and
sealed midrange applications. Six enclosure alignments are provided
below — three vented (mid-woofer use) and three sealed (midrange use).
  MID-WOOFER APPLICATION — Bass Reflex (Vented)
Use case: 2-way and multi-way systems where the 81NPM handles the
low-frequency and lower-midrange content, typically crossed over to
a compression driver or tweeter at 1.2–3 kHz.
PORT RECOMMENDATION: Round port (65mm diameter) — standard for compact
8" bass reflex enclosures. Port velocities are moderate across all
alignments (15–20 m/s), acceptable for professional touring use.
Flared port ends recommended to reduce turbulence at high excursion.
  a) VENTED — High SPL
     Net Volume: 9 liters
     Tuning (Fb): 80 Hz
     Est. -3dB: 74 Hz
     HP Filter: 70 Hz (24dB/oct LR recommended)
     Round Port: 65mm dia × 124mm long
     Slot Port: 156mm W × 40mm H × 231mm L
     Port Velocity: 19.9 m/s
     Notes: Compact cabinet with strong mid-bass output. Maximum SPL
     per unit volume. The higher tuning provides tight, controlled
     low-end with excellent transient response. Ideal for portable
     2-way tops and compact stage monitors.
  b) VENTED — Balanced Response
     Net Volume: 10 liters
     Tuning (Fb): 70 Hz
     Est. -3dB: 60 Hz
     HP Filter: 60 Hz (24dB/oct LR recommended)
     Round Port: 65mm dia × 154mm long
     Slot Port: 156mm W × 40mm H × 287mm L
     Port Velocity: 17.4 m/s
     Notes: General-purpose alignment with even response through the
     bass region and good transient behavior. Well-suited for most
     2-way PA tops, multi-way systems, and installation loudspeakers.
  c) VENTED — Extended Low Frequency
     Net Volume: 12 liters
     Tuning (Fb): 61 Hz
     Est. -3dB: 52 Hz
     HP Filter: 51 Hz (24dB/oct LR recommended)
     Round Port: 65mm dia × 174mm long
     Slot Port: 156mm W × 40mm H × 324mm L
     Port Velocity: 15.2 m/s
     Notes: Maximum low-frequency extension, reaching into the
     sub-bass region. Requires proper high-pass protection below
     tuning. Best for stand-alone 2-way systems without dedicated
     subwoofers, or applications prioritizing deep bass reach.
  MIDRANGE APPLICATION — Sealed
Use case: Line array midrange sections, coaxial cabinets, horn-loaded
midrange systems, or dedicated mid-high enclosures where the 81NPM
handles the midrange band (typically 250–3000 Hz or narrower), with
bass duties handled by separate woofer/subwoofer sections.
  d) SEALED — High SPL (Qtc ≈ 1.0)
     Net Volume: 1.3 liters
     System Resonance (fc): 218 Hz
     Qtc: 1.0
     Response: Broad gentle lift near fc, maximum midrange output
     Crossover HP: 200–300 Hz (24dB/oct LR recommended)
     Notes: Very compact sealed chamber for maximum acoustic output
     in the midrange passband. The elevated Qtc provides a gentle
     broad peak near system resonance that can be equalized flat via
     DSP or used as a passband sensitivity boost. Ideal for high-SPL
     touring line arrays and horn-loaded midrange systems where
     output per driver is the primary requirement.
  e) SEALED — Balanced (Qtc ≈ 0.85)
     Net Volume: 1.8 liters
     System Resonance (fc): 185 Hz
     Qtc: 0.85
     Response: Slightly warm, smooth transition through resonance
     Crossover HP: 180–250 Hz (24dB/oct LR recommended)
     Notes: Good compromise between midrange output and response
     flatness. The slight warmth near resonance is easily managed
     with DSP. Suitable for most professional midrange applications
     including line arrays, point-source cabinets, and stage monitors.
  f) SEALED — Butterworth (Qtc ≈ 0.707)
     Net Volume: 2.9 liters
     System Resonance (fc): 154 Hz
     Qtc: 0.707
     Response: Maximally flat amplitude, textbook Butterworth alignment
     Crossover HP: 150–200 Hz (24dB/oct LR recommended)
     Notes: Flattest possible sealed response with lowest system
     resonance. Allows a lower crossover frequency if needed. Best
     for applications prioritizing accuracy, smooth crossover
     integration, and extended lower-midrange coverage.
THERMAL NOTE: The neodymium motor and aluminum basket provide efficient
thermal dissipation. The 3" CCAW voice coil on glass fiber former with
Kapton-grade thermal tolerance supports sustained high-power operation.
For sealed midrange chambers (especially ≤1.5L), ensure adequate
ventilation or thermal coupling between the motor and the enclosure
structure to manage heat under continuous high-power conditions.
DESIGN NOTE: The 2 demodulation rings in the motor structure reduce
harmonic and intermodulation distortion, particularly beneficial in
midrange applications where distortion artifacts are more audible.
The weatherized paper cone treatment provides environmental protection
for outdoor and semi-permanent installation use.
