HF
Compression Driver
3"

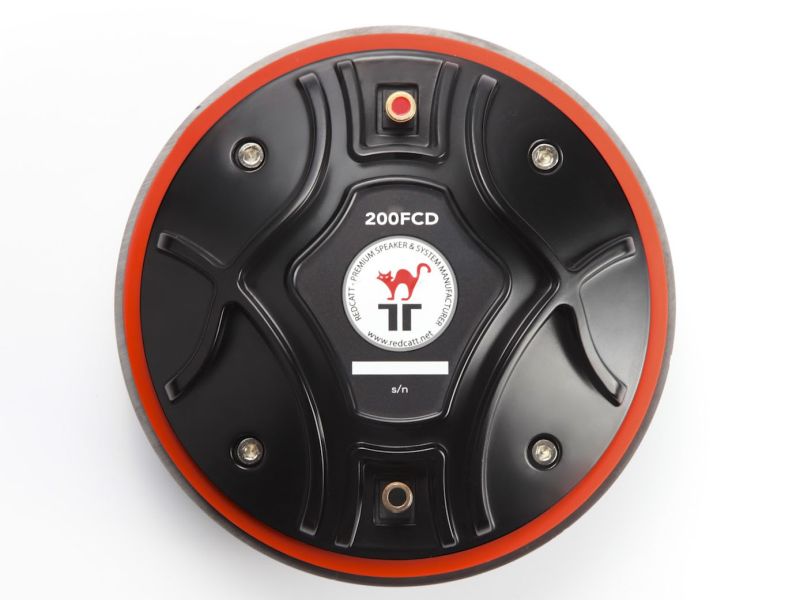

200FCD
Code: 200FCDX8-049
Compression Driver/3inch/Ferrite/Polymer/110W/75mmVC/8ohm
Key Features
- Very low resonant frequency
- Copper cap demodulation ring, powerful motor structure
- Designed for large speaker systems where high SPL is required
Quick Specs
Impedance
8 Ω
Program Power
220 W
Sensitivity
108.50 dB
Fs
500.00 Hz
Magnet
Ferrite
Voice Coil
76 mm
Design Notes
The 200FCD compression driver is a very high performance high frequency device ideal for large professional loudspeaker systems. The driver uses all components that were designed and manufacture with one objective in mind - be the best. The driver’s phase plug is CNC machined from solid aluminum with unbeaten level of precision. The dome is carefully attached to the voice coil with our sandwich joint, improving the transfer of the high frequencies and further improving power handling and reliability of the driver.

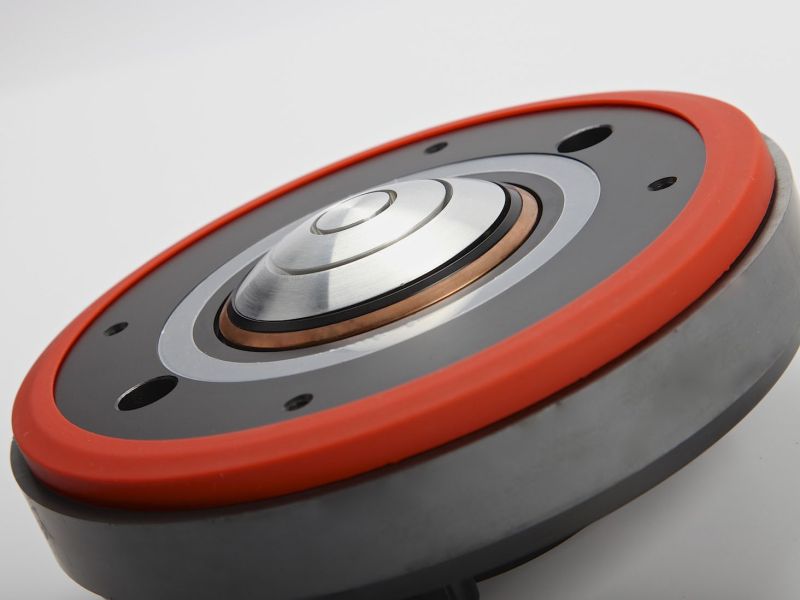

Diaphragm Assembly
The driver features a 75mm pure titanium diaphragm. Suspension is formed from Polyimide material.
The acoustic output exits through an aluminum, radial 3 slot phase plug and a 2.0 inch throat aperture. Nominal sensitivity is 108.5 dB 1watt / 1 meter.
Diaphragm Assembly
The driver features a 75mm pure titanium diaphragm. Suspension is formed from Polyimide material.
The acoustic output exits through an aluminum, radial 3 slot phase plug and a 2.0 inch throat aperture. Nominal sensitivity is 108.5 dB 1watt / 1 meter.
Specifications
General Specs
Nominal Diameter
3"
Rated Impedance
8 Ohm
Magnet
Ferrite
Basket Material
Plastic
Power Handling
AES Power
110 W
Continuous Power
220 W
Peak Power
440 W
Voice Coil
Diameter
76 mm
Winding Wire
CCAR
Former
kapton
Winding Height
2.6 mm
T/S Parameters
Resonant Frequency (Fs)
500.00 Hz
Re
5.50 \u2126
Sensitivity
108.50 dB
Design Details
Cone/Dome Material
Titanium
T-Plate
3 mm
Overall Diameter
180.00 mm
Bolt Circle Diameter
102.00 mm
Mounting Holes
4
Depth (flange to rear)
91.50 mm
Net Weight
5.00 kg
Ordering Codes
Product Code
200FCDX8-049
Horn Exit
48mm
Downloads

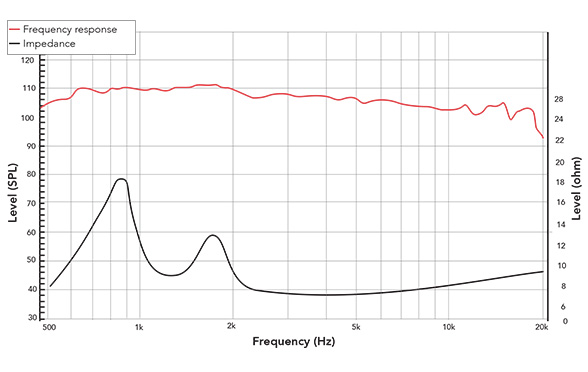

Frequency Response & Impedance

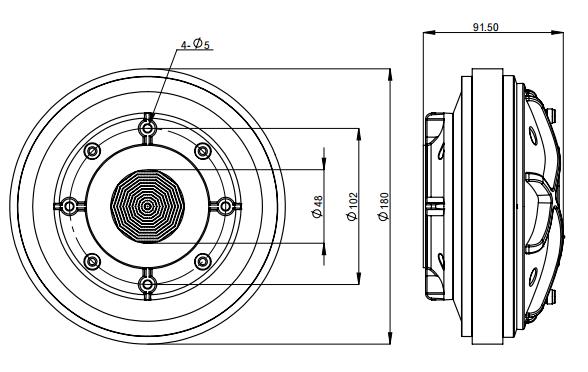

2D Drawing
Frequently Asked Questions
- - Very low resonant frequency
- - Copper cap demodulation ring, powerful motor structure
- - Designed for large speaker systems where high SPL is required
AES Power: 110 W,
Continuous: 220 W,
Peak: 440 W.
Sensitivity: 108.50 dB (1W/1m).
