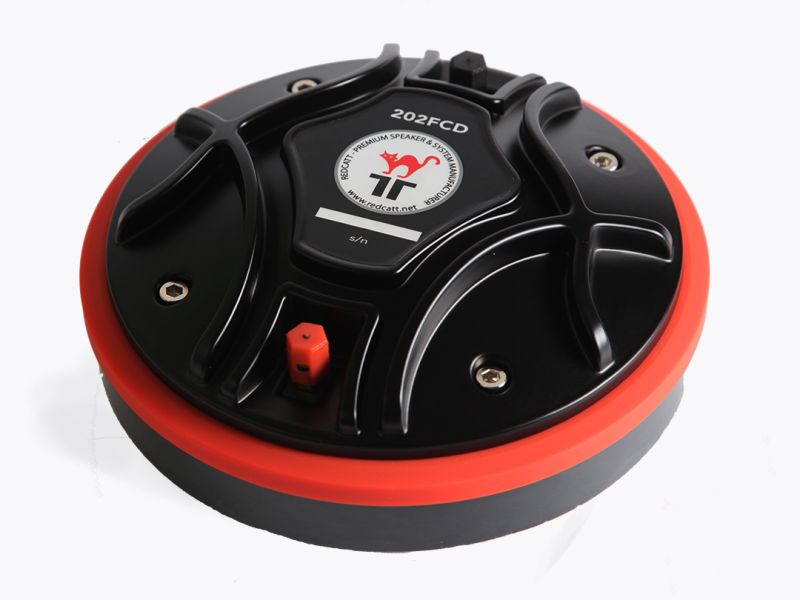

202FCD

The 202FCD compression driver is a high-performance, high-frequency device ideal for professional loudspeaker systems. The driver’s ferrite based magnetic circuit provides a robust, high force BL field providing precision control of the pure titanium diaphragm assembly. Featuring 1.4inch exit throat. The suspension is made of polyimide material, providing optimum control over the diaphragm movement. The design has been optimized to have a great level of performance at very affordable price levels. The drivers are suitable for 2-way and multi-way speaker systems.
Dome Assembly Design
REDCATT has designed the pure titanium dome to be bonded to the polyimide surround. This solution greatly improves the control of the dome pistonic motion, having a positive effect on the transient response.
