HF
Compression Driver
3"
202NTi
Code: 202NTiX8-555A
Compression Driver/3inch/Neo/Titanium/100W/75mmVC/8ohm
Key Features
- Very compact design
- Pure titanium dome with surround integrated resonance control features
- Portable products, 2-way and multi-way systems, line-array applications
Quick Specs
Impedance
8 Ω
Program Power
200 W
Sensitivity
109.00 dB
Fs
700.00 Hz
Magnet
Neodymium
Voice Coil
76 mm
Design Notes
Introducing the 202NTi: Elevating sound performance to new heights! With cutting-edge technology and precision engineering, this compression driver takes your audio experience to the next level. Designed with a newly updated magnetic circuit, phase plug, voice coil, and dome, it outshines its predecessor, the 201NTi. No compromises on sound quality - only pure, powerful sound in a compact package. The Neodymium magnetic circuit offers unrivaled control, paired with a 1.4-inch exit throat and titanium diaphragm for crystal-clear sound.

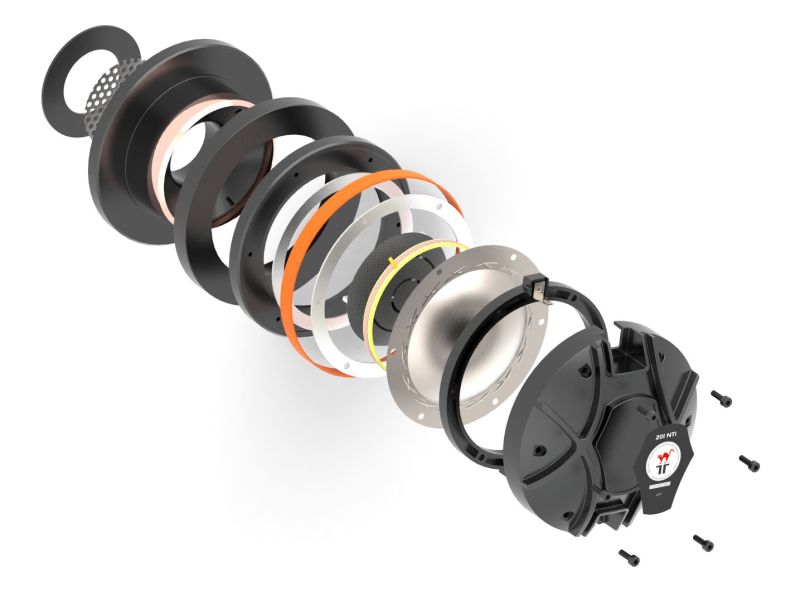

Featuring a groundbreaking dome assembly design, the 202NTi boasts seamless integration of components for superior frequency response and power handling. Each step of the assembly process is meticulously executed with state-of-the-art adhesives, ensuring unmatched reliability and performance. Redefine your audio experience with the 202NTi - where innovation meets excellence.
Featuring a groundbreaking dome assembly design, the 202NTi boasts seamless integration of components for superior frequency response and power handling. Each step of the assembly process is meticulously executed with state-of-the-art adhesives, ensuring unmatched reliability and performance. Redefine your audio experience with the 202NTi - where innovation meets excellence.
Specifications
General Specs
Nominal Diameter
3"
Rated Impedance
8 Ohm
Magnet
Neodymium
Basket Material
Plastic
Power Handling
AES Power
100 W
Continuous Power
200 W
Peak Power
400 W
Voice Coil
Diameter
76 mm
Winding Wire
CCAR
Former
kapton
Winding Height
2.9 mm
T/S Parameters
Resonant Frequency (Fs)
700.00 Hz
Re
5.90 \u2126
Sensitivity
109.00 dB
Design Details
Surround Material
Titanium
Cone/Dome Material
Titanium
T-Plate
3 mm
Overall Diameter
112.00 mm
Bolt Circle Diameter
102.00 mm
Mounting Holes
4
Depth (flange to rear)
58.00 mm
Net Weight
1.90 kg
Ordering Codes
Product Code
202NTiX8-555A
Horn Exit
35mm
Downloads

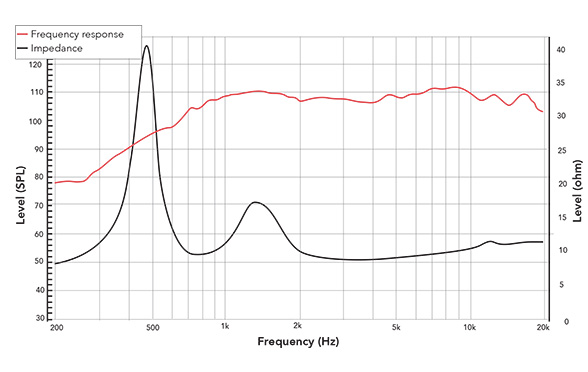

Frequency Response & Impedance

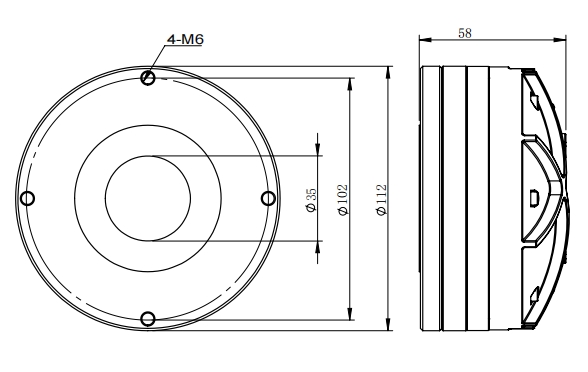

2D Drawing
Frequently Asked Questions
- - Very compact design
- - Pure titanium dome with surround integrated resonance control features
- - Portable products, 2-way and multi-way systems, line-array applications
AES Power: 100 W,
Continuous: 200 W,
Peak: 400 W.
Sensitivity: 109.00 dB (1W/1m).
