HF
Tweeter
0.8"

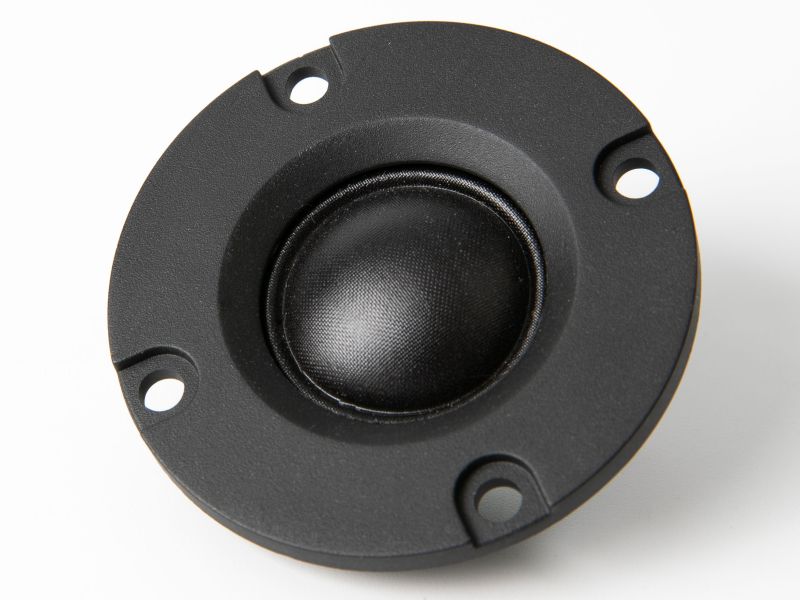

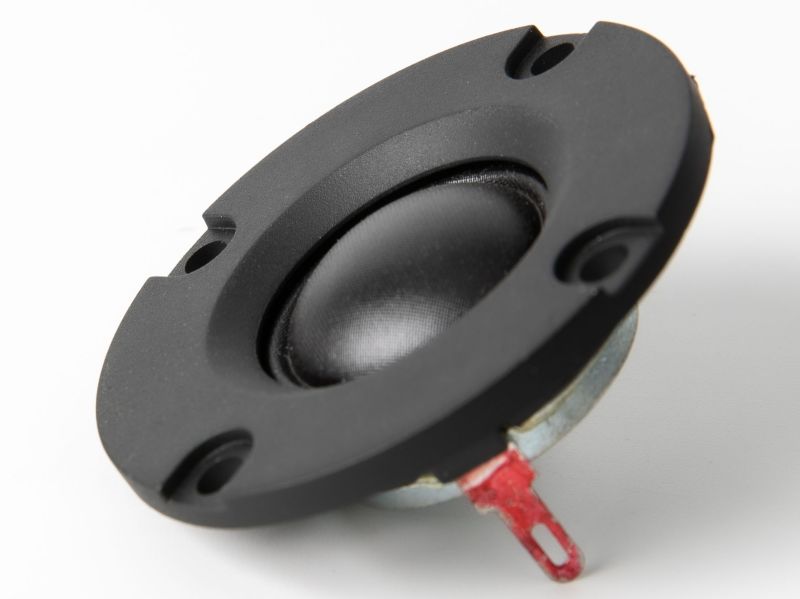

20TN
Code: 20TNX8-383
Dome Tweeter/0.8inch/Neo/silk/10W/8ohm
Key Features
- compact size
- Integrated waveguide
- easy crossover design possible
Quick Specs
Impedance
8 Ω
Program Power
20 W
Sensitivity
87.00 dB
Fs
1700.00 Hz
Magnet
Neodymium
Voice Coil
20.3 mm
Design Notes
The 20TN tweeter has a lower resonance frequency, making the crossover design a non-complicated task. The tweeter comes with a small waveguide, but based upon request, the tweeter can be also delivered as a “bare” tweeter and assembled with your own waveguide.
The best application is in tabletop studio monitors, prosumer products, bookshelf speakers, TV bars, micro line-arrays, etc.
The best application is in tabletop studio monitors, prosumer products, bookshelf speakers, TV bars, micro line-arrays, etc.
Specifications
General Specs
Nominal Diameter
0.8"
Rated Impedance
8 Ohm
Magnet
Neodymium
Basket Material
Plastic
Power Handling
AES Power
10 W
Continuous Power
20 W
Peak Power
40 W
Voice Coil
Diameter
20.3 mm
Winding Wire
CCAW
Former
Aluminum
Winding Height
1.4 mm
T/S Parameters
Resonant Frequency (Fs)
1700.00 Hz
Re
7.20 \u2126
Sensitivity
87.00 dB
Design Details
T-Plate
2 mm
Overall Diameter
50.50 mm
Bolt Circle Diameter
44.00 mm
Mounting Holes
4
Depth (flange to rear)
19.65 mm
Net Weight
0.03 kg
Ordering Codes
Product Code
20TNX8-383
Downloads

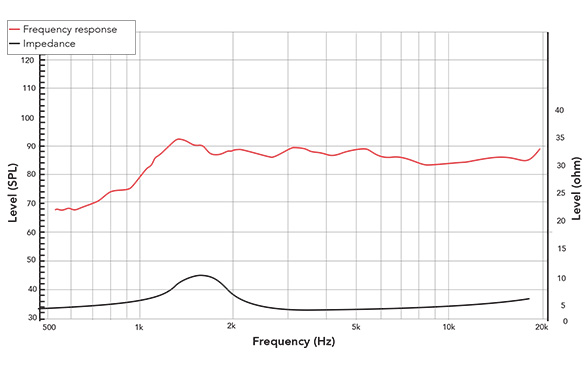

Frequency Response & Impedance

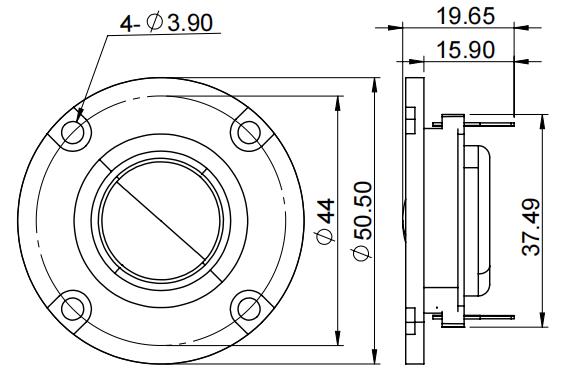

2D Drawing
Frequently Asked Questions
- - compact size
- - Integrated waveguide
- - easy crossover design possible
AES Power: 10 W,
Continuous: 20 W,
Peak: 40 W.
Sensitivity: 87.00 dB (1W/1m).
