HF
Compression Driver
3"
202N-GL
Code: 648A

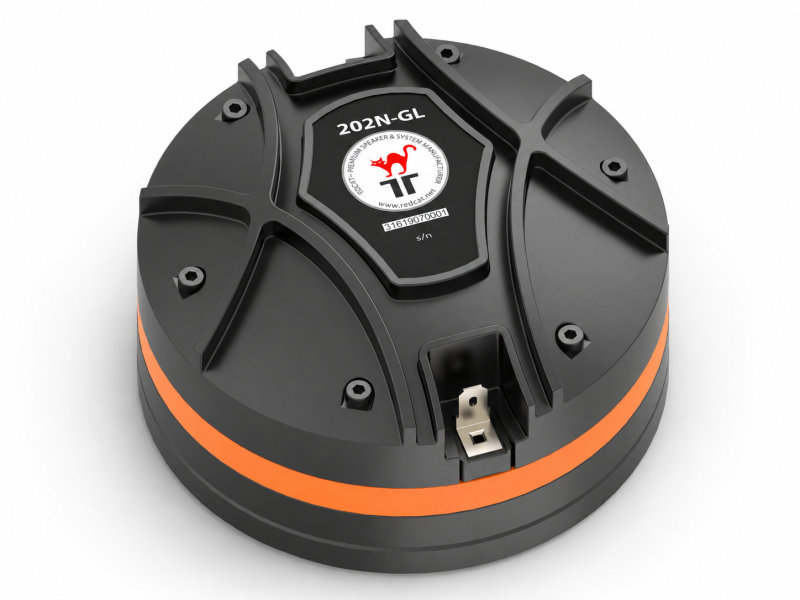

Compression driver, 3" voice coil, glass diaphragm, neodymium magnet
Key Features
- World's only glass diaphragm
- Breakup-free response to 20 kHz
- 109.5 dB sensitivity, 70 W AES / 280 W peak
Quick Specs
Impedance
8 Ω
Program Power
140 W
Sensitivity
109.50 dB
Fs
710.00 Hz
Magnet
Neodymium
Design Notes

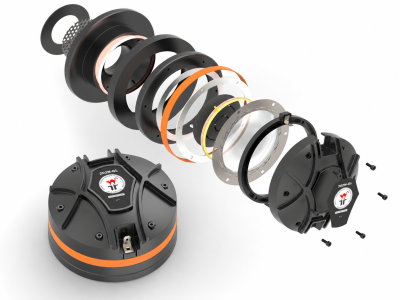

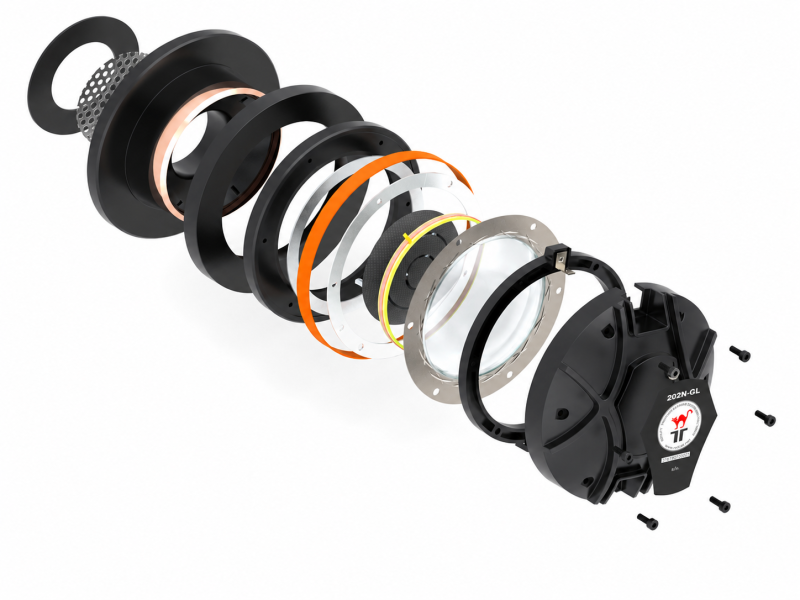

Every compression driver diaphragm is a compromise. Titanium rings. Polymers soften detail. Glass does neither. The 202N-GL is built around a precision-formed glass dome — the only one of its kind in the world — pairing metal-like stiffness with the natural internal damping metals can't offer. Breakup is pushed out of the working band, so the response stays smooth and controlled from 1 kHz to 20 kHz, exactly as the Klippel measurements show. Behind the glass: a 3" copper-clad aluminium ribbon voice coil on a kapton former, a powerful neodymium motor and a PEI surround, delivering 109.5 dB sensitivity from a package just 58 mm deep and 1.9 kg light.
Specifications
General Specs
Nominal Diameter
3"
Rated Impedance
8 Ohm
Magnet
Neodymium
Power Handling
AES Power
70 W
Continuous Power
140 W
Peak Power
280 W
Voice Coil
Winding Wire
CCAR
Former
kapton
Winding Height
2.9 mm
T/S Parameters
Resonant Frequency (Fs)
710.00 Hz
Re
5.90 \u2126
Sensitivity
109.50 dB
Design Details
Surround Material
PEI
T-Plate
3 mm
Overall Diameter
112.00 mm
Bolt Circle Diameter
102.00 mm
Mounting Holes
4
Depth (flange to rear)
58.00 mm
Net Weight
1.90 kg
Ordering Codes
Product Code
648A
Horn Exit
35mm
Downloads

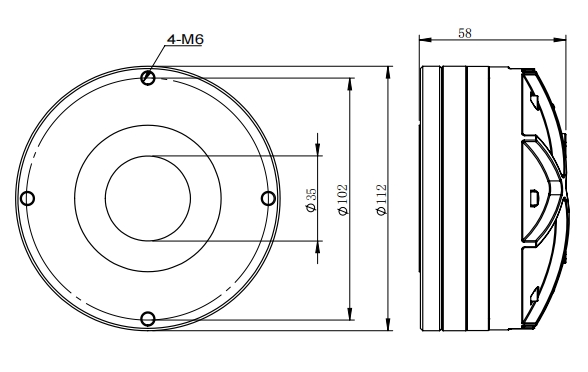

2D Drawing
Frequently Asked Questions
- - World's only glass diaphragm
- - Breakup-free response to 20 kHz
- - 109.5 dB sensitivity, 70 W AES / 280 W peak
Premium two-way PA tops, touring & install systems, theatre sound, 1.4" horns demanding ultra-smooth extended HF
AES Power: 70 W,
Continuous: 140 W,
Peak: 280 W.
Sensitivity: 109.50 dB (1W/1m).
