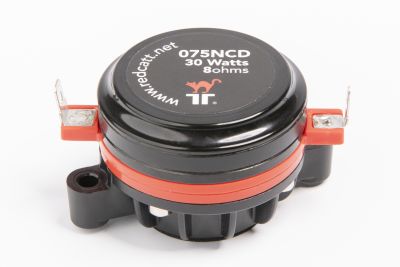

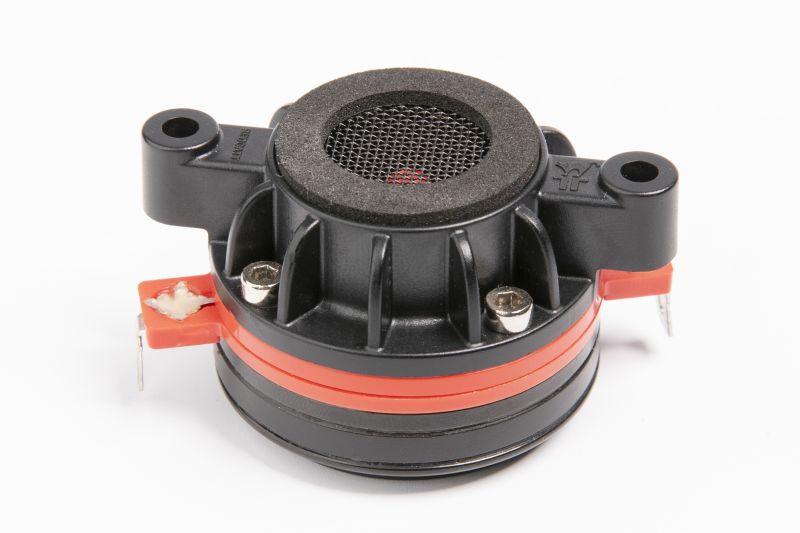

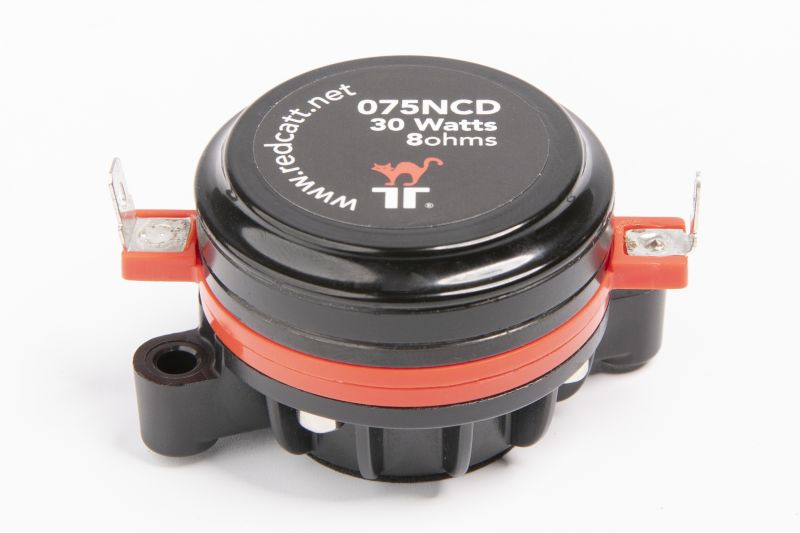

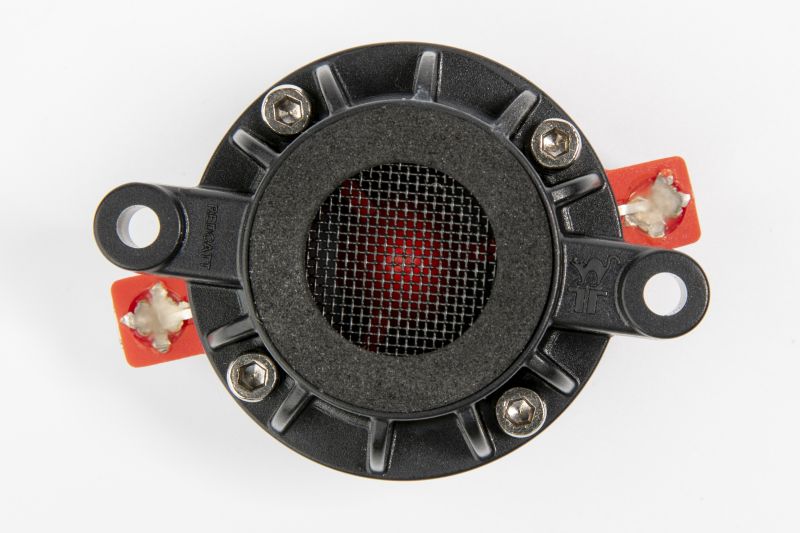

HF
Compression Driver
0.8"
075NCD 4Ω
Code: CD-1-003-4R-B2-C0001
Variant of CD-1-003
Key Features
- Budget sensitive applications
- Easy horn mounting
- 19mm Polyimide diaphragm
Quick Specs
Impedance
4 Ω
Program Power
40 W
Sensitivity
100.00 dB
Fs
2500.00 Hz
Magnet
Neodymium
Voice Coil
0.75 mm
Design Notes
Introducing the cutting-edge 075NCD compression driver, an exceptional high-performance, high-frequency marvel tailored for professional loudspeaker systems, high-output hi-fi setups, and aftermarket car audio installations. Boasting a neodymium-based magnetic circuit, this driver generates a resilient, high-force BL field, guaranteeing precise control over the Polyimide diaphragm assembly. Delivering unrivaled frequency response and robust power handling capabilities, all through a sleek 0.75-inch exit throat.
Diaphragm Design:
Featuring a 19mm Polyimide diaphragm meticulously crafted as a single piece, alongside a Polyimide suspension that ensures superior durability. The unparalleled acoustic output is channeled through a bullet phase plug coupled with a 0.75-inch throat aperture.
Diaphragm Design:
Featuring a 19mm Polyimide diaphragm meticulously crafted as a single piece, alongside a Polyimide suspension that ensures superior durability. The unparalleled acoustic output is channeled through a bullet phase plug coupled with a 0.75-inch throat aperture.
Specifications
General Specs
Nominal Diameter
0.8"
Rated Impedance
4 Ohm
Magnet
Neodymium
Power Handling
AES Power
20 W
Continuous Power
40 W
Peak Power
80 W
Voice Coil
Diameter
0.75 mm
Winding Wire
CCAW
Former
Kapton
Winding Height
2.2 mm
T/S Parameters
Resonant Frequency (Fs)
2500.00 Hz
Re
4.00 \u2126
Sensitivity
100.00 dB
Design Details
T-Plate
2.9 mm
Overall Diameter
59.50 mm
Bolt Circle Diameter
53.00 mm
Mounting Holes
2
Depth (flange to rear)
33.38 mm
Net Weight
0.17 kg
Ordering Codes
Product Code
CD-1-003-4R-B2-C0001
Horn Exit
19
Downloads
Covered by the REDCATT 3-year Limited Warranty.

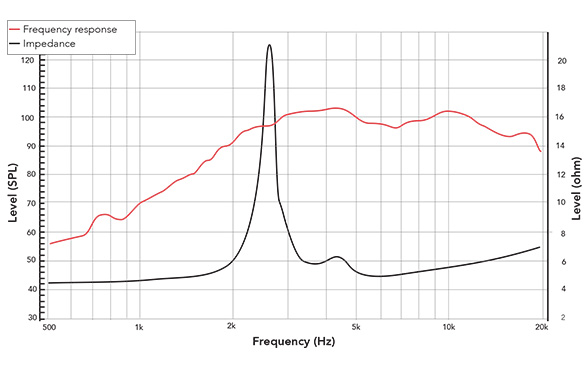

Frequency Response & Impedance

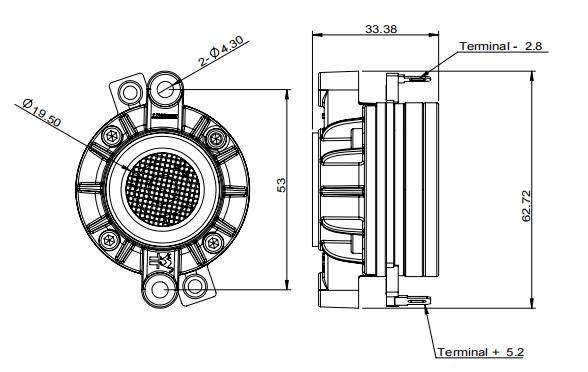

2D Drawing
Frequently Asked Questions
- - Budget sensitive applications
- - Easy horn mounting
- - 19mm Polyimide diaphragm
AES Power: 20 W,
Continuous: 40 W,
Peak: 80 W.
Sensitivity: 100.00 dB (1W/1m).
