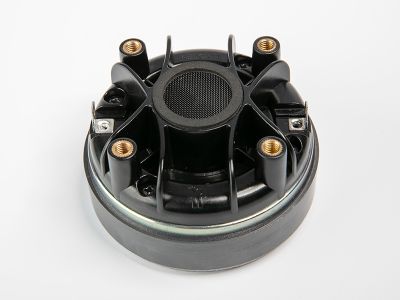

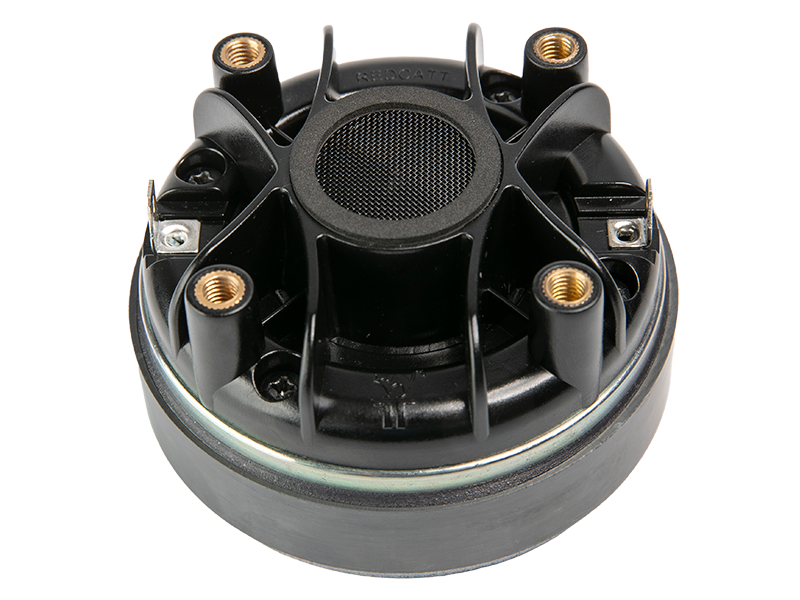

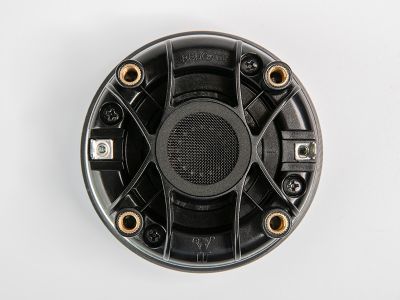

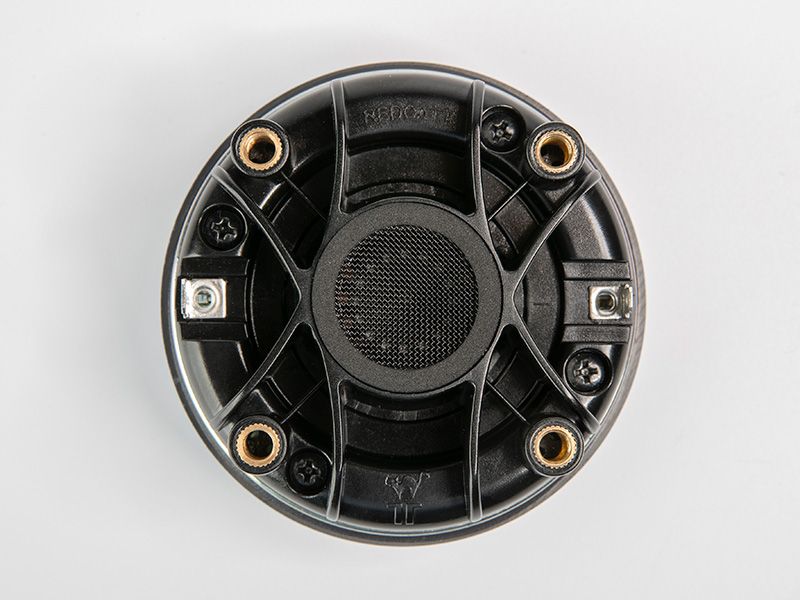

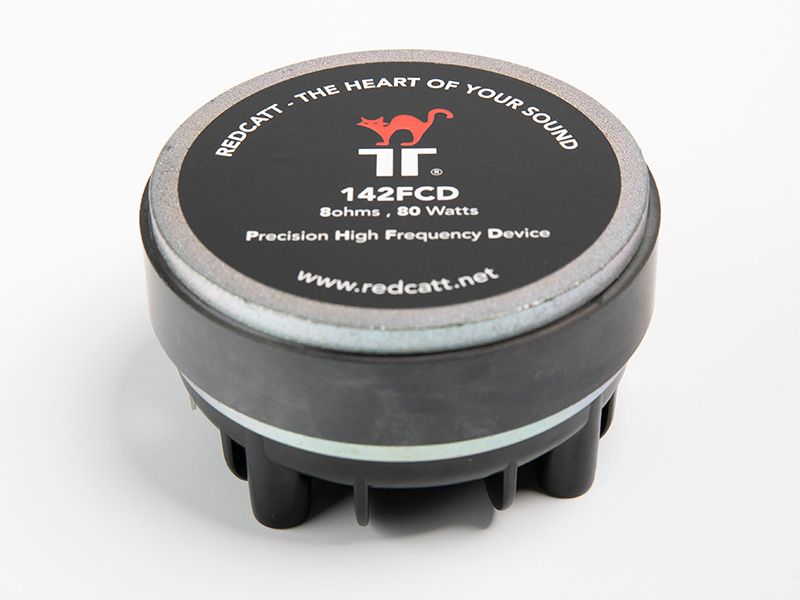

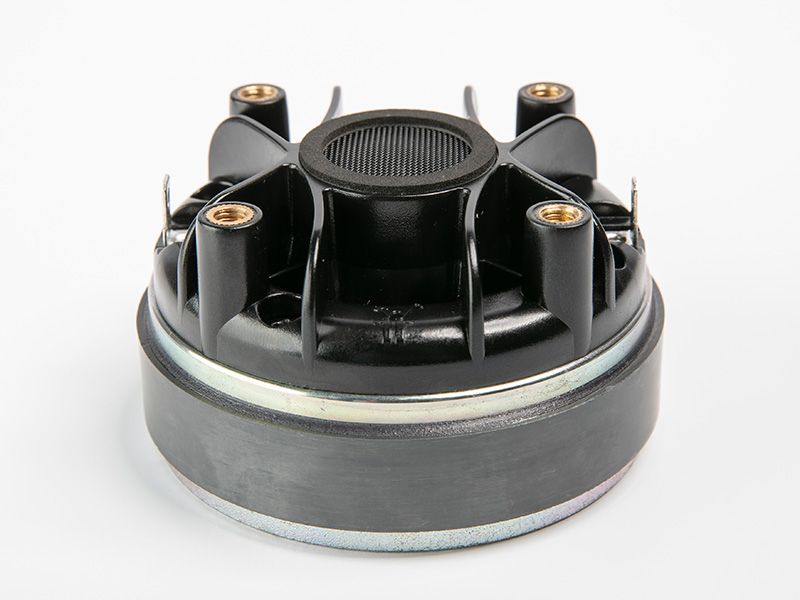

142FCD

Introducing our latest innovation – the 142FCD compression driver! Developed using advanced FEM techniques, this driver outperforms many of our competitor products. With a resonant frequency of 1kHz, it allows for a lower frequency crossover point, while delivering very high SPL and a natural rolloff in high frequencies, making it a breeze to implement in your high-quality sound systems.

But that's not all – our state-of-the-art robotic dome forming is at play here too. The result? Highly precise and consistent polymer domes that further elevate the exceptional performance of this driver.

Moreover, the robust ferrite magnetic circuit delivers a high B field to the edge-wound voice coil, which is carefully attached to the dome by the best available adhesives. This not only ensures precise and consistent performance but also enhances the high power handling capabilities of the 142FCD compression driver. Experience the next level of audio quality with the 142FCD compression driver - where innovation meets superior craftsmanship.

The 142FCDX8-557A is a 1.4-inch ferrite compression driver rated at 35 W AES (70 W continuous) into a nominal 8-ohm load. Sensitivity is 105 dB (1 W/1 m). With a free-air resonance of 1,000 Hz and a 25.4 mm horn exit, this driver offers the highest power rating in the 1.4-inch ferrite family, combined with the low Fs of the extended-response variants. The 8-ohm impedance provides direct compatibility with standard professional PA amplifier channels without the need for low-impedance rated output stages. The polymer diaphragm on a 35.6 mm voice coil provides excellent thermal performance supporting the 35 W AES power rating.

The frequency response is usable from approximately 900 Hz with horn loading, with a flat plateau of 103-107 dB maintained from approximately 1.2 kHz to 15 kHz. The low Fs (1,000 Hz) and high power rating make this driver well suited to systems requiring both extended low-frequency coverage from the compression driver and sustained high-power operation. The 25.4 mm exit is compatible with standard 1-inch family horns via appropriate adapters.

The driver is rated for 35 W AES into 8 ohms and is suited for high-power 2-way PA tops and touring monitor systems. A crossover frequency of 1,000-1,800 Hz (18-24 dB/octave high-pass) is recommended, leveraging the low Fs and high power handling. Good to use with 12-15-inch professional woofers such as 12NPMX8-054, 15NPWX8-016, 15FPMX8-063, or 15FINDX8-035 in 2-way high-power touring PA top and stage monitor designs.

The 142FCDX8-557A is suited for 2-way PA top cabinets, portable column PA systems, and commercial installation products where the combination of low Fs (1,000 Hz), 35 W AES power handling, high SPL, and 8-ohm standard impedance provides a high-performance alternative to 1-inch compression drivers in demanding applications.
