LF
Mid-Woofer
10"
10INOF
Code: DR-10-005-8R-B2-C0001
Woofer/10inch/Ferrite/Paper/250W/8ohm
Quick Specs
Impedance
8 Ω
Program Power
500 W
Sensitivity
95.00 dB
Fs
56.20 Hz
Magnet
Ferrite
Voice Coil
63.5 mm
Specifications
General Specs
Nominal Diameter
10"
Rated Impedance
8 Ohm
Magnet
Ferrite
Basket Material
Steel
Power Handling
AES Power
250 W
Continuous Power
500 W
Peak Power
1000 W
Voice Coil
Diameter
63.5 mm
Winding Wire
Copper
Former
TIL
Winding Height
16.1 mm
T/S Parameters
Resonant Frequency (Fs)
56.20 Hz
Re
7.20 \u2126
Qes
0.320
Qms
3.66
Qts
0.290
Vas
32.75 liters
Sd
349.00 cm\u00B2
Mms
42.38 grams
Rms
4.09
Cms
0.1900
Bl
18.20 T\u00B7m
Le
0.700 mH
Sensitivity
95.00 dB
Design Details
Surround Material
fabric
Cone/Dome Material
Paper CF
Spider
Nomex
T-Plate
8 mm
Xmax (peak)
4.05 mm
Xmech
12.05 mm
Overall Diameter
256.00 mm
Bolt Circle Diameter
246.50 mm
Baffle Cutout Dia.
228.50 mm
Mounting Holes
8
Depth (flange to rear)
109.50 mm
Net Weight
4.50 kg
Ordering Codes
Product Code
DR-10-005-8R-B2-C0001
Downloads

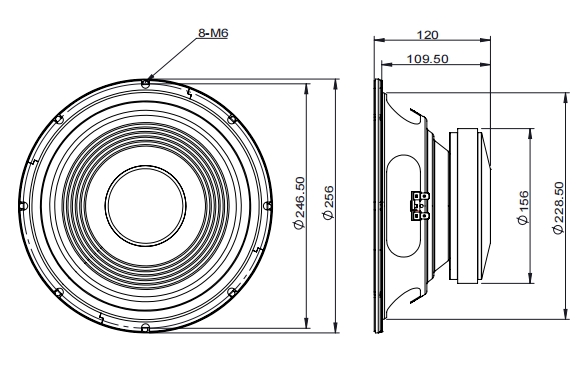

2D Drawing
Technical Summary

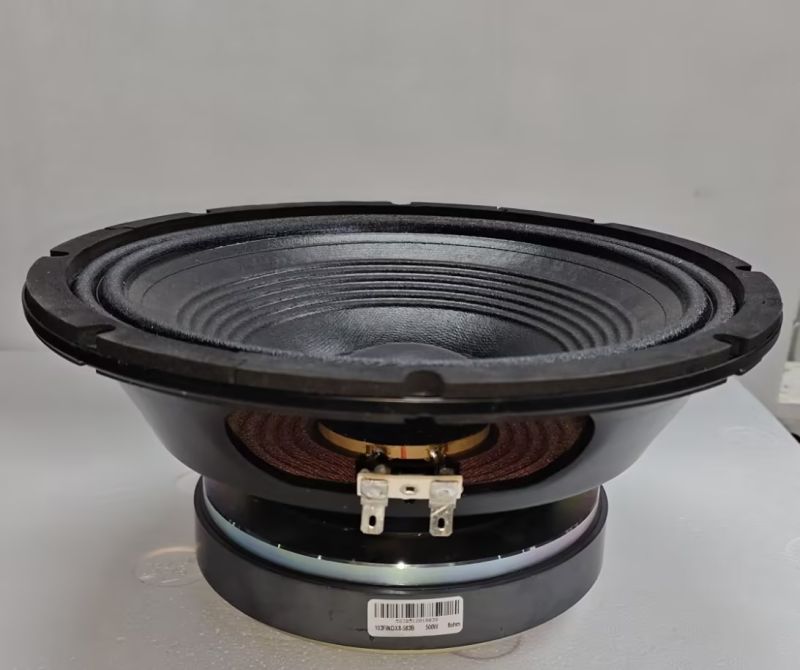

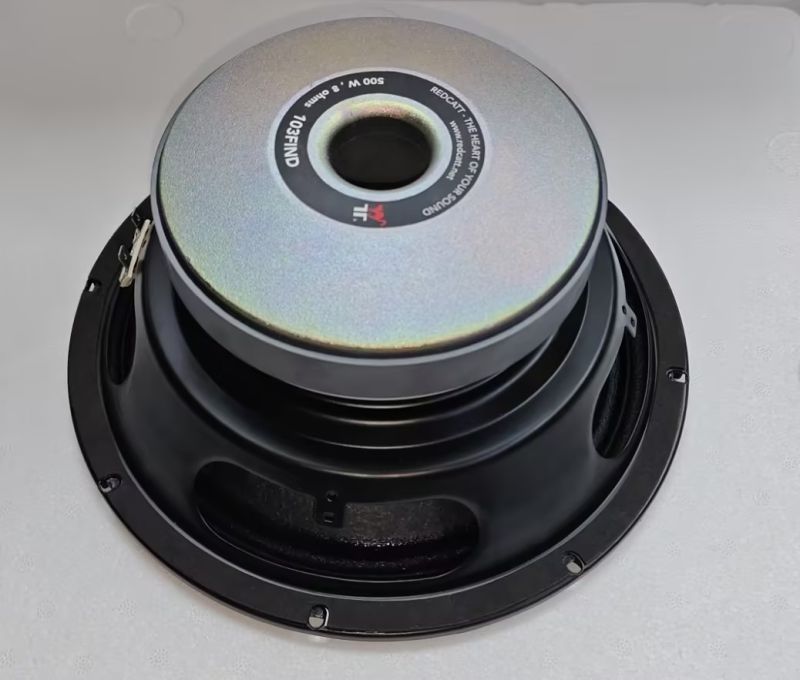

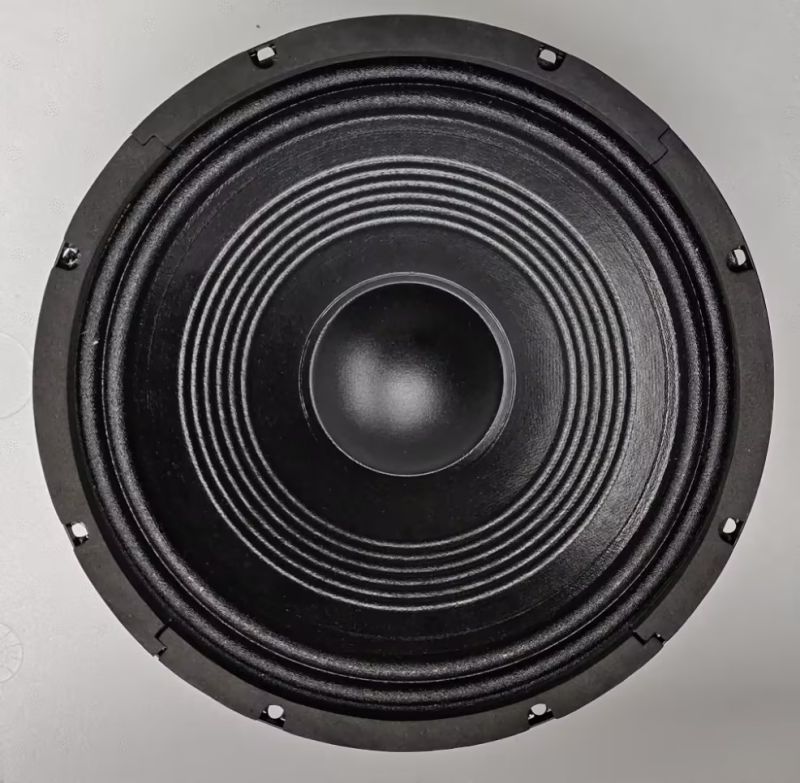

The 103FINDX8-583B is a 10-inch ferrite mid-woofer designed for professional 2-way PA speaker systems, compact touring cabinets, and permanent installation enclosures crossed to a compression driver or horn. It features a carbon fiber paper cone, fabric surround, Nomex spider, and a 63.5mm copper voice coil on a Titanium Imide Laminate (TIL) former, providing high thermal stability for sustained high-power operation. Sensitivity is 95 dB (1W/1m). With a Qts of 0.29, this driver uses a low Qts, high motor strength design optimized to maintain consistent performance at high drive levels, with controlled excursion and reduced thermal compression during long-term operation.
The 103FINDX8-583B handles approx. 250 W AES and 500 W continuous power, with a peak SPL of 119 dB at 1 metre (AES) and 122 dB at continuous rated power. A high-pass filter in the 45-60 Hz range is recommended depending on alignment. The operating bandwidth is approximately 65-1,000 Hz, with cone beaming onset near 1,039 Hz and inductance rolloff near 1,637 Hz; a crossover to a compression driver on horn at 800 Hz to 1.5 kHz is required. Third or fourth-order crossover slopes are recommended to control directivity above 1,039 Hz.
This driver is suited for compact single-driver vented 2-way PA touring cabinets; 2-way portable and installed PA enclosures for live sound and fixed venue reinforcement; stage monitor wedges crossed to a compression horn at 1 kHz; and installed permanent-mount 2-way enclosures in venues where a dedicated subwoofer is available. The high motor strength, TIL former, Nomex spider, and fabric surround prioritize consistent output and thermal reliability during sustained high-power operation.
The 103FINDX8-583B handles approx. 250 W AES and 500 W continuous power, with a peak SPL of 119 dB at 1 metre (AES) and 122 dB at continuous rated power. A high-pass filter in the 45-60 Hz range is recommended depending on alignment. The operating bandwidth is approximately 65-1,000 Hz, with cone beaming onset near 1,039 Hz and inductance rolloff near 1,637 Hz; a crossover to a compression driver on horn at 800 Hz to 1.5 kHz is required. Third or fourth-order crossover slopes are recommended to control directivity above 1,039 Hz.
This driver is suited for compact single-driver vented 2-way PA touring cabinets; 2-way portable and installed PA enclosures for live sound and fixed venue reinforcement; stage monitor wedges crossed to a compression horn at 1 kHz; and installed permanent-mount 2-way enclosures in venues where a dedicated subwoofer is available. The high motor strength, TIL former, Nomex spider, and fabric surround prioritize consistent output and thermal reliability during sustained high-power operation.
Recommended enclosure volumes are simulated results. For best enclosure volumes and tuning, we recommend secondary simulation and careful evaluation. Several rounds of samples and fine-tuning may be required for optimal results.
Enclosure Recommendations
Recommended enclosure alignments (bass reflex): - 30 liters tuned to 59 Hz: high output, strong mid-bass, reduced excursion; -3 dB approx. 54 Hz, HP filter 51 Hz - 35 liters tuned to 51 Hz: balanced response, general-purpose (recommended); -3 dB approx. 43 Hz, HP filter 41 Hz - 45 liters tuned to 45 Hz: extended low-frequency, requires HP filter protection; -3 dB approx. 38 Hz, HP filter 33 Hz
Frequently Asked Questions
Recommended enclosure alignments (bass reflex): - 30 liters tuned to 59 Hz: high output, strong mid-bass, reduced excursion; -3 dB approx. 54 Hz, HP filter 51 Hz - 35 liters tuned to 51 Hz: balanced response, general-purpose (recommended); -3 dB approx. 43 Hz, HP filter 41 Hz - 45 liters tuned to 45 Hz: extended low-frequency, requires HP filter protection; -3 dB approx. 38 Hz, HP filter 33 Hz
Vented or sealed pa bass-mid; sub assist below 80 hz recommended
AES Power: 250 W,
Continuous: 500 W,
Peak: 1000 W.
Sensitivity: 95.00 dB (1W/1m).
