LF
Sub-woofer
5"

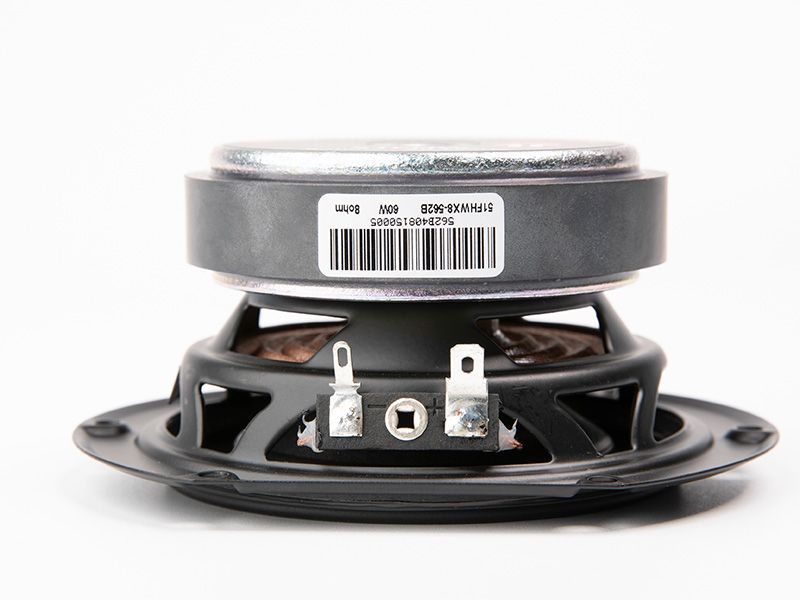

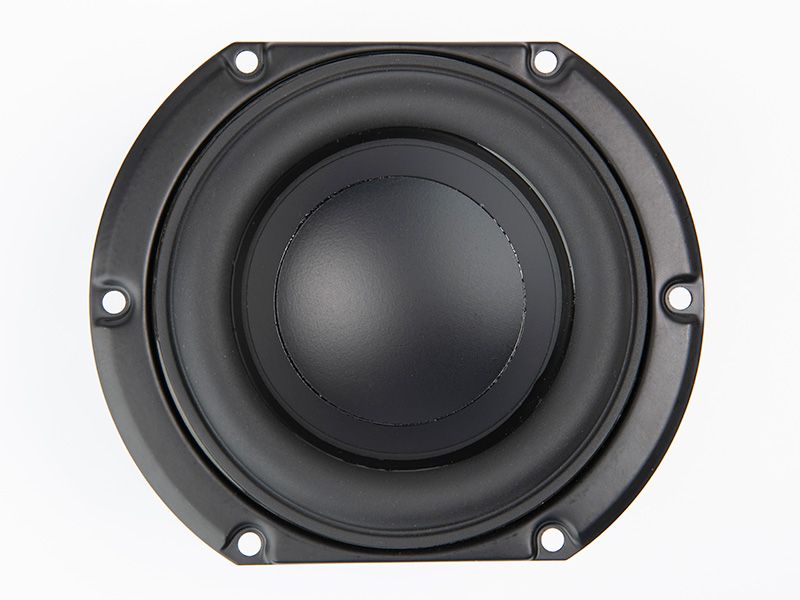

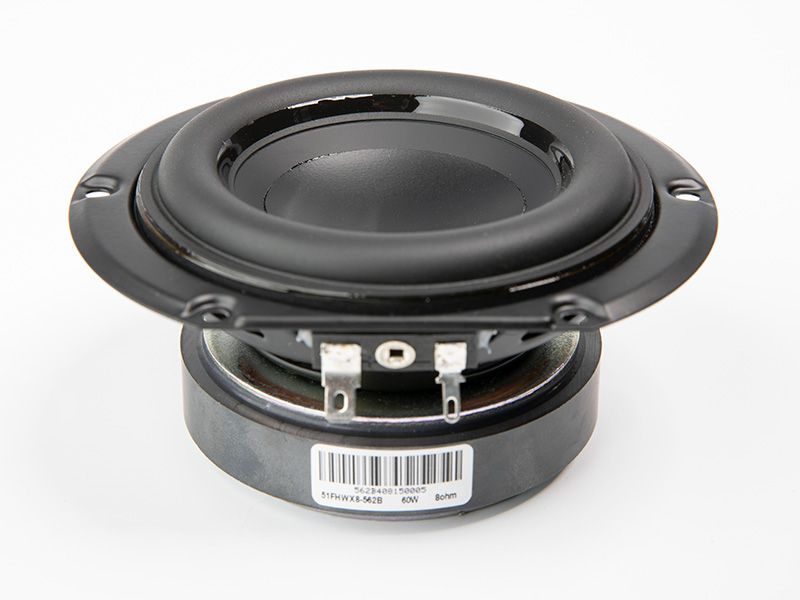

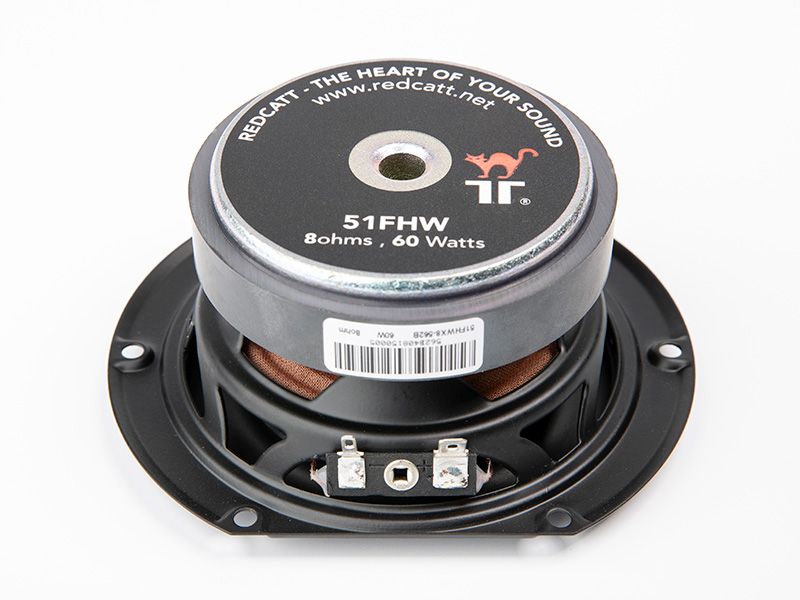

51FHW
Code: DR-5-003-8R-B2-C0001
REDCATT 51FHW 5-inch ferrite professional subwoofer driver: 30 W AES, 85 dB sensitivity, 8 Ω, Fs 57 Hz, 25.4 mm voice coil. Full T/S parameters, datasheet, 2D drawing and STEP CAD file.
Key Features
- Wide frequency range
- Very low harmonic distortion
Quick Specs
Impedance
8 Ω
Program Power
60 W
Sensitivity
85.00 dB
Fs
57.00 Hz
Magnet
Ferrite
Voice Coil
25.4 mm
Design Notes
Introducing the 51FHW, a compact yet powerful woofer that redefines performance in our product lineup. Engineered with an optimized cone, surround, dust cap, and spider design, this woofer utilizes advanced materials and a cutting-edge magnetic circuit to deliver exceptional sound quality across a wide frequency range. Experience minimal breakup modes and harmonic distortion artifacts, allowing for crystal-clear audio reproduction. With the capability to perform seamlessly up to 15kHz, the 51FHW is the perfect choice for those seeking a well-balanced and high-performing solution in a compact form. Elevate your audio experience with the 51FHW!
Specifications
General Specs
Nominal Diameter
5"
Rated Impedance
8 Ohm
Magnet
Ferrite
Basket Material
Steel
Power Handling
AES Power
30 W
Continuous Power
60 W
Peak Power
120 W
Voice Coil
Diameter
25.4 mm
Winding Wire
CCAW
Former
Aluminum
Winding Height
12.5 mm
T/S Parameters
Resonant Frequency (Fs)
57.00 Hz
Re
6.90 Ω
Qes
0.340
Qms
3.90
Qts
0.310
Vas
3.28 liters
Sd
52.80 cm²
Mms
8.60 grams
Rms
0.79
Cms
0.9075
Bl
8.10 T·m
Le
0.640 mH
Sensitivity
85.00 dB
Design Details
Cone/Dome Material
Paper
Spider
Nomex
T-Plate
4 mm
Xmax (peak)
4.25 mm
Xmech
8.25 mm
Overall Diameter
123.80 mm
Bolt Circle Diameter
114.00 mm
Baffle Cutout Dia.
94.00 mm
Mounting Holes
6
Depth (flange to rear)
50.50 mm
Net Weight
0.85 kg
Ordering Codes
Product Code
DR-5-003-8R-B2-C0001
Downloads
Covered by the REDCATT 3-year Limited Warranty.

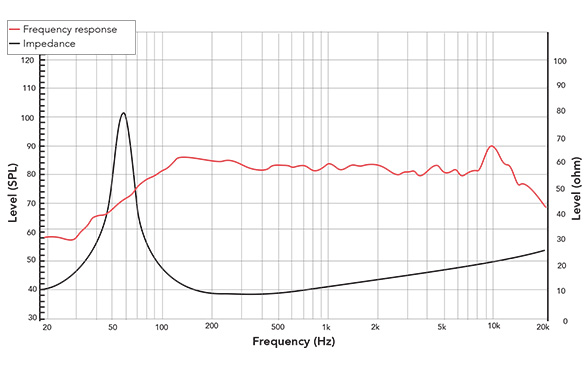

Frequency Response & Impedance

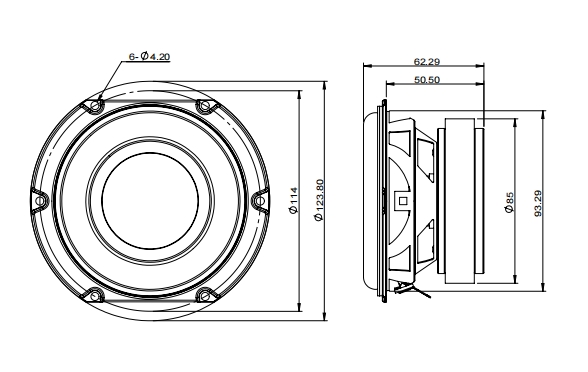

2D Drawing
Frequently Asked Questions
- - Wide frequency range
- - Very low harmonic distortion
AES Power: 30 W,
Continuous: 60 W,
Peak: 120 W.
Sensitivity: 85.00 dB (1W/1m).
